Model # LSR5132JQ0 Official Whirlpool compact washer

Here are the diagrams and repair parts for Official Whirlpool LSR5132JQ0 compact washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

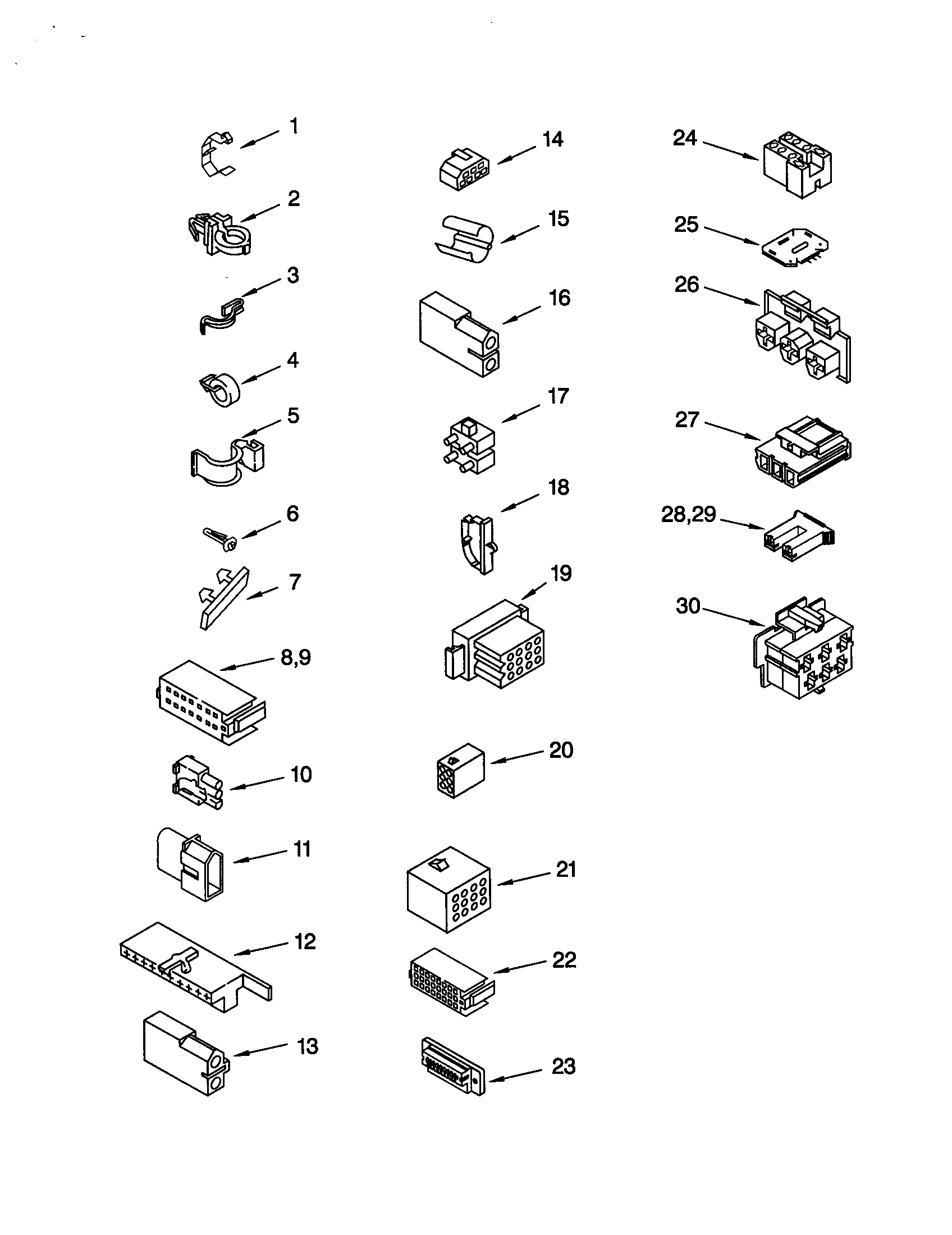

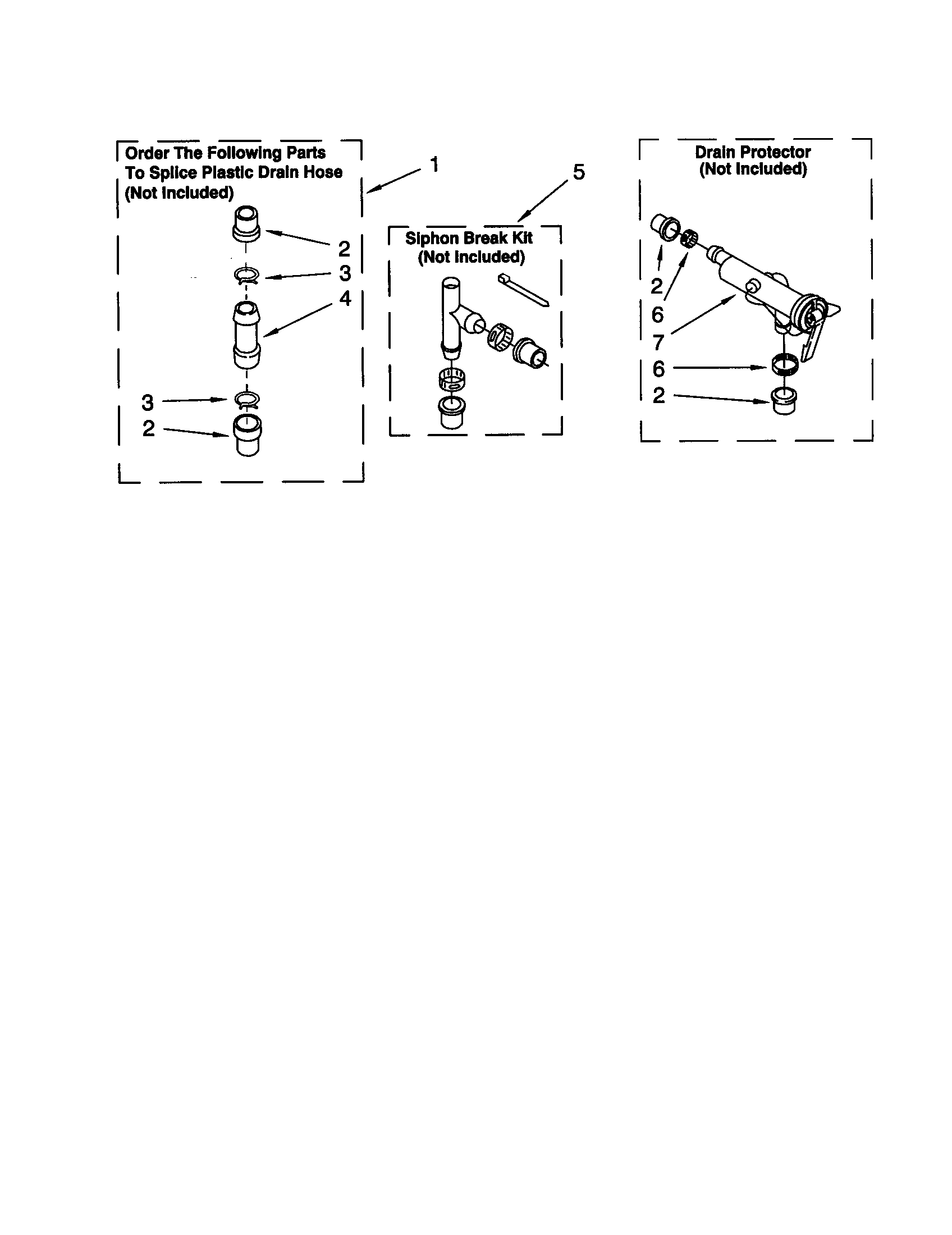

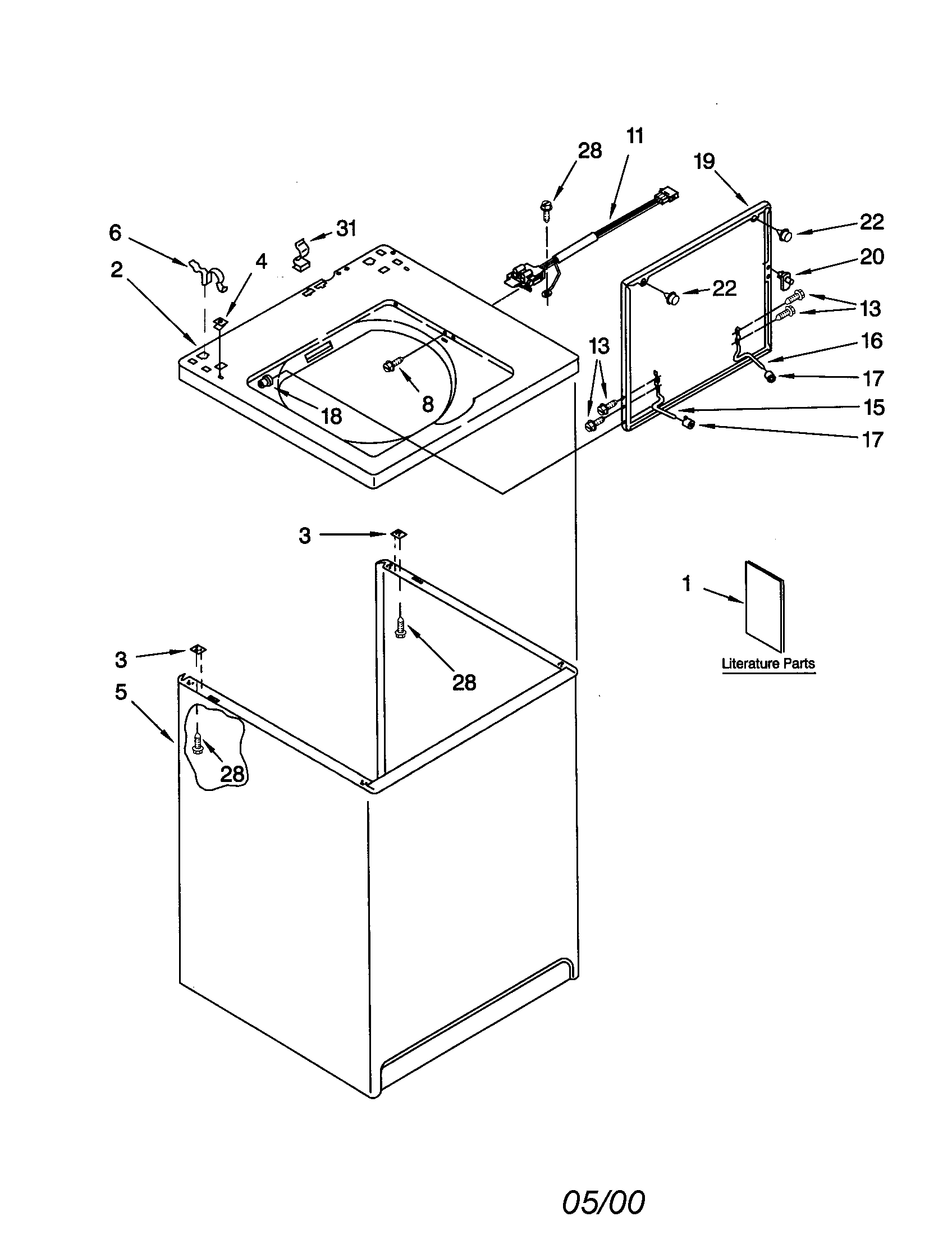

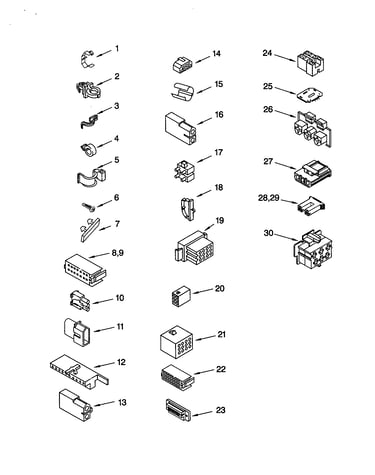

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 175 parts  |

Coupling 3364003
#13

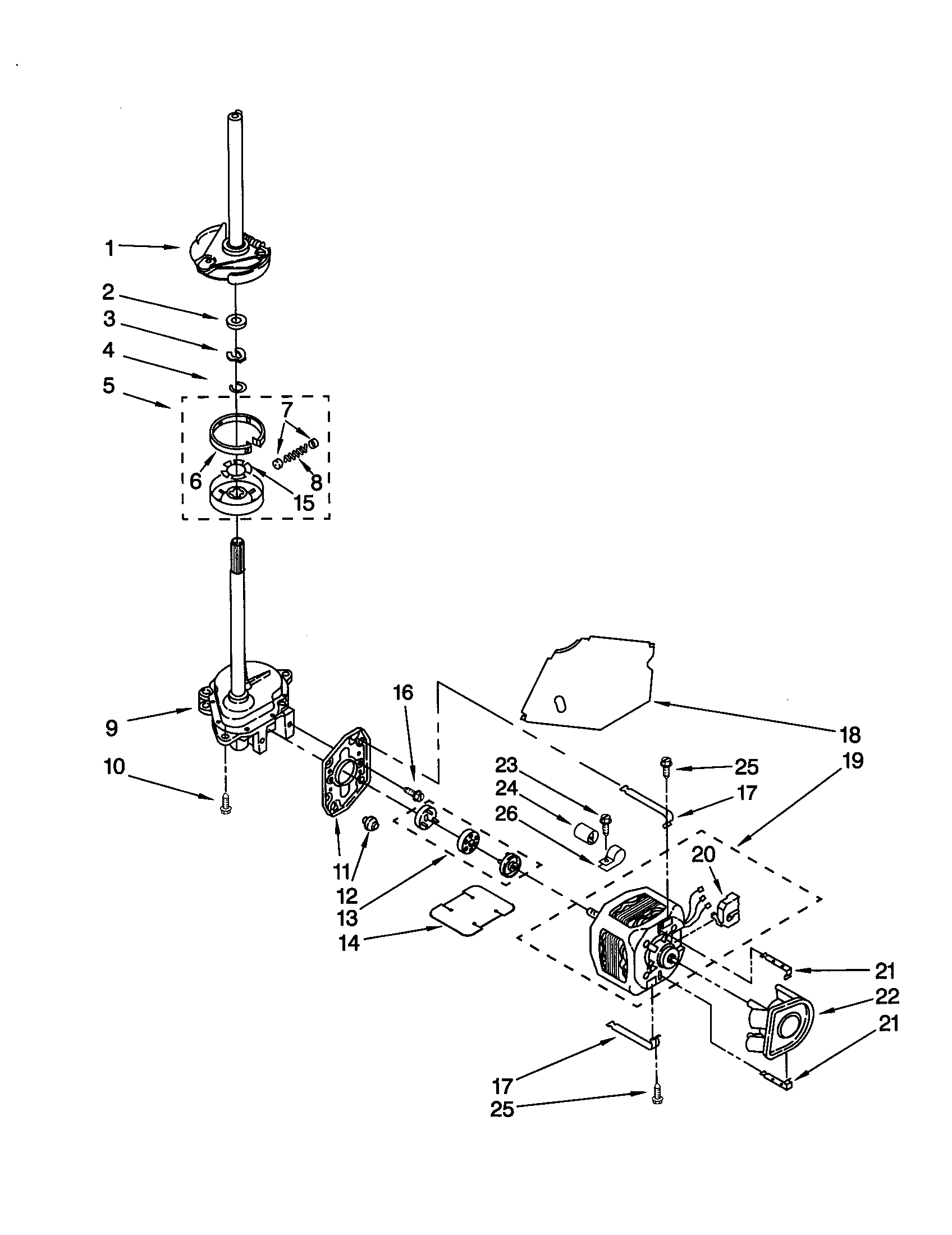

Brake/clutch/gearcase/motor/pump diagram

Coupling

Part #3364003

Replaced by #285753A

?
Manufacturer substitution
This part replaces 3364003. Substitute parts can look different from the original.
BEST SELLER
$24.29
20% OFF Phone Price : $30.50
In Stock
Washer Drain Pump 3363394
#22

Brake/clutch/gearcase/motor/pump diagram

Washer drain pump

Part #3363394

Replaced by #WP3363394

?
Manufacturer substitution
This part replaces 3363394. Substitute parts can look different from the original.
BEST SELLER
$37.32
20% OFF MSRP : $46.50
In Stock
Washer Agitator Bolt 358237
#2

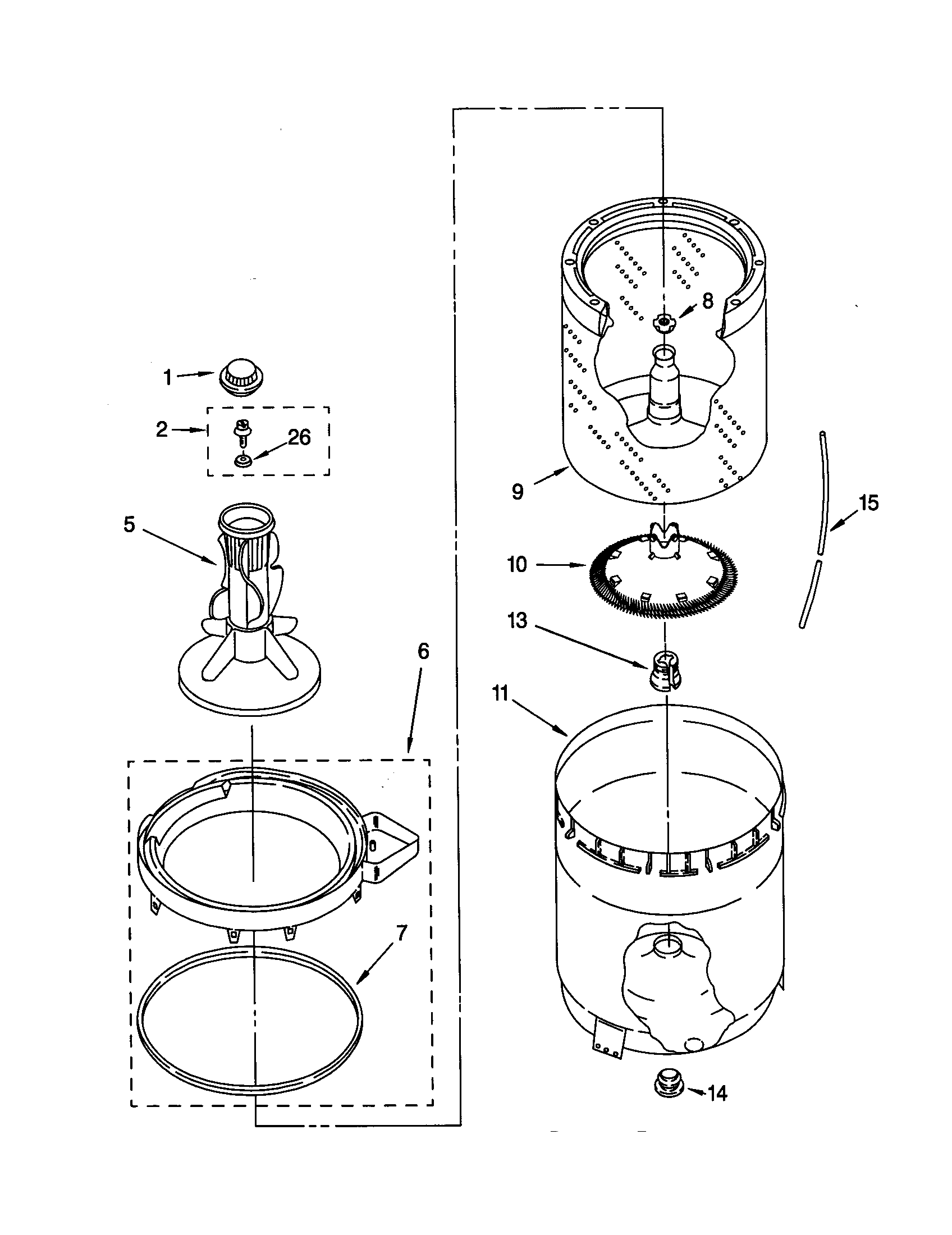

Agitator,basket and tub diagram

Washer agitator bolt

Part #358237

Replaced by #WP358237

?
Manufacturer substitution
This part replaces 358237. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.94
58% OFF MSRP : $14.00
In Stock
Washer Inlet Valve 3952164
#18

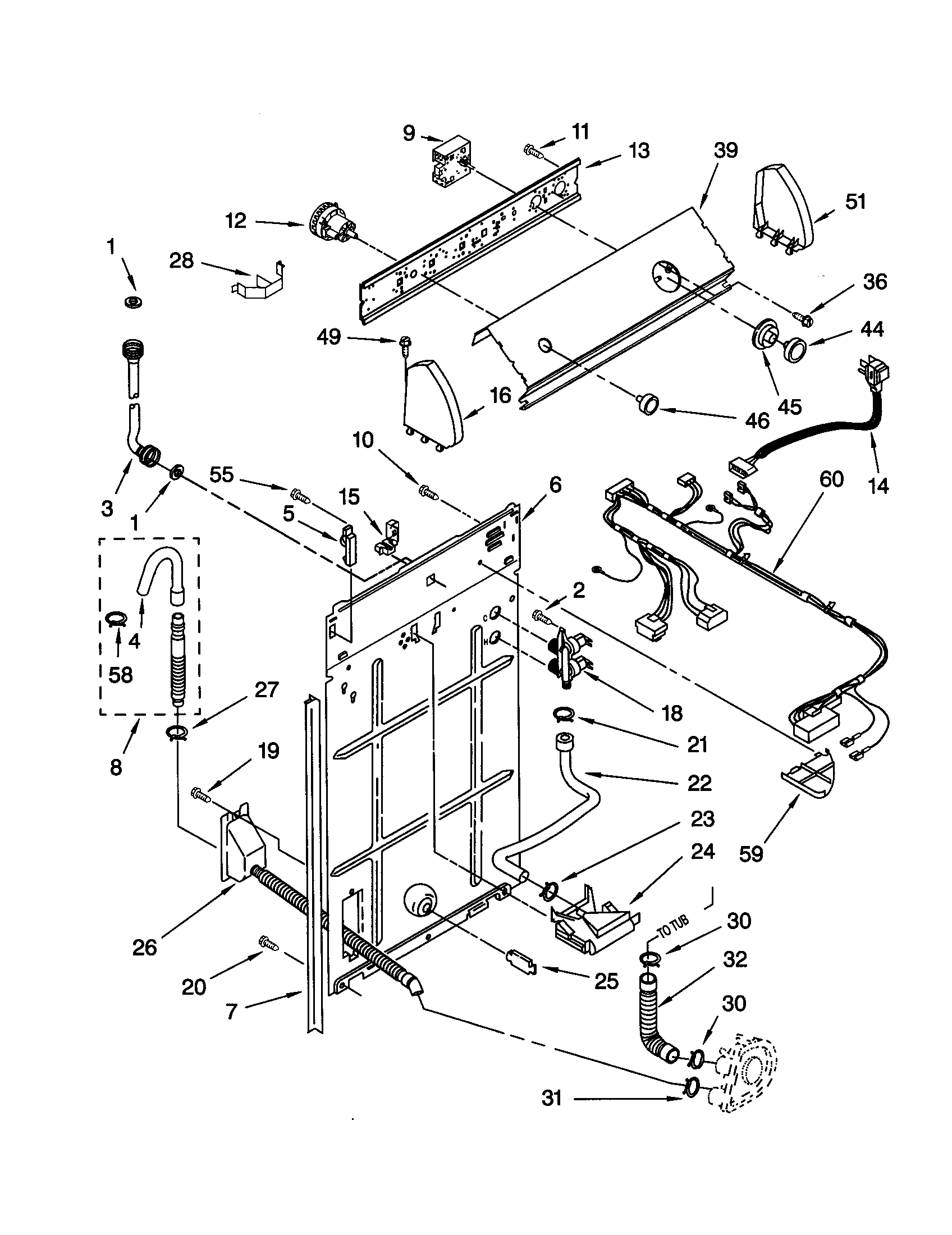

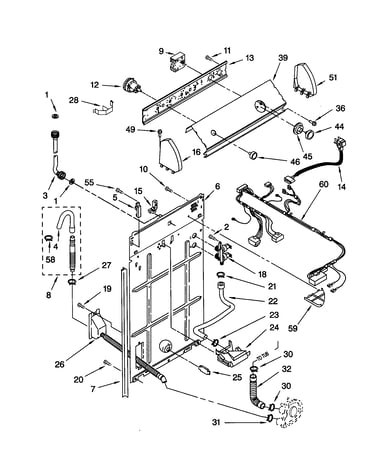

Controls and rear panel diagram

Washer inlet valve

Part #3952164

Replaced by #285805

?
Manufacturer substitution
This part replaces 3952164. Substitute parts can look different from the original.
BEST SELLER
$27.47
14% OFF MSRP : $32.00
In Stock
Washer Tub Gasket 383727
#14

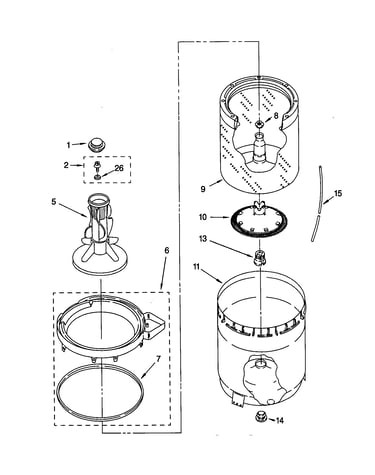

Agitator,basket and tub diagram

Washer tub gasket

Part #383727

Replaced by #W10814296

?
Manufacturer substitution
This part replaces 383727. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.44
77% OFF MSRP : $15.00
In Stock
Washer Suspension Spring 63907
#3

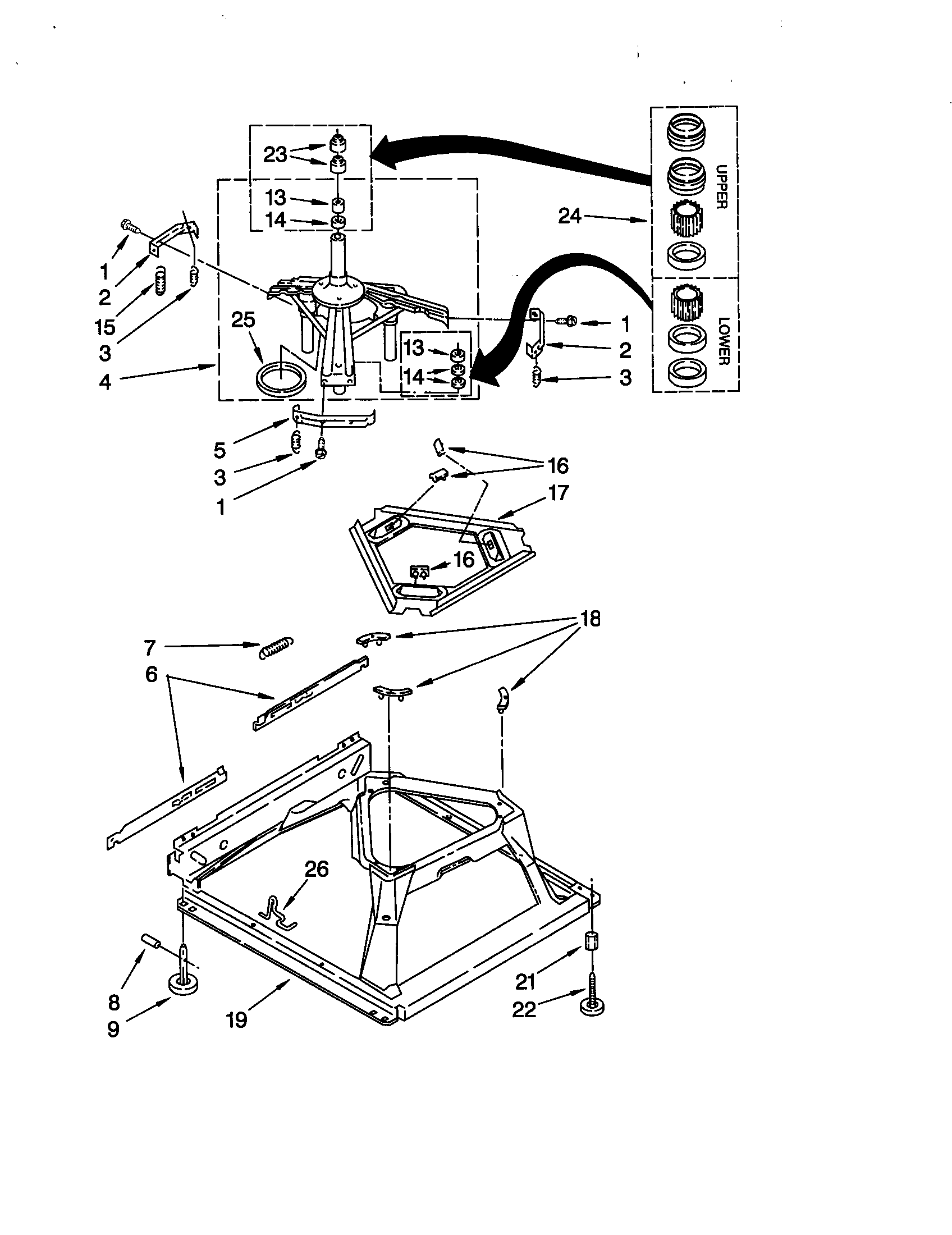

Machine base diagram

Washer suspension spring

Part #63907

Replaced by #WP63907

?
Manufacturer substitution
This part replaces 63907. Substitute parts can look different from the original.
BEST SELLER
$7.22
52% OFF MSRP : $15.00
In Stock
Counterweight Spring (red) 388492
#15

Machine base diagram

Counterweight spring (red)

Part #388492

Replaced by #WPW10250667

?
Manufacturer substitution
This part replaces 388492. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.81
73% OFF MSRP : $14.00
In Stock
Gear Case 3360630
#9

Brake/clutch/gearcase/motor/pump diagram

Gear case

Part #3360630

Replaced by #3360629

?
Manufacturer substitution
This part replaces 3360630. Substitute parts can look different from the original.
BEST SELLER
$248.07
7% OFF Phone Price : $265.74
In Stock
Appliance Spray Paint (white) (replaces 094566-64, 206923, 2780-0001, 4395978, 5303203125, 66208, 788343, 799343, 799433, 99343, A0050702, F94566-010, Y057937, Y350930) 350930

#NI

All parts diagram

Appliance spray paint (white) (replaces 094566-64, 206923, 2780-0001, 4395978, 5303203125, 66208, 788343, 799343, 799433, 99343, a0050702, f94566-010, y057937, y350930)

Part #350930

BEST SELLER
This item is not returnable
$15.69
11% OFF Phone Price : $17.69
In Stock
Drain Hose 3361805
#26

Controls and rear panel diagram

Drain hose

Part #3361805

Replaced by #WPW10358149

?
Manufacturer substitution
This part replaces 3361805. Substitute parts can look different from the original.
BEST SELLER
$26.85
19% OFF MSRP : $33.00
In Stock
