Kenmore Elite 10646023800 side-by-side refrigerator Parts

A Kenmore Elite refrigerator like model 10646023800 typically lasts 10 to 15 years. With good airflow, clean condenser coils, and tight door seals, many units reach the upper end of that range; major sealed-system or control failures are what usually end service life.

What affects lifespan the most

• Condenser coil cleanliness (dust buildup raises compressor workload)
• Door gasket condition (air leaks cause long run times and frost issues)
• Stable temperatures (freezer around 0°F, fresh food around 37°F)
• Ice maker and dispenser use (more moving parts, more wear)
• Water quality and filter changes (helps protect the water system)

Quick maintenance checklist (high impact)

• Vacuum the condenser area and keep the base grille clear.
• Confirm doors close fully and the gaskets seal all the way around.
• Replace the water filter on schedule; this model uses a base grille filter style (see the 10646023800 owner's manual).
• Keep vents inside the refrigerator and freezer unblocked.
• Level the refrigerator so doors self-close and don’t hang open.

Common “end-of-life” symptoms and what they usually mean

Symptom	Most common cause	Typical next step
Warm refrigerator and freezer	Sealed system or compressor issue	Professional diagnosis recommended
Freezer cold, refrigerator warm	Airflow/defrost problem	Check evaporator fan, frost pattern
No ice, no water dispensing	Filter restriction or water supply issue	Replace filter, verify supply
Temps swing or won’t hold setpoint	Control or sensor issue	Check diagnostics in manual

Why it matters

Once a refrigerator is past about 10 years, a single major repair (compressor, evaporator, electronic control) can cost enough that many owners choose replacement. Regular maintenance helps you avoid the run-time stress that shortens compressor life.

Last updated: January 2026

Common problems we see on the Kenmore Elite side-by-side refrigerator model 10646023800 are poor cooling, frost buildup, dispenser or ice maker issues, and unusual noises. Many fixes start with basic maintenance and airflow checks, then move to testing components listed in the 10646023800 owner's manual.

Most common symptoms and what usually causes them

• Not cooling or warm temperatures: dirty condenser coils, restricted airflow, failed evaporator fan, or control issues
• Excessive frost or ice buildup: defrost system problem, door not sealing, or frequent door openings
• No ice or slow ice production: water supply issue, clogged filter, or ice maker failure
• Water dispenser slow or not dispensing: low water pressure, kinked line, or clogged filter
• Buzzing, clicking, or rattling: fan blade interference, compressor start issues, or loose panels

Quick checks we recommend first

1. Confirm doors close fully and gaskets seal all the way around.
2. Make sure vents inside both compartments are not blocked by food packages.
3. Verify the refrigerator is connected to a cold water line with at least 30 psi (207 kPa) water pressure.
4. If a filter is installed, reseat it and replace it if flow is weak.
5. Listen for where the noise comes from (freezer rear wall often points to evaporator fan area).

Parts that commonly solve these problems (when symptoms match)

Symptom	Common part to check	Example part for this model
Slow water dispensing, poor ice output	Water filter	Genuine Kenmore refrigerator water filter EDR3RXD1
No ice, intermittent ice	Ice maker assembly	Refrigerator ice maker 2198597

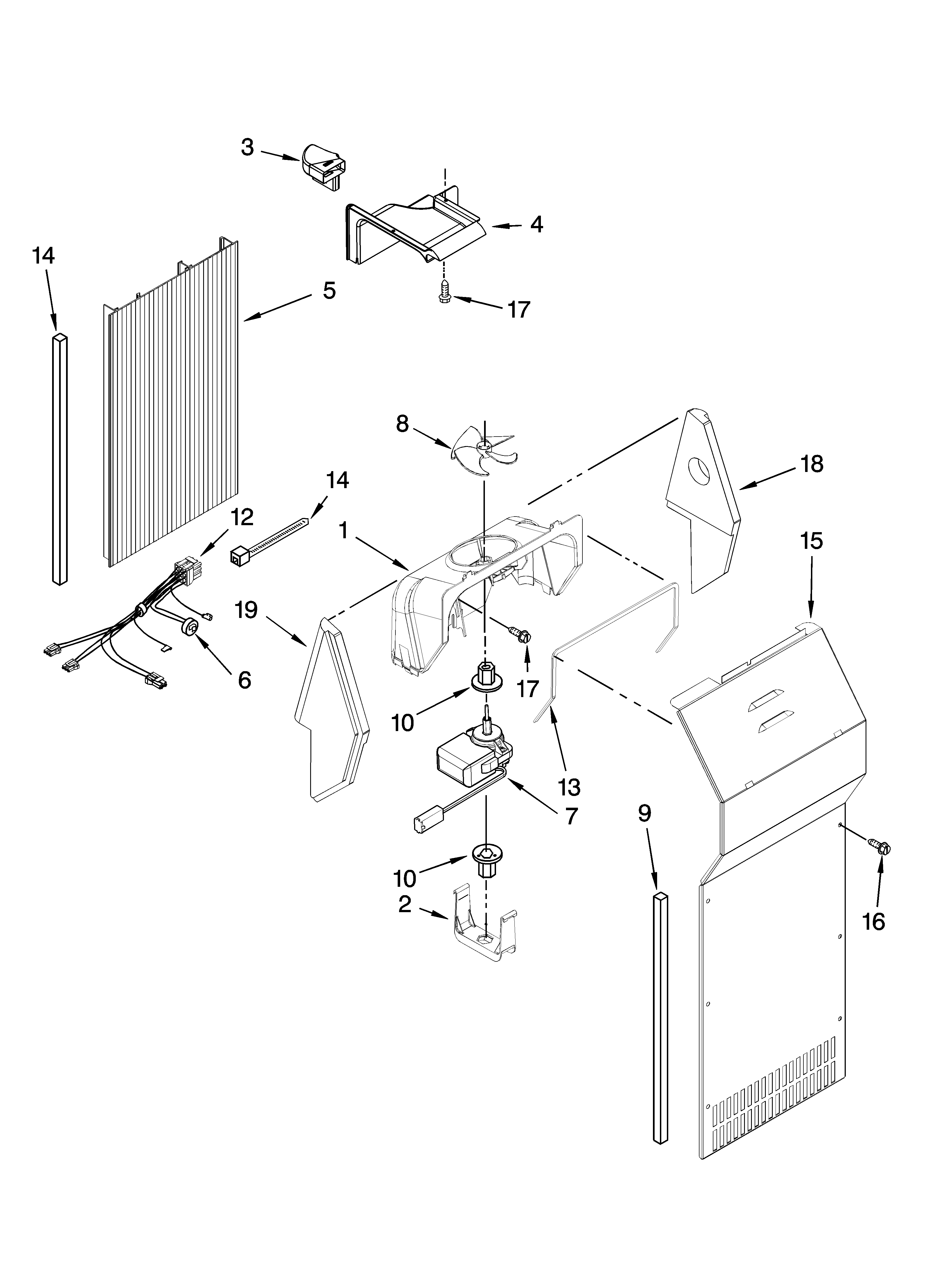

Rattling or airflow noise	Fan blade	Refrigerator evaporator fan blade WP2169142
Temperature swings	Electronic control	Refrigerator electronic control W11629974

Why it matters

Cooling and ice maker complaints often trace back to airflow or water supply. For this model, the manual highlights that low water pressure, a kinked supply line, or a clogged/incorrectly installed filter can directly reduce dispenser flow and ice performance.

Last updated: January 2026

Yes. For Kenmore Elite model 10646023800, the most reliable reset is a power reset: turn the controls OFF (if your model has an OFF setting), disconnect power for about 5 minutes, then restore power and set the refrigerator and freezer controls back to your normal settings. See the 10646023800 owner's manual for control-panel button functions.

Reset options that work on this model style

Use the least invasive reset first.

• Power reset (recommended): unplug the refrigerator (or switch off the breaker) for ~5 minutes, then power back on.
• Control OFF/ON reset: set the refrigerator control to OFF, disconnect power, then reconnect and reset the control to the desired setting.
• Feature reset (sounds/display): some features reset by holding specific buttons for 3 seconds (for example, TEMP + LOCK for display behavior, or ICE + TEMP for sounds).
• Door alarm reset: close both doors; the door-ajar alarm resets after the doors are closed.

Step-by-step: power reset (safe, common fix)

1. Move the refrigerator and freezer controls to OFF (if available).
2. Unplug the power cord (or turn off the circuit breaker).
3. Wait 5 minutes.
4. Restore power.
5. Set both temperature controls to the midpoint setting, then fine-tune after temperatures stabilize.

What a reset will and will not fix

Symptom	Reset helps?	What to check next
Control panel acting glitchy	Yes	Power supply, loose connections, control settings
Door alarm sounding	Sometimes	Door fully closed, door switch alignment
Not cooling after outage	Sometimes	Airflow, condenser cleanliness, evaporator fan operation
Water/ice issues	Sometimes	Water supply valve open, filter condition, frozen water line

Why it matters

A reset clears temporary control logic issues and restores normal operation after a power interruption. It also forces you to re-establish correct temperature settings so the compressor and fans can regulate cooling properly.

Parts that commonly relate to “reset” complaints

If the issue returns right after a reset, a component may be failing.

• Refrigerator electronic control W11629974 (main control logic)
• Refrigerator electronic control board WPW10209635 (control board option used on some builds)
• Refrigerator freeer door switch W11457217 (door sensing for lights and alarms)
• Genuine Kenmore refrigerator water filter EDR3RXD1 (water flow and dispenser performance)

Last updated: January 2026

Kenmore Elite side-by-side refrigerator model 10646023800 is commonly found in the 23 to 25 cu. ft. size range for this style. The exact rated capacity for your specific unit is listed in the specifications section of the 10646023800 owner's manual.

How to find the exact cubic-foot rating

Use the model-specific documentation and the product label to confirm the official capacity.

• Check the model and serial label inside the fresh food compartment (usually on an inside wall).
• In the manual, look for “Specifications,” “Product data,” “Capacity,” or “Volume.”
• If the manual lists separate volumes, add refrigerator + freezer to get total cubic feet.
• If you are measuring for a cabinet opening, use the 10646023800 installation guide for width, height, and door-swing clearance.

Typical capacity ranges for side-by-side refrigerators

Most standard-depth, 36-inch side-by-side refrigerators fall into a narrow capacity band.

Refrigerator type	Typical total capacity	Common cabinet opening width
Side-by-side (standard depth)	22 to 26 cu. ft.	36 in.
Side-by-side (counter depth)	20 to 23 cu. ft.	36 in.

Why it matters

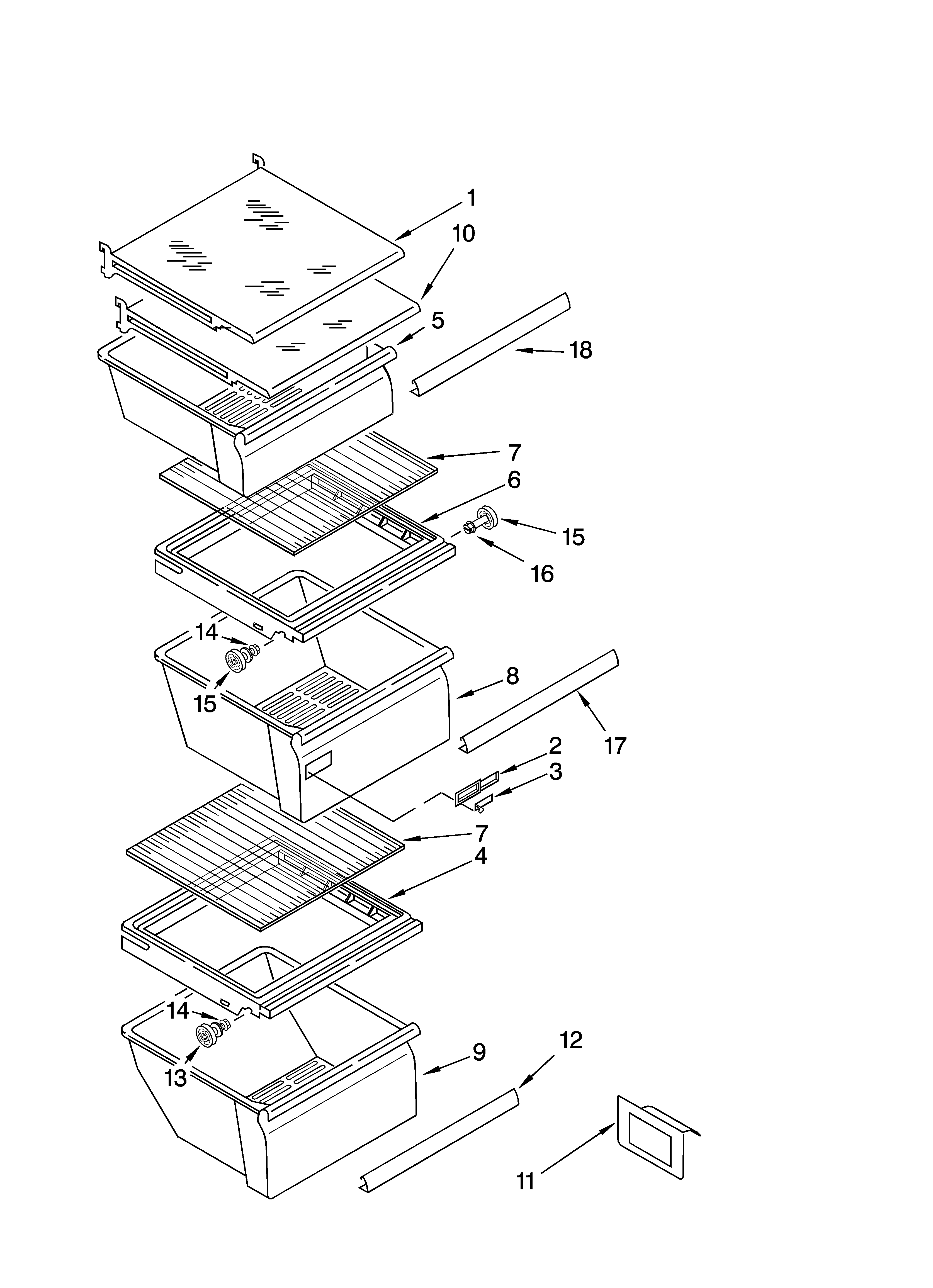

Capacity helps us match the right Kenmore replacement parts and accessories (shelves, door bins, and filtration). For example, the correct filter style for many Kenmore side-by-side models is the refrigerator water filter EDR3RXD1, and the manual confirms the filter family used on this refrigerator.

Last updated: January 2026
