Craftsman 502254280 riding lawn mower Parts
Here are the diagrams and repair parts for Craftsman 502254280 riding lawn mower, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM

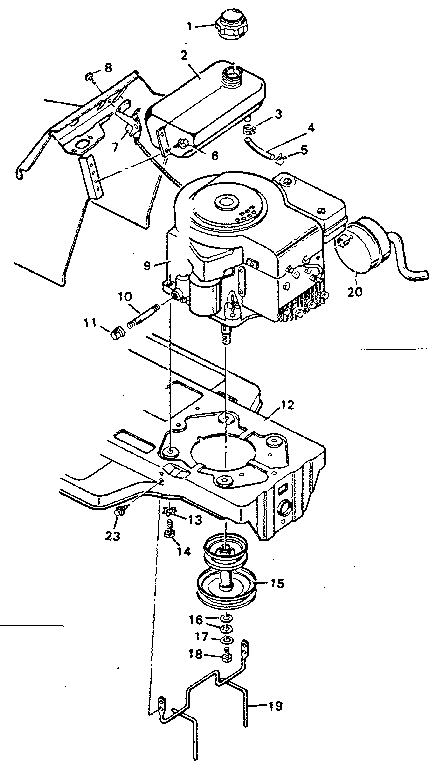

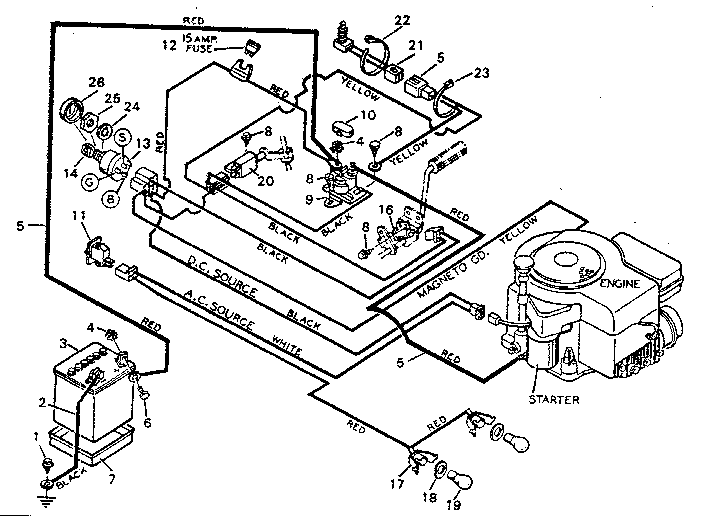

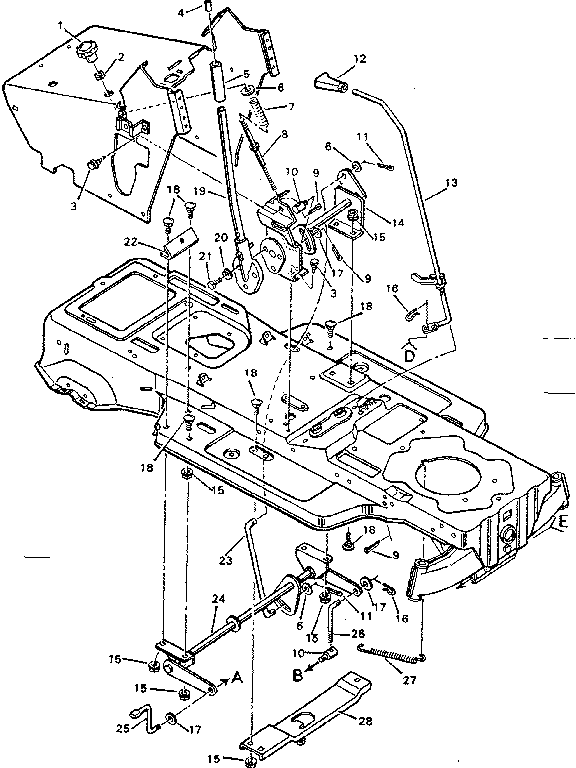

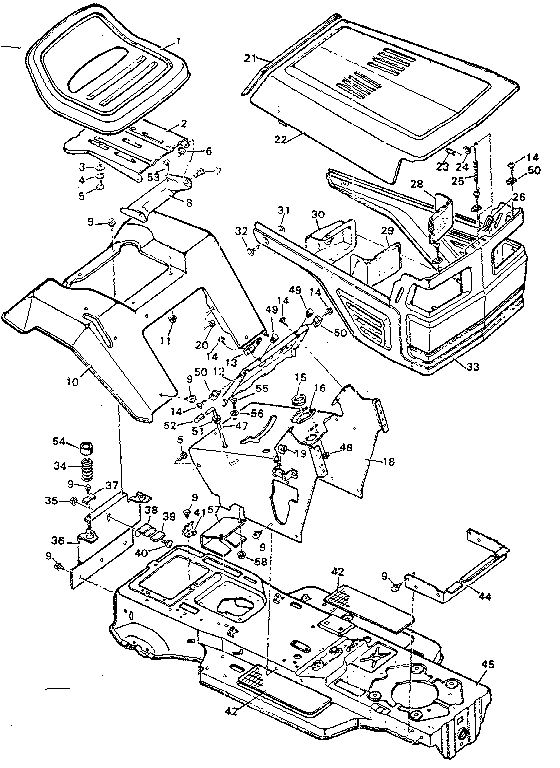

Browse Parts for 502254280 Riding Mowers & Tractors

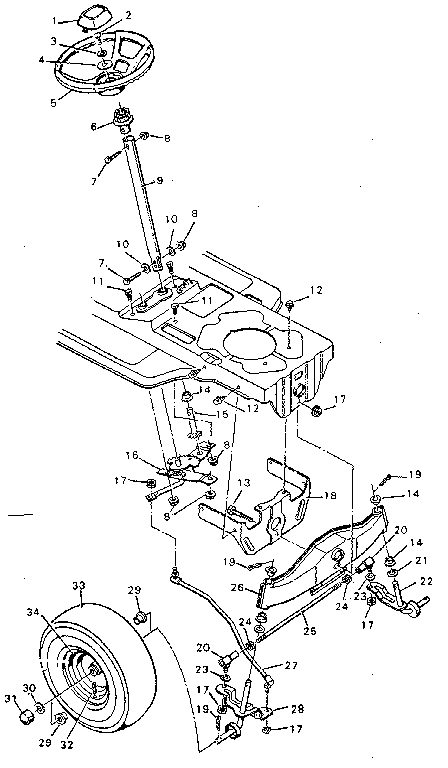

Steering and front axle diagram
Link Assembly
Part #90041Replaced by #90041E701MA
Manufacturer substitutionThis part replaces 90041. Substitute parts can look different from the original.In Stock$166.60
Qty
Steering and front axle diagram
Bearing
Part #90035Replaced by #90035MA

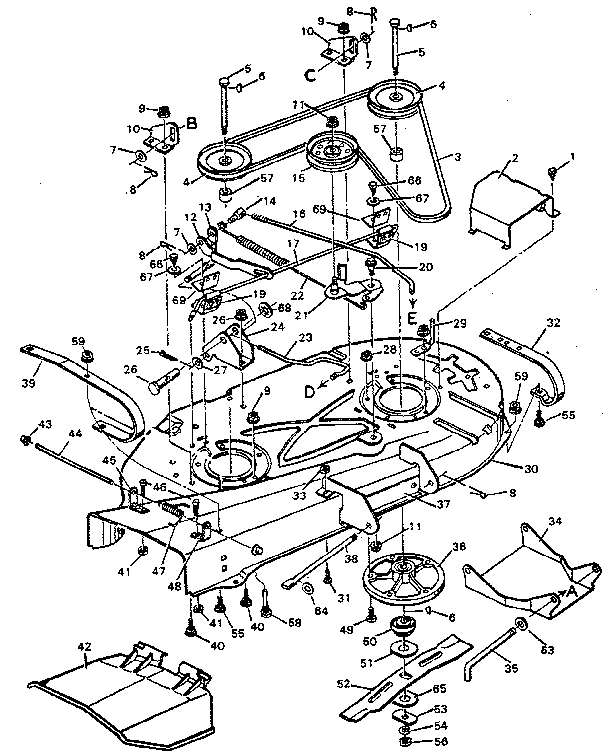

Manufacturer substitutionThis part replaces 90035. Substitute parts can look different from the original.In Stock$10.17QtyMower deck diagram
Spacer
Part #24533ZReplaced by #91925MA
Manufacturer substitutionThis part replaces 24533Z. Substitute parts can look different from the original.In Stock$24.74QtyMower deck diagram
Spring
Part #165X33Replaced by #165X33MA

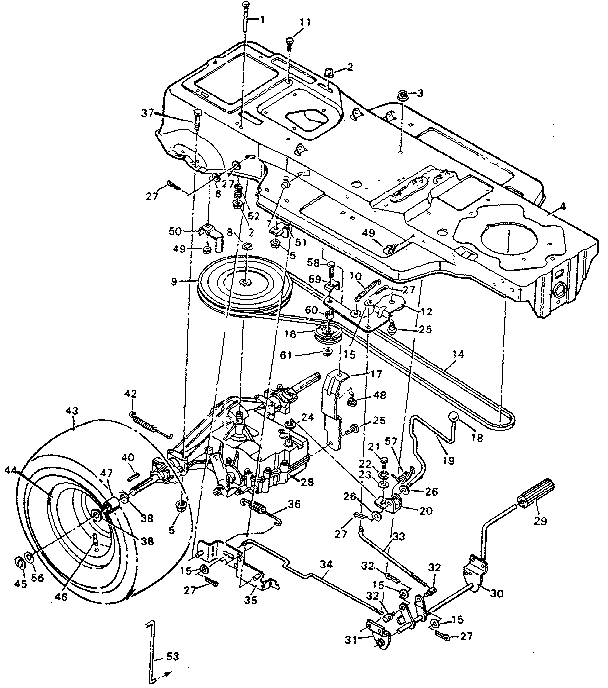

Manufacturer substitutionThis part replaces 165X33. Substitute parts can look different from the original.In Stock$29.71QtyGround drive diagram
Pedal
Part #21544Replaced by #1727261SM
Manufacturer substitutionThis part replaces 21544. Substitute parts can look different from the original.In Stock$20.09QtyScrew
Part #26X49Replaced by #26X49MA
Manufacturer substitutionThis part replaces 26X49. Substitute parts can look different from the original.In Stock$7.83QtyMower deck diagram
Housing
Part #24384Replaced by #492574MA
Manufacturer substitutionThis part replaces 24384. Substitute parts can look different from the original.In Stock$64.87QtyGround drive diagram
Washer
Part #17X160Replaced by #17X160MA
Manufacturer substitutionThis part replaces 17X160. Substitute parts can look different from the original.In Stock$9.23QtyLock Washer
Part #18X16Replaced by #18X16MA
Manufacturer substitutionThis part replaces 18X16. Substitute parts can look different from the original.This item is not returnableIn Stock$6.86QtyScrew
Part #26X214Replaced by #26X214MA
Manufacturer substitutionThis part replaces 26X214. Substitute parts can look different from the original.In Stock$8.06Qty
