GE GFD28GELCDS refrigerator

GE GFD28GELCDS refrigerator Parts

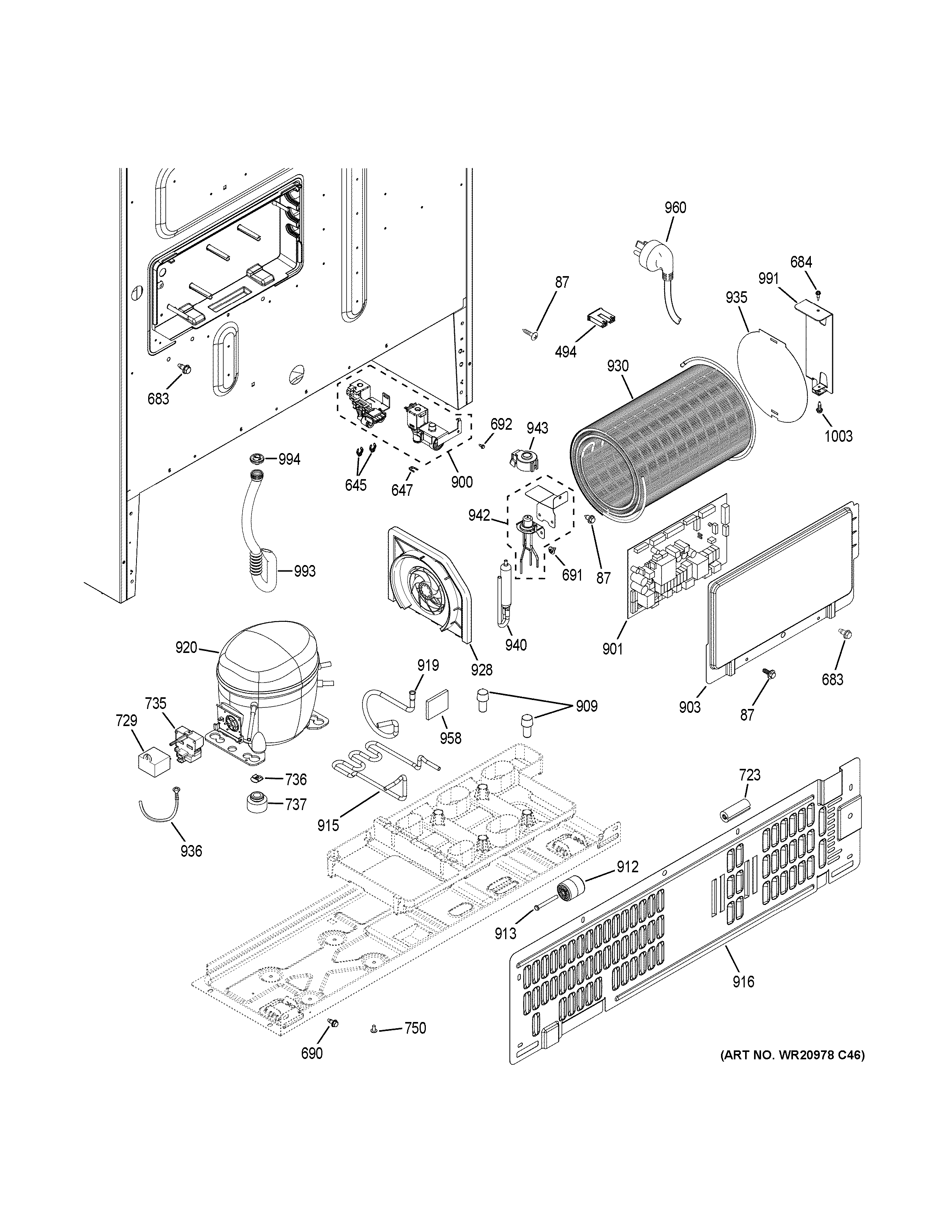

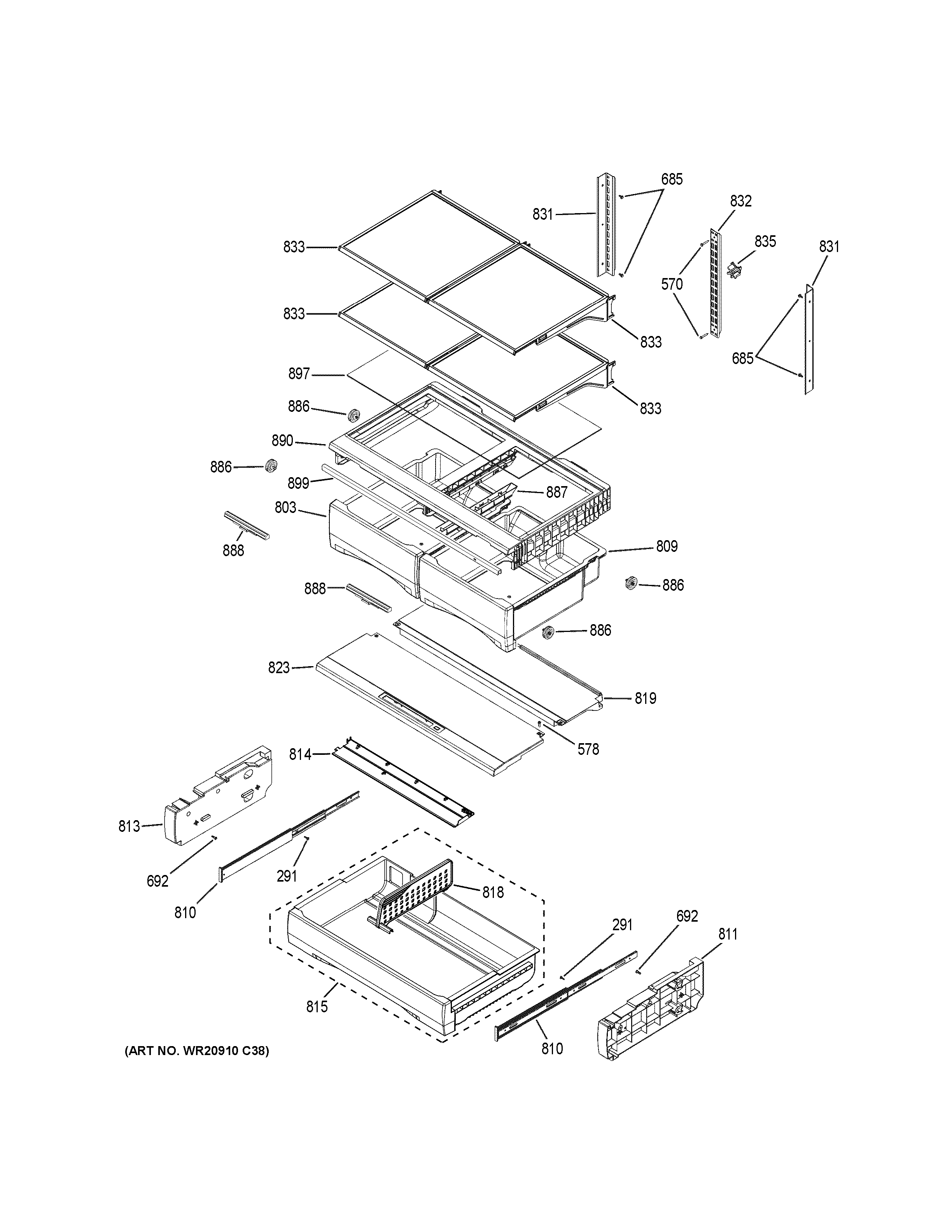

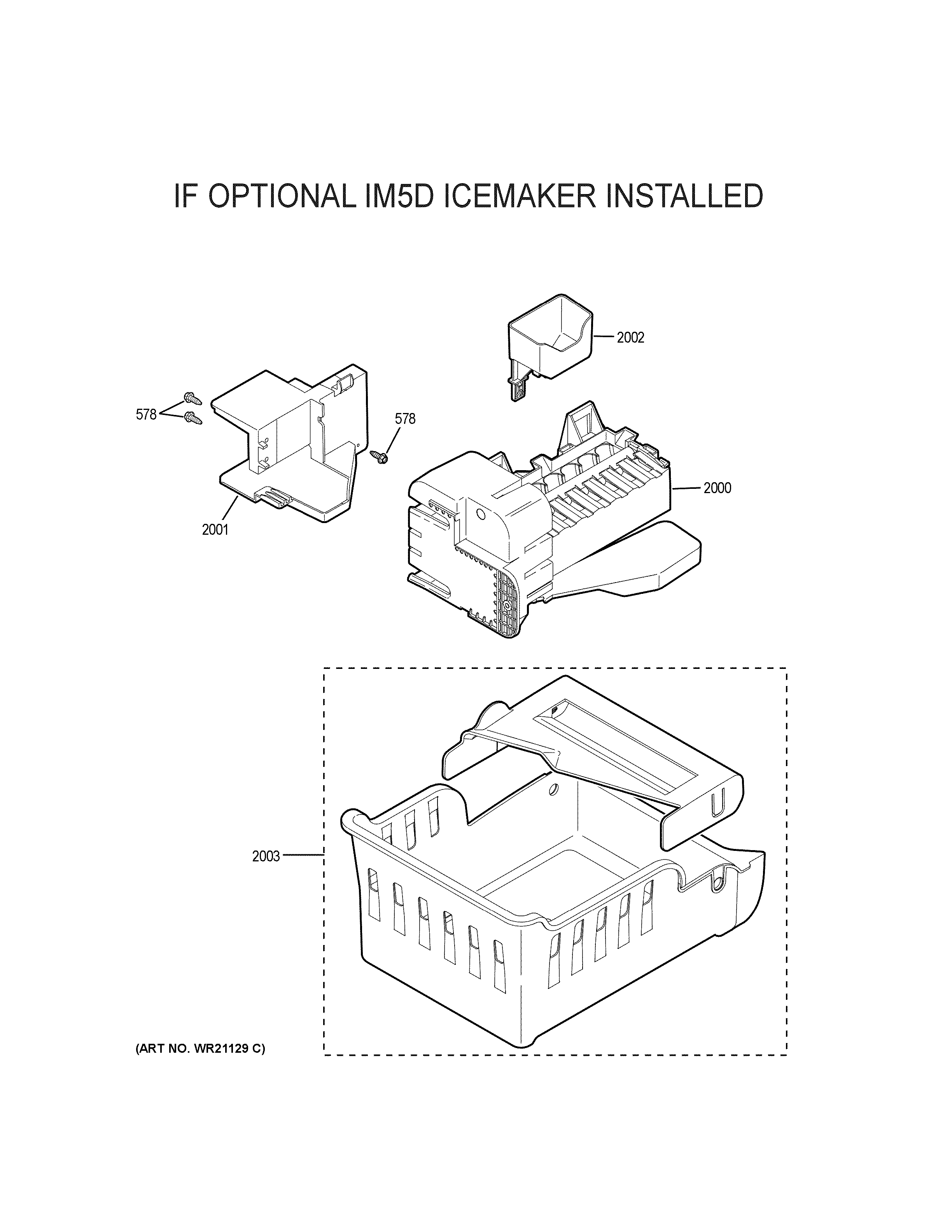

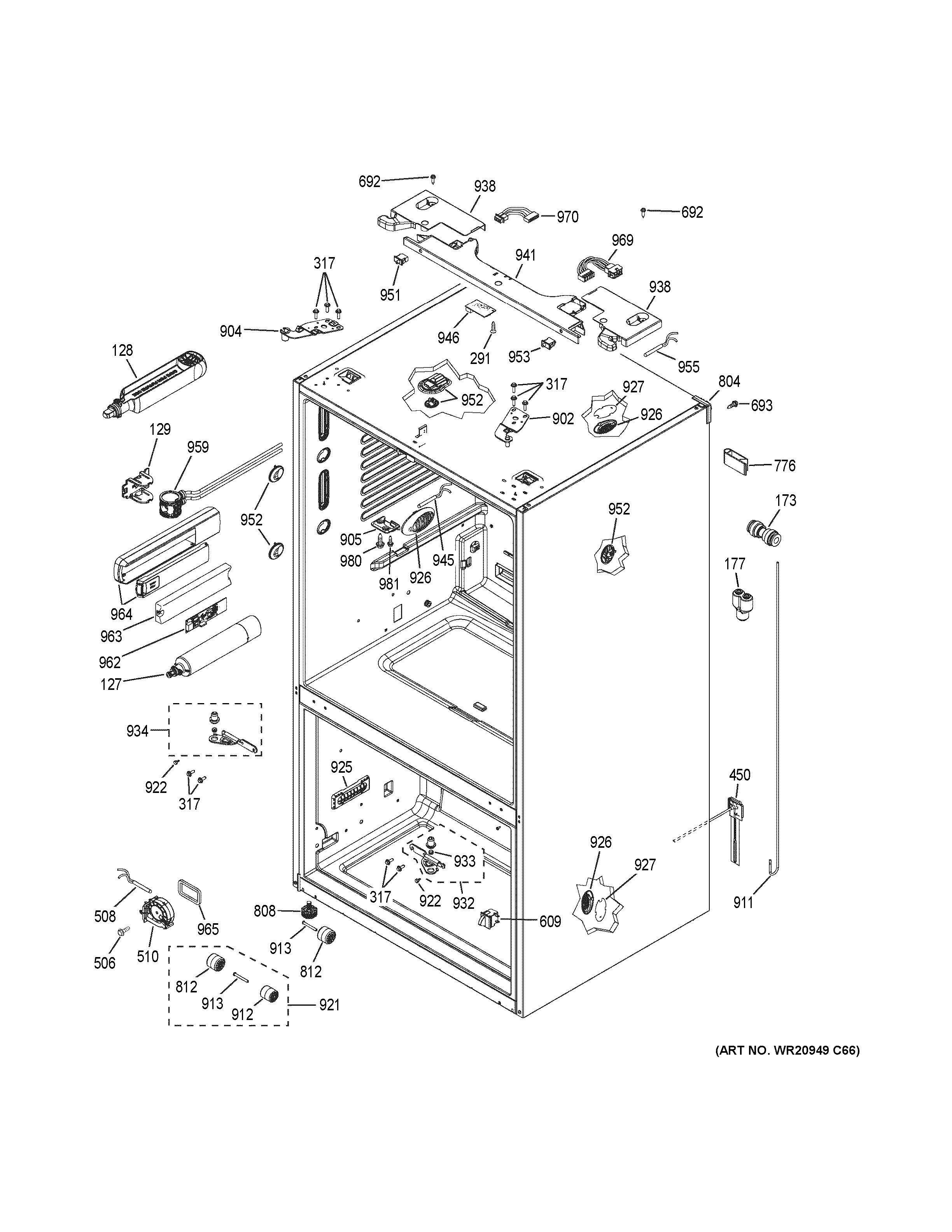

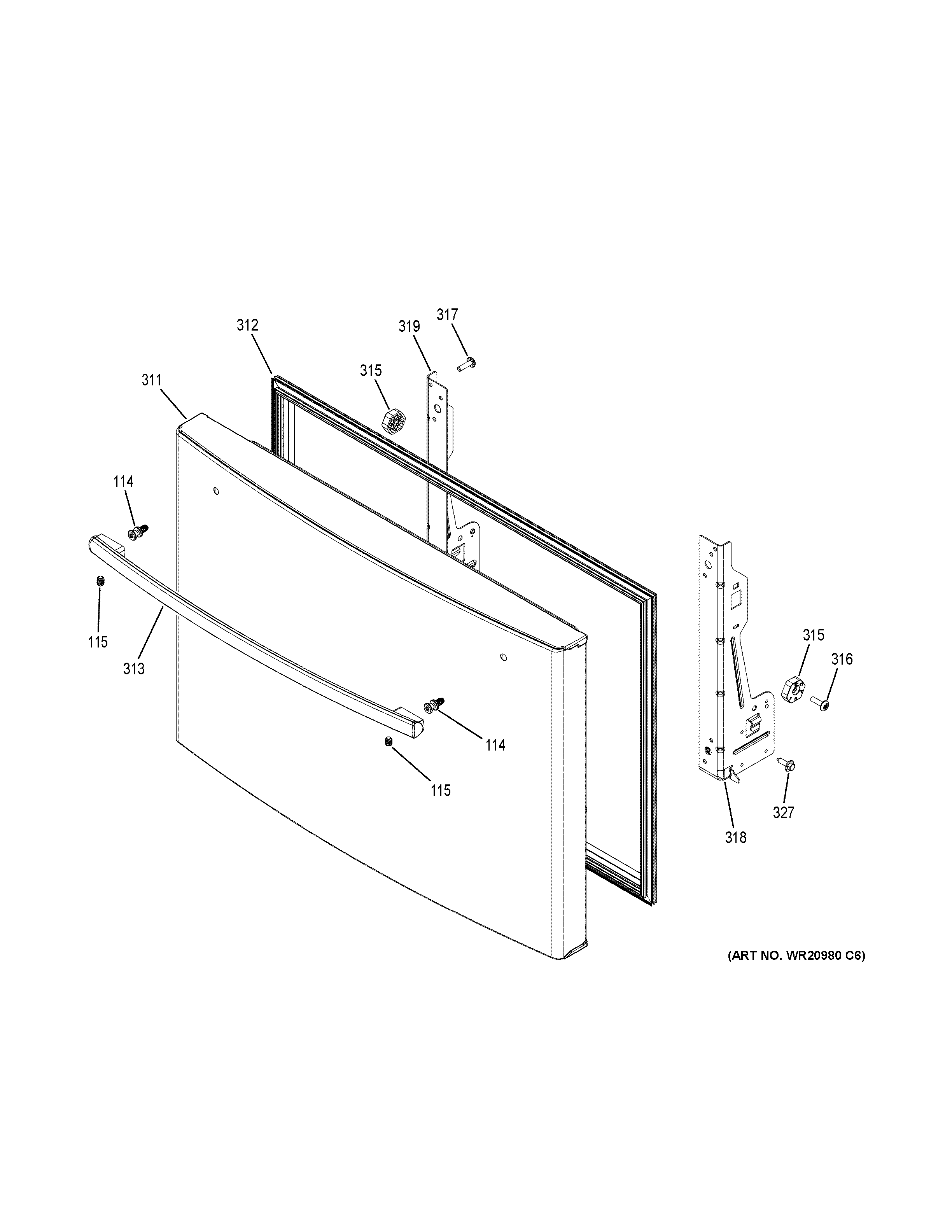

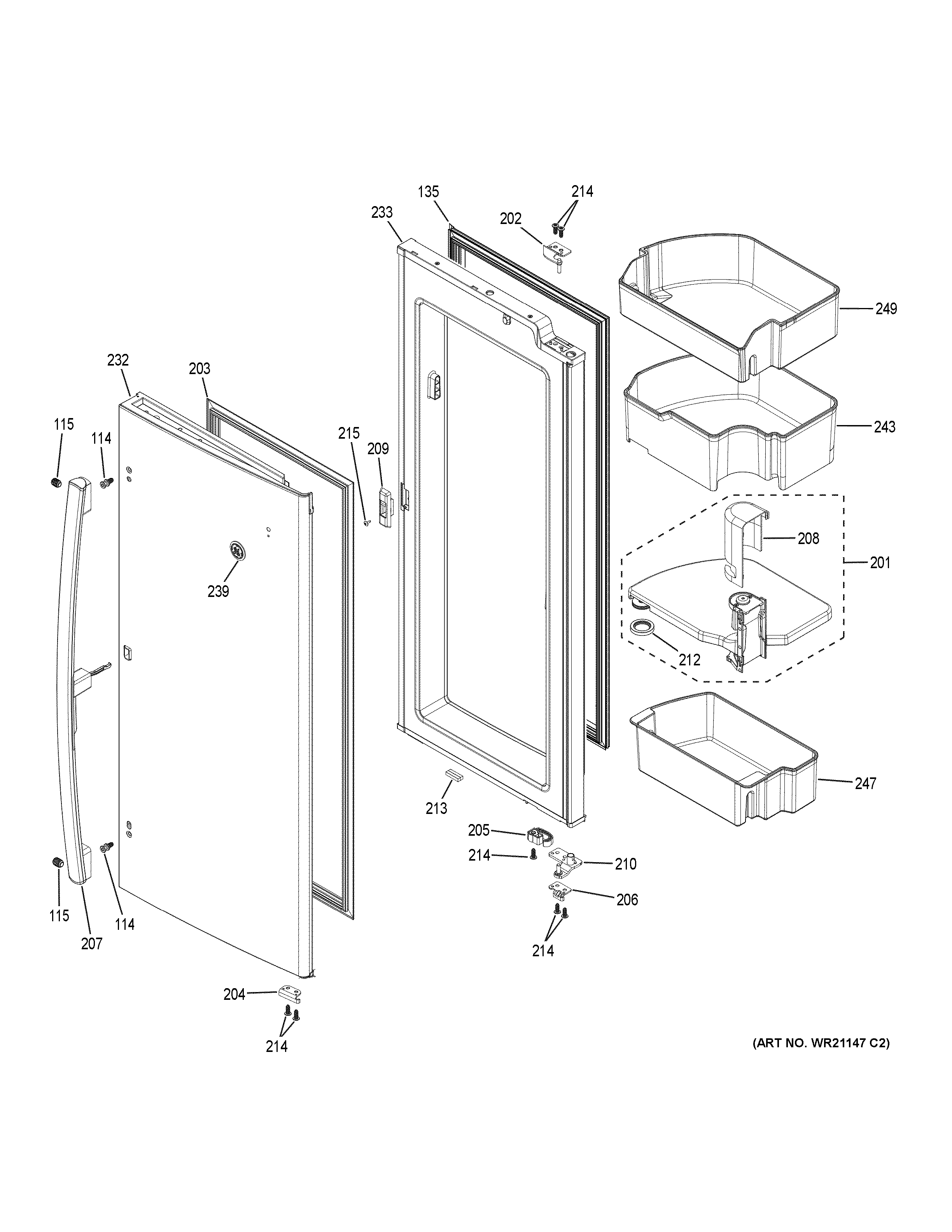

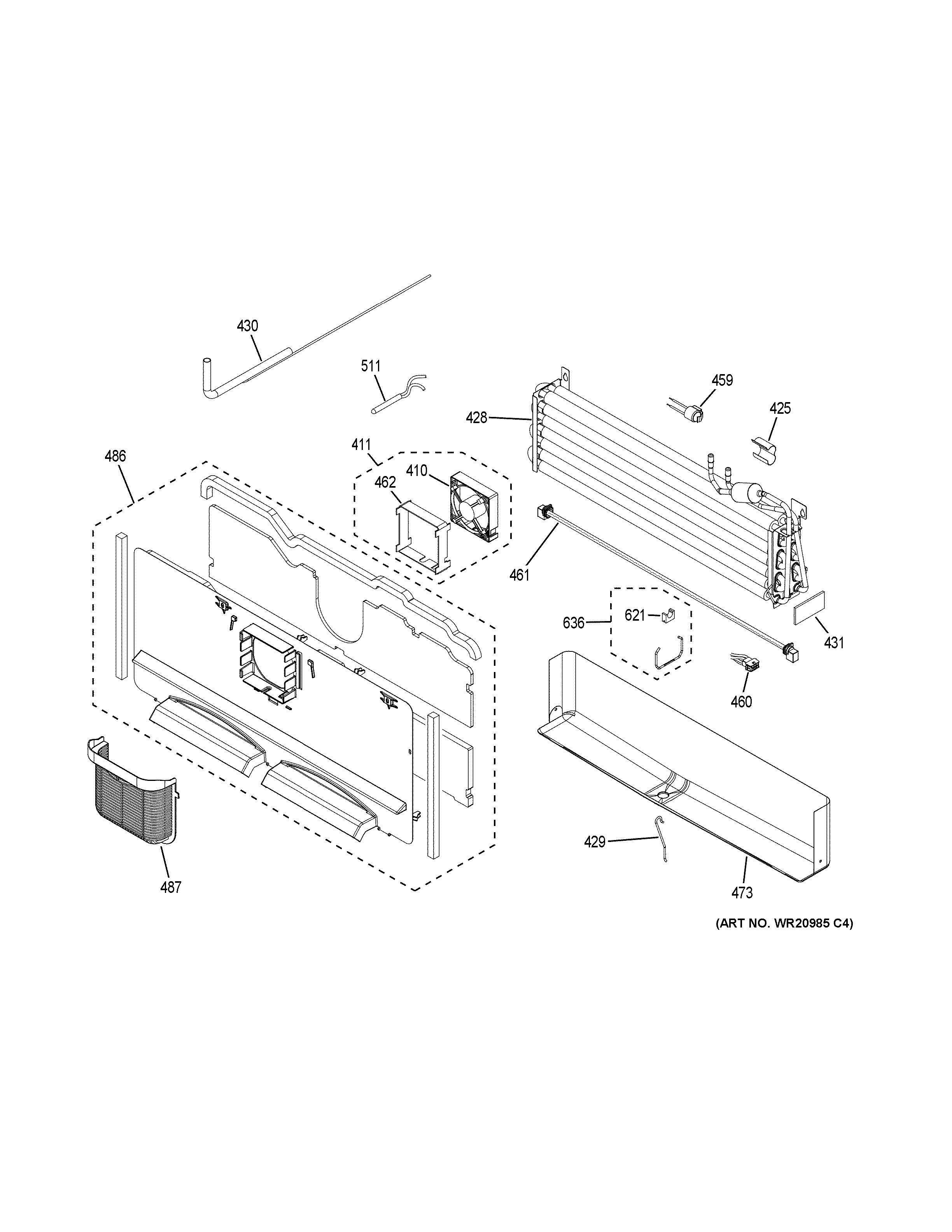

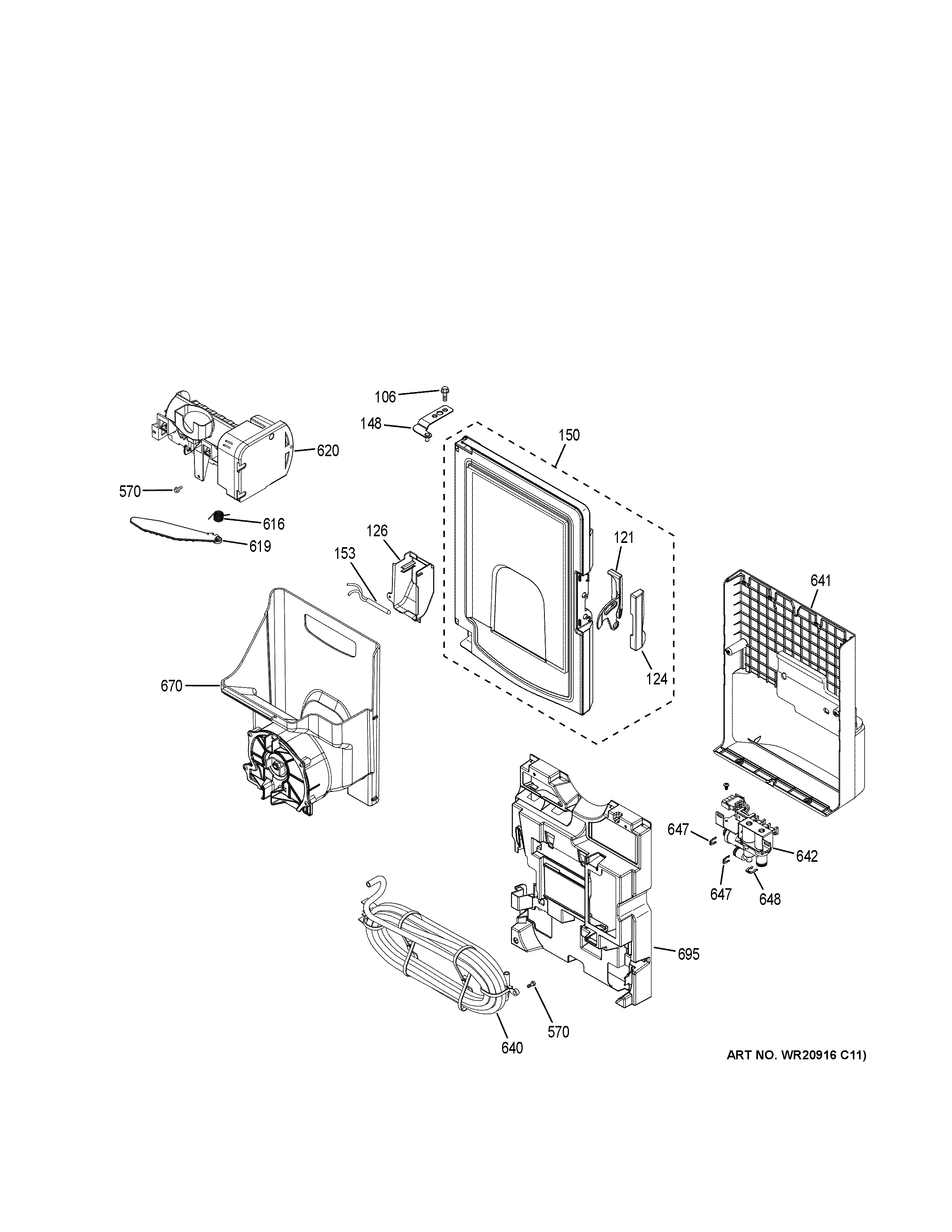

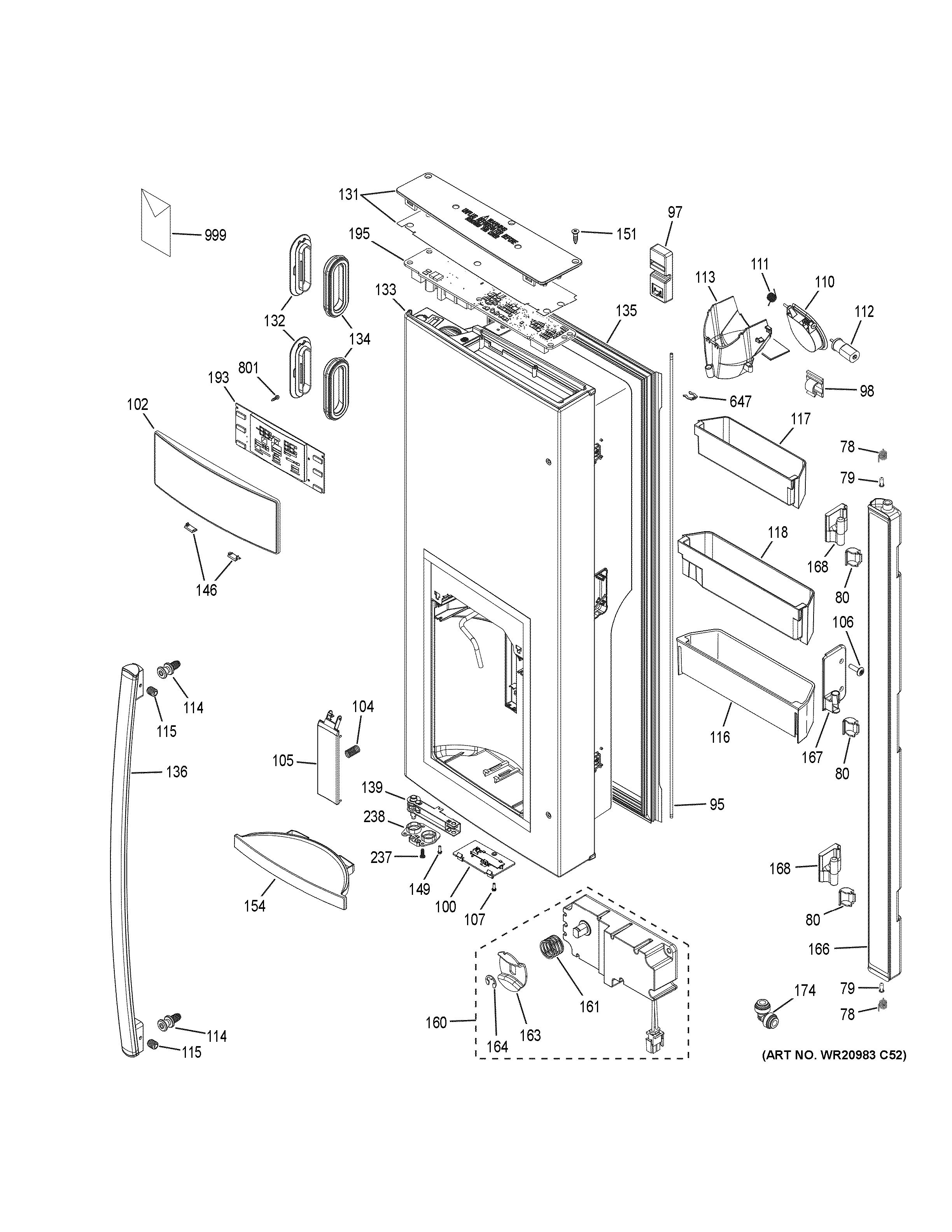

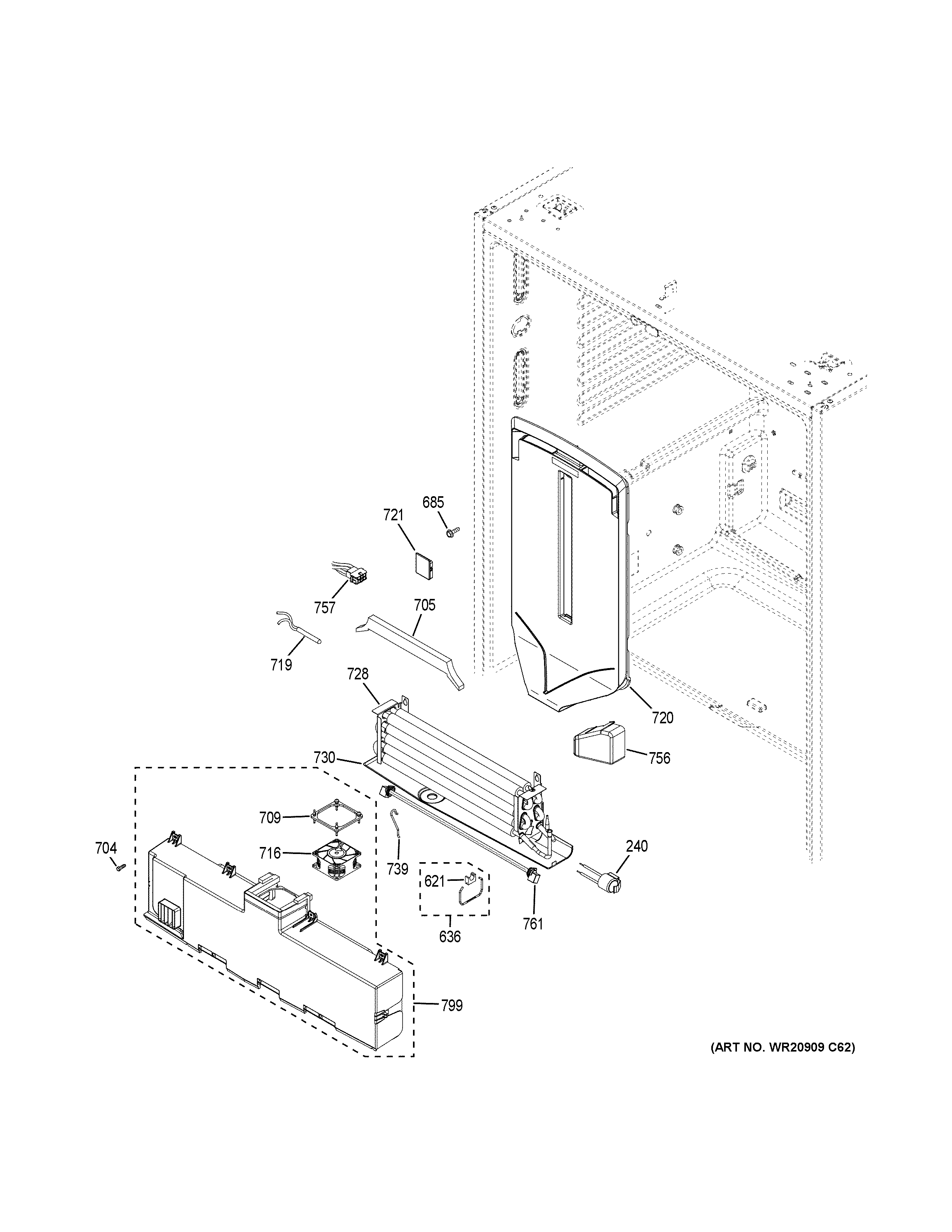

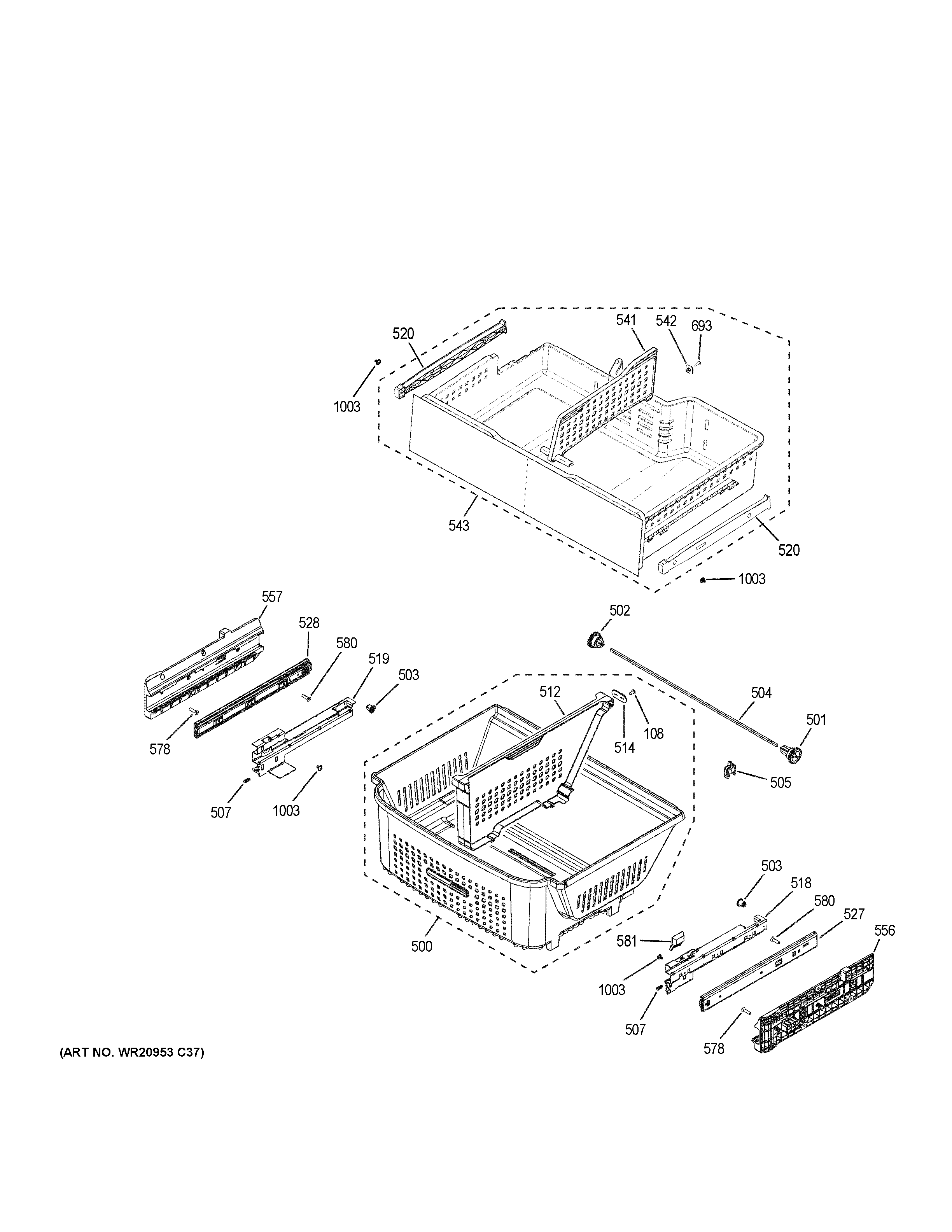

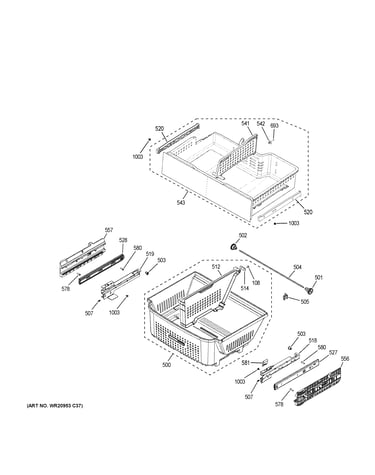

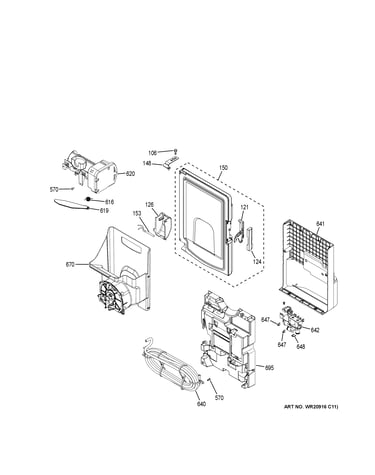

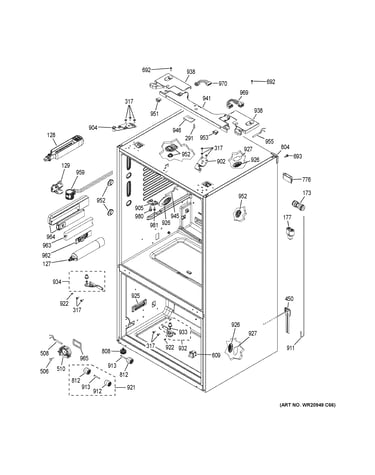

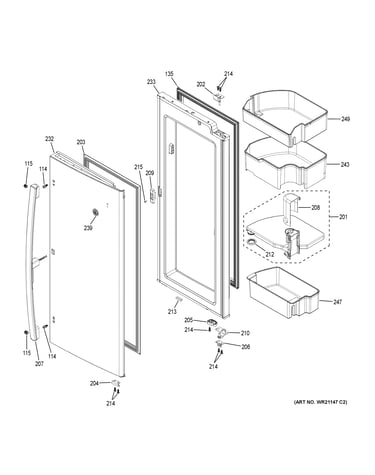

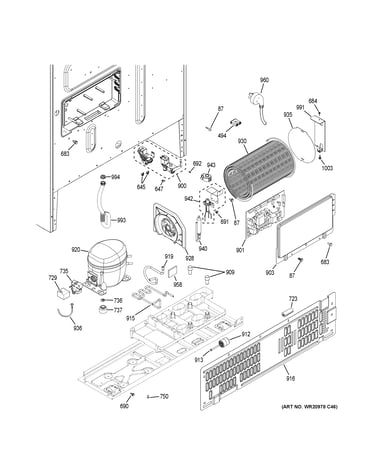

Here are the diagrams and repair parts for GE GFD28GELCDS refrigerator, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for GFD28GELCDS Refrigerators

GE Refrigerator GFD28GELCDS FAQs

A bottom-freezer design (like the GE GFD28GELCDS) puts frozen food down low, so you typically bend more often, lift heavier items from a lower position, and may pay more upfront than a basic top-freezer model. The tradeoff is easier access to fresh food at eye level.

Common disadvantages to expect

  • More bending and squatting to reach freezer drawers, baskets, and items at the back
  • Heavier lifting from a low position (bulk meats, frozen pizzas, ice bags)
  • Freezer organization can be harder if baskets are overfilled (items stack and get buried)
  • Bottom-freezer drawers can feel heavier to open when fully loaded
  • Purchase price is often higher than comparable top-freezer refrigerators

How it compares (quick view)

Feature Bottom freezer (GFD28GELCDS style) Top freezer style
Access to fresh food Easier (higher shelves) More bending for fresh food
Access to frozen food More bending Easier (higher freezer)
Handling heavy frozen items Harder (lift up) Easier (lift down)
Typical cost Higher Lower

Ways to reduce the downsides

  • Keep the heaviest frozen items in the upper basket or top drawer area.
  • Use bins to group foods (breakfast, snacks, meats) so you do less digging.
  • Avoid overpacking; a jammed drawer strains slides and makes access harder.
  • If you need to remove drawers/baskets for cleaning or access, follow the steps in the owner's manual.

Why it matters

Bottom-freezer refrigerators are popular because fresh food is used most often, but the freezer ergonomics can be a daily annoyance if you frequently use frozen foods or store heavy items.

Last updated: February 2026

A GE GFD28GELCDS bottom-mount refrigerator typically lasts 15 to 20 years with normal home use and basic maintenance (good airflow, clean seals, and on-time filter changes). Your actual lifespan depends most on compressor run time, door sealing, and condenser cleanliness.

Typical lifespan and what affects it

Most modern GE bottom-freezer and French door style refrigerators fall into this range, and the biggest differences come down to usage and care.

  • 15 to 20 years is the typical life expectancy
  • Heavy use (large household, frequent door openings) can shorten life
  • Poor ventilation around the cabinet increases compressor wear
  • A weak door gasket causes longer run times and frost issues
  • Skipping water filter changes can reduce dispenser and ice maker reliability

Maintenance checklist that helps you reach 15 to 20 years

Use these habits to reduce strain on the sealed system and fans.

  • Keep fresh food vents clear so airflow is not blocked
  • Set temperatures near 37°F (refrigerator) and 0°F (freezer)
  • Clean and inspect door gaskets; fix gaps and tears promptly
  • Vacuum dust from the condenser area periodically (as accessible)
  • Replace the water filter on schedule and reset the filter indicator

Quick guide: symptoms that shorten lifespan

What you notice What it usually means What to do first
Runs almost constantly Air leak, dirty condenser, warm settings Check gasket seal, clean condenser area, confirm temps
Warm fridge but freezer OK Airflow or evaporator fan issue Make sure vents are clear; check for fan noise
Frost buildup Door not sealing or frequent openings Inspect gasket, confirm doors close fully
Water/ice problems Filter restriction or inlet valve issue Replace filter, purge air, verify water supply

Why it matters

A refrigerator that runs longer than it should (from air leaks, blocked vents, or dirty heat-exchange surfaces) puts extra wear on the compressor and fans. Keeping airflow clear and temperatures stable is the simplest way to extend the service life.

For model-specific operating details (control settings, filter reset steps, and care recommendations), follow the GFD28GELCDS owner's manual.

Last updated: February 2026

The most common GE refrigerator problem we see is a cooling issue: the fridge is warm, the freezer is warm, or temperatures swing because airflow is restricted or heat is not being removed efficiently. On the GE GFD28GELCDS, start with basic airflow and maintenance checks before replacing parts.

Most common symptoms and what they usually point to

  • Not cooling well (fresh food and/or freezer): dirty condenser coils, blocked vents, evaporator fan issue, or a defrost problem
  • Freezer cold but fridge warm: airflow damper or evaporator fan problem, blocked return vents
  • Water leaking or puddles: clogged/iced defrost drain, loose water line, or dispenser/ice maker supply issue
  • Ice maker or water dispenser acting up: air in the water line, low water pressure, or a restricted water filter
  • Door alarm beeping: door not sealing, door left ajar, or misaligned doors

Quick checks we recommend first (in order)

  1. Confirm controls are set correctly and the unit is not in a special mode (see the GFD28GELCDS owner's manual).
  2. Make sure food packages are not blocking air vents in the refrigerator or freezer.
  3. Clean condenser coils and verify the condenser fan area is clear of dust.
  4. Listen for the evaporator fan (typically a steady fan sound when cooling is running).
  5. If you have a dispenser, dispense water for 2 to 3 minutes to help clear trapped air after filter changes.

Common problems at a glance

Symptom Most likely cause Best first action
Fridge and freezer both warm Heat not being rejected Clean coils; check fans and airflow
Freezer OK, fridge warm Airflow imbalance Clear vents; check evaporator fan
Water under fridge Drain restriction Inspect/clear defrost drain path
Slow water flow Filter restriction or air Replace filter; purge air

Why it matters

Cooling problems can quickly lead to food spoilage and compressor overwork. Catching airflow restrictions, dirty coils, and water supply issues early helps your GE GFD28GELCDS run colder, quieter, and more efficiently.

Last updated: February 2026

Most common symptoms to help you fix your refrigerators

Choose a symptom to see related refrigerator repairs.

Main causes: leaky door gasket, defrost system failure, evaporator fan not running, dirty condenser coils, condenser fan…

Main causes: control board or cold control failure, broken compressor start relay, compressor motor failure, defrost tim…

Main causes: blocked vents, defrost system problems, evaporator fan failure, dirty condenser coils, bad sensors, condens…

Main causes: blocked air vents, compressor problems, condenser or evaporator fan not working, control system failure, se…

Main causes: water valve leaking, frozen or broken defrost drain tube, overflowing drain pan, cracked water system tubin…

Main causes: damaged door seal, faulty defrost sensor or bi-metal thermostat, broken defrost heater, bad defrost timer o…

Things to do: clean condenser coils, replace the water filter, clean the interior, adjust doors to prevent air leaks, cl…

Main causes: jammed ice cubes, broken ice maker assembly, dirty water filter, kinked water line, bad water valve, freeze…
