KitchenAid KEBK101BBL00 30" electric built-in single oven Parts
Here are the diagrams and repair parts for KitchenAid KEBK101BBL00 30" electric built-in single oven, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for KEBK101BBL00 Wall Ovens

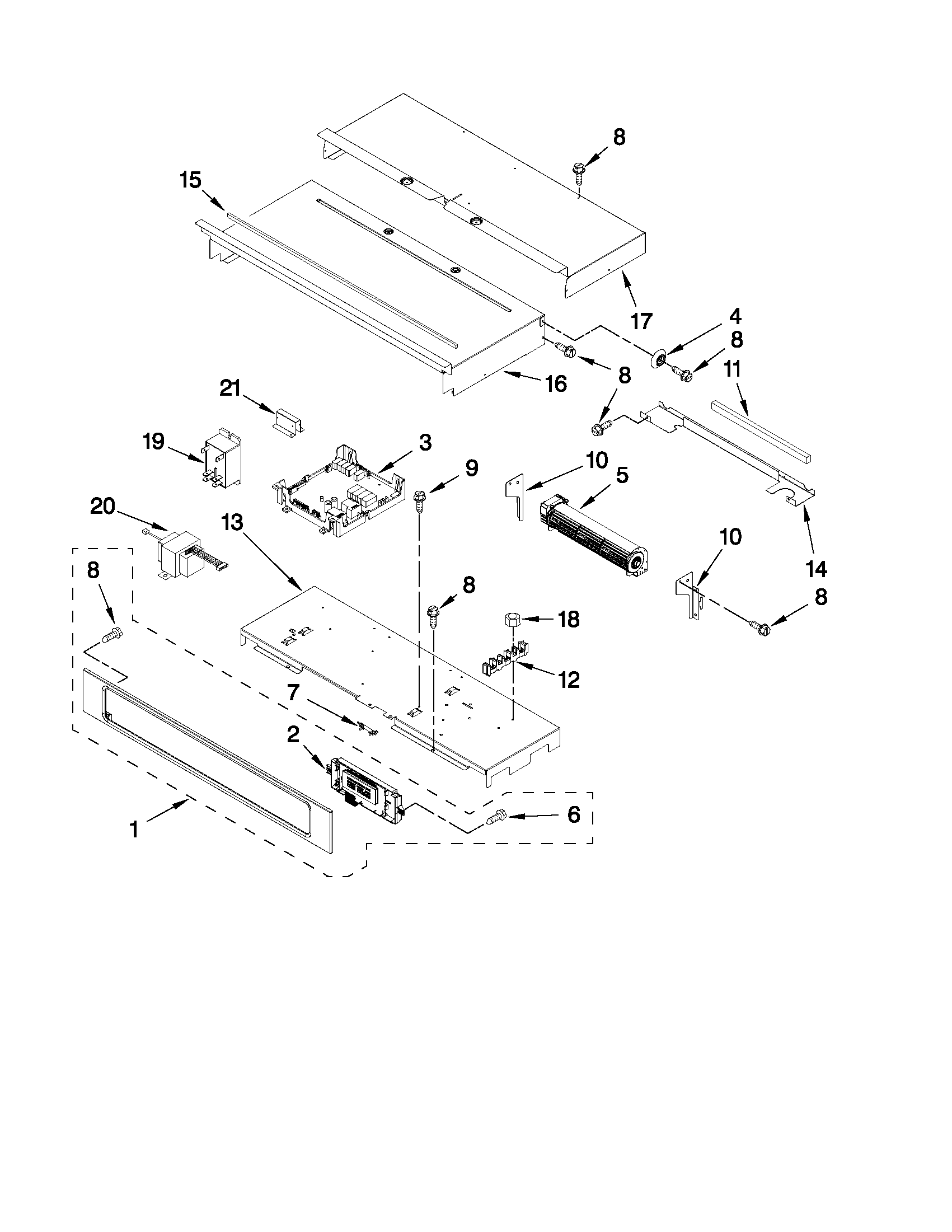

Control panel parts diagram
Thermal Fuse
Part #W10436434Replaced by #WPW10545255
Manufacturer substitutionThis part replaces W10436434. Substitute parts can look different from the original.In Stock$25.5019% OFF Phone Price : $31.50
Qty
Optional parts diagram
Spray W
Part #350930Replaced by #350930

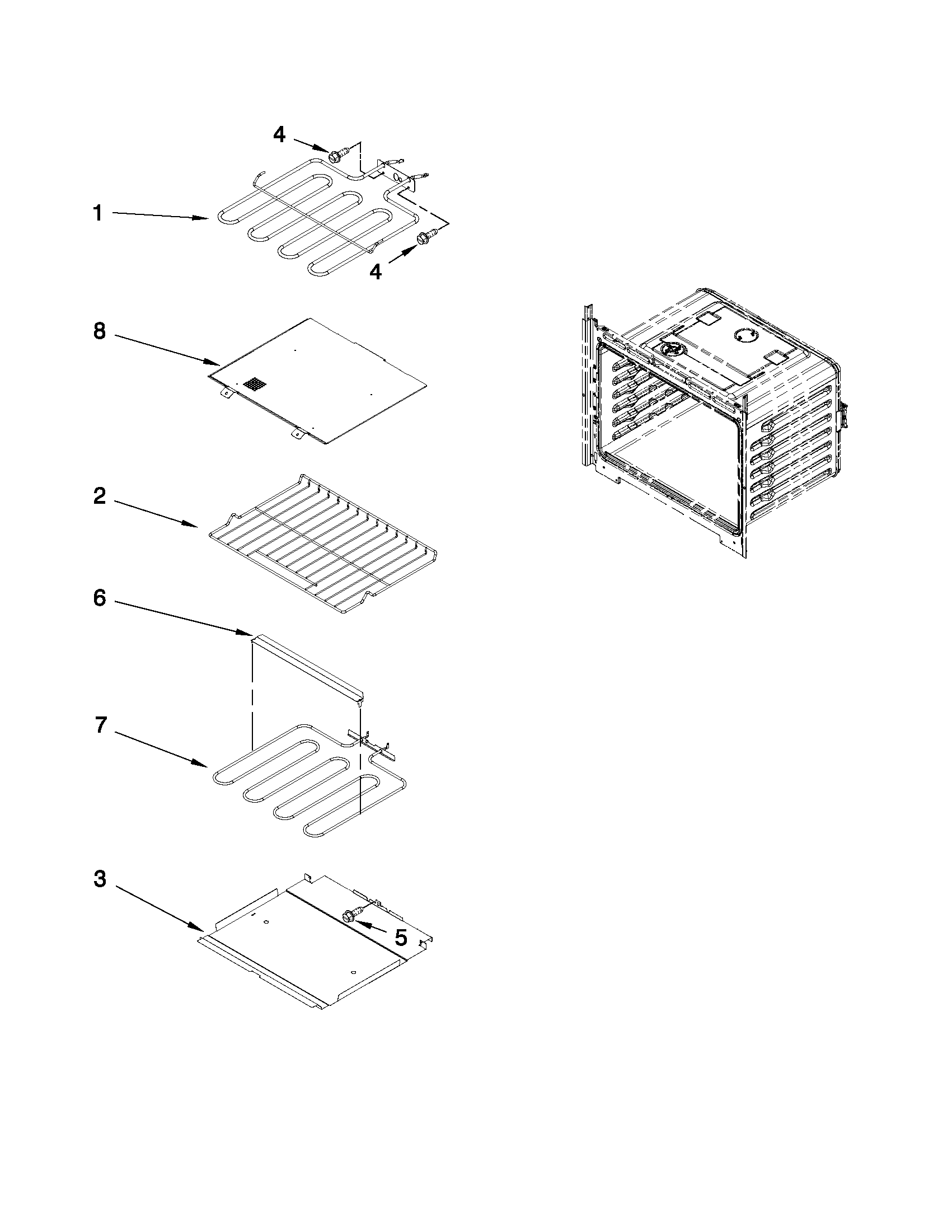

Manufacturer substitutionThis part replaces 350930. Substitute parts can look different from the original.This item is not returnableIn Stock$26.0019% OFF Phone Price : $32.00QtyInternal oven parts diagram
Oven Bake Element
Part #W10282948Replaced by #W11545804

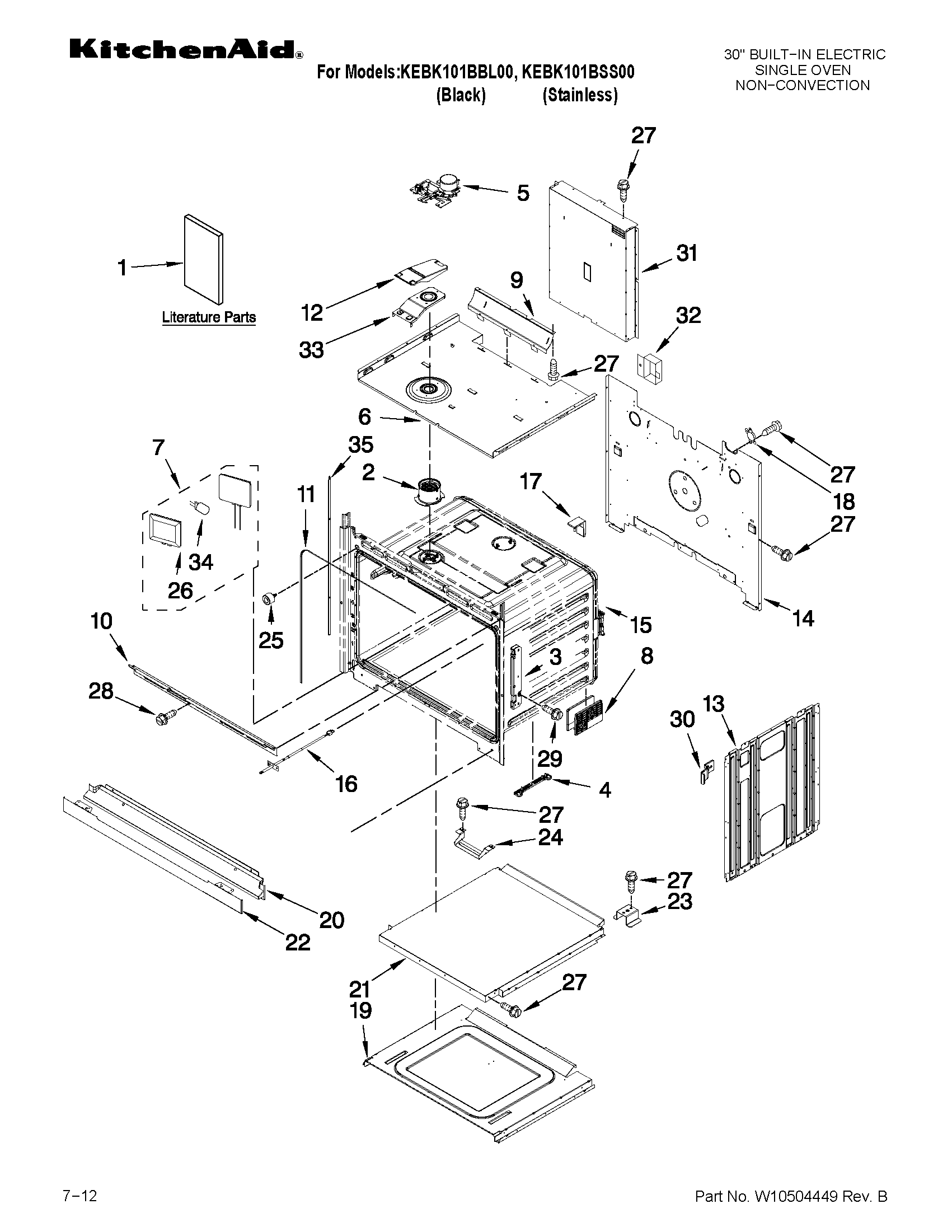

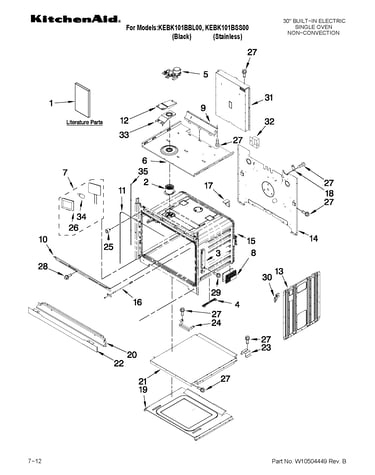

Manufacturer substitutionThis part replaces W10282948. Substitute parts can look different from the original.In Stock$48.0331% OFF Was : $69.23QtyOven parts diagram

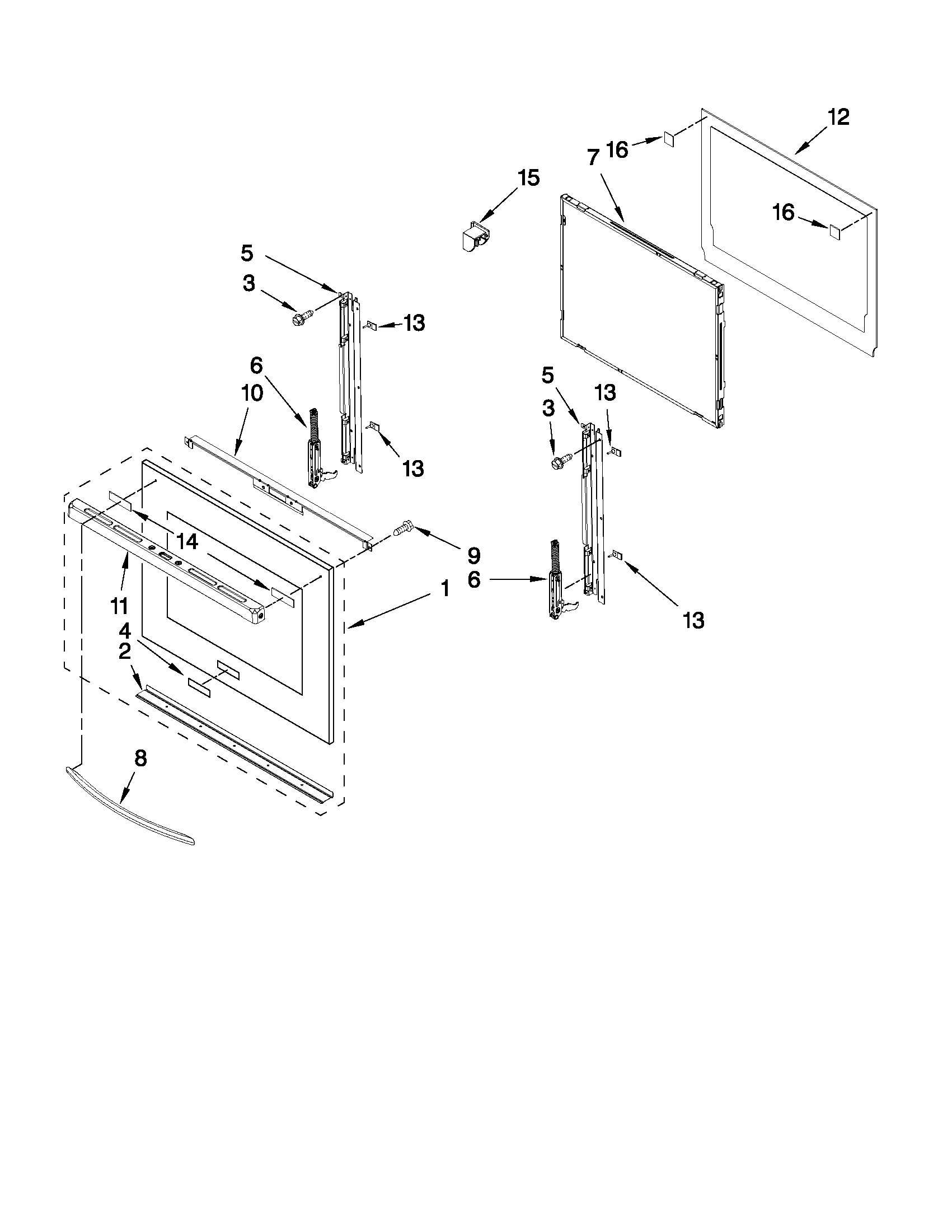

Latch-door
Part #W10314880Replaced by #W10883049
Manufacturer substitutionThis part replaces W10314880. Substitute parts can look different from the original.In Stock$199.026% OFF Phone Price : $211.02QtyOptional parts diagram
Touch-up Paint (black)
Part #72032Replaced by #72032
Manufacturer substitutionThis part replaces 72032. Substitute parts can look different from the original.This item is not returnableIn Stock$11.0815% OFF Phone Price : $13.08QtyOven parts diagram
Range Screw
Part #WP98008545This item is not returnableIn Stock$5.4715% OFF Phone Price : $6.47QtyInternal oven parts diagram
Range Broil Element
Part #W10317383Replaced by #W10804429

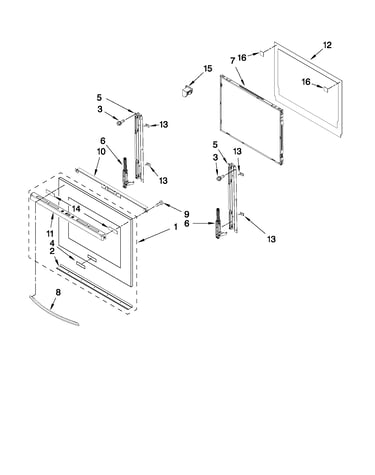

Manufacturer substitutionThis part replaces W10317383. Substitute parts can look different from the original.In Stock$108.7410% OFF Phone Price : $120.74QtyOven door parts diagram
Glass Frame
Part #W10284913Replaced by #WPW10335920
Manufacturer substitutionThis part replaces W10284913. Substitute parts can look different from the original.In Stock$292.92$12.00 OFF Phone Price : $304.92QtyOven door parts diagram
Range Screw
Part #8533988Replaced by #WP8533988
Manufacturer substitutionThis part replaces 8533988. Substitute parts can look different from the original.This item is not returnableIn Stock$5.2116% OFF Phone Price : $6.21QtyOven door parts diagram
Oven Door Hinge
Part #W10419877Replaced by #W10825778
Manufacturer substitutionThis part replaces W10419877. Substitute parts can look different from the original.In Stock$51.5710% OFF Phone Price : $57.57Qty
