Kenmore 25374802400 refrigerator Parts

In a Kenmore top-mount refrigerator like model 25374802400, the top compartment is the freezer. It is designed to keep foods frozen, and on some versions it also houses the automatic ice maker and ice bin (if equipped); see the owner's manual for your exact configuration.

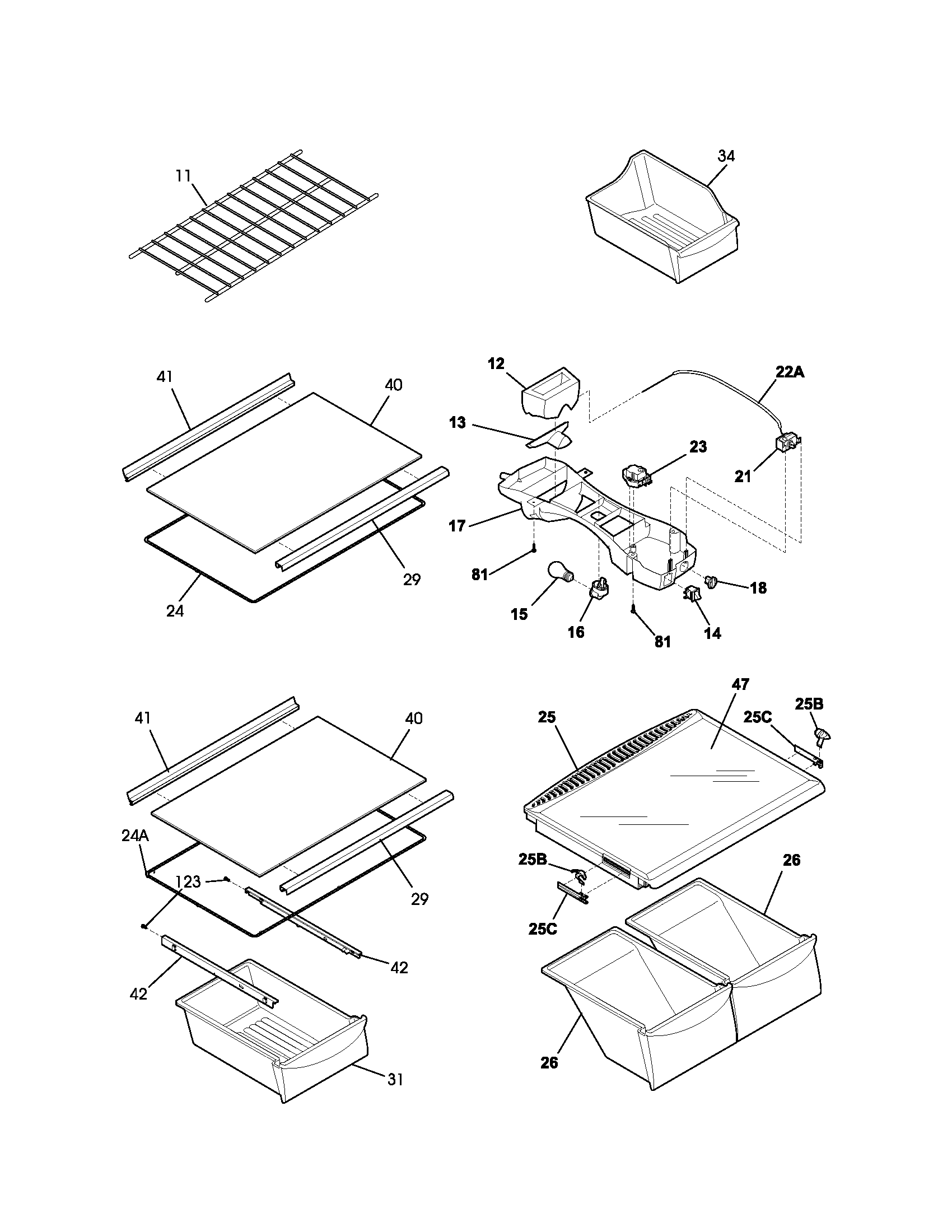

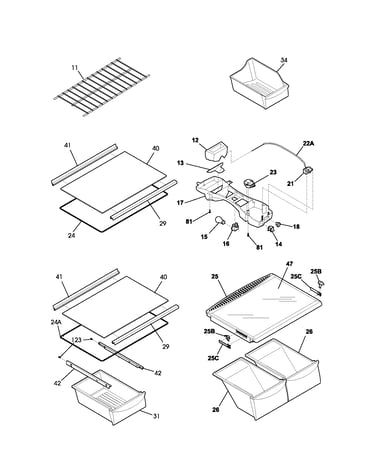

• Freezer shelves or a wire rack for frozen food storage
• Ice bin and ice maker area (on models equipped with an ice maker)

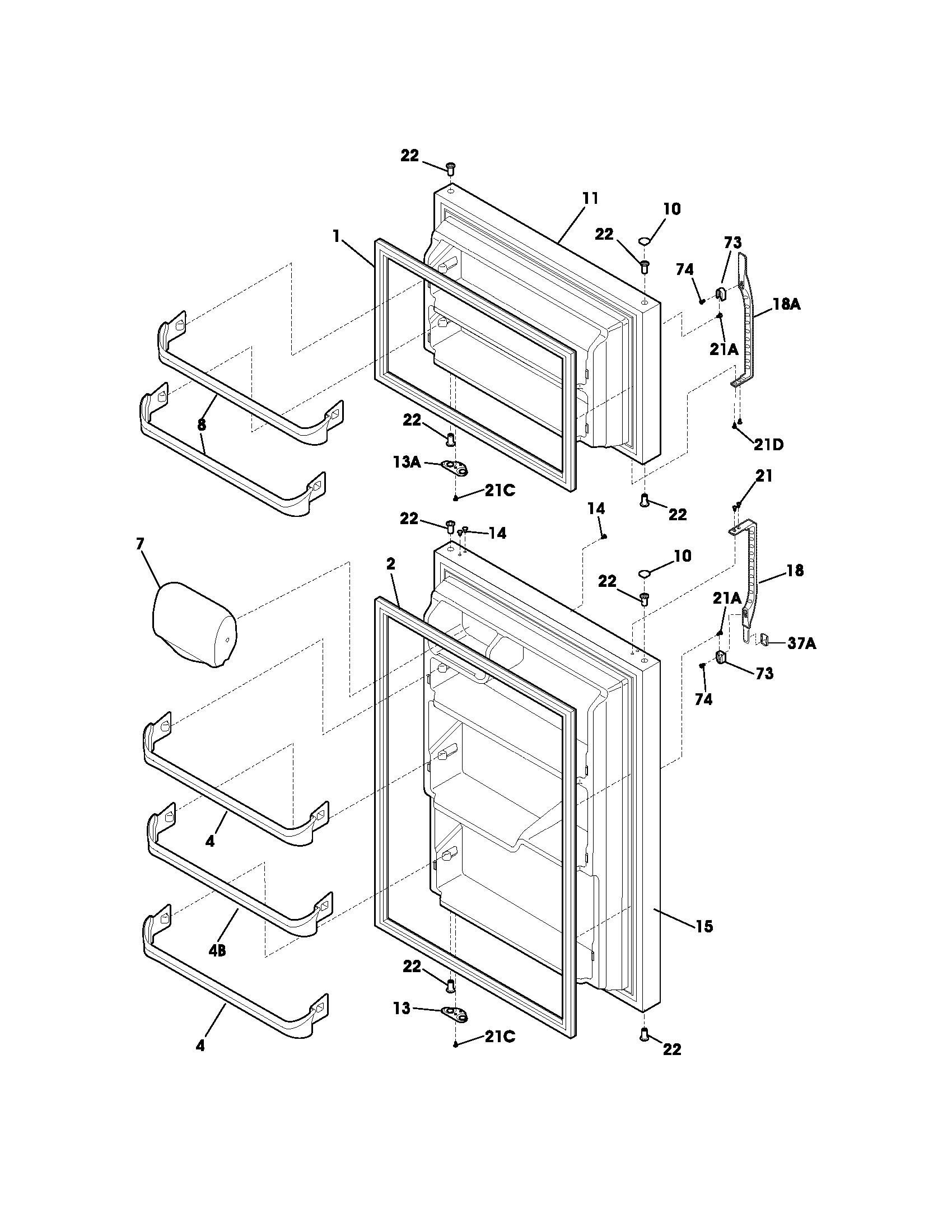

• Freezer door bins for smaller items
• Cold air return vents that help circulate air between compartments
• A freezer light on some configurations

Knowing the top section is the freezer helps when you are troubleshooting cooling issues (for example, freezer cold but refrigerator warm) and when you are ordering the right replacement parts for the correct compartment.

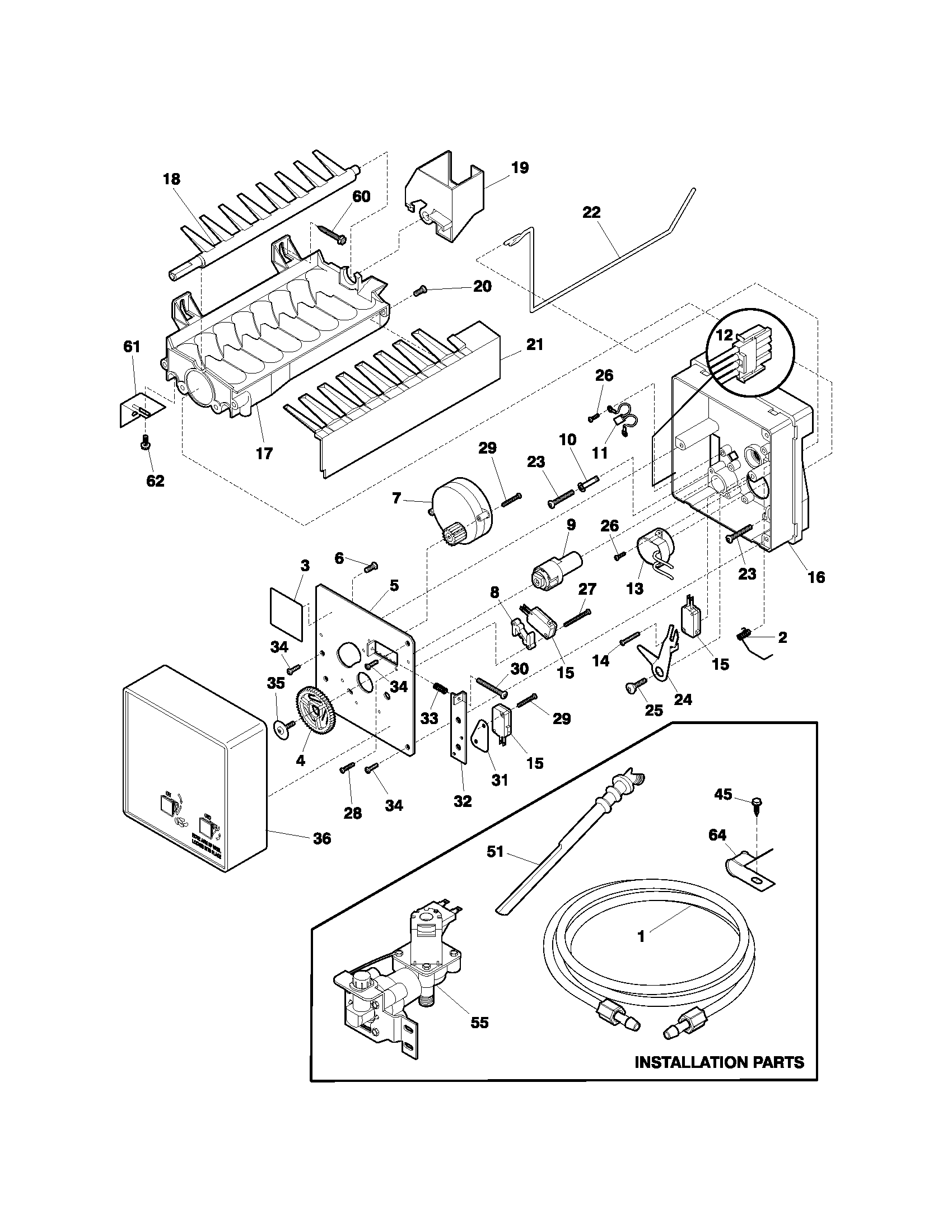

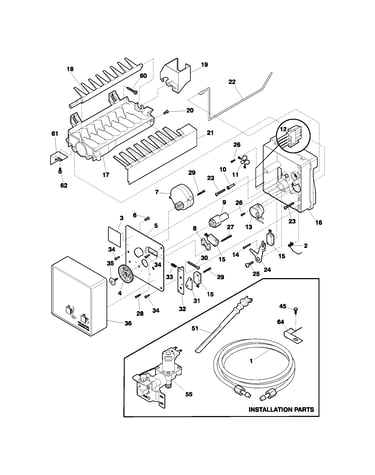

If your freezer has ice maker issues, these model-compatible parts may apply (depending on your exact setup):

• Ice maker 5304458371 (complete ice maker assembly)
• Ice maker mold 241798231 (ice mold component)
• Refrigerator ice maker thermostat 3206322 (controls ice maker cycling temperature)

Last updated: February 2026

The Kenmore top-mount refrigerator model 25374802400 is typically about 32 inches wide, 65-3/4 inches tall, and 26-5/8 inches deep (not counting the extra space you need behind it for airflow). For the most accurate fit details for your kitchen, confirm measurements in the owner's manual.

Use the cabinet dimensions for basic fit, then add clearance so the refrigerator can breathe and the doors can open fully.

• Measure the opening width, height, and depth in at least 3 spots
• Plan for airflow clearance: 3/8 inch at the sides and top, and 1 inch at the back
• If installing next to a wall, leave at least 1/2 inch at the hinge side for door swing
• Make sure the floor is solid and the unit can be leveled (front typically tilts slightly back)
• Confirm you can remove drawers and shelves through the doorway if needed

A refrigerator that is too tight in the opening can run warmer, cycle longer, and develop moisture or frost issues. Proper clearance also makes leveling easier, which helps the doors seal correctly.

Last updated: February 2026

Kenmore is a brand name sold by Sears, and different companies have manufactured Kenmore refrigerators over the years. For Kenmore model 25374802400, the 253 model prefix is commonly associated with Frigidaire (Electrolux) manufacturing.

The most reliable way is to check the model and serial tag on the refrigerator and compare it to the identification details in the owner's manual.

• Look for the model/serial label inside the fresh food compartment (often on a side wall) or near the crisper area
• Confirm the model is 25374802400 (match all digits)
• Note the serial number; it can help identify production details
• Check the manual’s identification section and parts diagrams for matching terminology
• If you are ordering parts, match by model number first, then verify the part fits your configuration

Kenmore model numbers often include a prefix that points to the original manufacturer. The 253 prefix is widely used on Kenmore refrigerators built on Frigidaire designs, which is consistent with many Frigidaire-sourced replacement parts listed for this model.

Knowing the manufacturing source helps you avoid mismatched components, especially for fit-sensitive items like an ice maker, door gasket, or defrost components. For example, this model’s parts list includes Frigidaire-style components such as the ice maker 5304458371.
