KitchenAid KHTU160KSS0 range hood Parts
Here are the diagrams and repair parts for KitchenAid KHTU160KSS0 range hood, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for KHTU160KSS0 Range Hood

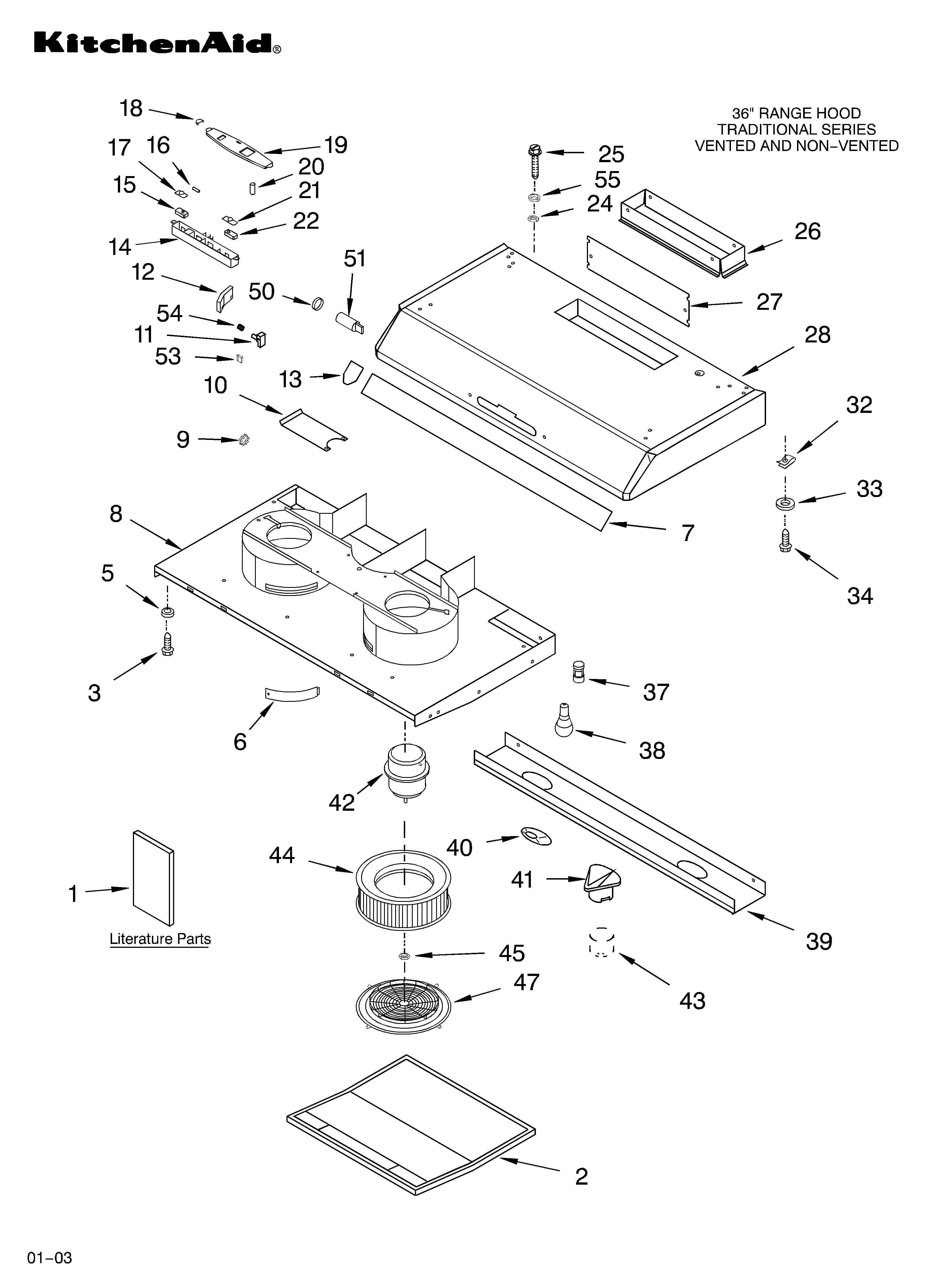

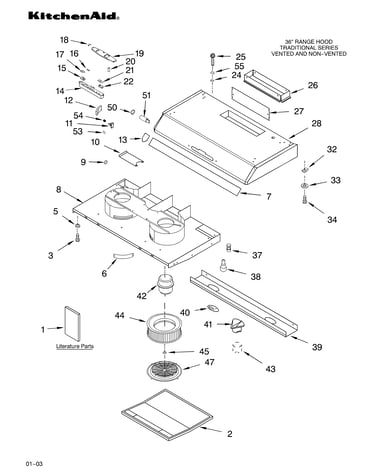

Range hood parts diagram
Light Bulb
Part #8189961Replaced by #8206232A
Manufacturer substitutionThis part replaces 8189961. Substitute parts can look different from the original.This item is not returnableIn Stock$5.7415% OFF Phone Price : $6.74
Qty
Range hood parts diagram
Case Assembly
In Stock$360.73QtyRange hood parts diagram
Housing
In Stock$370.84QtyRange hood parts diagram
Nut
In Stock$27.79QtyRange hood parts diagram
Slide Switch
Part #8189622Replaced by #WPW10252122
Manufacturer substitutionThis part replaces 8189622. Substitute parts can look different from the original.In Stock$157.547% OFF Phone Price : $169.54QtyRange hood parts diagram
Slide Switch
Part #8189621Replaced by #W11731942
Manufacturer substitutionThis part replaces 8189621. Substitute parts can look different from the original.In Stock$98.61QtyRange hood parts diagram
Drive End Cap
Part #8189953
The manufacturer no longer makes this part, and there's no substitute part
Range hood parts diagram
Grease Cup
Part #8189976
The manufacturer no longer makes this part, and there's no substitute part
Range hood parts diagram
Installation Instructions
Part #LIT8190057
The manufacturer no longer makes this part, and there's no substitute part
Range hood parts diagram
Spring
Part #8189986
The manufacturer no longer makes this part, and there's no substitute part
Most common symptoms to help you fix your range hoods
Choose a symptom to see related range hood repairs.
Main causes: sentry feature trips due to high cooktop temperature, bad temperature sensor, electronic control board fail…
Main causes: bad fan switch, electronic control board failure, faulty user interface control, wiring failure…
Main causes: bad light bulb, broken light switch, bad electronic control, user interface control failure, bad light sock…
Main causes: electronic control board failure, bad user interface control, light and fan switch failures, wiring failure…
Main causes: loose mounting screws, bad fan motor, damaged fan blade, worn fan motor bearings…
Main causes: clogged air filters, air duct problems, fan motor failure, broken fan blade…
Main causes: lack of electrical power, bad electronic control board, faulty user interface, fan and light switch failure…
Most common repair guides to help fix your range hoods
These step-by-step repair guides will help you safely fix what’s broken on your range hood.
How to replace a range hood fan motor
If the fan on the range hood won’t run, it’s likely that the fan motor has failed. Follow the steps in this guide to rep…
Repair time and Difficulty
30 minutes or less
How to replace a range hood fan switch
The fan switch activates the fan motor in the range hood. If the fan switch is defective, replace it using the detailed …
Repair time and Difficulty
15 minutes or less
How to replace a range hood light socket
When you replace a light bulb and it still won’t work, the socket is likely defective. Use the detailed steps in this re…
Repair time and Difficulty
15 minutes or less
Effective articles & videos to help repair your range hoods
Use the advice and tips in these articles and videos to get the most out of your range hood.
Learn about a new feature added to the Search Bar on Sears PartsDirect…
See the most common replacement parts needed for your range hood.…
Find out what’s wrong with your appliance by following a circuit.…
