Model # 11044182401 Official Kenmore washer

Here are the diagrams and repair parts for Official Kenmore 11044182401 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

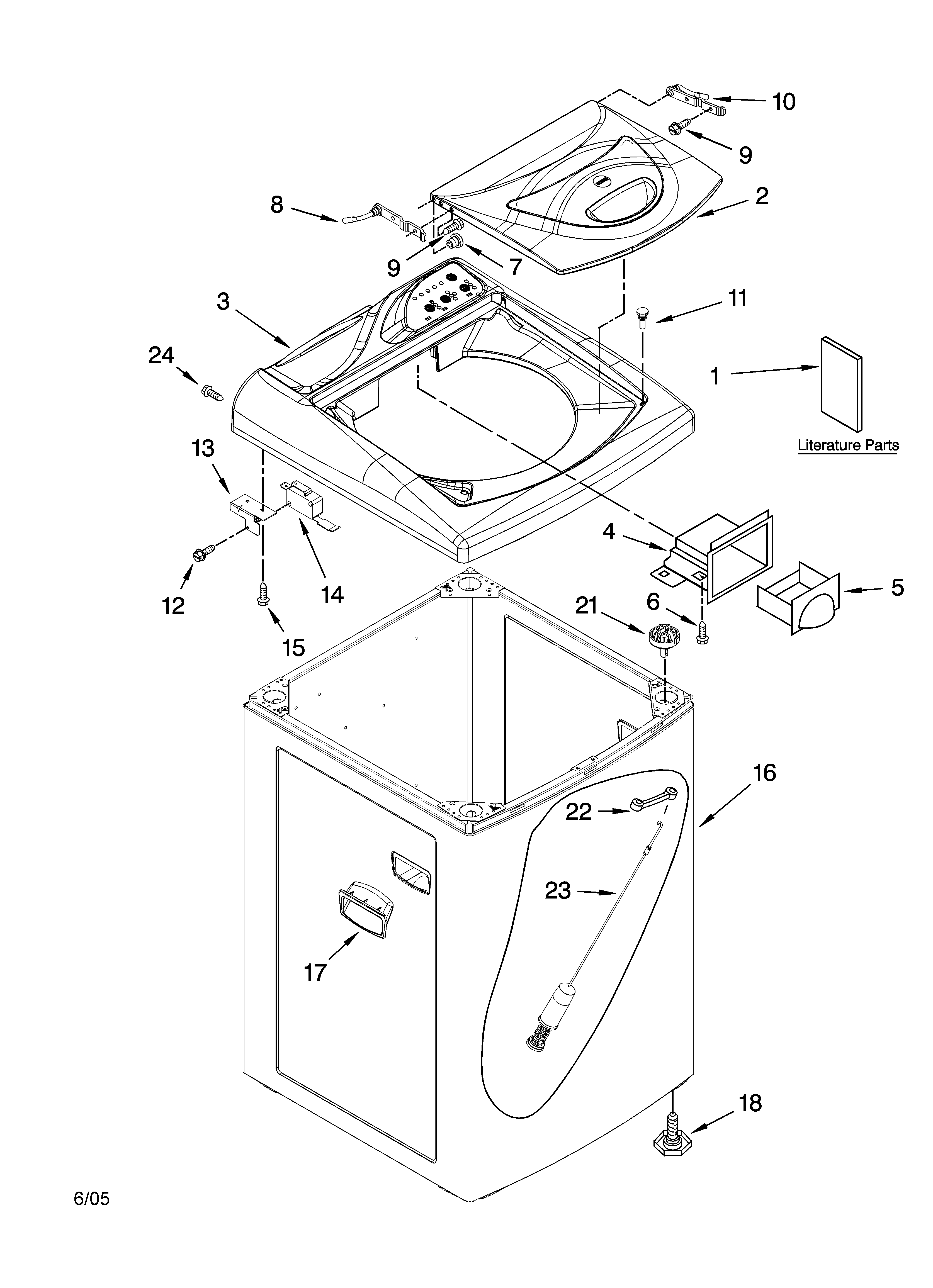

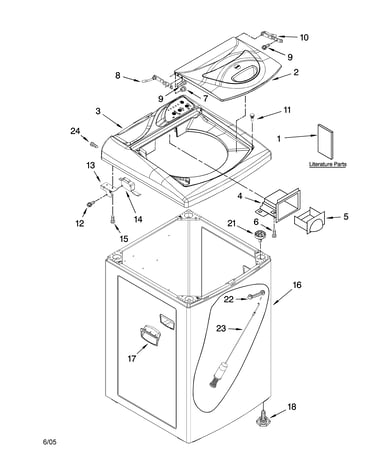

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

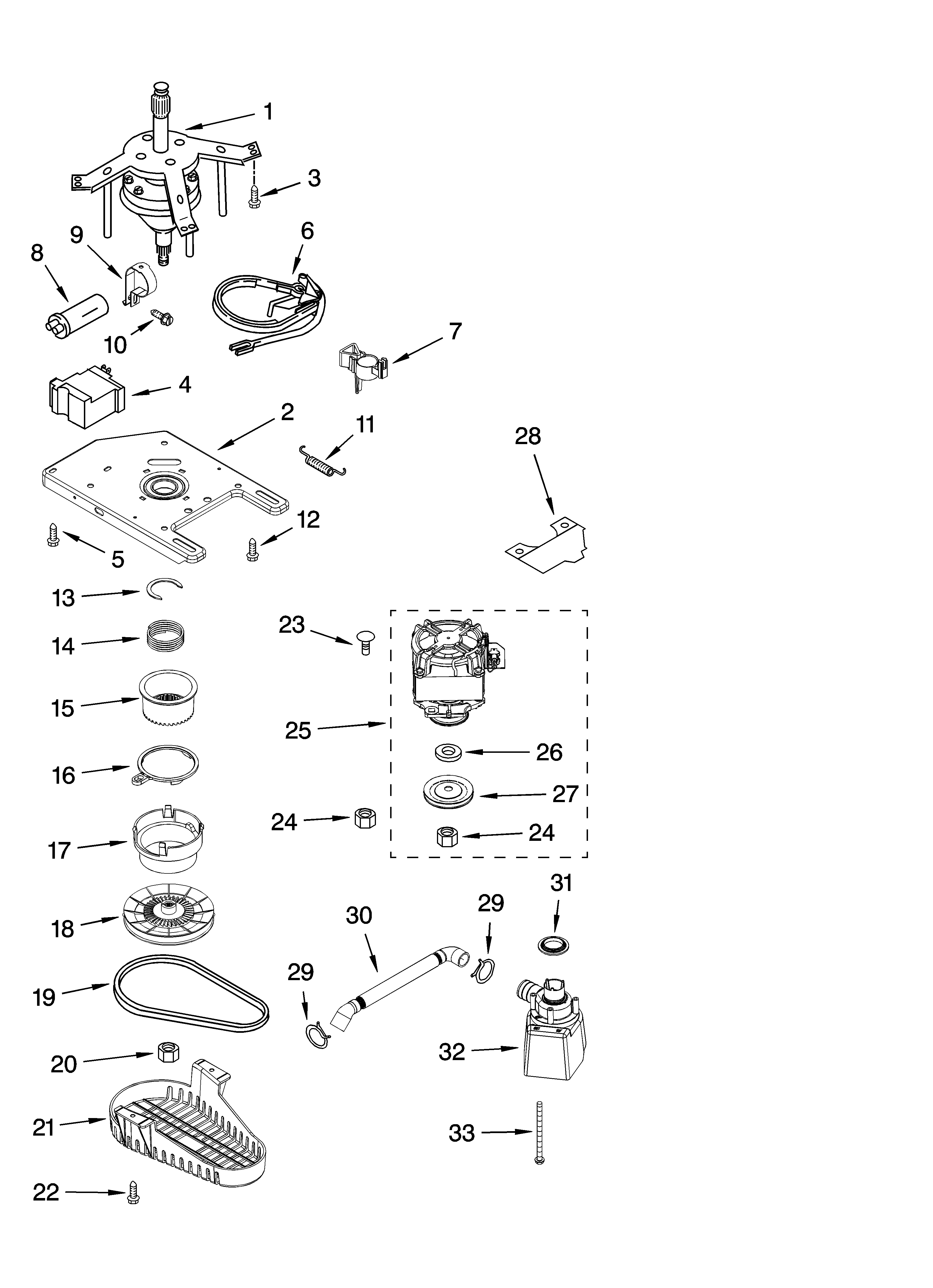

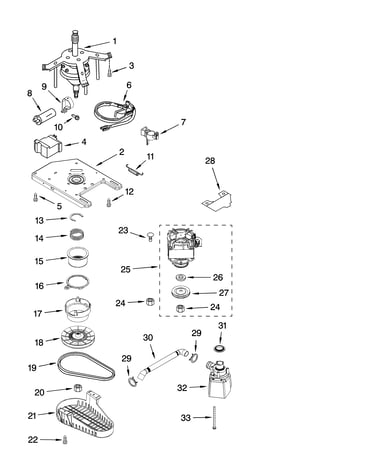

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 116 parts  |

Washer Faucet Adapter 3374592
#1

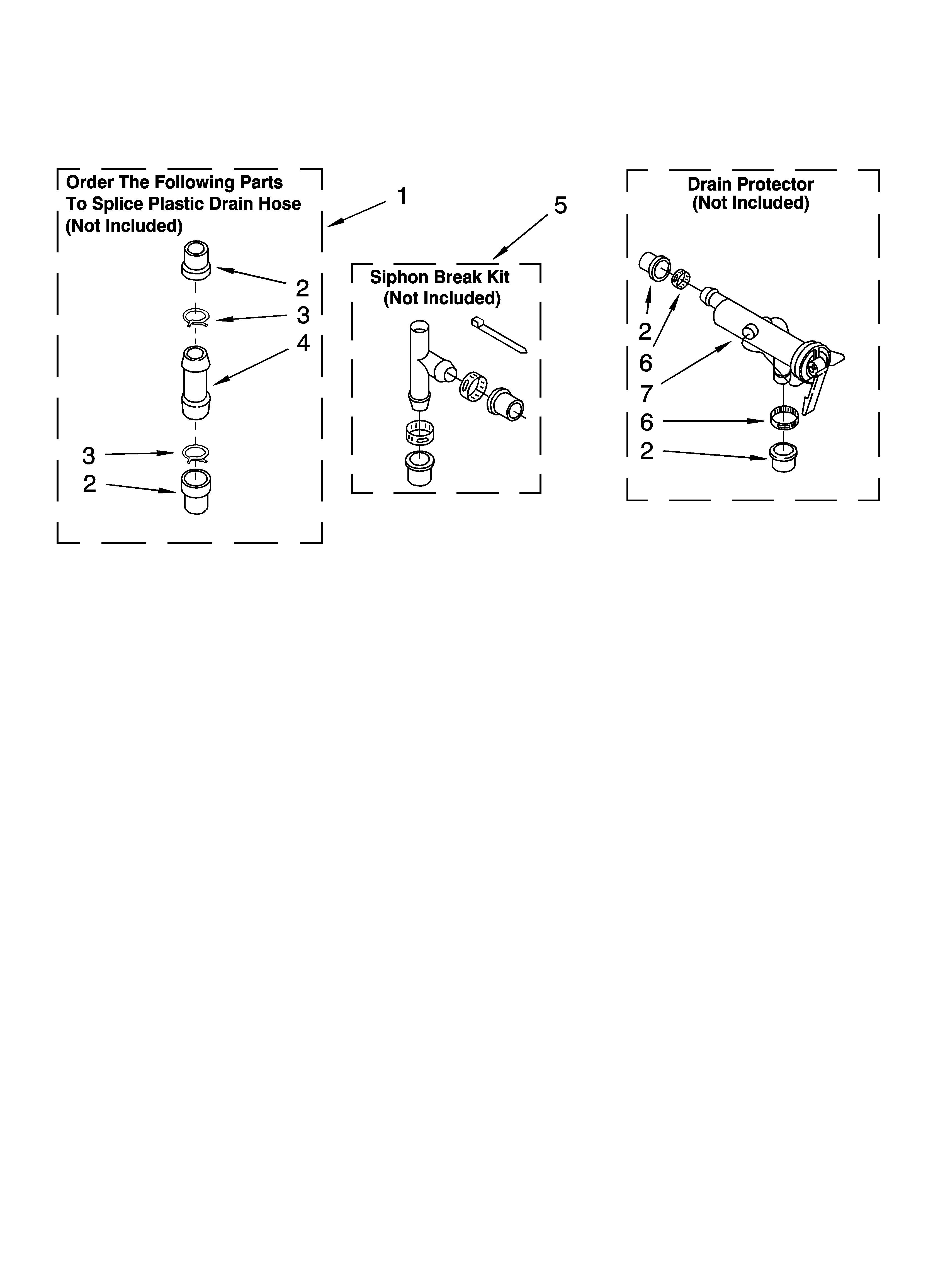

Water system parts, miscellaneous parts, optional part diagram

Washer faucet adapter

Part #3374592

Replaced by #WPW10254672

?
Manufacturer substitution
This part replaces 3374592. Substitute parts can look different from the original.
BEST SELLER
$37.85
12% OFF Phone Price : $42.85
In Stock
Appliance Spray Paint (white) (replaces 094566-64, 206923, 2780-0001, 4395978, 5303203125, 66208, 788343, 799343, 799433, 99343, A0050702, F94566-010, Y057937, Y350930) 350930
#NI

Water system parts, miscellaneous parts, optional part diagram

Appliance spray paint (white) (replaces 094566-64, 206923, 2780-0001, 4395978, 5303203125, 66208, 788343, 799343, 799433, 99343, a0050702, f94566-010, y057937, y350930)

Part #350930

BEST SELLER
This item is not returnable
$15.69
11% OFF Phone Price : $17.69
In Stock
Drain Hose 3951609
#22

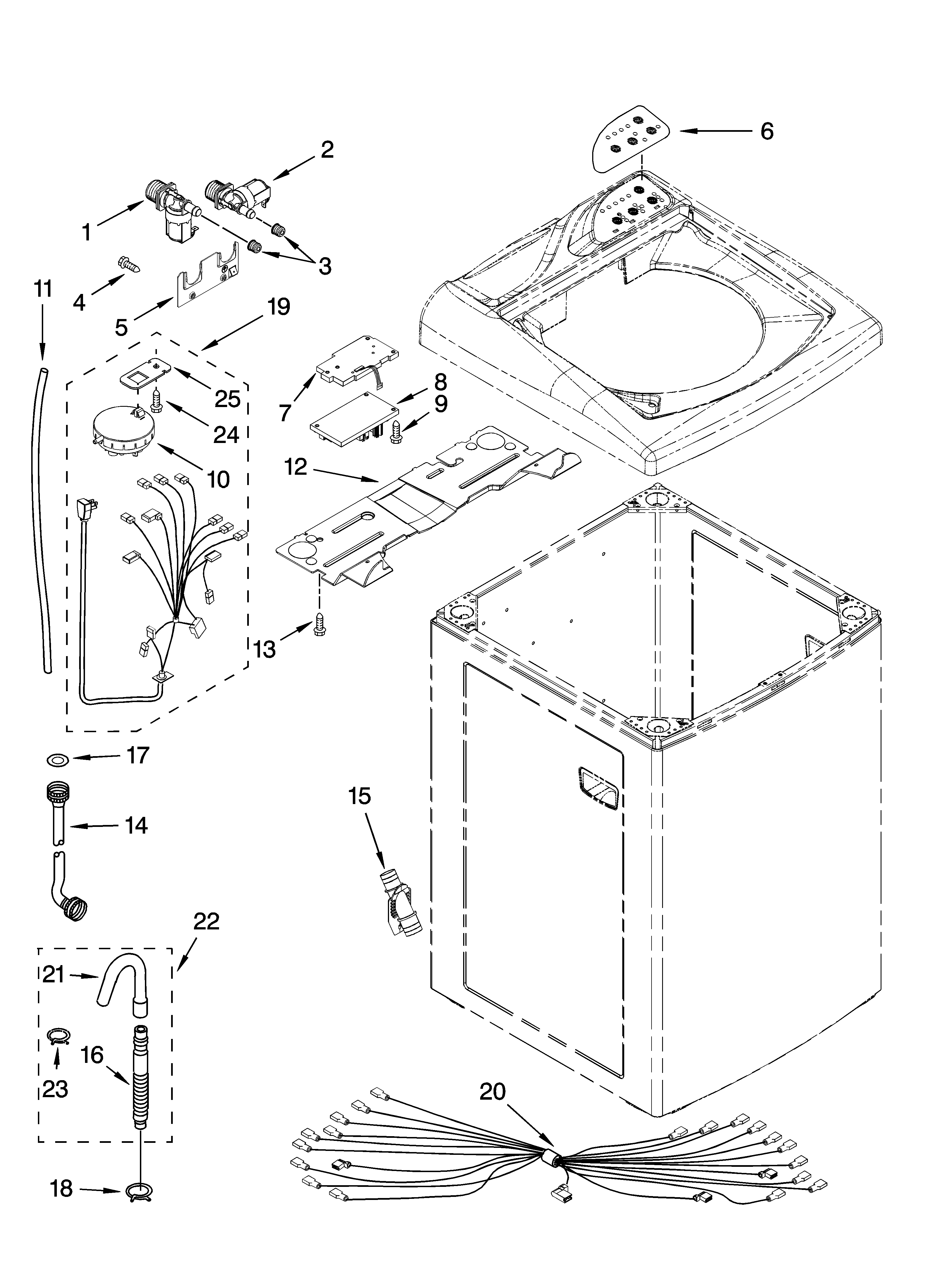

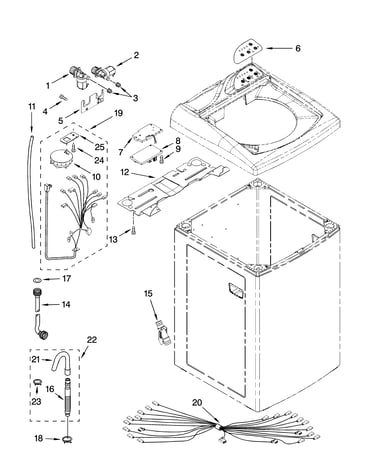

Controls and rear panel parts diagram

Drain hose

Part #3951609

Replaced by #285664

?
Manufacturer substitution
This part replaces 3951609. Substitute parts can look different from the original.
BEST SELLER
$33.16
13% OFF Phone Price : $38.16
In Stock
Fill Hose 326033960
#14

Controls and rear panel parts diagram

Fill hose

Part #326033960

Replaced by #WP89503

?
Manufacturer substitution
This part replaces 326033960. Substitute parts can look different from the original.
BEST SELLER
$14.49
12% OFF Phone Price : $16.49
In Stock
Hose 326033912
#16

Controls and rear panel parts diagram

Hose

Part #326033912

Replaced by #285664

?
Manufacturer substitution
This part replaces 326033912. Substitute parts can look different from the original.
BEST SELLER
$33.16
13% OFF Phone Price : $38.16
In Stock
Screw 8182298
#7

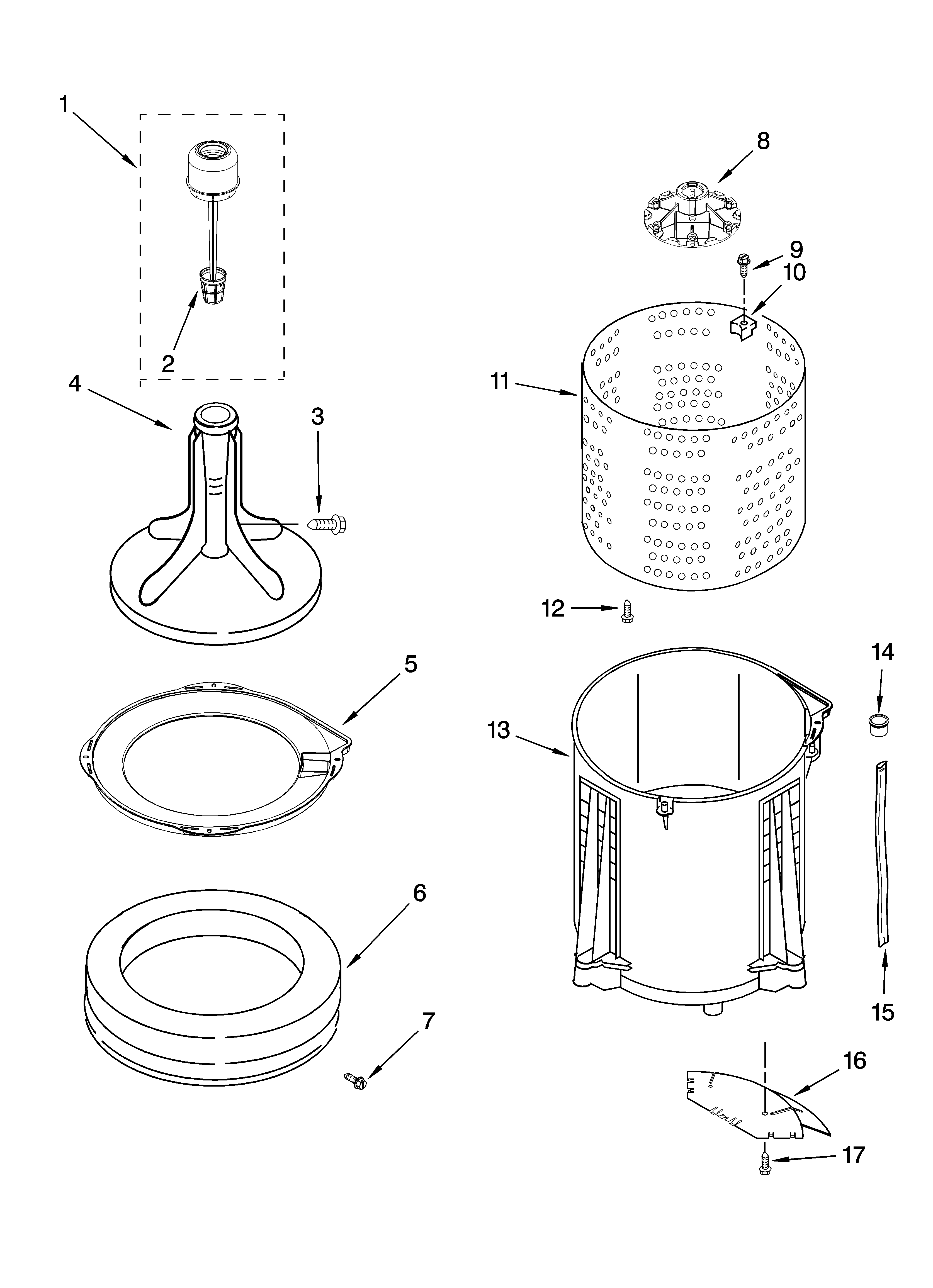

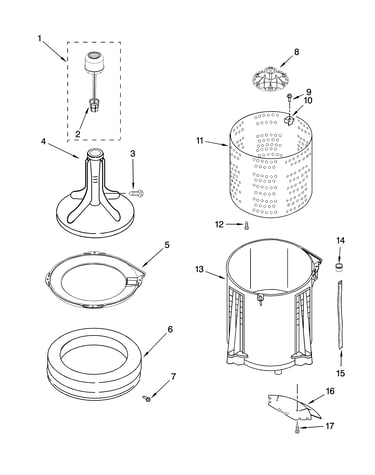

Agitator, basket and tub parts diagram

Screw

Part #8182298

Replaced by #WP489491

?
Manufacturer substitution
This part replaces 8182298. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39
19% OFF Phone Price : $5.39
In Stock
Washer Siphon Break Kit (replaces 201112, 2-01112, 2-5662, Lp920) 285320
#5

Water system parts, miscellaneous parts, optional part diagram

Washer siphon break kit (replaces 201112, 2-01112, 2-5662, lp920)

Part #285320

$28.71
32% OFF MSRP : $42.00
In Stock
Washer Drain Hose Coupling Kit 285442
#1

Water system parts, miscellaneous parts, optional part diagram

Washer drain hose coupling kit

Part #285442

$34.52
13% OFF Phone Price : $39.52
In Stock
Nozzle 326037683
#21

Controls and rear panel parts diagram

Nozzle

Part #326037683

Replaced by #WP3357027

?
Manufacturer substitution
This part replaces 326037683. Substitute parts can look different from the original.
$33.82
13% OFF Phone Price : $38.82
In Stock
Clamp 326041104
#23

Controls and rear panel parts diagram

Clamp

Part #326041104

Replaced by #WP3357331

?
Manufacturer substitution
This part replaces 326041104. Substitute parts can look different from the original.
This item is not returnable
$6.49
13% OFF Phone Price : $7.49
In Stock
