Model #SHU8806UC/12 (FD 8105) Official Bosch dishwasher

Here are the diagrams and repair parts for Bosch SHU8806UC-12-FD-8105 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

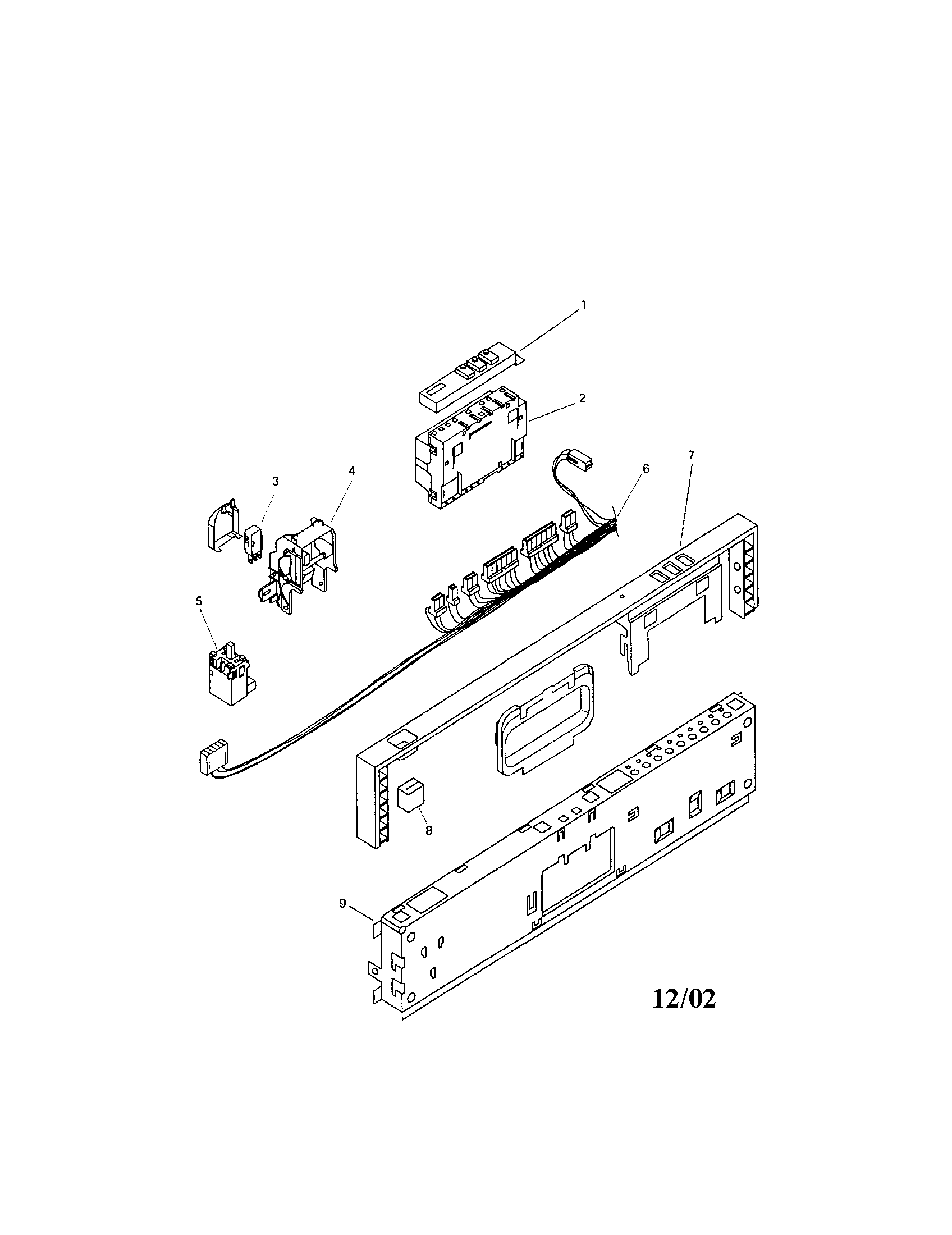

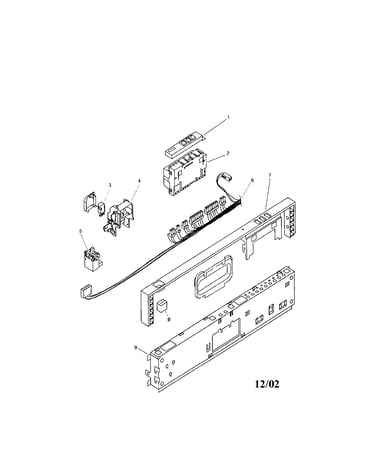

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

?
This is the number corresponding to the part on the diagram / schematic

Showing 10 of 132 parts

Dishwasher Dishrack Roller (replaces 00165313, 611666)#5

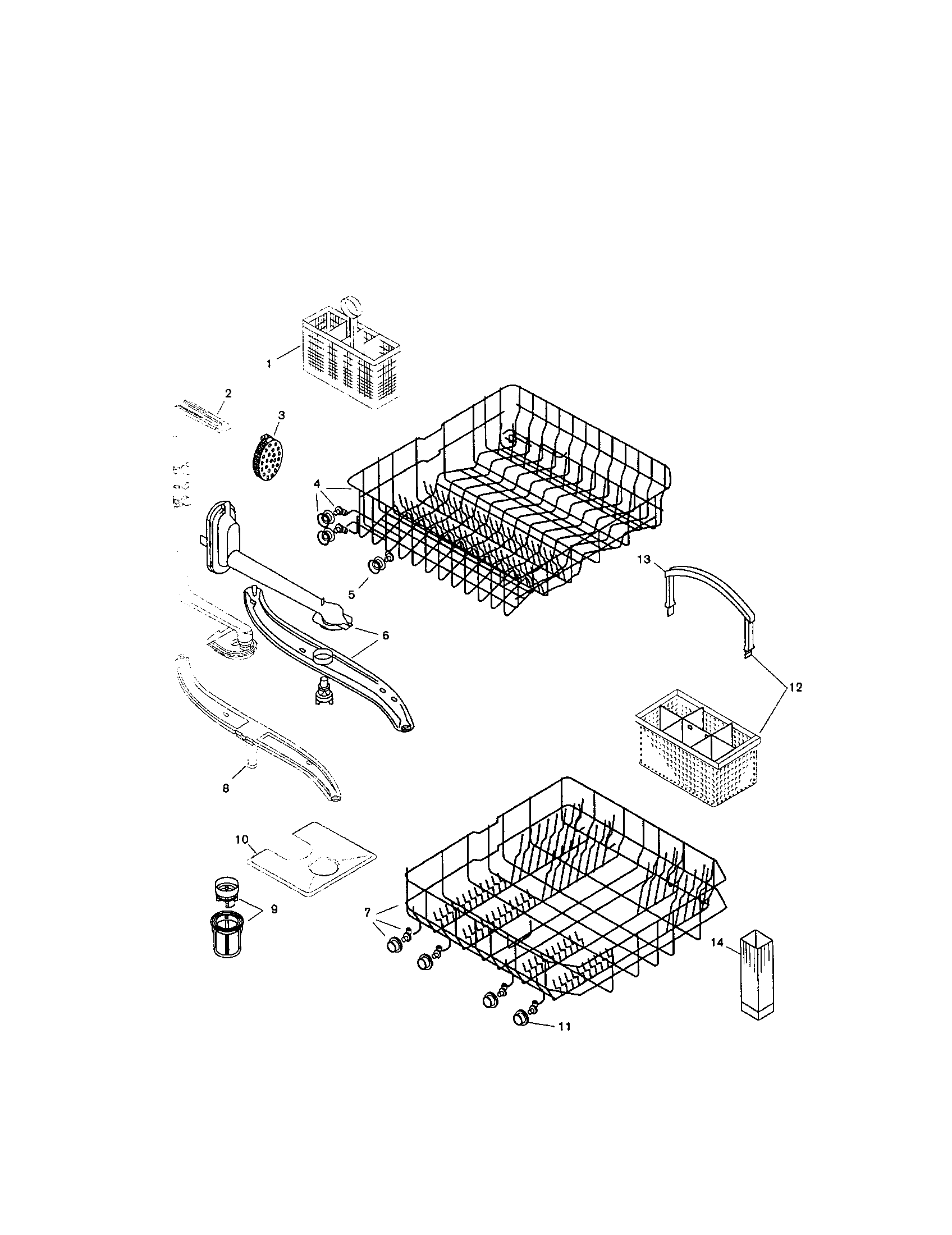

Racks Diagram

Dishwasher dishrack wheel, upper

Part #165313
Replaced by #00611666
?
Manufacturer substitution
This part replaces 165313. Substitute parts can look different from the original.
BEST SELLER
In Stock
$7.15 |
12% OFF
Phone Price: $8.15
Dishwasher Dishrack, Lower#7

Racks Diagram

L-rack

Part #850007
Replaced by #00249276
?
Manufacturer substitution
This part replaces 850007. Substitute parts can look different from the original.
BEST SELLER
Back Order
$260.38 |
$10.00 OFF
Phone Price: $270.38
Motor#13

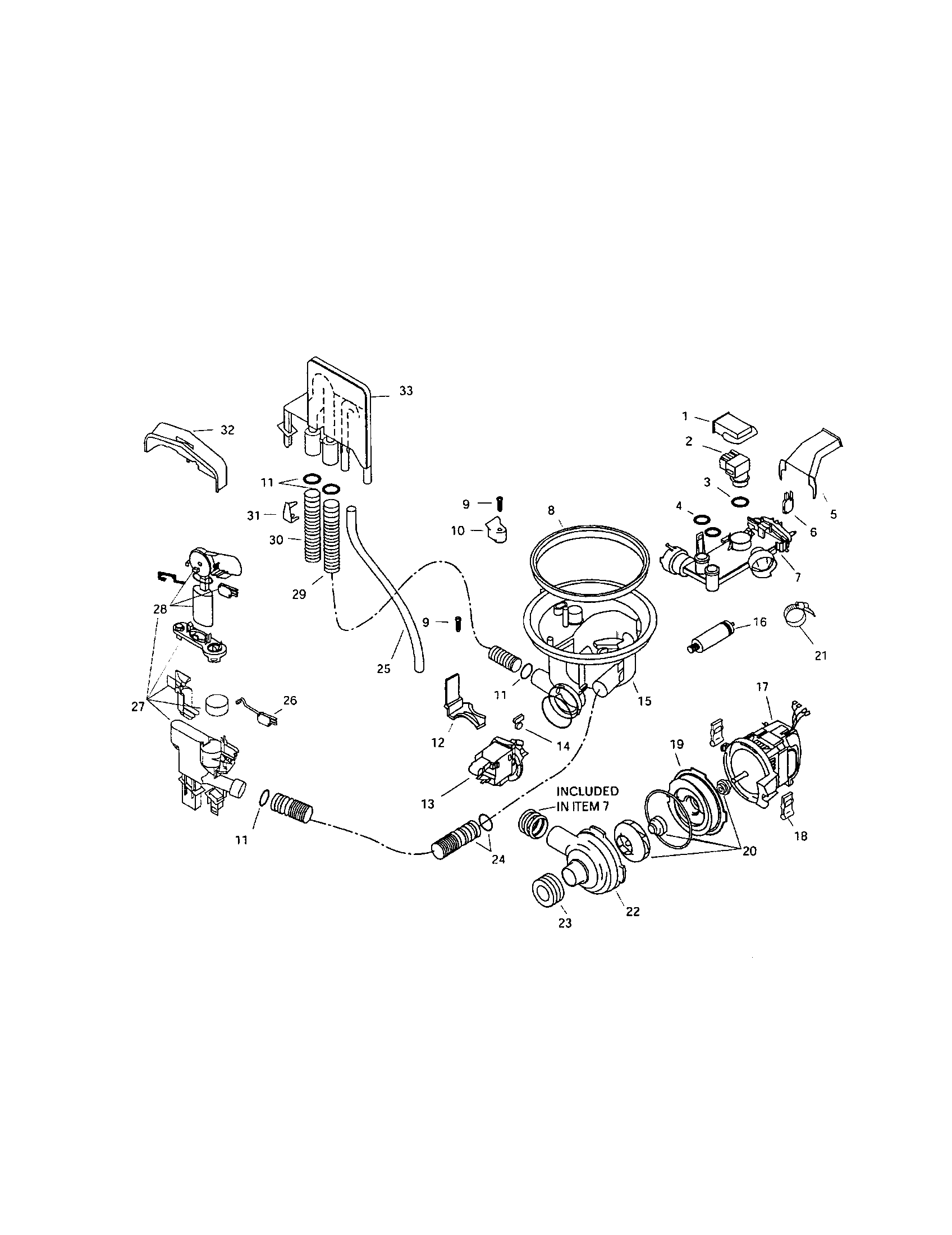

Component assemblies Diagram

Motor

Part #167082

The manufacturer no longer makes this part, and there's no substitute part

Dishwasher Dishrack Slide Rail Stop, Upper#8

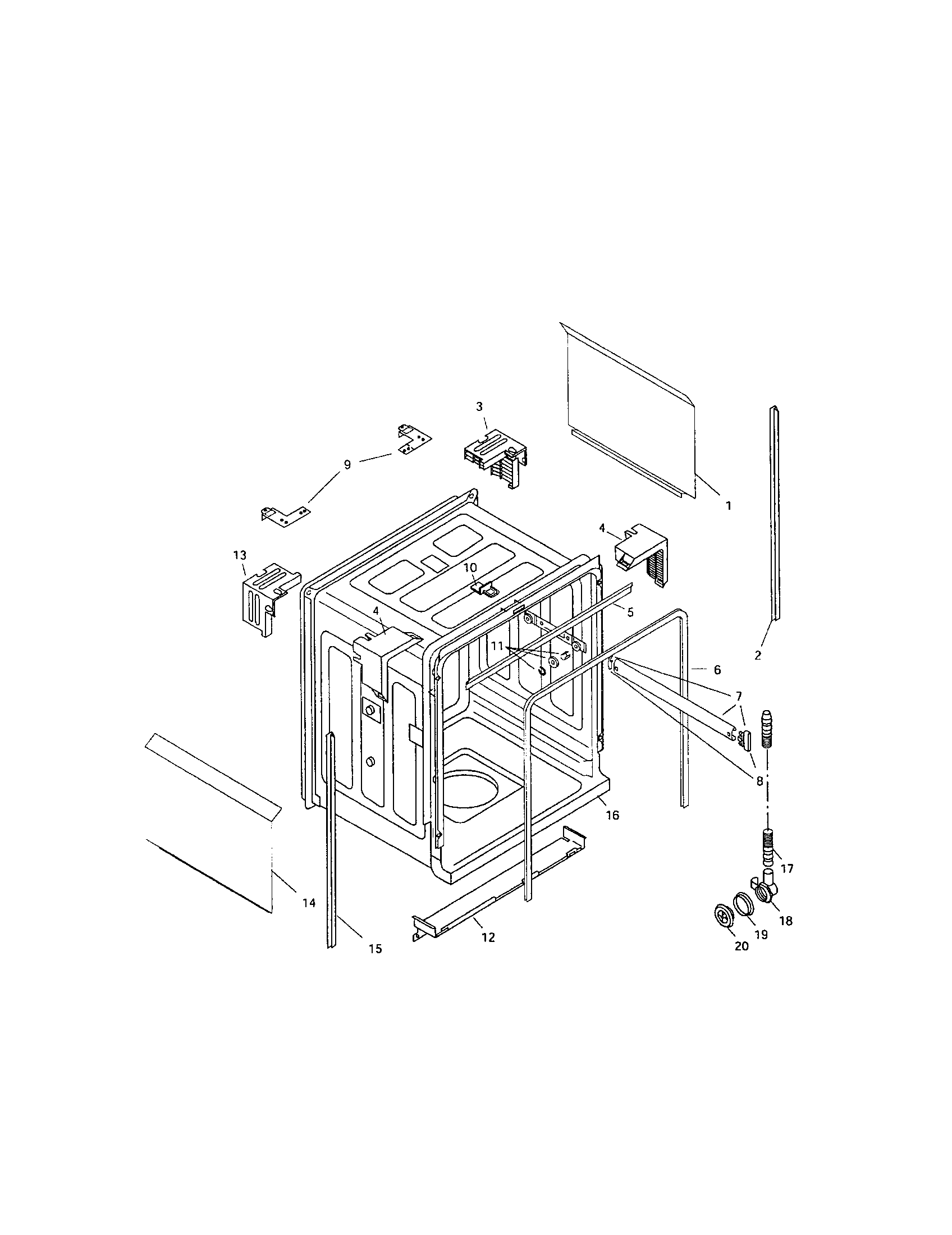

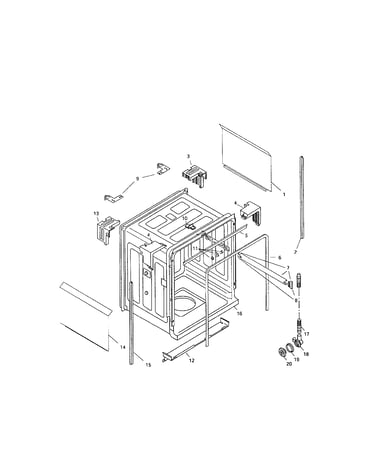

Tank assembly Diagram

Dishwasher dishrack slide rail stop, upper

Part #165254
Replaced by #00165254
?
Manufacturer substitution
This part replaces 165254. Substitute parts can look different from the original.
This item is not returnable
In Stock
$6.59 |
13% OFF
Phone Price: $7.59
Dishwasher Detergent Dispenser Cover (replaces 166623)#14

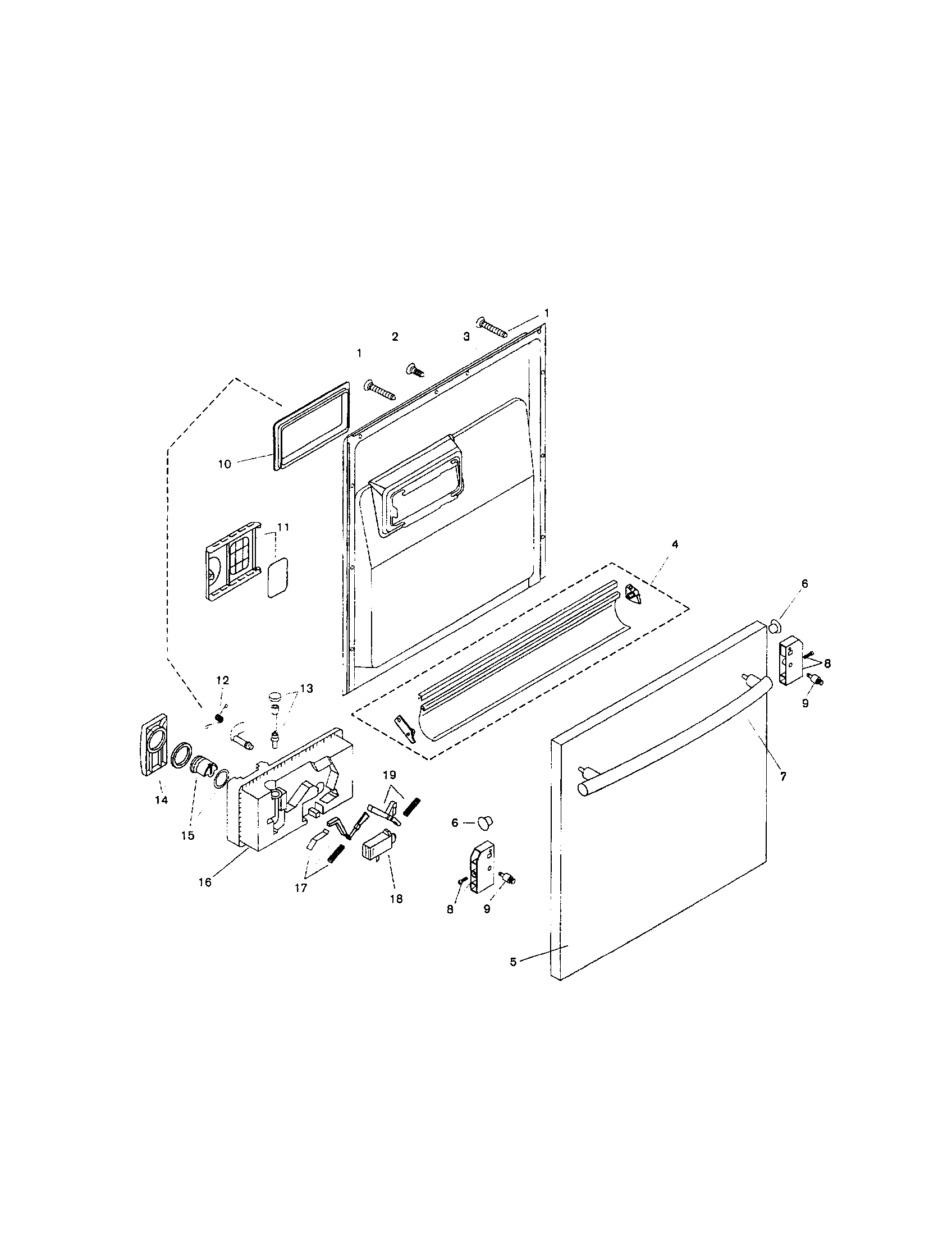

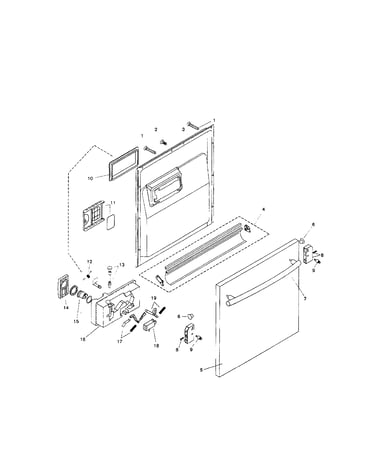

Door assembly Diagram

Dishwasher door panel

Part #166623
Replaced by #00166623
?
Manufacturer substitution
This part replaces 166623. Substitute parts can look different from the original.
This item is not returnable
In Stock
$11.49 |
15% OFF
Phone Price: $13.49
Dishwasher Hose Clamp (replaces 00417502, 00606311, 172272)#21

Component assemblies Diagram

Hose clamp

Part #172272
Replaced by #00172272
?
Manufacturer substitution
This part replaces 172272. Substitute parts can look different from the original.
In Stock
$18.72 |
10% OFF
Phone Price: $20.72
Dishwasher Spray Arm#8

Racks Diagram

Dishwasher spray arm

Part #359975
Replaced by #00359975
?
Manufacturer substitution
This part replaces 359975. Substitute parts can look different from the original.
In Stock
$32.39 |
13% OFF
Phone Price: $37.39

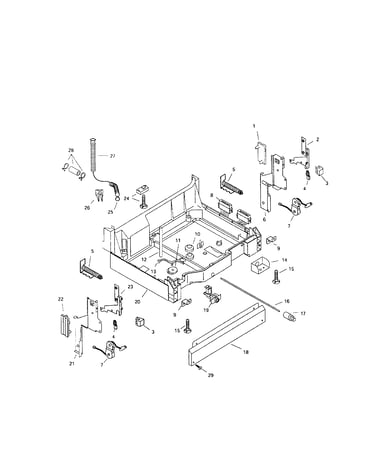

Dishwasher Float Assembly (replaces 00170851, 165301)#11

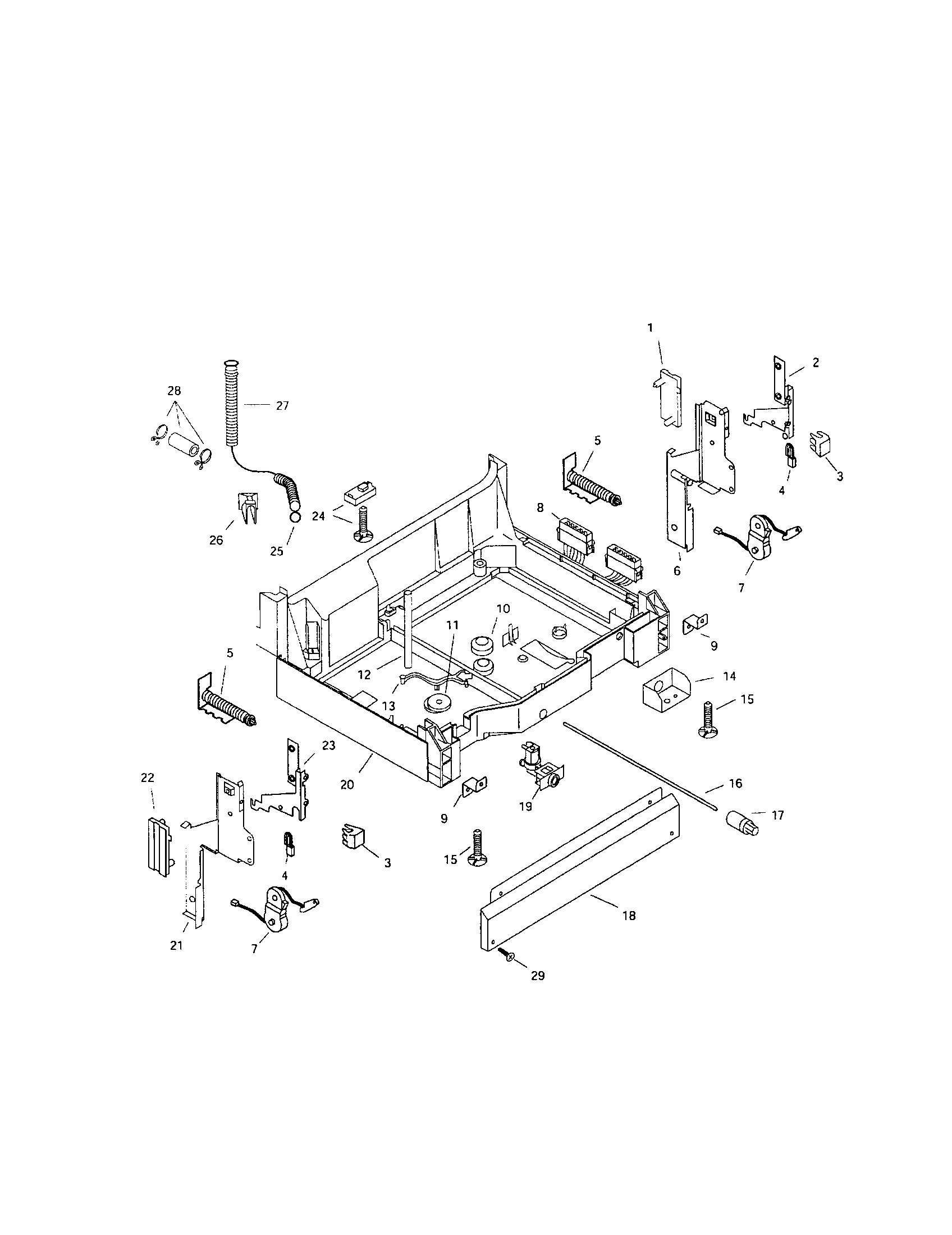

Base Diagram

Float

Part #165301
Replaced by #00165301
?
Manufacturer substitution
This part replaces 165301. Substitute parts can look different from the original.
In Stock
$8.29 |
11% OFF
Phone Price: $9.29
Dishwasher Screw (replaces 00168622, 612562)#1

Door assembly Diagram

Screw

Part #168622
Replaced by #00612562
?
Manufacturer substitution
This part replaces 168622. Substitute parts can look different from the original.
This item is not returnable
In Stock
$4.71
Dishwasher Circulation Pump Gasket (replaces 171598)#23

Component assemblies Diagram

Dishwasher wash pump gasket

Part #171598
Replaced by #00171598
?
Manufacturer substitution
This part replaces 171598. Substitute parts can look different from the original.
In Stock
$28.09 |
15% OFF
Phone Price: $33.09
