Whirlpool WED9300VU1 electric dryer Parts
Here are the diagrams and repair parts for Whirlpool WED9300VU1 electric dryer, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error Codes
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for WED9300VU1 Electric Dryer

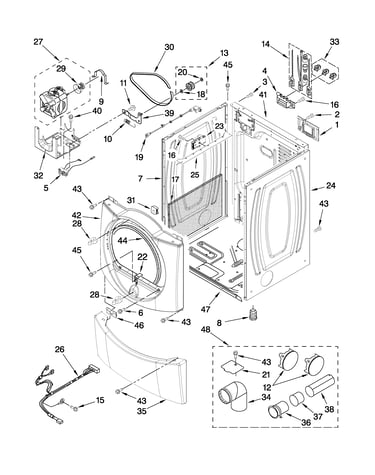

Cabinet parts diagram
Dryer Terminal Block
Part #3397659Replaced by #WP3397659
Manufacturer substitutionThis part replaces 3397659. Substitute parts can look different from the original.In Stock$17.6810% OFF Phone Price : $19.68
Qty
Cabinet parts diagram
Cover
Part #8066115Replaced by #WPW10354249
Manufacturer substitutionThis part replaces 8066115. Substitute parts can look different from the original.In Stock$7.2112% OFF Phone Price : $8.21QtyBulkhead parts diagram
Outer Housing
Part #3394985Replaced by #W11129408
Manufacturer substitutionThis part replaces 3394985. Substitute parts can look different from the original.In Stock$40.4113% OFF Phone Price : $46.41QtyTop and console parts diagram
Terminal
Part #94613Replaced by #WP596797
Manufacturer substitutionThis part replaces 94613. Substitute parts can look different from the original.This item is not returnableIn Stock$4.9117% OFF Phone Price : $5.91QtyBulkhead parts diagram
Screw
Part #W10219342Replaced by #W10853898
Manufacturer substitutionThis part replaces W10219342. Substitute parts can look different from the original.This item is not returnableIn Stock$4.9117% OFF Phone Price : $5.91QtyBulkhead parts diagram
Air Duct
Part #697354Replaced by #WP3387911
Manufacturer substitutionThis part replaces 697354. Substitute parts can look different from the original.In Stock$182.296% OFF Phone Price : $194.29QtyCabinet parts diagram
Whirlpool Dryer Door Switch
Part #W10128087
The manufacturer no longer makes this part, and there's no substitute part

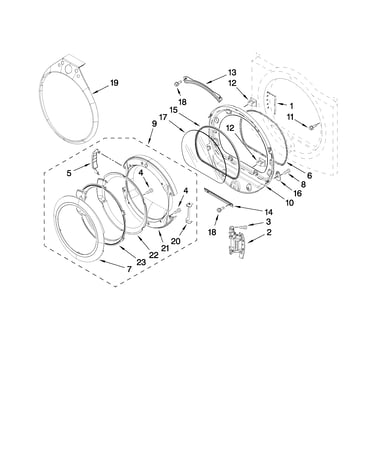

Door parts diagram
Trim
Part #W10207414
The manufacturer no longer makes this part, and there's no substitute part

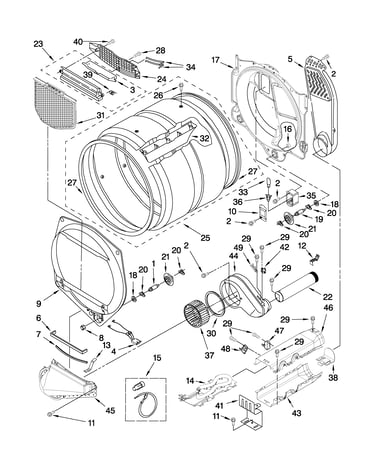

Bulkhead parts diagram
Dryer Bulkhead
Part #W10252304
The manufacturer no longer makes this part, and there's no substitute part

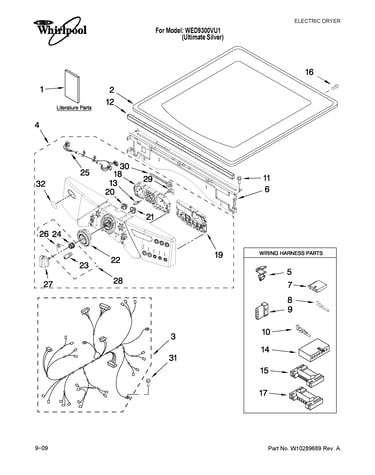

Top and console parts diagram
Sears Canada Harness Clip
Part #W10112268
The manufacturer no longer makes this part, and there's no substitute part
