If your Maytag MED7230HW3 dryer tumbles normally but never produces heat, takes far longer to dry, or trips the breaker when heat should turn on, the heating element is a top suspect. We confirm it by unplugging the dryer and checking the heater for continuity.

Common symptoms you can spot

• Dryer runs but blows room-temperature air on heated cycles
• Clothes stay damp after a full cycle or drying time suddenly doubles
• Heat is intermittent (warm for a few minutes, then cold)
• Breaker trips when the cycle calls for heat
• Burning smell or visible damage on the heater housing (stop using and inspect)

Quick checks before you replace the heater

1. Verify airflow: A clogged lint screen or vent can cause overheating and shut down heat.
2. Check for a blown thermal fuse: If the dryer overheated, the fuse can open and kill heat.
3. Test the heater circuit parts: A failed thermostat or sensor can prevent the element from energizing.

Helpful parts often involved in “no heat” troubleshooting on MED7230HW3:

• Element, heater 5400w WP3387747
• Thermal fuse W10909685
• Dryer high-limit thermostat WP8557403
• Dryer thermistor WP8577274

What to test (and what results mean)

Use a multimeter with the dryer unplugged. This table shows what we look for.

Part to test	What you’re checking	What a failure looks like
Heating element	Continuity through the coil	No continuity (open circuit) or coil shorted to metal housing
Thermal fuse	Continuity	No continuity (open) and dryer often has no heat
High-limit thermostat	Continuity at room temp	No continuity (open) at room temp
Thermistor	Resistance changes with temperature	Reading far out of range or unstable

For meter basics, use how to use a multimeter to test electrical parts video.

Why it matters

A bad heating element can mimic venting problems, and restricted airflow can also damage the heater and blow the thermal fuse. Testing the heater and safety devices together helps you fix the real cause and avoid repeat failures.

Last updated: February 2026

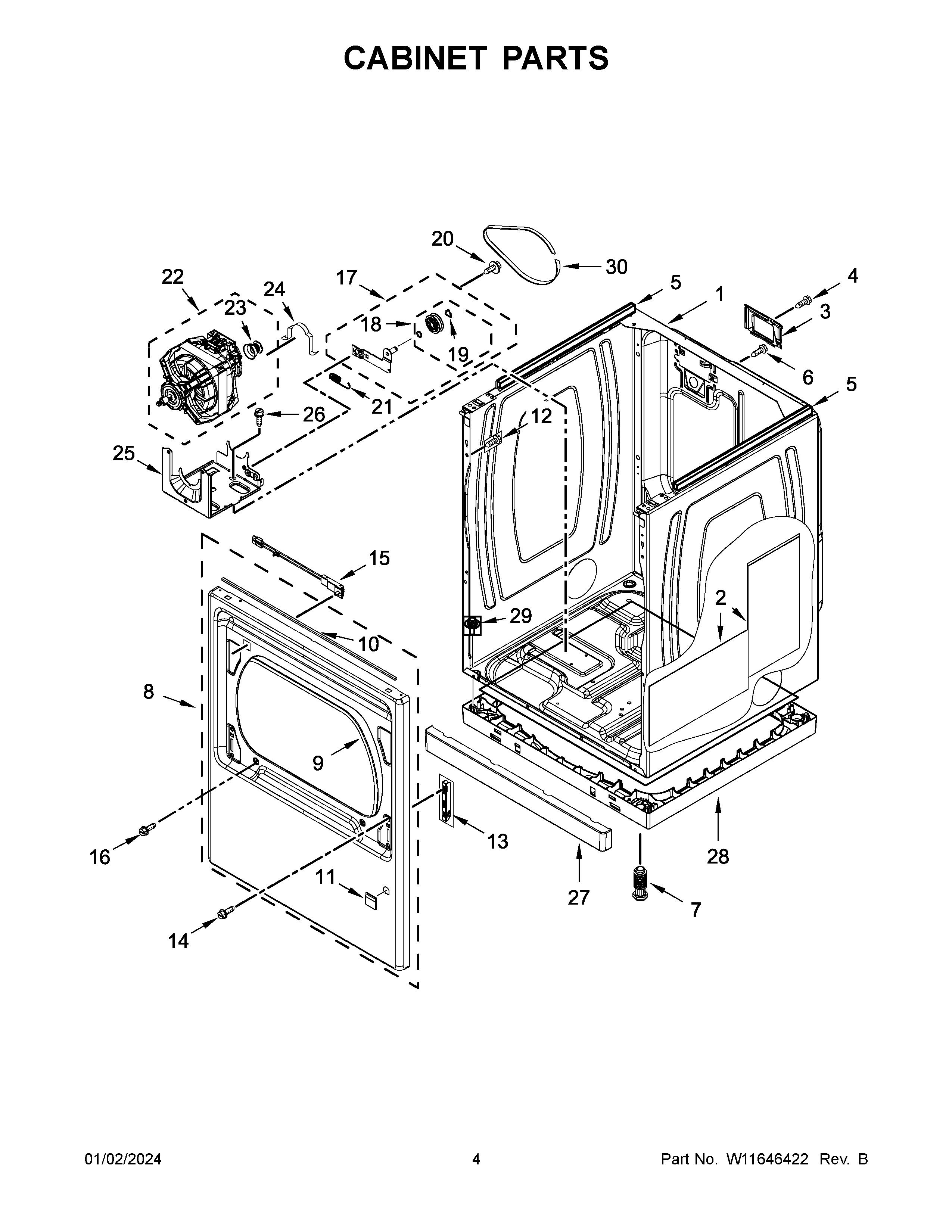

To remove the front panel on a Maytag MED7230HW3 electric dryer, we unplug power first, then release the top and front fasteners, disconnect the door switch wiring, and lift the panel off the lower mounting tabs so you can access the drum, belt, and blower area.

Before you start (safety and prep)

• Unplug the dryer (or switch off the breaker); confirm the drum light is off.
• If the dryer is hardwired, turn off the breaker and verify power is off.
• Pull the dryer forward so you can work from the front and sides.
• Have a container ready for screws.
• Wear cut-resistant gloves; cabinet edges are sharp.

Front panel removal steps (typical Maytag layout)

1. Remove lint screen and take out the screws that are revealed in the lint screen housing (common on many Maytag builds).
2. Use a putty knife to release the top panel clips (usually a few inches in from each front corner), then lift the top.
3. Remove the screws securing the front panel to the cabinet (often at the upper inside corners once the top is raised).
4. Disconnect the door switch harness (note the connector orientation).
5. Tilt the front panel forward, then lift up to unhook it from the lower tabs and remove it.

What you can inspect once the panel is off

• Belt routing and idler movement (a squeal often points to the dryer idler pulley W10837240).
• Drum support rollers for flat spots or rumbling (common wear item: dryer drum support roller WPW10314173).
• Lint buildup around the blower housing (a thump or vibration can involve the dryer blower wheel WP697772).

Quick reference: symptoms and likely areas

Symptom after reassembly	Most common area to recheck	Example part on this model
Door won’t start cycle	Door switch connector not seated	Harness connection at door switch
Rattling/vibration	Front panel not on lower tabs	Cabinet mounting tabs/screws
Squeal or chirp	Idler or rollers disturbed	W10837240, WPW10314173

Why it matters

Removing the front panel correctly prevents bent cabinet tabs, pinched wiring, and air leaks that reduce airflow and drying performance. It also gives you safe access to high-wear drive components and lint-prone areas.

Last updated: February 2026

The Maytag MED7230HW3 is a residential electric dryer; most Maytag dryers in this class are about 7.0 to 7.4 cu. ft. capacity. For the exact MED7230HW3 drum capacity, match the spec to your model tag and parts configuration (the 5.2 cu. ft. figure commonly applies to certain top-load washers, not dryers).

Quick ways we confirm capacity for MED7230HW3

• Check the model tag (typically inside the door opening) and confirm it reads MED7230HW3.
• Compare your dryer’s drum and front panel style to the parts listed for this model.
• If you are shopping parts because of noise or poor tumbling, confirm the drum support system matches.
• Use the drum support parts list to ensure you are on the correct model variation.
• If your dryer is not drying well, verify airflow parts before assuming capacity is the issue.

Parts that help verify you are on the right model

If your MED7230HW3 uses these common drum support components, you are typically in the correct Maytag/Whirlpool-built platform family:

What you’re checking	Common related part for this model	What it tells you
Drum support rollers	Dryer drum support roller WPW10314173	Confirms the roller-style rear support design
Belt tension system	Dryer idler pulley W10837240	Confirms the idler pulley layout used on this platform
Air movement	Dryer blower wheel WP697772	Confirms blower housing and lint duct style

Why it matters

Capacity affects how much laundry you can dry per load and how long cycles take. Overloading a dryer can cause longer dry times, higher heat stress on the heater circuit, and faster wear on rollers, the idler pulley, and the blower wheel.

Last updated: February 2026

For the Maytag MED7230HW3 electric dryer, the most common problem we see is poor drying or no heat caused by restricted airflow (lint buildup in the screen, blower housing, or vent). That overheating can also lead to a blown thermal fuse and a dryer that will not run.

What to check first (fast, high-impact)

• Clean the lint screen before every load; replace a damaged or warped screen such as the screen W10120998.
• Inspect and clear the entire vent run to the outside; crushed flex duct and long runs slow airflow.
• Confirm strong airflow at the exterior vent hood while the dryer runs.
• Avoid overloading; heavy loads reduce tumbling and airflow through fabrics.
• If the dryer runs but clothes stay damp, check for a loose or broken blower wheel such as the dryer blower wheel WP697772.

Other very common Maytag dryer issues

Even with good airflow, these are frequent wear or safety-related failures on electric dryers:

• Drum not turning or loud rumbling/squealing: worn rollers or idler pulley
• Stops mid-cycle or will not start: thermal fuse open, door switch issues, or power supply problems
• Inconsistent drying on sensor cycles: moisture sensor contamination or failure

Common symptom-to-part mapping

Symptom	Most likely area	Example part for MED7230HW3
No heat, runs but never dries	Heating circuit or airflow	Element, heater 5400w WP3387747
Will not run at all	Overheat protection opened	Thermal fuse W10909685
Rumbles, thumps, squeals	Drum support and belt path	Dryer drum support roller WPW10314173 or dryer idler pulley W10837240
Sensor cycles end too soon or run too long	Moisture sensing	Dryer moisture sensor WP3387223

Why it matters

Airflow problems do more than slow drying; they raise operating temperatures. That increases stress on the heater, thermostats, and safety fuse, and it can turn a simple vent cleaning into a no-heat or no-start repair.

Last updated: February 2026

On your Maytag MED7230HW3 dryer, the part number is printed on the part itself (not on the control panel). For most repairs, we match parts using the model and serial tag first, then confirm the part number from the old part or a parts diagram.

Where to look on the dryer

Check these common locations for the model and serial tag (used to pull the correct parts list):

• Open the dryer door and look around the door opening (cabinet frame)
• Check the inside of the door itself
• Look on the back panel of the dryer cabinet
• If your dryer is stacked or tight to a wall, use a flashlight and mirror to read the tag

Where to find the part number (on the actual part)

Once you access the component you are replacing, look for a stamped, printed, or stickered number on the part.

• Heater housing and heater assembly often have a label on the metal housing
• Thermostats and fuses usually have tiny printing on the flat face or edge
• Rollers and pulleys may have molded numbers on the plastic hub
• Wiring harnesses often have a tag wrapped around the wires
• Some parts show an engineering number that cross-references to the orderable part

Quick examples for this model

These are common MED7230HW3 parts people look up by name; you can compare the old part to the listing:

Symptom you see	Part to check	Example part for MED7230HW3
Loud thumping or squealing	Drum support roller, idler pulley	Dryer drum support roller WPW10314173, dryer idler pulley W10837240
No heat or weak heat	Heater, thermal fuse, thermistor	Element, heater 5400w WP3387747, thermal fuse W10909685, dryer thermistor WP8577274

Why it matters

Maytag often uses multiple revisions of similar-looking dryer parts. Using the MED7230HW3 model/serial tag plus the number printed on the old component helps ensure the replacement fits, heats correctly (5400W heater), and mounts properly.
