Samsung RF263TEAESR/AA-01 refrigerator

Samsung RF263TEAESR/AA-01 refrigerator Parts

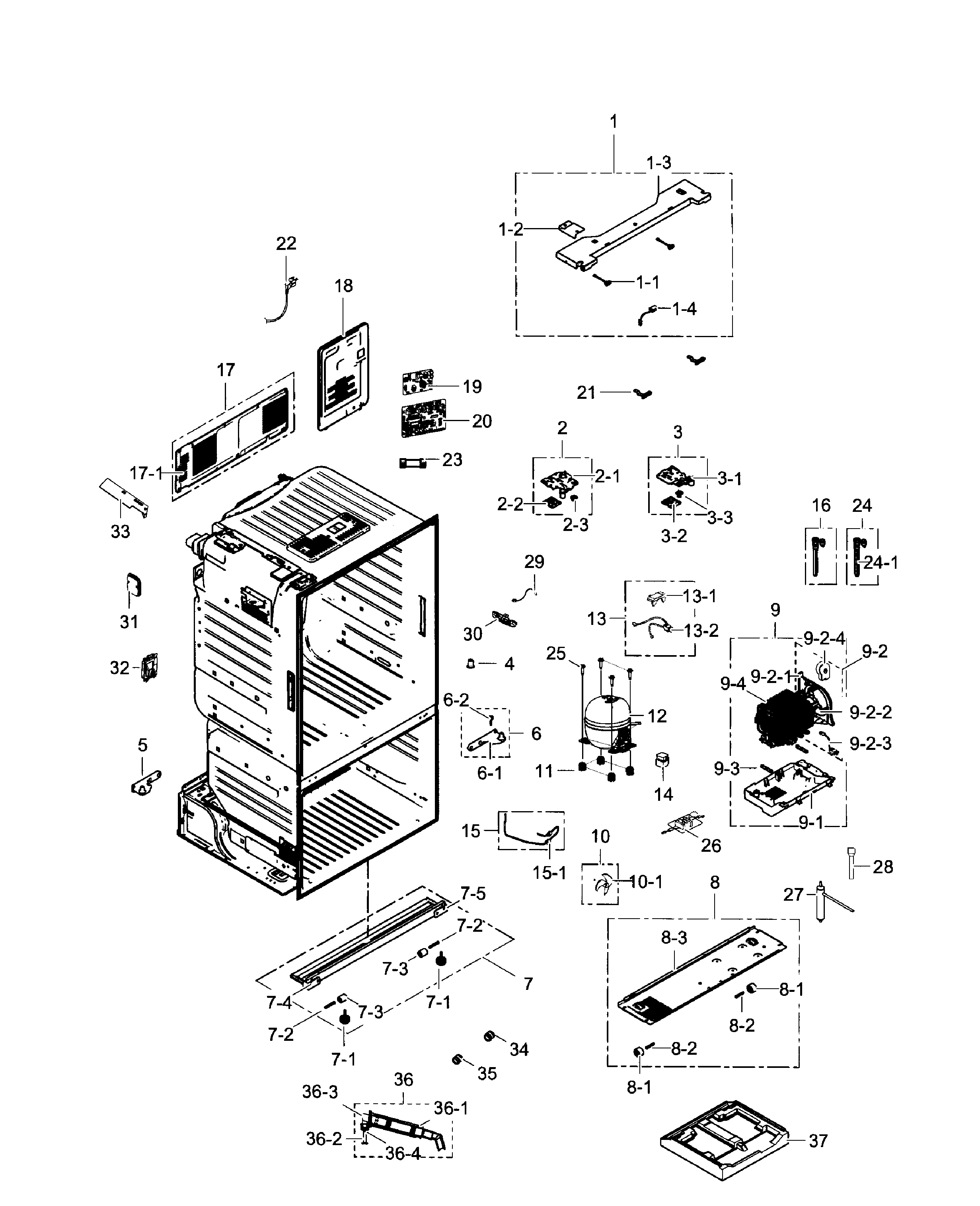

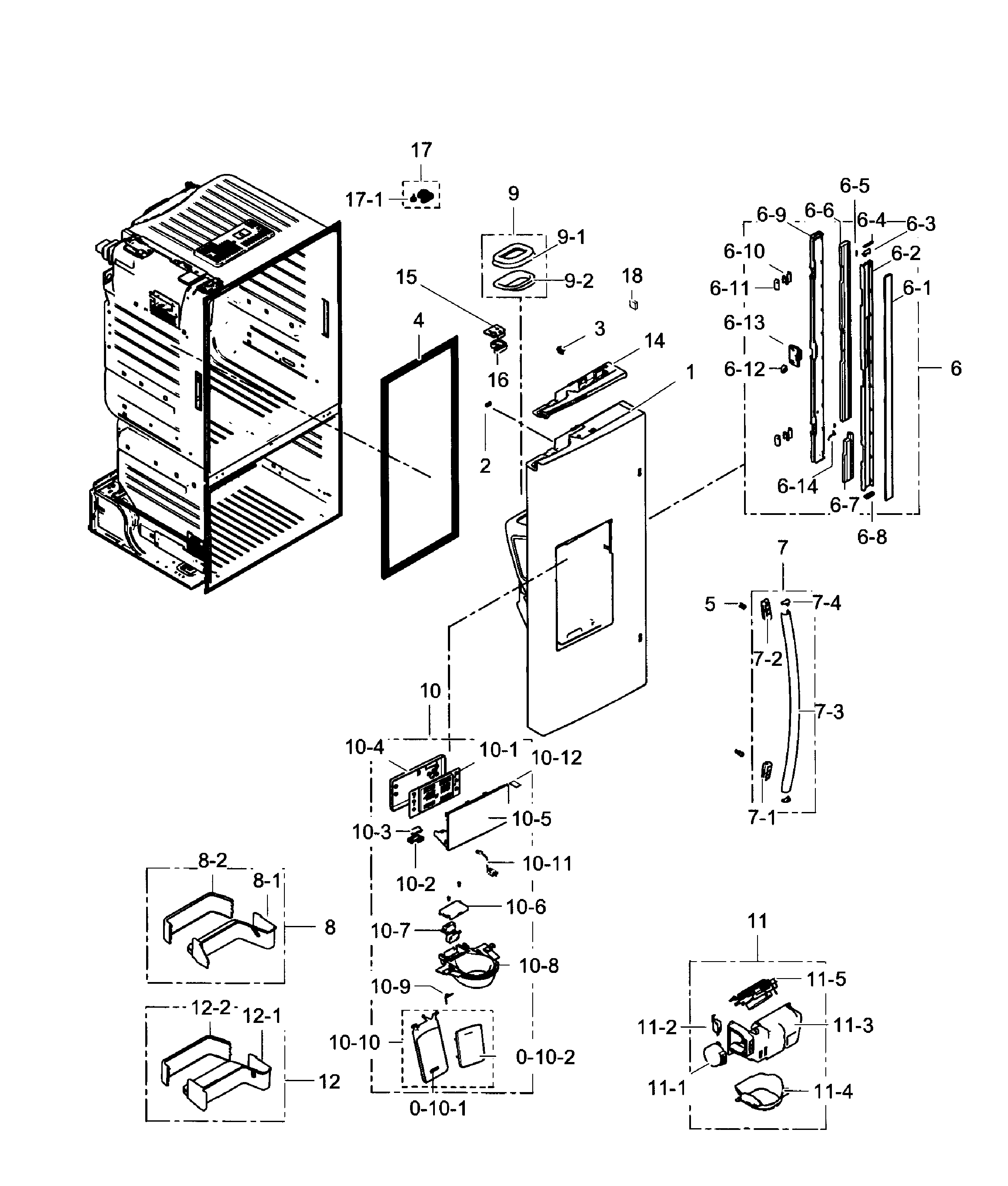

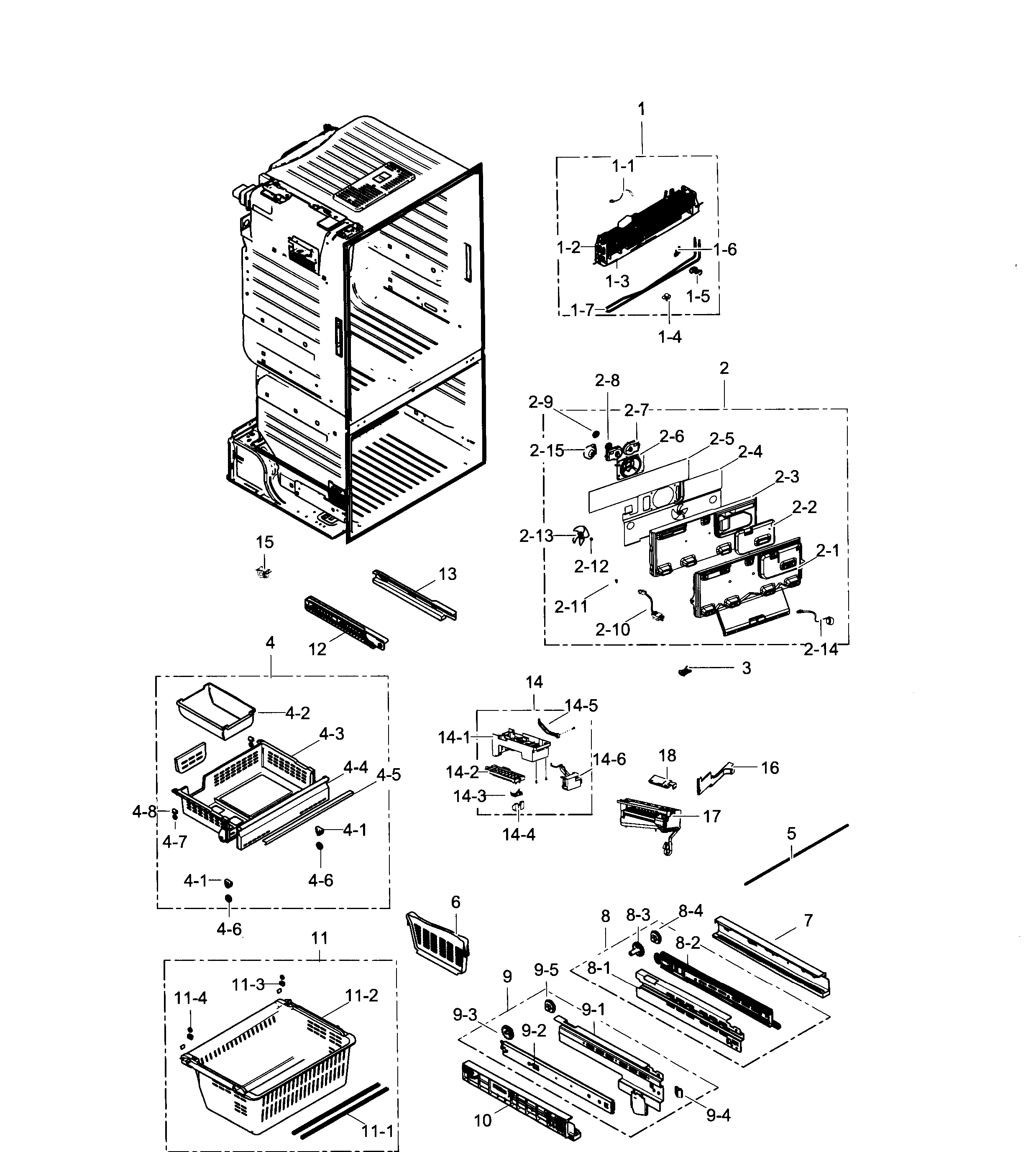

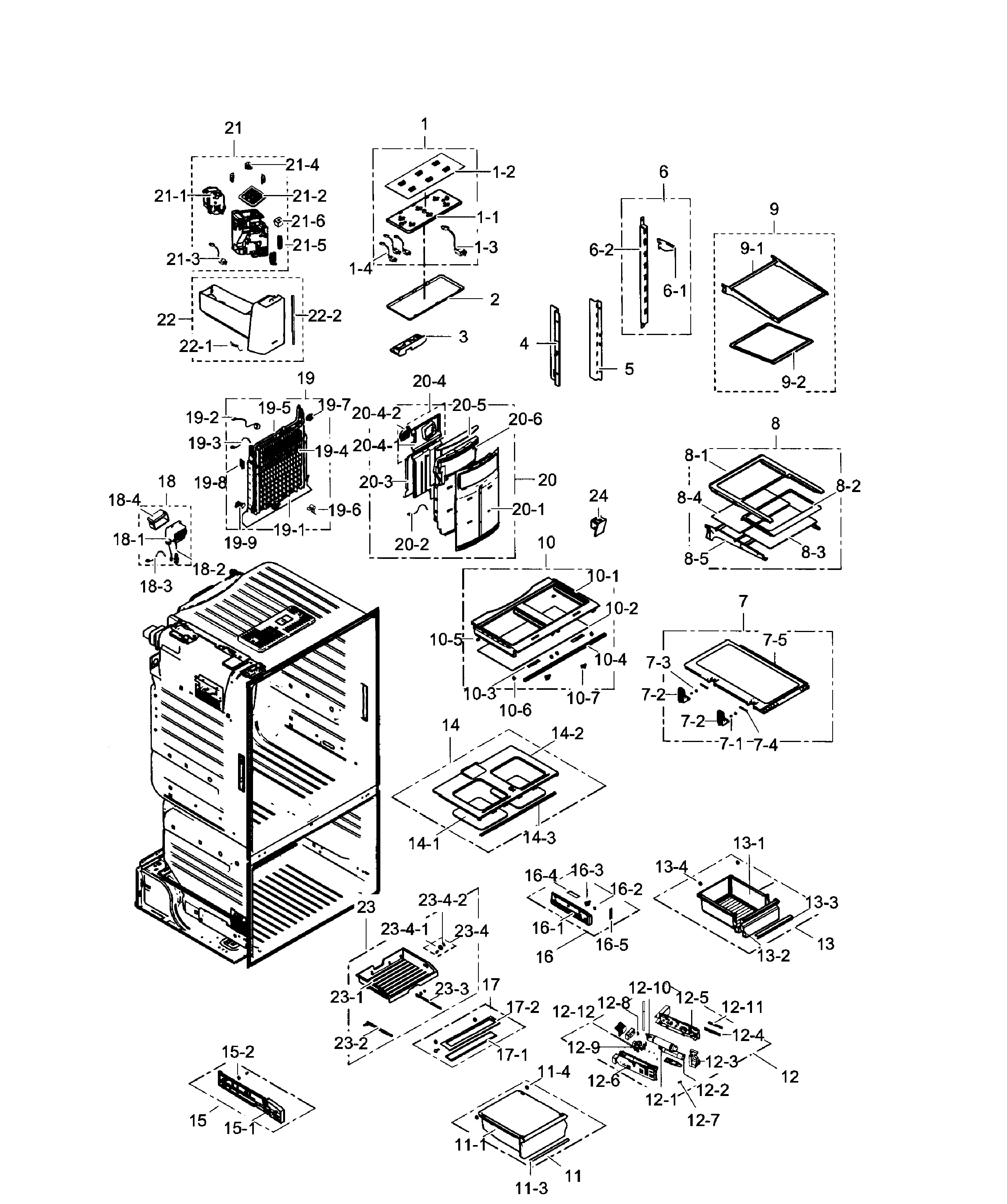

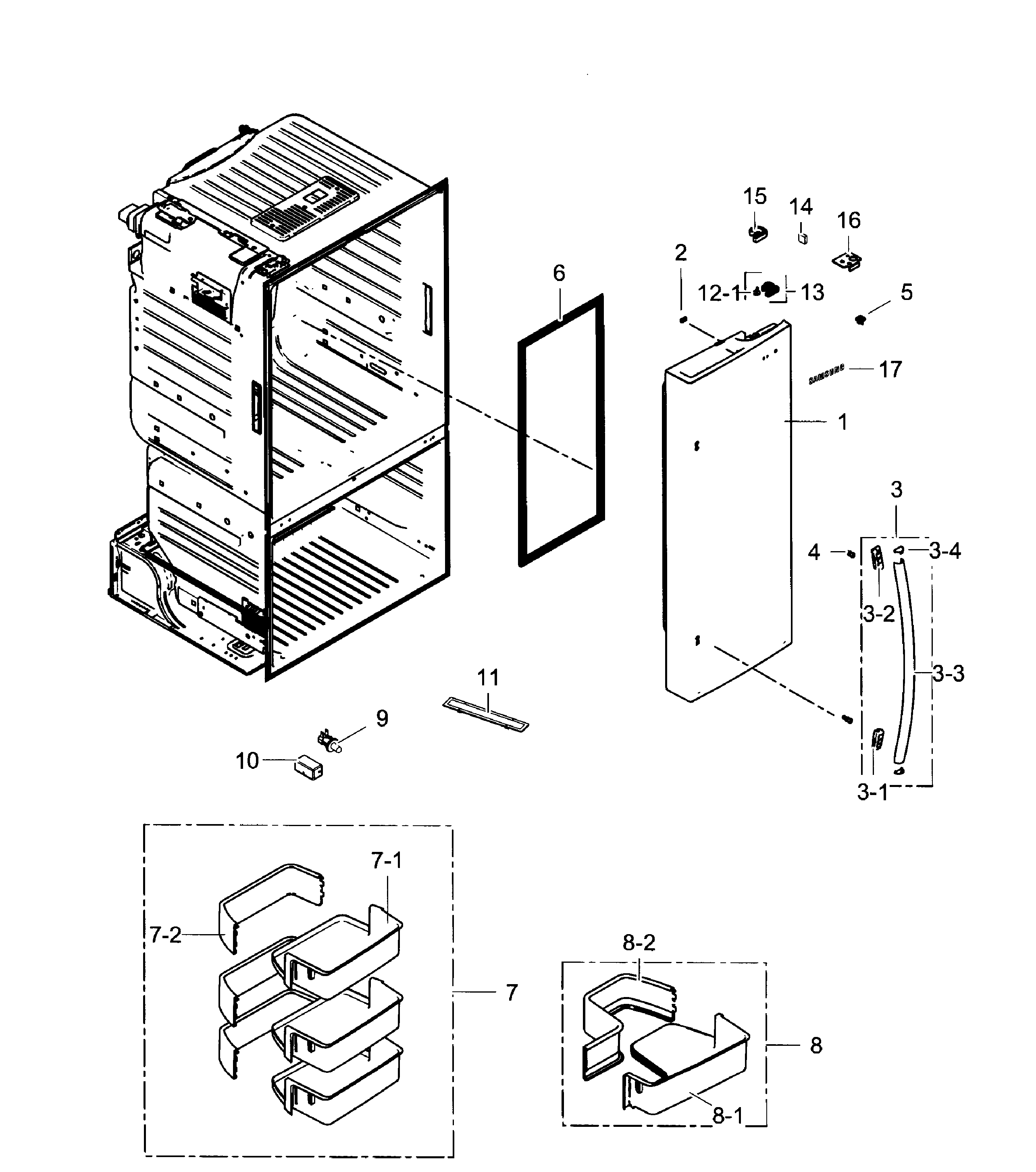

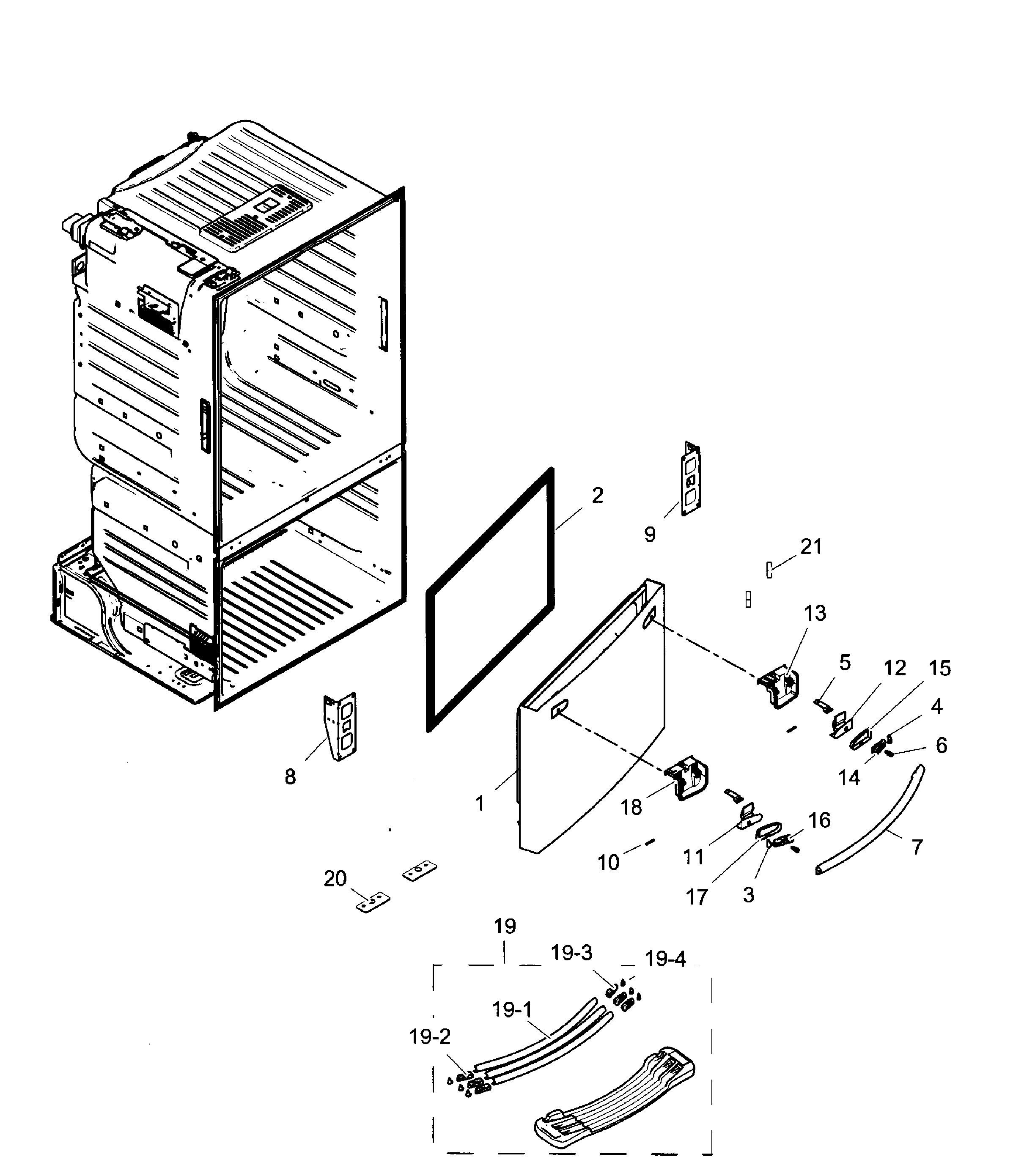

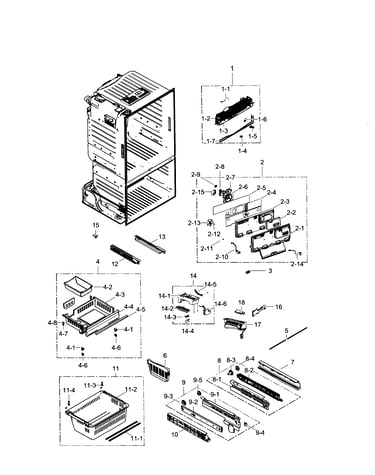

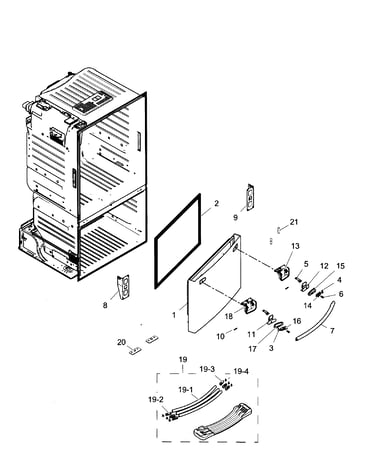

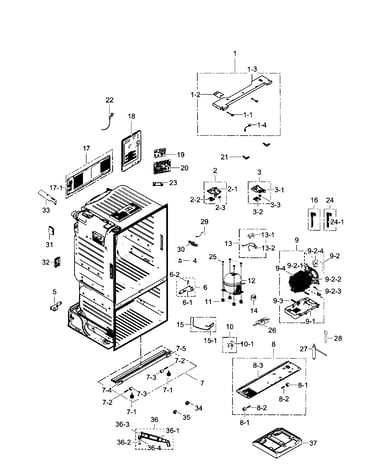

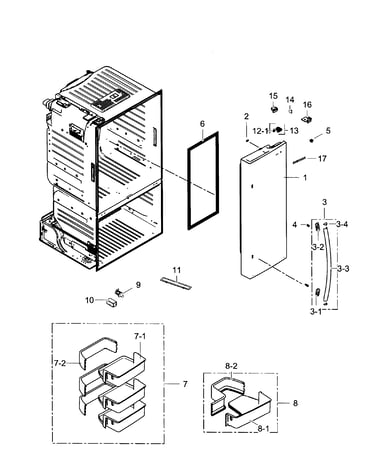

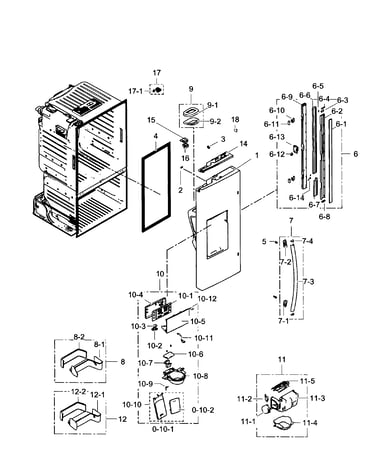

Here are the diagrams and repair parts for Samsung RF263TEAESR/AA-01 refrigerator, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for RF263TEAESR/AA-01 Refrigerators

Samsung Refrigerator RF263TEAESR/AA-01 FAQs

Yes, it’s usually okay to use a generic water filter in your Samsung RF263TEAESR as long as it’s truly compatible with the filter housing and meets the same filtration standards; a poor-fit filter can leak, restrict water flow, or cause dispenser and ice maker issues. Check the RF263TEAESR owner's manual for the exact filter type and replacement guidance.

What to look for in a compatible generic filter

A “generic” filter is fine when it matches the same fit and performance targets as the original.

  • Matches the same filter style and connection type as the OEM filter
  • NSF/ANSI 42 certification (chlorine taste and odor, particulate reduction)
  • NSF/ANSI 53 certification (health-related contaminant reduction)
  • Solid housing and O-ring quality (prevents leaks)
  • Clear install and change interval guidance (most are designed around a 6-month cadence)

When a generic filter causes problems

If the filter is slightly off-spec, you’ll usually see symptoms quickly.

  • Water dispenser flow becomes slow or sputters
  • Ice maker slows down or stops making ice
  • Leaking at the filter head or inside the fresh food compartment
  • Filter won’t seat, won’t lock, or is difficult to remove
  • Off taste or odor returns sooner than expected

Quick comparison

Option Fit risk Filtration confidence Most common downside
OEM-style replacement Low High Higher cost
Generic “compatible” filter Medium Varies by brand Leaks or low flow if fit is off
  1. Confirm the correct filter type for RF263TEAESR in the RF263TEAESR owner's manual.
  2. If you want the safest match, use the listed replacement refrigerator water filter DA29-00019A.
  3. If you choose a generic, install it carefully and check for leaks immediately.
  4. After any filter change, flush several gallons of water to clear air and carbon fines.

Why it matters

The water filter affects both drinking water and ice production. A filter that doesn’t seal correctly can leak into internal compartments, and a filter that restricts flow can make the dispenser weak and the ice maker unreliable.

Last updated: February 2026

The most common ice problem we see on Samsung refrigerators like model RF263TEAESR is ice maker freeze-ups: ice clumps or frost build up around the ice maker or chute, which can jam dispensing, slow ice production, or stop ice completely. Use the owner's manual for the exact reset and test steps for your unit.

What usually causes the ice to freeze up

These issues typically come from a moisture or water-supply problem that turns into frost, clumping, or a jam:

  • A restricted or overdue water filter that reduces flow
  • Low household water pressure to the refrigerator
  • A seeping or sticking water inlet valve that overfills or drips
  • Warm, humid air leaking in from a door not sealing tightly
  • Ice maker compartment not staying cold enough because airflow is reduced

Quick checks you can do first (no parts required)

  1. Dump the bin and break up clumps; wipe the bin dry before reinstalling.
  2. Check the freezer temp; most Samsung bottom-mount units run best around 0°F.
  3. Inspect door closing: make sure bins and shelves are not preventing full closure.
  4. Run the ice maker test/reset using the steps in the owner's manual.
  5. If cubes are small or hollow, purge air by dispensing water for 2 to 3 minutes.

If the quick checks do not help, these model-matched parts are common solutions:

Symptom-to-part guide

Symptom Most likely area Part to consider
Small/hollow cubes, slow ice Water restriction DA29-00019A
Ice maker overfills or drips Water inlet valve DA62-03148A
No harvest, repeated freeze-ups Ice maker assembly DA97-07603B
Clumps, poor dispensing Bin fit or damage DA97-08680E

Why it matters

Freeze-ups and clumping are more than an inconvenience; they can lead to auger jams, cracked bins, water leaks, and inconsistent freezer temperatures. Fixing the water supply and sealing issues early helps the ice maker run normally and reduces repeat icing.

For deeper troubleshooting steps, we recommend why your Samsung fridge stopped making ice and how to fix it.

Last updated: February 2026

Your Samsung refrigerator’s model number is printed on the rating label; on most RF263TEAESR units it’s inside the fresh food (refrigerator) compartment along a side wall near the crisper area or on the ceiling. Use the full model and revision (for example, RF263TEAESR/AA-01) when ordering parts.

Where to look on the refrigerator

Check these common rating-label locations first:

  • Inside the refrigerator section on the left or right side wall
  • On the ceiling of the fresh food compartment (near the light housing)
  • Behind or beside the crisper/pantry drawers (you may need to slide drawers out)
  • Along the door frame area when the doors are open
  • On the back exterior panel (less common, but worth a quick check)

What the model number looks like (and why the suffix matters)

Samsung model labels often show a base model plus a version code. For this unit, you may see RF263TEAESR and a revision like /AA-01.

What you see on the label What it means What to use for parts
RF263TEAESR Base model Use with brand and product type when searching
RF263TEAESR/AA-01 Full model with revision Use this for the best parts match
Serial number Unique unit identifier Not used to select most replacement parts

Tips to make sure you capture it correctly

  • Write it exactly as printed, including slashes and dashes
  • Take a clear photo of the label before you close drawers or doors
  • If the label is worn, use a flashlight and view from an angle to read faint print
  • Match the model number on the label to the model shown in the RF263TEAESR owner's manual

Why it matters

The revision code (such as /AA-01) can change which ice maker, water valve, door gasket, or control board fits. Using the complete model number helps prevent ordering the wrong Samsung refrigerator part.

Last updated: March 2026
