Whirlpool GB9FHDXWS06 refrigerator Parts

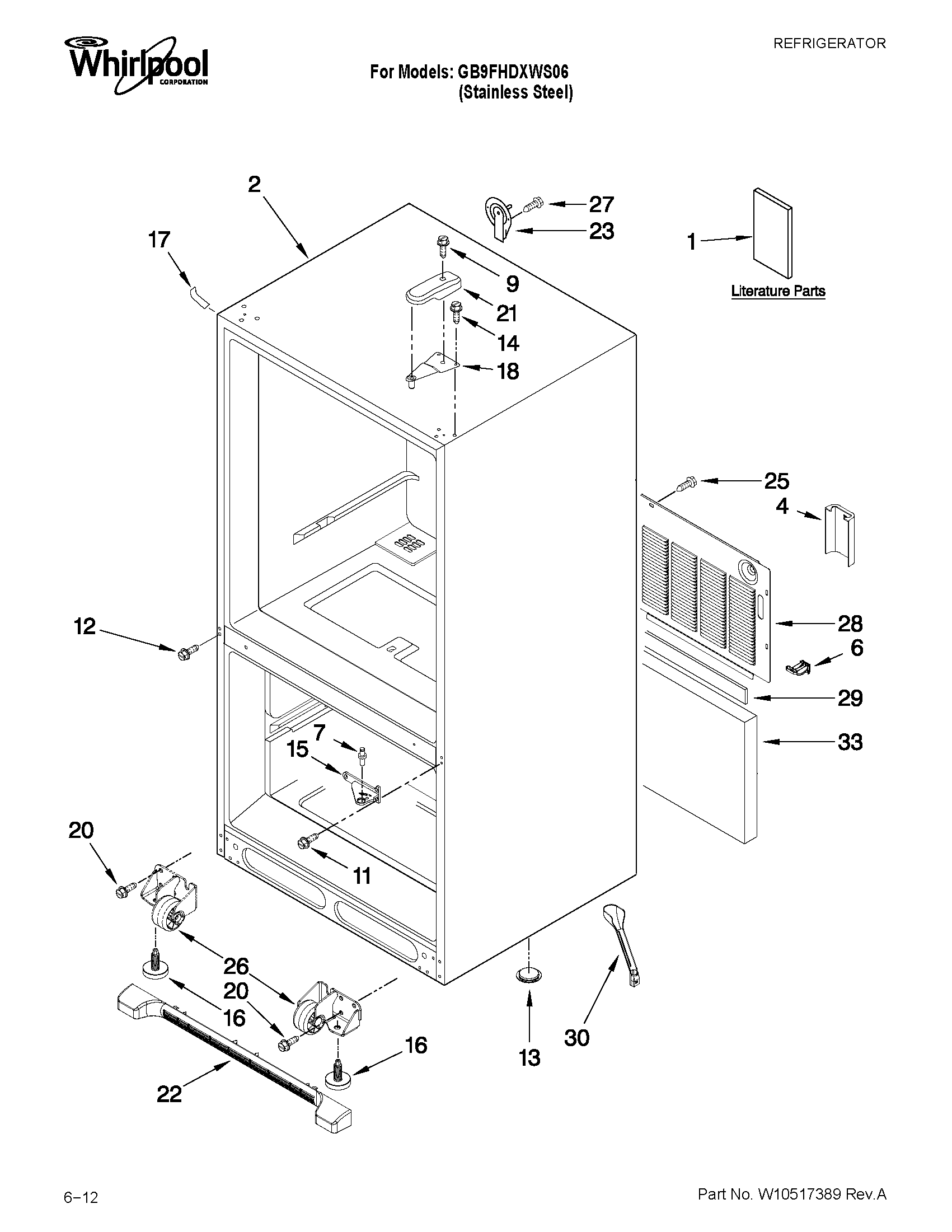

On your Whirlpool GB9FHDXWS06 bottom-mount refrigerator, the base grille (toe grille) typically pulls straight off from the front; once removed, you can access the leveling legs and the lower service area. For model-specific grille retention details, follow the steps in the GB9FHDXWS06 owner's manual.

Quick removal steps

• Unplug the refrigerator (or switch off power at the breaker) for safety.
• Open both doors for better hand clearance.
• Grasp the base grille at the left and right ends.
• Pull the grille straight toward you to release the retaining clips.
• If your grille uses screws, remove them first, then pull the grille forward.
• Set the grille aside; avoid bending it so it snaps back on evenly.

Reinstalling the base grille

Align the ends of the grille with the leveling leg areas, then press along the ends and center until it snaps into place. If your grille uses screws, start them by hand and tighten until snug.

What you see	What it usually means	What to do
Grille won’t budge	Clips are tight or you are pulling from the middle	Pull from both ends evenly; rock gently side to side while pulling forward
Grille feels loose after reinstall	Clips not fully seated	Press firmly at both ends and along the bottom edge
Cracked tabs or broken clip area	Grille is damaged	Replace the grille (match by model GB9FHDXWS06)

Why it matters

Removing the base grille correctly prevents broken tabs and makes routine tasks easier, such as cleaning condenser airflow areas and adjusting leveling legs to improve door alignment and sealing.

If you need to order replacement parts for your Whirlpool GB9FHDXWS06, use the parts list for this model or search by model number on Sears PartsDirect.

Last updated: February 2026

The most common Whirlpool refrigerator problem is a cooling complaint (fresh food warm, freezer not holding temperature), usually caused by restricted airflow or poor heat release from dirty condenser coils. On your Whirlpool GB9FHDXWS06, the next most common issues are ice maker trouble and water leaks from a clogged drain.

Most common symptoms and what they usually mean

• Refrigerator warm, freezer OK: airflow problem between compartments (often a damper or evaporator fan issue)
• Freezer warm and refrigerator warm: condenser coils dirty, compressor start issue, or sealed system problem
• Ice maker not making ice: water supply restriction, inlet valve issue, or ice maker failure
• Water under the refrigerator: defrost drain clog or drain tube issue
• Clicking, humming, or intermittent cooling: start components or control problem

Quick checks we recommend first (no parts guessing)

1. Clean the condenser coils (unplug first). Dust buildup is a top cause of weak cooling.
2. Confirm airflow is not blocked: keep vents clear and avoid overpacking.
3. Listen for the evaporator fan in the freezer; it should run when the compressor is running.
4. Check for ice or water at the bottom of the freezer (a sign of a defrost drain problem).
5. Verify door sealing: a poor seal causes frost, moisture, and temperature swings.

Parts that commonly solve these problems on GB9FHDXWS06

Problem area	What fails	Example part for this model
Airflow/cooling	Evaporator fan motor	Refrigerator evaporator motor W11024089
Airflow to fresh food	Damper control	Refrigerator damper control assembly WPW10196393
Water leaks	Drain path restriction	Refrigerator drain tube W10619951

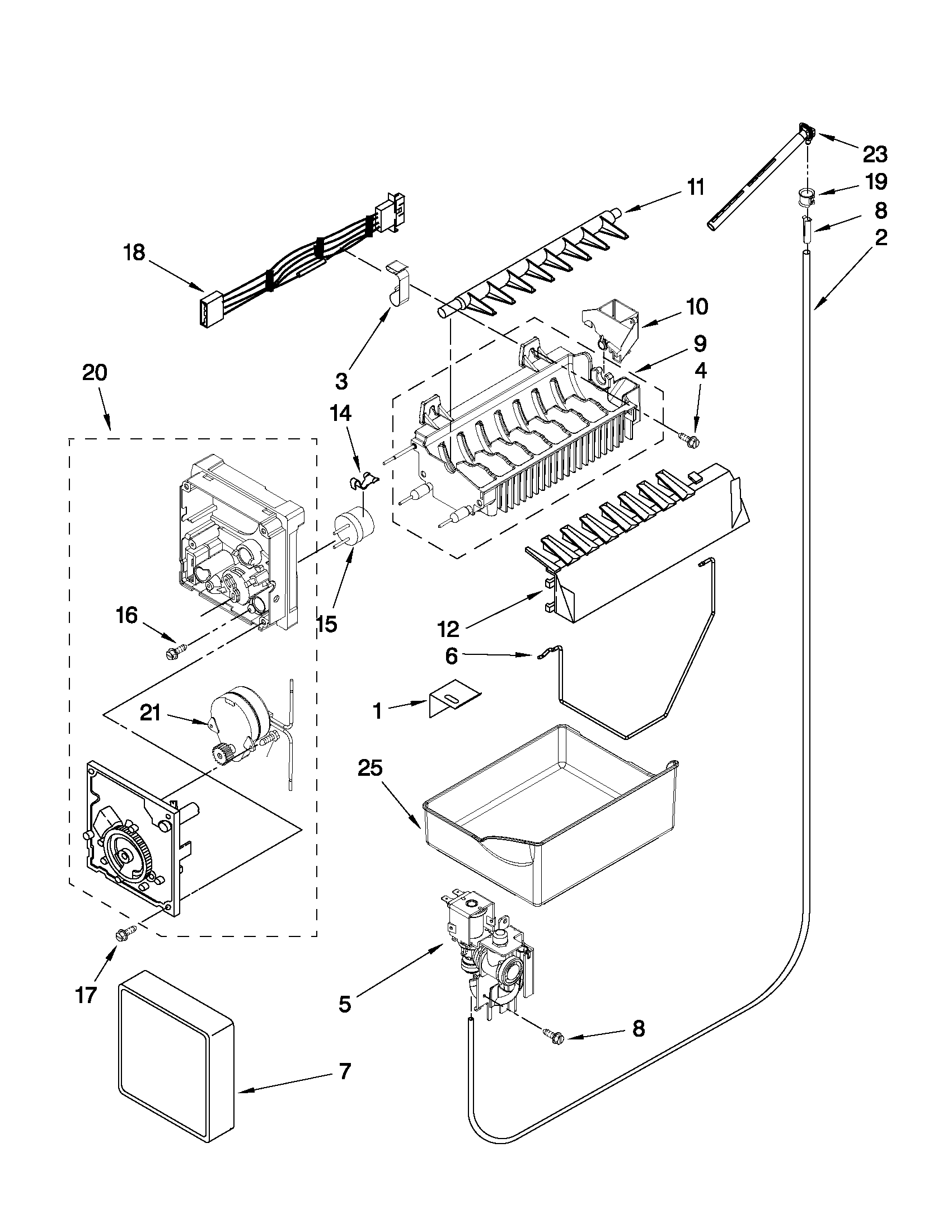

Ice maker issues	Ice maker assembly	Refrigerator ice maker assembly W10884390
Water fill issues	Water inlet valve	Refrigerator valve WPW10498976

Why it matters

Cooling and airflow problems usually get worse over time; the longer the refrigerator runs warm, the harder the compressor works and the more likely you are to see food spoilage, frost buildup, and higher energy use. Using the troubleshooting steps in the owner's manual helps you narrow the failure to airflow, defrost, or water supply before replacing parts.

If you need to order parts, use the parts list for GB9FHDXWS06 or search by model number on Sears PartsDirect.

Last updated: February 2026

No. On a Whirlpool GB9FHDXWS06 bottom-mount refrigerator, the cardboard-like panel under the unit is a protective cover and airflow guide for the condenser area; it should stay in place during normal use. For model-specific handling notes, follow the GB9FHDXWS06 owner's manual.

What that bottom panel does

That “cardboard” is typically a fiberboard or composite access cover designed to:

• Protect wiring and components near the compressor and condenser
• Help direct airflow for proper cooling performance
• Reduce dust and debris intrusion from the floor
• Provide a barrier against accidental contact when cleaning

When you would remove it (and when you should not)

You normally leave it installed. We only remove the bottom cover temporarily when servicing or cleaning the condenser area.

• Remove temporarily: to vacuum dust from the condenser coils or access components for a repair
• Reinstall immediately: after cleaning or service is complete
• Do not discard: missing covers can lead to poor airflow and warmer temperatures
• Do not operate long-term with it off: cooling efficiency and compressor run time can be affected

Quick check: is it packaging or a permanent cover?

Use this simple comparison to decide what you are looking at.

What you see	Usually means	What to do
Flat panel secured with screws or tabs under the machine compartment	Permanent protective/airflow cover	Leave it on (remove only for service)
Loose cardboard spacers, tape, foam blocks, or corner protectors	Shipping materials	Remove and discard
Panel that looks damaged, sagging, or wet	Cover needs attention	Replace or refit before regular use

Why it matters

That bottom cover helps the condenser system breathe correctly. If airflow is disrupted, the refrigerator can run longer, cool poorly, and build excess heat around the compressor.

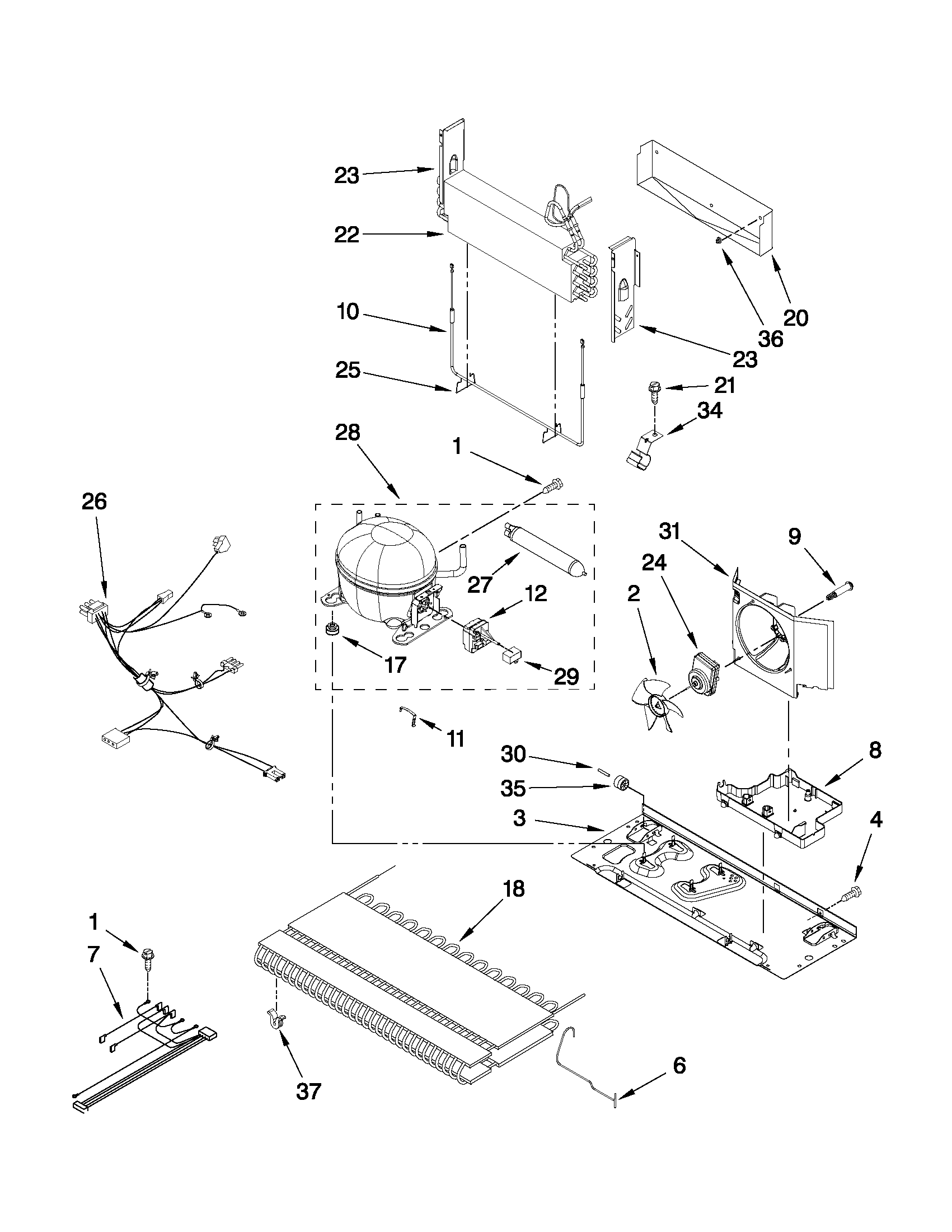

Parts that are commonly involved when servicing the bottom area

If you are cleaning or troubleshooting cooling issues, these parts are often in the same area:

• Refrigerator run capacitor WPW10662129
• Refrigerator compressor W10233960
• Refrigerator uv filter dryer WPW10143759

You can order replacement parts for your Whirlpool GB9FHDXWS06 from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026

To tell the cubic feet (capacity) of your Whirlpool GB9FHDXWS06 refrigerator, we recommend checking the model’s listed capacity in the owner's manual. If you need a quick estimate, you can calculate it from the interior measurements and convert cubic inches to cubic feet.

Fast ways to find capacity

• Check the specifications section in the owner's manual for the stated cubic feet.
• Look for a model and serial tag inside the fresh food compartment; it often lists key specs.
• If you are comparing sizes, measure the usable interior space, not the outside cabinet.
• Ignore door bins and oddly shaped corners when estimating; they inflate the number.

How to calculate cubic feet (quick estimate)

1. Measure the interior width, height, and depth in inches.
2. Multiply: width × height × depth = cubic inches.
3. Divide by 1,728 to convert to cubic feet.

Example calculation

Measurement	Example value (in.)
Width	24
Height	70
Depth	24
Cubic inches	24 × 70 × 24 = 40,320
Cubic feet	40,320 ÷ 1,728 = 23.3

Why it matters

Knowing cubic feet helps us match the right refrigerator parts and accessories for your space and usage, and it makes it easier to compare bottom-mount refrigerator sizes accurately when planning storage.

Ordering parts for your model

If you are shopping for replacement parts for GB9FHDXWS06, you can order from the parts list for this model or search by model number on Sears PartsDirect.

Last updated: February 2026

Most Whirlpool refrigerators, including bottom-mount models like GB9FHDXWS06, typically last 10 to 18 years with normal household use. Consistent maintenance (airflow, clean condenser area, good door sealing) is what most often determines whether you land closer to 10 years or closer to 18.

Typical lifespan ranges (what to expect)

These are practical, real-world ranges we see for modern refrigerators:

• Average range: 10 to 18 years
• Shorter lifespan (often preventable): 7 to 10 years (poor ventilation, dirty condenser area, heavy use)
• Longer lifespan: 18 to 20 years (steady temps, good airflow, prompt repairs)

What you notice	What it usually means	What to do first
Temps drift, food spoils sooner	Airflow or control issue	Confirm settings in the GB9FHDXWS06 owner's manual
Clicking, humming changes, warm fridge	Start components or compressor strain	Check condenser area, then consider pro diagnosis
Frost buildup, warm fresh food section	Defrost or airflow problem	Inspect door seal and vents; review how to fix your evaporator cooling fan
Water under fridge	Drain or defrost water issue	Clear drain path; see refrigerator drain tube W10619951

Maintenance that adds years (and prevents expensive failures)

A few habits make a big difference in compressor and control-board life:

• Keep airflow clear around the cabinet; do not block vents inside the compartments.
• Keep doors closing tightly; a weak seal forces longer run times.
• Avoid overpacking; it restricts circulation and creates warm spots.
• Keep temperatures steady; frequent warm-ups stress the sealed system.
• Fix small issues early (slow ice production, puddles, noisy fan) before they cascade.

Parts that commonly affect “end of life” symptoms

A refrigerator often feels “worn out” because one key component is failing, not because the whole unit is done.

• Cooling airflow: evaporator fan motor (example: refrigerator evaporator motor W11024089)
• Temperature regulation: control board (example: refrigerator electronic control WPW10503278)
• Water leaks: drain system components (example: refrigerator drain tube W10619951)
• Ice production issues: ice maker (example: refrigerator ice maker assembly W10884390)

Why it matters

A Whirlpool bottom-mount refrigerator that is running longer than normal to hold temperature uses more energy and puts extra wear on the compressor and electronics. Addressing airflow, sealing, and drainage issues early is the simplest way to extend lifespan.

If you decide to repair, you can order model-matched replacement parts from the parts list for GB9FHDXWS06, or search by model on Sears PartsDirect.

Last updated: February 2026
