Model # LGHX2636TF9 Official Frigidaire side-by-side refrigerator

Here are the diagrams and repair parts for Official Frigidaire LGHX2636TF9 side-by-side refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

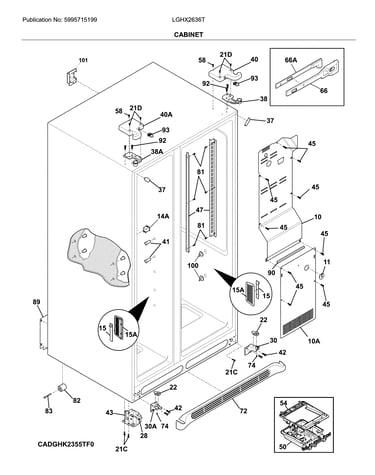

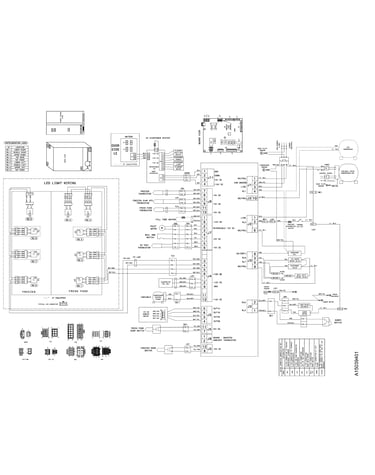

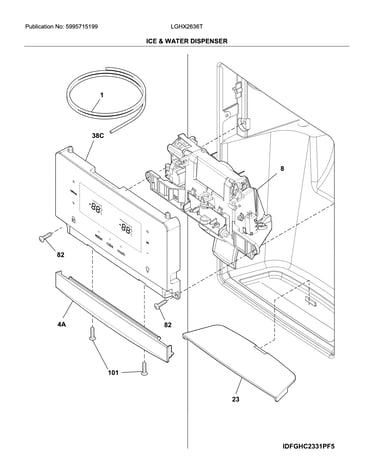

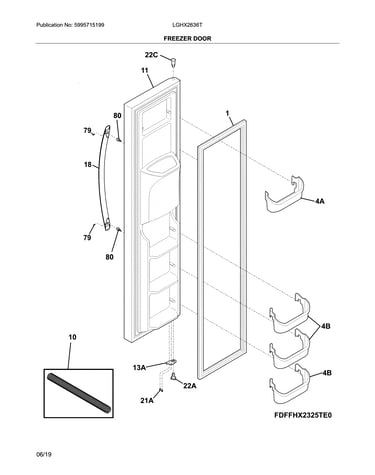

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 191 parts  |

Refrigerator Air Filter 242047804
#209

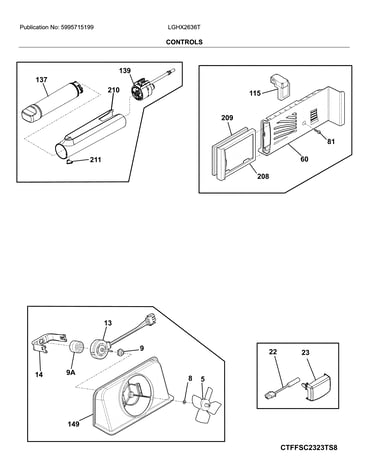

Controls diagram

Refrigerator air filter

Part #242047804

Replaced by #EAFCBF

?
Manufacturer substitution
This part replaces 242047804. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$27.39
18% OFF Phone Price : $33.39
In Stock
Dryer Filter 242047604
#4

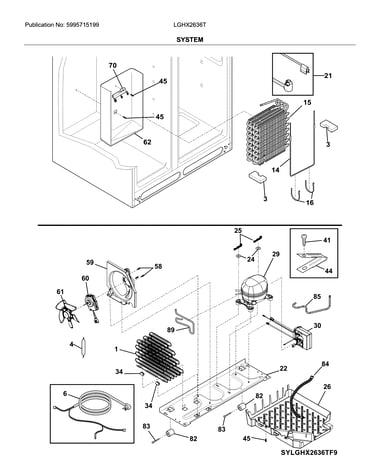

System diagram

Dryer filter

Part #242047604

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 242047604. Substitute parts can look different from the original.
BEST SELLER
$12.71
14% OFF Phone Price : $14.71
In Stock
Refrigerator Water Inlet Valve Assembly (replaces 241734302) 242252702
#55

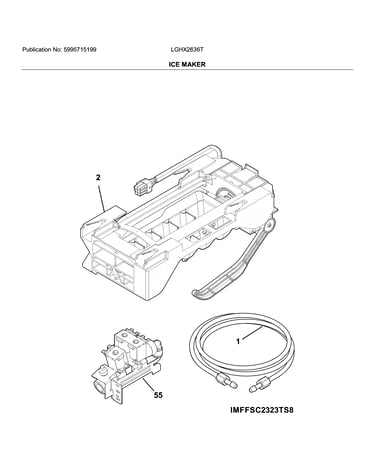

Ice maker diagram

Refrigerator water inlet valve assembly (replaces 241734302)

Part #242252702

BEST SELLER
In Stock
Refrigerator Ice Maker Assembly 243297609
#2

Ice maker diagram

Refrigerator ice maker assembly

Part #243297609

Replaced by #243297613

?
Manufacturer substitution
This part replaces 243297609. Substitute parts can look different from the original.
BEST SELLER
$108.43
8% OFF Phone Price : $117.27
In Stock
Refrigerator Evaporator (replaces 5303918216, 75303918284) 5303918284
#15

System diagram

Refrigerator evaporator (replaces 5303918216, 75303918284)

Part #5303918284

BEST SELLER
$327.83
$12.00 OFF Phone Price : $339.83
In Stock
White-westinghouse Refrigerator Door Bin (replaces 240356410, 240356411, 240356415, 240356416, 240430305, 240430311, 240430312, 241808229) 240356402
#49

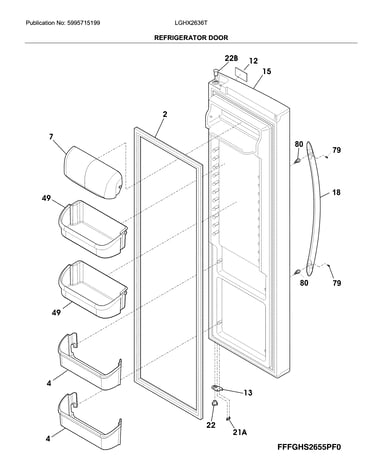

Refrigerator door diagram

White-westinghouse refrigerator door bin (replaces 240356410, 240356411, 240356415, 240356416, 240430305, 240430311, 240430312, 241808229)

Part #240356402

BEST SELLER
$78.70
12% OFF Phone Price : $89.27
In Stock
Refrigerator Evaporator Fan Motor 809069201
#13

Controls diagram

Refrigerator evaporator fan motor

Part #809069201

BEST SELLER
$97.53
13% OFF Phone Price : $112.55
In Stock
Refrigerator Ice Dispenser Solenoid (replaces 241675701) 241675704
#45

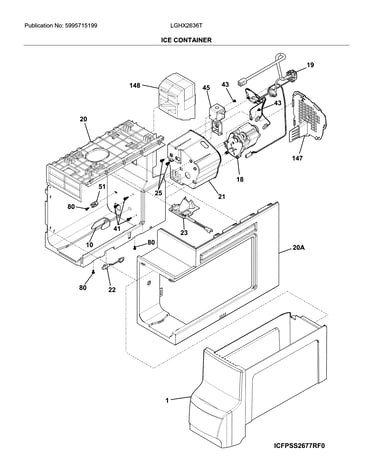

Ice container diagram

Refrigerator ice dispenser solenoid (replaces 241675701)

Part #241675704

BEST SELLER
$75.50
7% OFF Phone Price : $81.50
In Stock
Refrigerator Door Gasket (black) (replaces 241674805, 7241786005) 241786005
#2

Refrigerator door diagram

Refrigerator door gasket (black) (replaces 241674805, 7241786005)

Part #241786005

BEST SELLER
$142.81
10% OFF Phone Price : $159.23
In Stock
Refrigerator Crisper Drawer (replaces 240351003, 240351005, 240351007, 240351016, 240351048, 240351049, 240351053, 240351054, 240351058, 240351062, 240351066, 240351067) 240351061
#26

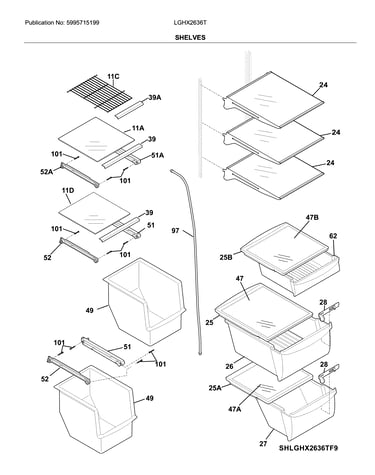

Shelves diagram

Refrigerator crisper drawer (replaces 240351003, 240351005, 240351007, 240351016, 240351048, 240351049, 240351053, 240351054, 240351058, 240351062, 240351066, 240351067)

Part #240351061

BEST SELLER
$100.64
13% OFF Phone Price : $115.75
In Stock
