Frigidaire
Gas Wall Oven

Model # FFGW2425QSB Official Frigidaire wall oven

Here are the diagrams and repair parts for Official Frigidaire FFGW2425QSB wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

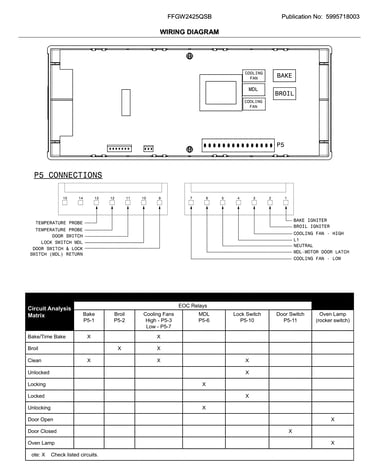

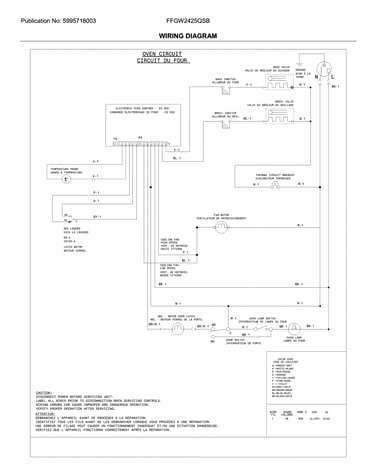

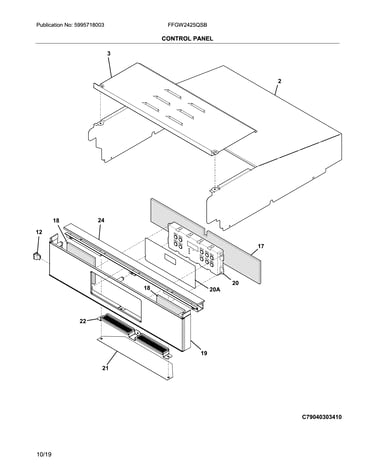

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 117 parts  |

Cooking Appliance Oven Temperature Sensor 5304504897
#37

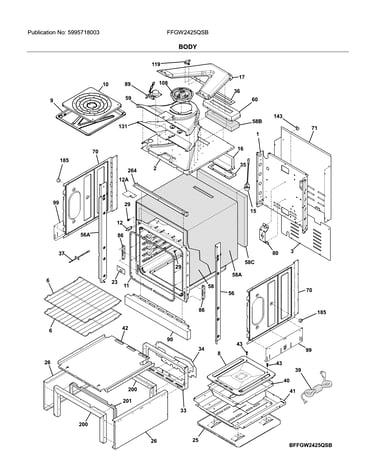

Body diagram

Cooking appliance oven temperature sensor

Part #5304504897

BEST SELLER
$34.63
13% OFF MSRP : $40.00
In Stock
Range Bake Igniter 139013700
#26

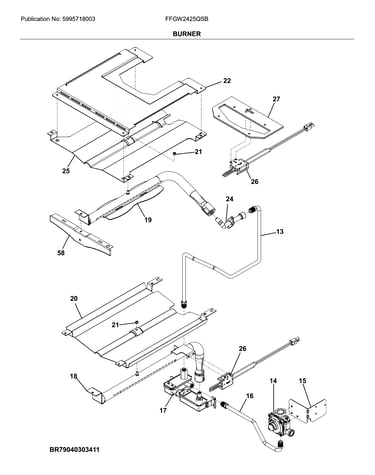

Burner diagram

Range bake igniter

Part #139013700

BEST SELLER
$100.80
9% OFF Phone Price : $110.80
In Stock
Wall Oven Door Hinge (white) 316575947
#23

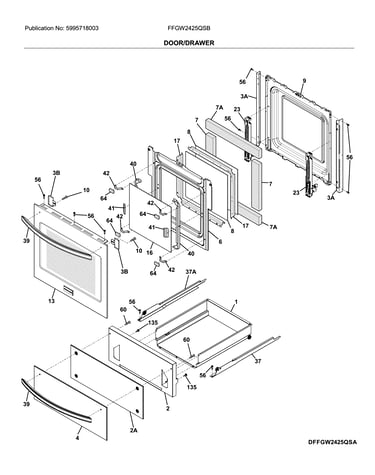

Door/drawer diagram

Wall oven door hinge (white)

Part #316575947

$54.29
8% OFF Phone Price : $59.29
In Stock
Range Oven Door Spacer (replaces 318147400, 7318165800) 318165800
Range oven door spacer (replaces 318147400, 7318165800)

Part #318165800

This item is not returnable
$18.59
10% OFF Phone Price : $20.59
In Stock
Range Door Light Switch 318394802
#12

Body diagram

Range door light switch

Part #318394802

Replaced by #808136601

?
Manufacturer substitution
This part replaces 318394802. Substitute parts can look different from the original.
$32.29
13% OFF Phone Price : $37.29
In Stock
Wall Oven Cooling Fan 807123002
#108

Body diagram

Wall oven cooling fan

Part #807123002

In Stock
Range Hex Nut 5303013272
#21

Burner diagram

Range hex nut

Part #5303013272

This item is not returnable
$18.59
10% OFF Phone Price : $20.59
In Stock
Wall Oven Rack 139012300
#6

Body diagram

Wall oven rack

Part #139012300

$53.48
9% OFF Phone Price : $58.48
Back Order
Range Screw 316001003
#NI

Body diagram

Range screw

Part #316001003

Replaced by #316001017

?
Manufacturer substitution
This part replaces 316001003. Substitute parts can look different from the original.
This item is not returnable
In Stock
Range Screw (replaces 5304471237) 316418900
Range screw (replaces 5304471237)

Part #316418900

This item is not returnable
$14.79
12% OFF Phone Price : $16.79
In Stock

Most common symptoms to help you fix your wall oven

Choose a symptom to see related wall oven repairs.

Main causes: bad oven door lock assembly, faulty electronic control board, wiring failure…

Main causes: broken broil element, faulty broil burner igniter, control system failure…

Main causes: broken bake element, bad bake burner igniter, tripped thermal switch, control system failure…

Main causes: faulty oven temperature sensor, control system problem, weak burner igniter, damaged oven element…

Main causes: lack of electrical power, bad electronic control board, faulty oven control thermostat…

Main causes: lack of gas supply, broken igniter, tripped circuit breaker, broken oven element, tripped thermal fuse, con…

Most common repair guides to help fix your wall oven

These step-by-step repair guides will help you safely fix what’s broken on your wall oven.

How to replace a wall oven door outer glass panel

How to replace a wall oven door outer glass panel

Learn how to replace a damaged outer window panel on your wall oven door with these step-by-step instructions. …

Repair difficulty
Time required
 45 minutes or less
How to replace a wall oven control thermostat

How to replace a wall oven control thermostat

Get your oven temperature under your control by replacing a faulty oven control thermostat.…

Repair difficulty
Time required
 60 minutes or less
How to replace a wall oven thermal fuse

How to replace a wall oven thermal fuse

The thermal fuse trips to prevent the over from excessively overheating. The oven won't heat again until you replace the…

Repair difficulty
Time required
 60 minutes or less

Effective articles & videos to help repair your wall oven

Use the advice and tips in these articles and videos to get the most out of your wall oven.

Oven rack placement for the best results video

Oven rack placement for the best results video

Learn where to place the rack in your oven for optimal broiling, toasting, baking or roasting.…

How to repair broken or damaged wires video

How to repair broken or damaged wires video

Learn how to repair broken, frayed or damaged wires in your appliances.…

How to use a multimeter to test electrical parts video

How to use a multimeter to test electrical parts video

Learn how to use a multimeter to check for wiring problems in an appliance that's not working…
