Kenmore 11626212605 canister vacuum Parts

On Kenmore canister vacuum model 11626212605, the model and serial numbers are printed on the Model and Serial Number Plate. For this model, the owner’s manual indicates that the model and serial number plate is located on the bottom of the vacuum.

Start with the manufacturer-identified location:

• Turn the vacuum off and unplug it
• Look for a label called Model and Serial Number Plate
• Check the bottom of the vacuum for that plate
• Record both the model and serial numbers exactly as shown

Kenmore model numbers can appear with or without a dot. The manual for this unit shows the model in a dotted format.

• Write down the full model number and serial number before the label wears further
• If the print is faint, use a flashlight and take a close-up photo to zoom in
• Include any dots or extra digits exactly as they appear on the plate

Kenmore vacuums can share similar housings and attachments across series; using the exact model number helps match the correct dust bag, filters, belt, and headlight bulb for your specific build.

For the manufacturer’s wording and the diagram note showing the plate location, see the 11626212605 owner’s manual.

Last updated: January 2026

To change the belt on your Kenmore canister vacuum model 11626212605, you replace the belt in the Power-Mate nozzle by removing the bottom cover, lifting out the agitator (brush roll), swapping the belt, then reassembling. The belt style listed for this model is CB-2. See the 11626212605 owner's manual for the exact steps and screw locations.

• Unplug the vacuum from the wall outlet.
• Disconnect the wand and hose from the Power-Mate nozzle.
• Work on a flat surface with good lighting.
• Have a Phillips screwdriver ready.
• If the brush roll is packed with hair or string, plan to clean it while it is out.

1. Turn the Power-Mate upside down.
2. Remove the two cover screws.
3. Turn the Power-Mate right-side up, press the handle release pedal, and lower the swivel.
4. Lift the rear latches and pull the cover off.
5. Release the agitator cover tabs and rotate the agitator cover forward to remove it.
6. Lift out the agitator assembly and remove the worn belt.
7. Clean the end-cap areas and the belt path on the brush roll.
8. Install the new belt over the motor drive shaft, then over the belt path on the agitator.
9. Reinstall the agitator, then snap the agitator cover back into place.
10. Reinstall the nozzle cover and tighten the two screws.

A worn or stretched belt can make the Power-Mate brush roll spin slowly (or not at all), which reduces carpet pickup and can contribute to overload shutoffs. Replacing the belt and cleaning the agitator restores normal agitation and airflow performance.

Last updated: January 2026

Low or no suction on Kenmore canister vacuum model 11626212605 is usually caused by a full dust bag, a clogged airflow path (hose, wands, nozzle), or dirty filters. We recommend checking for clogs first, then replacing the bag and filters per the 11626212605 owner's manual.

• Unplug the vacuum before inspecting any airflow path or the Power-Mate brush area.

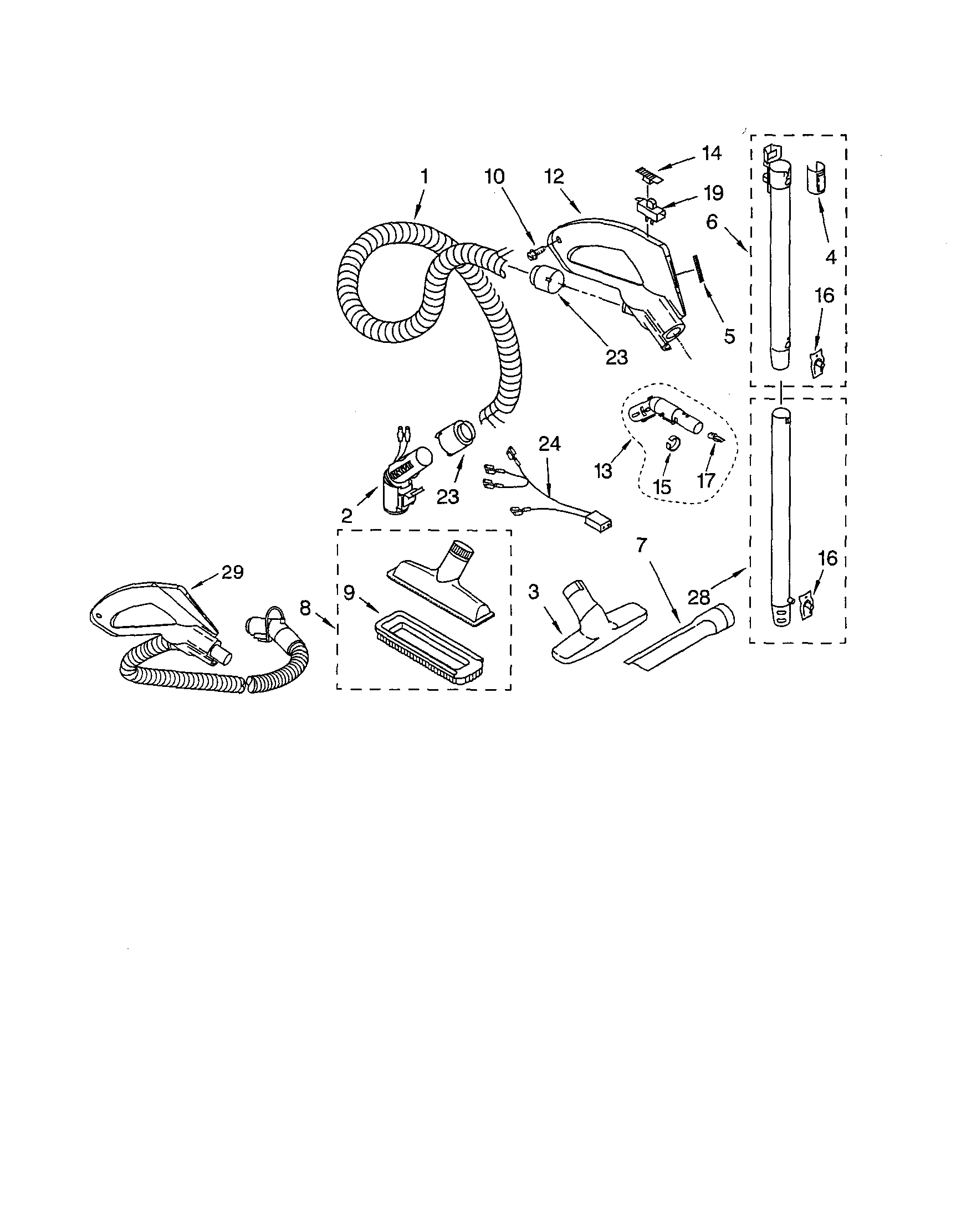

• Check the hose and wands for a blockage; remove them and look through each section.
• Confirm the canister hood is fully closed and latched; an unlatched hood can leak air.
• Replace the dust bag if it’s full or packed with fine dust.
• Replace the motor safety filter and exhaust (HEPA) filter if dirty (these are not washable on this model).
• If the Power-Mate brush is jammed, clear debris and press the overload protector reset.

This Kenmore canister uses a bag and has both a motor safety filter and an exhaust (HEPA) filter; either one being clogged can restrict airflow. It also has a suction control that can be opened, which intentionally reduces suction for drapes and lightweight rugs.

A restricted airflow path can trigger overheating protection and can also make cleaning performance drop sharply. Keeping the bag, filters, and airflow passages clear helps protect the motor and keeps pickup strong.
