KitchenAid KUIC15POZP1 ice maker

KitchenAid KUIC15POZP1 ice maker Parts

Here are the diagrams and repair parts for KitchenAid KUIC15POZP1 ice maker, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for KUIC15POZP1 Ice Maker

  • Ice Maker Condenser Coil for KitchenAid KUIC15POZP1 - Part WP2313624

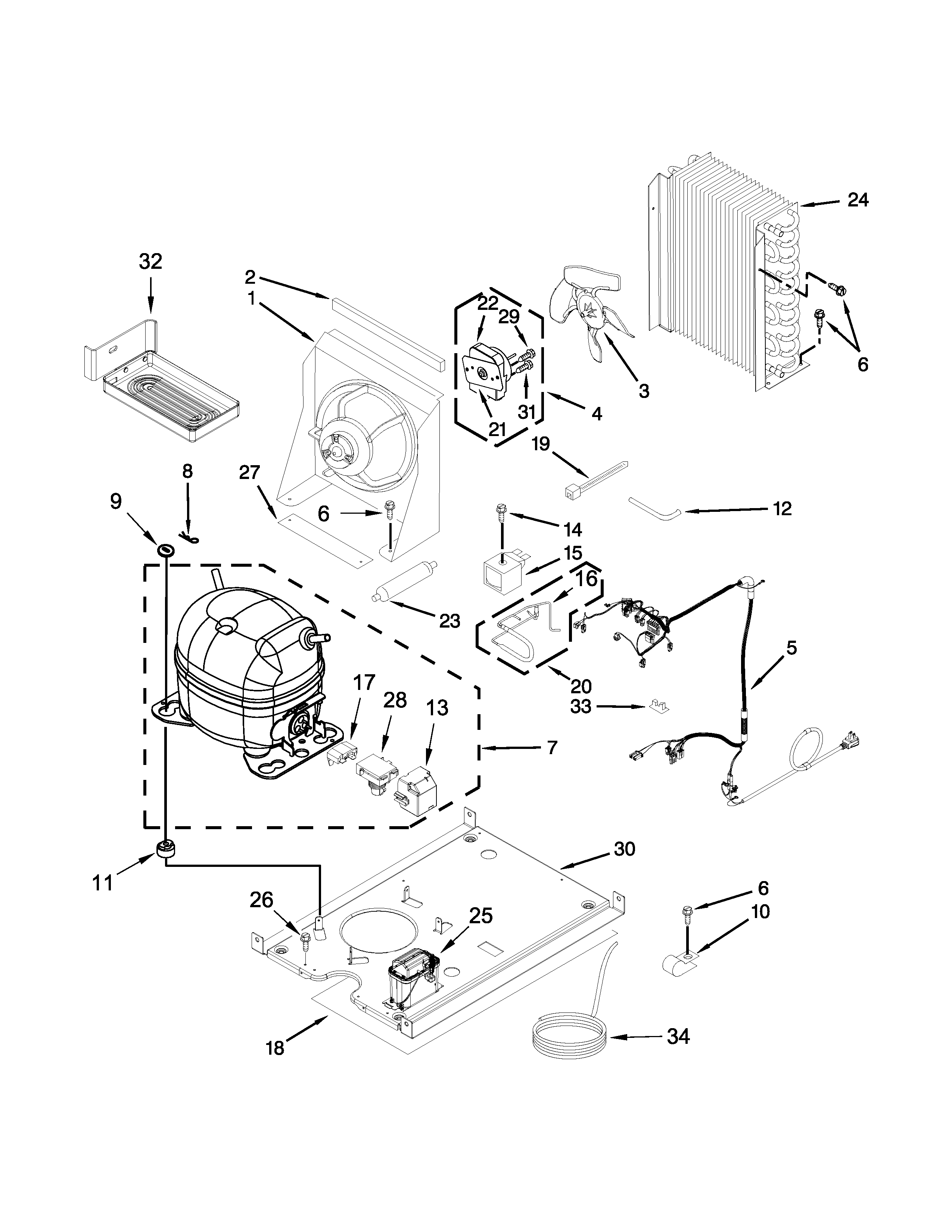

    Unit parts diagram

    Ice Maker Condenser Coil

    Part #2313624

    Replaced by #WP2313624

    Info Icon
    Manufacturer substitution
    This part replaces 2313624. Substitute parts can look different from the original.
    In Stock
    $168.93
    31% OFF Was : $245.93Info Icon
    Minus Item
    Qty
    Plus Item
  • Ice Maker Reed Switch for KitchenAid KUIC15POZP1 - Part W11171663

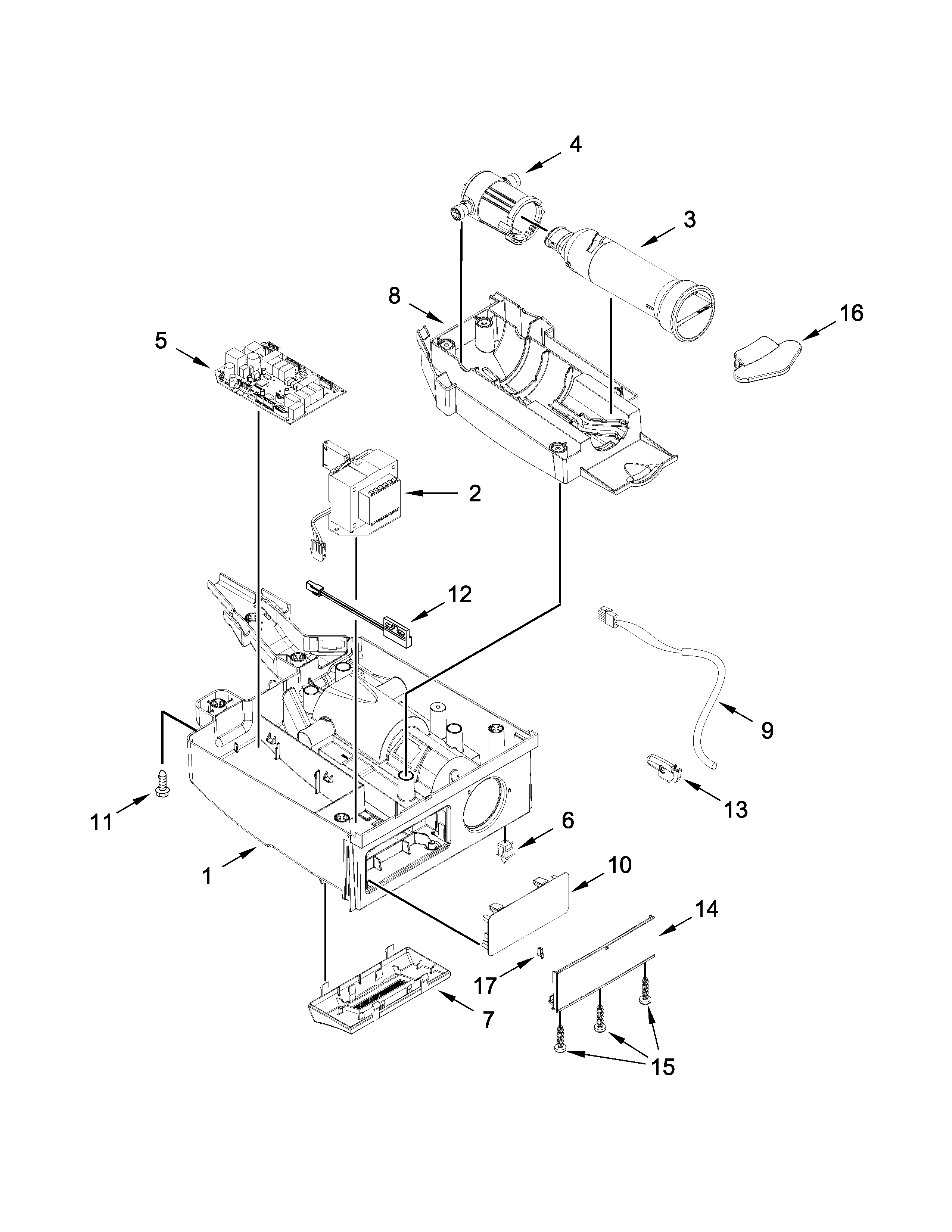

    Control panel parts diagram

    Ice Maker Reed Switch

    Part #W10485964

    Replaced by #W11171663

    Info Icon
    Manufacturer substitution
    This part replaces W10485964. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $20.06
    23% OFF Phone Price : $26.06Info Icon
    Minus Item
    Qty
    Plus Item
  • Ice Maker Reversing Valve Solenoid Coil for KitchenAid KUIC15POZP1 - Part WPW10206473

    Unit parts diagram

    Coil-solnd

    Part #W10206473

    Replaced by #WPW10206473

    Info Icon
    Manufacturer substitution
    This part replaces W10206473. Substitute parts can look different from the original.
    In Stock
    $79.33
    34% OFF Was : $120.68Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Hose for KitchenAid KUIC15POZP1 - Part W11033204

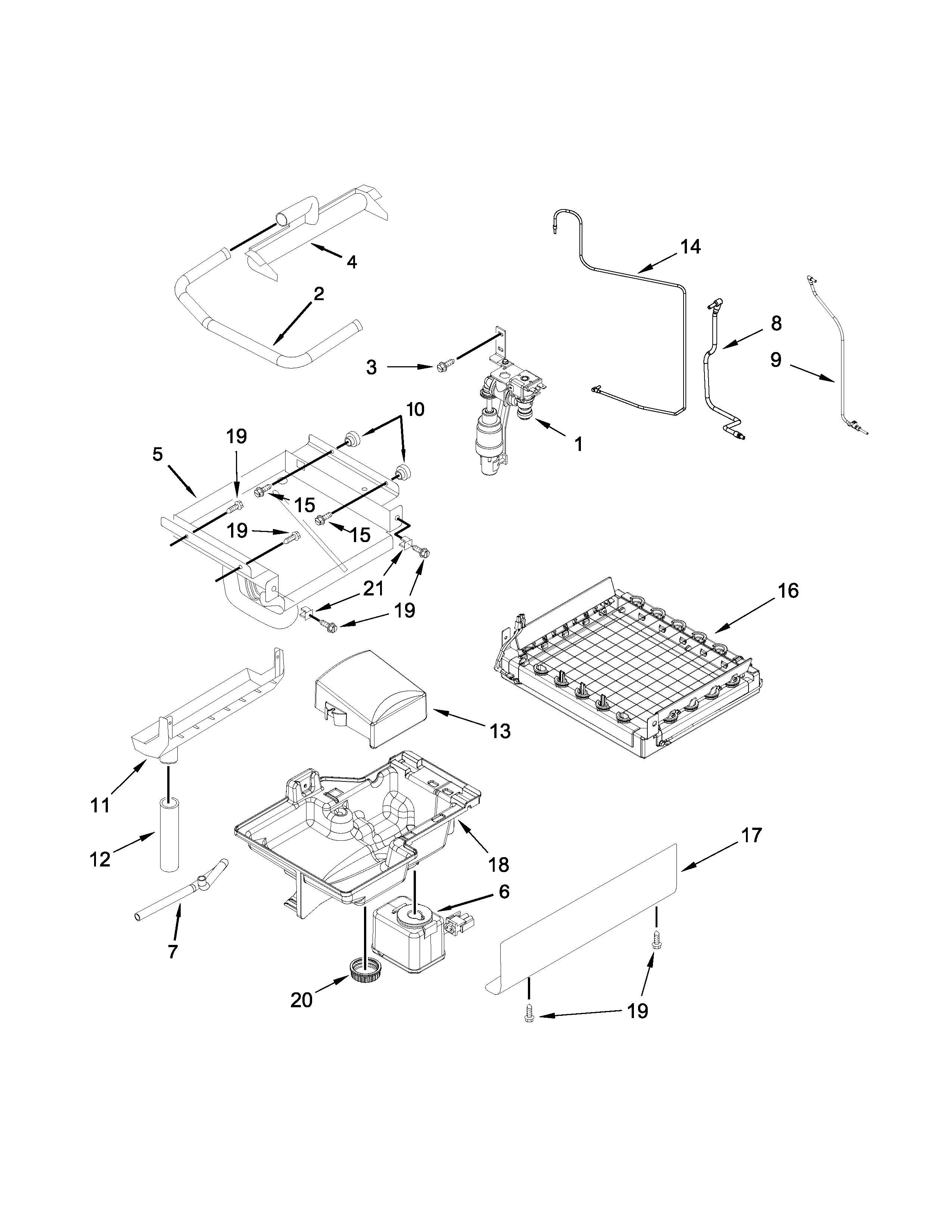

    Evaporator, grid, and water parts diagram

    Water Slide Tube

    Part #W10635836

    Replaced by #W11033204

    Info Icon
    Manufacturer substitution
    This part replaces W10635836. Substitute parts can look different from the original.
    In Stock
    $39.22
    13% OFF Phone Price : $45.22Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Screw for KitchenAid KUIC15POZP1 - Part WP488163

    Evaporator, grid, and water parts diagram

    Screw

    Part #488208

    Replaced by #WP488163

    Info Icon
    Manufacturer substitution
    This part replaces 488208. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $7.21
    12% OFF Phone Price : $8.21Info Icon
    Minus Item
    Qty
    Plus Item
  • Spray Paint for KitchenAid KUIC15POZP1 - Part 350942

    Optional parts diagram

    Spray Paint

    In Stock
    $110.16
    Minus Item
    Qty
    Plus Item
  • Nut for KitchenAid KUIC15POZP1 - Part 3400240

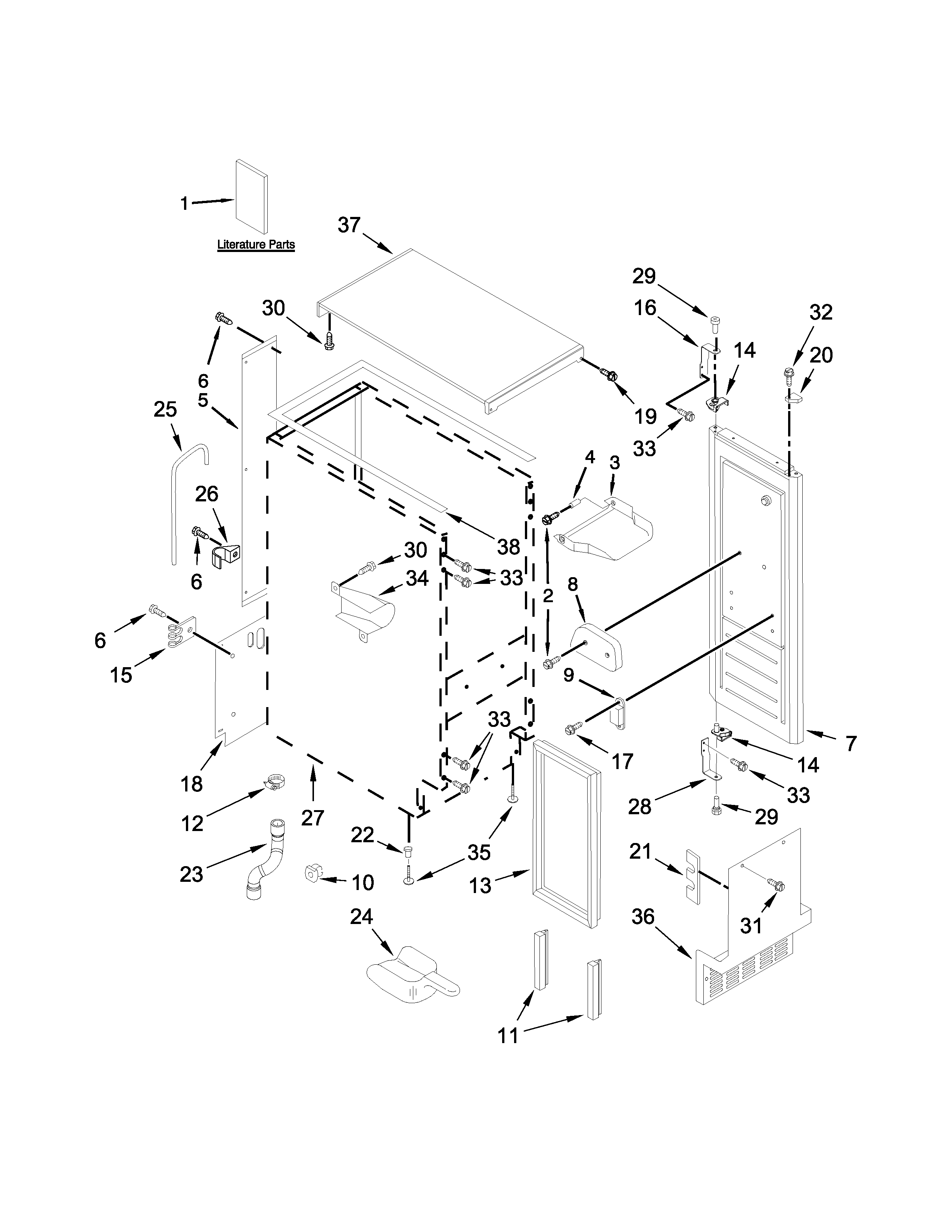

    Cabinet, door and liner parts diagram

    Nut

    In Stock
    $39.94
    Minus Item
    Qty
    Plus Item
  • Clip for KitchenAid KUIC15POZP1 - Part A201435

    Unit parts diagram

    Clip

    In Stock
    $10.84
    16% OFF Phone Price : $12.84Info Icon
    Minus Item
    Qty
    Plus Item
  • Escutcheon for KitchenAid KUIC15POZP1 - Part W10545357

    Control panel parts diagram

    Escutcheon

    In Stock
    $120.70
    Minus Item
    Qty
    Plus Item
  • Screw for KitchenAid KUIC15POZP1 - Part W10531302

    Cabinet, door and liner parts diagram

    Screw

    Part #W10531302
    This item is not returnable
    In Stock
    $32.41
    Minus Item
    Qty
    Plus Item

KitchenAid Ice Maker KUIC15POZP1 FAQs

Yes. You can run the KitchenAid freestanding ice maker model KUIC15POZP1 without the water filter installed, but the incoming water will not be filtered. For the correct bypass or cap position and installation details, follow the steps in the KUIC15POZP1 owner's manual.

What changes when you run without a filter

Running without a filter mainly affects water quality, not basic operation.

  • Ice can pick up more taste or odor from your household water
  • Sediment can build up faster in the water system
  • You may need to clean the reservoir and water path more often
  • If your unit uses a filter cap or bypass, it must be installed correctly to prevent leaks

How to do it the right way

Most KitchenAid undercounter and freestanding ice makers use a filter head that needs either a filter cartridge or a cap/bypass piece seated fully.

  1. Turn the ice maker off.
  2. Remove the filter cartridge.
  3. Install the filter cap/bypass as shown in the KUIC15POZP1 owner's manual.
  4. Turn the water supply back on (if it was shut off) and check for leaks.
  5. Turn the ice maker on and discard the first batch or two of ice.

Filter vs no filter: quick comparison

Setup What you get What to watch for
Filter installed Better taste and less sediment Replace on schedule to maintain flow
No filter (cap/bypass installed) Ice maker still runs More odor/taste, more mineral buildup

Why it matters

Unfiltered water can increase mineral scale and sediment inside the water valve, reservoir, and recirculation system. Keeping water clean helps protect components like the water valve W10897719 and can reduce “runs but no ice” or slow-production complaints.

Last updated: January 2026

For the KitchenAid KUIC15POZP1 freestanding ice maker, the most reliable “reset” is a power reset: turn the unit off, disconnect power for about 1 minute, then restore power and turn it back on. This clears minor control glitches and restarts the ice-making cycle; use the KUIC15POZP1 owner’s manual for the exact control and indicator behavior.

Quick reset steps (power reset)

  • Turn the ice maker OFF at the control (if equipped).
  • Unplug the unit or switch OFF the circuit breaker for about 60 seconds.
  • Restore power.
  • Turn the ice maker ON.
  • Wait for the unit to start a normal cycle; initial ice can take a while after a reset.

If it still won’t make ice after resetting

These checks solve most “runs but no ice” and “not running” complaints on freestanding ice makers:

  • Confirm the water supply shutoff valve is fully open.
  • Check the inlet line for kinks or a pinched section behind the cabinet.
  • Make sure the drain setup matches your installation (gravity drain vs drain pump).
  • Clean mineral scale from the water system and evaporator area (scale can slow or stop production).
  • Listen for pump activity during a cycle; a failed pump can prevent proper water circulation.

If the unit powers on but does not circulate or fill water correctly after a reset, these model-compatible parts are often involved:

Symptom after reset What to suspect Model-compatible part
No water entering Inlet valve not opening Water valve W10897719
Water present but not circulating over evaporator Recirculation pump issue Ice maker recirculation pump W11542867
Unit needs a hard restart or behaves erratically Control not operating correctly Ice maker electronic control board W11034363

Why it matters

A reset only clears a temporary control fault. If KUIC15POZP1 has a water supply problem, scale buildup, or a failing pump or control, the ice maker can power up normally but still stall mid-cycle or produce little to no ice.

Related help: ice maker runs but no ice

Last updated: January 2026

If your KitchenAid freestanding ice maker KUIC15POZP1 runs but is not making ice, the most common causes are no water supply, restricted water flow (filter or valve), poor circulation in the reservoir, or a control or pump issue. Start with water and airflow checks before replacing parts.

Quick checks first (no tools)

  • Confirm the unit is powered on and not in a cleaning or standby mode (see the KUIC15POZP1 owner's manual).
  • Verify the water shutoff valve is fully open and the supply line is not kinked.
  • Make sure the drain setup is correct for your installation (gravity drain vs. drain pump) using the KUIC15POZP1 installation guide.
  • Check that the condenser area has airflow; blocked vents can reduce ice production.
  • If the bin is full, some models pause production until ice is removed.

Most likely causes and what to do

What you notice Likely cause What we recommend
No water entering during fill Water supply issue or failed inlet valve Check shutoff, line, then consider the water valve W10897719
Water present but weak flow Restricted filter or reservoir issue Replace the cartridge hood F2WC9I1 if your unit uses it; inspect the ice maker water reservoir W11614100
Water in reservoir but no circulation Failed recirculation pump Test/replace the ice maker recirculation pump W11542867
Unit runs, freezes slab, but will not cut Cutter grid problem Inspect/replace the grid-assy, 2 W10919199
Random behavior, no consistent cycle Control problem Consider the ice maker electronic control board W11034363

Why it matters

Ice makers depend on steady water fill, proper recirculation over the evaporator, and a complete harvest and cut cycle. A small restriction (filter, valve, reservoir scaling) can stop ice production long before the compressor fails.

Helpful DIY guidance

Last updated: January 2026

Most common symptoms to help you fix your freestanding ice makers

Choose a symptom to see related ice maker repairs.

Main causes: water supply problems, control board failure, weak recirculation pump, clogged water distributer, faulty cu…

Main causes: dirty evaporator plate, untreated water supply, food items being stored in ice storage bin…

Main causes: wiring failure, broken cutting grid, faulty electronic control board…

Main causes: bad bin thermistor, condenser fan failure, faulty control board…

Main causes: failing compressor, bad condenser fan motor, faulty drain pump, bad recirculation pump, water supply proble…

Main causes: cracked water supply line, leaky drain line, broken drain pump, cracked water reservoir, leaky ice bin…

Main causes: bad electronic control board, water supply problems, faulty recirculation pump, sealed system failure, brok…

Main causes: lack of electrical power, bad power cord, wiring failure, bad control board, faulty bin thermistor, bad eva…

Most common repair guides to help fix your freestanding ice makers

These step-by-step repair guides will help you safely fix what’s broken on your ice maker.

How to replace a freestanding ice maker cutter grid

How to replace a freestanding ice maker cutter grid

When the cutting grid is broken, ice cubes don’t drop into the ice bin. Use the steps in this repair guide to replace a…

Repair time and Difficulty

 15 minutes or less
How to replace a freestanding ice maker recirculation pump

How to replace a freestanding ice maker recirculation pump

If your ice maker isn’t making ice, the pump could be the problem. Here’s how to replace it. …

Repair time and Difficulty

 45 minutes or less
How to replace a freestanding ice maker electronic control board

How to replace a freestanding ice maker electronic control board

When the electronic control board won’t activate the ice maker components, follow these steps to install a new one.…

Repair time and Difficulty

 45 minutes or less

Effective articles & videos to help repair your freestanding ice makers

Use the advice and tips in these articles and videos to get the most out of your ice maker.

Using a wiring schematic to trace a current video

Using a wiring schematic to trace a current video

Find out what’s wrong with your appliance by following a circuit.…

Freestanding ice maker cleaning tips

Freestanding ice maker cleaning tips

Learn how to keep your freestanding ice maker operating at its peak by following these simple cleaning tips.…

Ice maker common questions

Ice maker common questions

Browse our common ice maker questions at Sears PartsDirect. Find detailed answers to frequently asked questions.…
