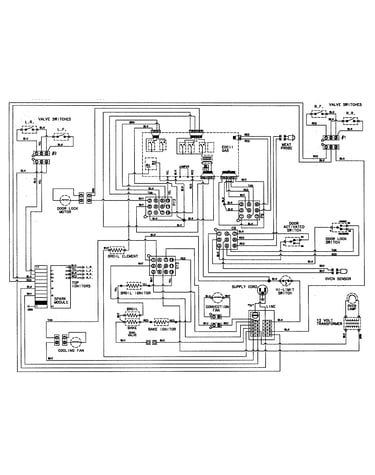

Model #JGS8750ADB Jenn-Air gas slide-in range

Here are the diagrams and repair parts for Jenn-Air JGS8750ADB gas slide-in range, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 197 parts

    Range Oven Light Bulb

    #16A

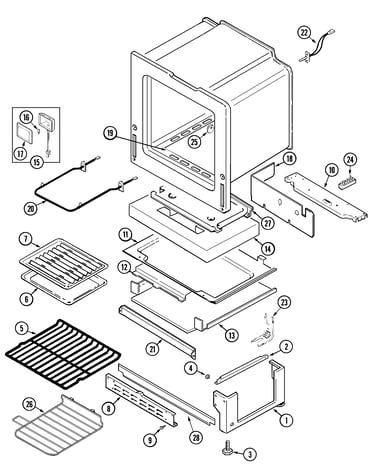

    Oven/base Diagram

    Range oven light bulb

    Part #74004458
    $17.60

    In Stock

    Range Oven Door Switch Spring

    #13

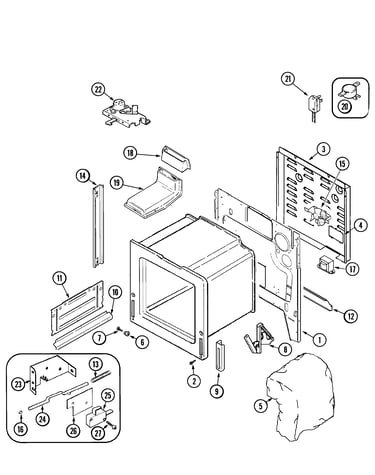

    Body Diagram

    $12.28 |
    13% OFF MSRP:$14.19

    In Stock

    Range Wing Nut

    #22

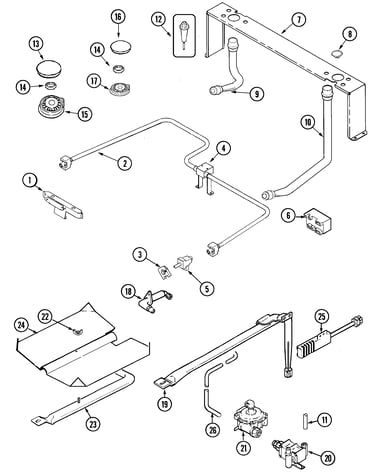

    Gas controls Diagram

    Range wing nut

    Part #7103P030-60
    This item is not returnable
    $4.99

    In Stock

    Cook Guide

    #14

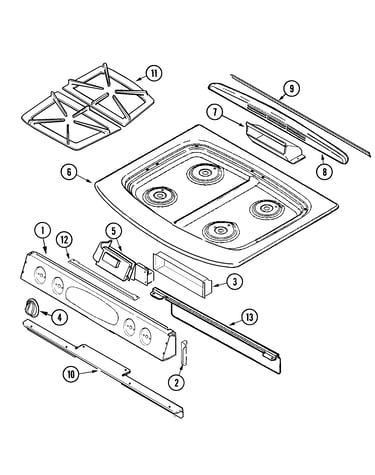

    Top assembly Diagram

    Cook guide

    Part #74005475
    $10.99

    In Stock

    Cooktop Burner Cap

    #13C

    Gas controls Diagram

    Cooktop burner cap

    Part #74007204
    $63.22

    In Stock

    Range Valve Switch Harness

    #3C

    Gas controls Diagram

    $27.97

    In Stock

    Range Valve Switch Harness

    #3B

    Gas controls Diagram

    $30.77

    In Stock

    Range Oven Door Inner Glass

    #7

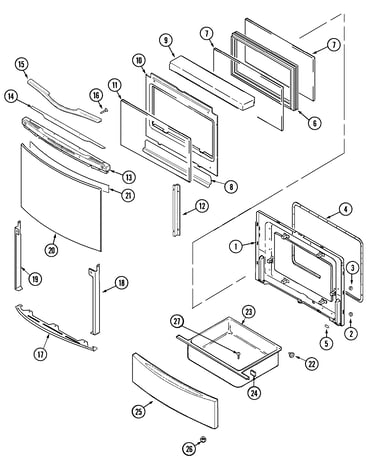

    Door/drawer Diagram

    $55.22 |
    38% OFF MSRP:$89.00

    Back Order

    Range Oven Rack

    #5

    Oven/base Diagram

    Range oven rack

    Part #WPW10282492
    ?
    Manufacturer substitution
    This part replaces 74001757. Substitute parts can look different from the original.
    This part replaces 74001757
    $47.73

    In Stock

    Range Screw

    #23A

    Body Diagram

    Range screw

    Part #WPY706189
    ?
    Manufacturer substitution
    This part replaces 7101P347-60. Substitute parts can look different from the original.
    This part replaces 7101P347-60
    This item is not returnable
    $3.34

    In Stock
