Kenmore Elite 11095866402 dryer Parts
Here are the diagrams and repair parts for Kenmore Elite 11095866402 dryer, as well as links to manuals and error code tables, if available.
Owner’s manual
Error Codes
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for 11095866402 Dryer

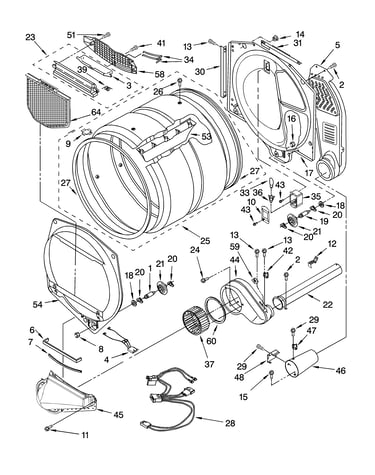

Bulkhead parts diagram
Dryer Wire Harness
Part #3401850Replaced by #WP3401850
Manufacturer substitutionThis part replaces 3401850. Substitute parts can look different from the original.In Stock$209.78
Qty

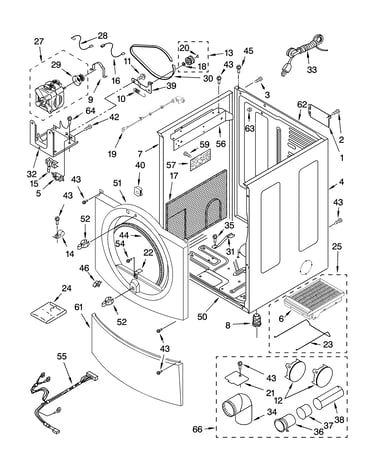

Cabinet parts diagram
Screw
Part #3393008Replaced by #WP308685
Manufacturer substitutionThis part replaces 3393008. Substitute parts can look different from the original.This item is not returnableIn Stock$5.0916% OFF Phone Price : $6.09
QtyCabinet parts diagram
Bracket
Part #8529757Replaced by #W10181903
Manufacturer substitutionThis part replaces 8529757. Substitute parts can look different from the original.In Stock$18.5610% OFF Phone Price : $20.56QtyBulkhead parts diagram
Drum Baffle
Part #697693Replaced by #W11782150
Manufacturer substitutionThis part replaces 697693. Substitute parts can look different from the original.In Stock$107.03QtyBulkhead parts diagram
Funnel
Part #8066047Replaced by #WP8066047
Manufacturer substitutionThis part replaces 8066047. Substitute parts can look different from the original.In Stock$120.28QtyBulkhead parts diagram
Lens
Part #3402841Replaced by #W11226088
Manufacturer substitutionThis part replaces 3402841. Substitute parts can look different from the original.This item is not returnableIn Stock$24.6020% OFF Phone Price : $30.60QtyCabinet parts diagram
Bracket
Part #3388674Replaced by #W10837240

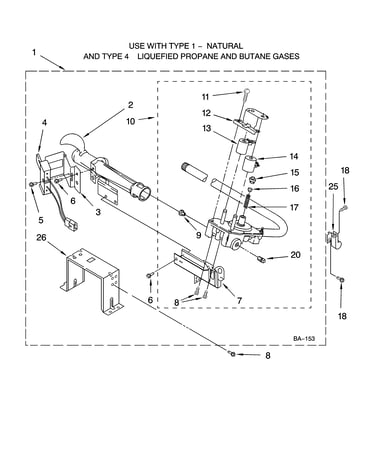

Manufacturer substitutionThis part replaces 3388674. Substitute parts can look different from the original.In Stock$21.7022% OFF Phone Price : $27.70Qty8576353 burner assembly diagram
Igniter Bracket
Part #694298Replaced by #WP694298
Manufacturer substitutionThis part replaces 694298. Substitute parts can look different from the original.In Stock$18.3910% OFF Phone Price : $20.39Qty8576353 burner assembly diagram
Gas Valve
Part #8281914Replaced by #279923

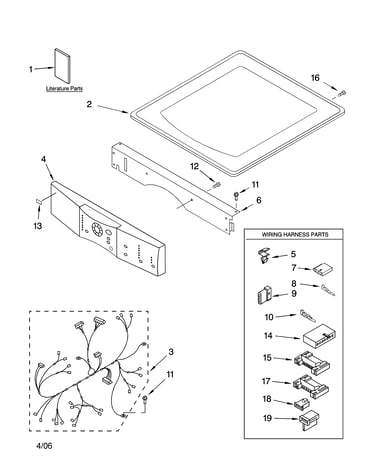

Manufacturer substitutionThis part replaces 8281914. Substitute parts can look different from the original.In Stock$170.407% OFF Phone Price : $182.40QtyTop and console parts diagram
Clip
Part #3394427Replaced by #WP3394427
Manufacturer substitutionThis part replaces 3394427. Substitute parts can look different from the original.This item is not returnableIn Stock$7.6712% OFF Phone Price : $8.67Qty
