Craftsman 917270721 tractor Parts

For the Craftsman lawn tractor model 917270721, use SAE 30 engine oil when temperatures are above 32°F, and SAE 5W-30 when temperatures are below 32°F. The engine oil capacity is 3.0 pints; check the dipstick on level ground and fill only to the “FULL” mark (see the owner's manual).

Oil type and temperature chart

Use the oil viscosity that matches your typical mowing conditions.

Outdoor temperature	Recommended oil	Why it’s used
Above 32°F (0°C)	SAE 30	Better protection at warmer operating temps
Below 32°F (0°C)	SAE 5W-30	Easier starting and better cold-flow

How we recommend checking and filling oil

A correct oil level helps prevent hard starting, smoking, and engine wear.

• Park the tractor on level ground and let the engine cool.
• Remove the oil fill cap/dipstick, wipe it clean, then reinstall it fully.
• Wait a few seconds, remove it again, and read the level.
• Add oil slowly until the dipstick reaches the FULL mark.
• Do not overfill; too much oil can cause performance problems.

Quick specs for model 917270721

These are the key oil-related specs we use for maintenance planning.

• Oil type (warm weather): SAE 30
• Oil type (cold weather): SAE 5W-30
• Oil capacity: 3.0 pints
• Fuel note (related): use fresh, clean, regular unleaded gasoline (minimum 87 octane)

Why it matters

Using the correct viscosity oil for the temperature helps your Craftsman tractor start reliably and maintain proper lubrication under load. That is especially important on a 42-inch deck tractor where the engine runs hot during longer mowing sessions.

Last updated: February 2026

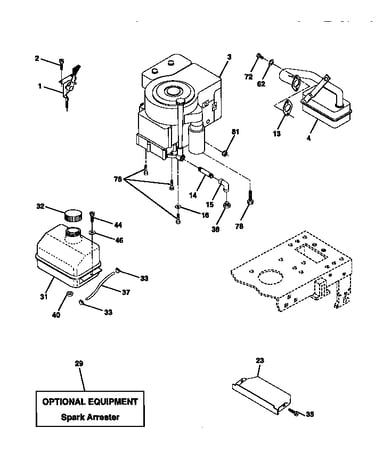

For Craftsman lawn tractor model 917270721, the owner’s manual identifies it as a 17.0 HP riding lawn tractor. The exact engine manufacturer and model family (for example, Briggs & Stratton model number) is listed on the engine ID label and in the detailed engine section of the owner's manual.

How to identify the exact engine on model 917270721

Use these quick checks to match the tractor to the correct engine parts and tune-up specs:

• Look for the engine ID label on the blower housing, valve cover, or near the starter
• Record the engine model, type, and code (common on Briggs & Stratton engines)
• Match the engine ID to the manual’s maintenance and parts information
• Confirm the tractor model number 917270721 on the frame tag (usually under the seat)
• Use the engine ID when buying ignition, fuel, and air-intake parts

Specs we can confirm from the manual

The manual for 917.270721 includes these tractor-level specifications (useful for maintenance and troubleshooting):

Spec	What to use	Notes
Engine power rating	17.0 HP	Listed on the manual cover
Fuel	Unleaded regular	1.25 gallon capacity
Oil type	SAE 30 (above 32°F), SAE 5W-30 (below 32°F)	API SF/SG/SH listed
Spark plug	Champion RC12YC	Gap .030 in
Ground speed	0 to 5.5 mph forward; 0 to 2.4 mph reverse	For normal operation

Why it matters

The engine brand and model determine the correct air filter, spark plug, fuel filter, starter parts, and carburetor settings. Using the engine ID prevents ordering the wrong tune-up parts and helps diagnose no-start or hard-start problems faster.

Related parts you may need for starting issues

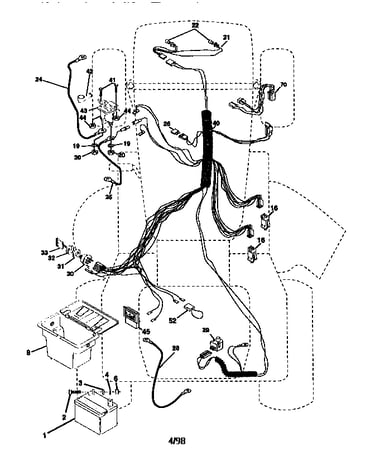

If the engine clicks or cranks inconsistently, these model-related electrical and drive components are common checks:

• Battery connections and ground cable condition
• Starter solenoid operation (replacement option: solenoid 532146154)
• Belt condition if the mower deck will not engage (replacement option: lawn tractor drive belt 532144200)

For step-by-step no-start diagnosis, we recommend our DIY guide: riding lawn mower engine clicks but doesnt turn over video.

Last updated: February 2026

Yes; on a Craftsman lawn tractor like model 917270721, the serial number and model number on the ID label are the starting point for identifying the build date range and the correct parts list. We use that information to match your tractor to the right manual and parts diagrams.

Where to find the serial number (and what to write down)

Check the product ID label (usually under the seat, on the frame, or near the engine area). Record:

• Model number: 917270721
• Serial number (copy it exactly)
• Any engine information shown on the label (if listed)
• Deck size and key features (this model is a 42-inch mower deck)

For model-specific label locations and identification details, use the 917270721 owner's manual.

How the serial number helps (and what it does not do)

On many riding mowers, the serial number can indicate a production sequence and sometimes a date code format. In practice, the serial number is most useful for confirming you are looking at the correct parts breakdown for your exact tractor configuration.

Common outcomes

• Best case: the serial number format includes a date code that points to a specific year.
• Most common: the serial number narrows the unit to a production run; the parts diagrams and manual confirm the correct configuration.
• If parts have been changed: the serial number still identifies the tractor, but you may also need to match the installed part by measurements or markings.

Quick parts cross-check for this model

If you are using the year to buy maintenance parts, it is often faster to confirm by the parts diagram for 917270721 and match the part ID.

What you are servicing	What to match	Example part on this model page
Mower deck cutting system	Blade type and deck configuration	Husqvarna lawn tractor mulching blade, 21-in 532134149
Deck drive	Belt length and routing	Lawn tractor drive belt 532144200
Starting system	Solenoid style and terminals	Solenoid 532146154

Why it matters

The “year” is helpful, but the exact model and serial are what prevent wrong-part returns. Craftsman tractors can look similar across years, while deck, belt routing, and mandrel setups can differ.

Last updated: February 2026

Yes, replacing the engine on your Craftsman 917270721 front-engine lawn tractor is worth it when the deck, steering, and drive system are still solid and you want several more seasons of dependable mowing. If multiple systems are worn, putting that money toward a replacement tractor is the better value.

Quick decision checklist

• Deck is straight (no rust-through or cracks) and can be leveled for an even cut
• Blade drive works without constant belt slip or seized pulleys
• Steering and front axle track straight without excessive play
• Engine swap fits without modifying the frame, controls, or wiring
• Total parts cost stays well below a comparable replacement tractor

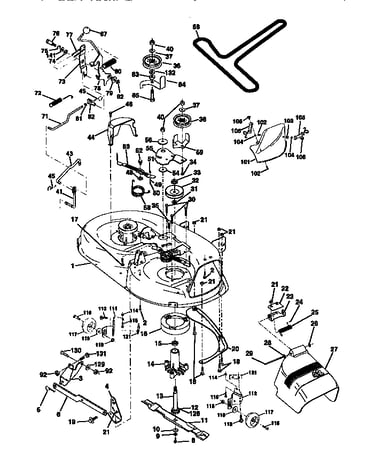

What to inspect on model 917270721 first

A bad engine can hide other problems; we check these wear areas before committing:

• Deck mandrels and bearings: wobble or bearing noise points to spindle work
• Blade drive belt and idlers: glazing, cracking, or frequent throwing means more repairs
• Safety interlock system: seat and brake interlocks must work for normal starting and PTO operation
• Deck airflow and discharge: grass buildup around mandrels and vent holes increases load and hurts cut quality

For model-specific maintenance and troubleshooting steps, use the owner's manual.

Cost logic (simple comparison)

Condition you find	What it means	Best choice
Deck and drivetrain are strong	Engine is the main failure	Replace engine
Deck, belts, steering, tires all tired	Repairs stack up fast	Replace tractor
Cut quality issues even now	Deck system needs work too	Price both options

Why it matters

Mowing performance depends on the deck system as much as the engine. The manual notes that bent blades, bent mandrels, clogged deck vents, and worn belts can cause poor cut and blade-rotation problems even when the engine runs.

Parts often evaluated during an engine swap

• Lawn tractor drive belt 532144200
• Husqvarna lawn tractor mandrel assembly 532130794
• Lawn tractor blade idler pulley 532139245

Last updated: February 2026
