Maytag MGD6200KW1 gas dryer Parts

Here are the diagrams and repair parts for Maytag MGD6200KW1 gas dryer, as well as links to manuals and error code tables, if available.

Maytag MGD6200KW1 gas dryer
By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for MGD6200KW1 GAS DRYER

  • Whirlpool Dryer Drum Belt, 92-1/4-inch for Maytag MGD6200KW1 - Part 341241

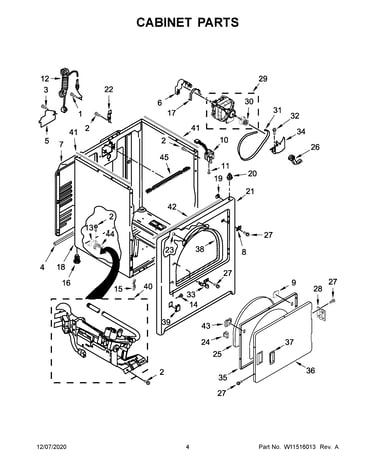

    Cabinet parts diagram

    Belt

    Part #W10131364

    Replaced by #341241

    Info Icon
    Manufacturer substitution
    This part replaces W10131364. Substitute parts can look different from the original.
    In Stock
    $10.32
    16% OFF Phone Price : $12.32Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Dryer Drum Support Roller for Maytag MGD6200KW1 - Part WPW10314173

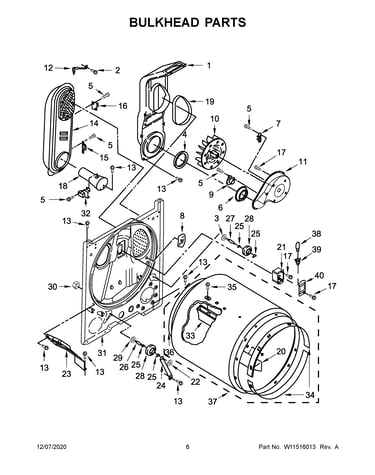

    Bulkhead parts diagram

    Dryer Drum Support Roller

    Part #W10314171

    Replaced by #WPW10314173

    Info Icon
    Manufacturer substitution
    This part replaces W10314171. Substitute parts can look different from the original.
    In Stock
    $12.31
    14% OFF Phone Price : $14.31Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Dryer Valve Coil Kit for Maytag MGD6200KW1 - Part 279834

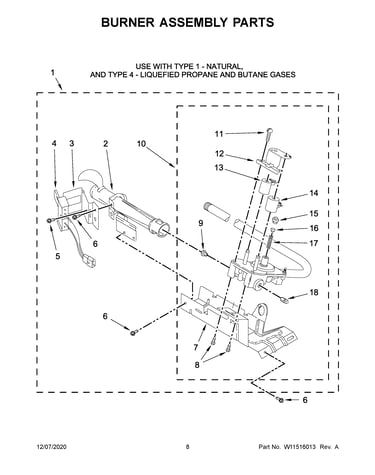

    Burner assembly parts diagram

    Dryer Valve Coil Kit

    Part #694540

    Replaced by #279834

    Info Icon
    Manufacturer substitution
    This part replaces 694540. Substitute parts can look different from the original.
    In Stock
    $25.32
    19% OFF Phone Price : $31.32Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Dryer Door Switch for Maytag MGD6200KW1 - Part WP3406107

    Cabinet parts diagram

    Dryer Door Switch

    Part #W10569603

    Replaced by #WP3406107

    Info Icon
    Manufacturer substitution
    This part replaces W10569603. Substitute parts can look different from the original.
    In Stock
    $26.32
    19% OFF Phone Price : $32.32Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Dryer Valve Coil Kit for Maytag MGD6200KW1 - Part 279834

    Burner assembly parts diagram

    Dryer Gas Valve Coil Kit

    Part #694539

    Replaced by #279834

    Info Icon
    Manufacturer substitution
    This part replaces 694539. Substitute parts can look different from the original.
    In Stock
    $25.32
    19% OFF Phone Price : $31.32Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Dryer Thermistor for Maytag MGD6200KW1 - Part WP8577274

    Bulkhead parts diagram

    Dryer Thermistor

    Part #8577274

    Replaced by #WP8577274

    Info Icon
    Manufacturer substitution
    This part replaces 8577274. Substitute parts can look different from the original.
    In Stock
    $32.49
    16% OFF Phone Price : $38.49Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Dryer Drive Motor for Maytag MGD6200KW1 - Part 279827

    Cabinet parts diagram

    Drive Motor

    Part #W10396029

    Replaced by #279827

    Info Icon
    Manufacturer substitution
    This part replaces W10396029. Substitute parts can look different from the original.
    In Stock
    $89.05
    6% OFF Phone Price : $95.05Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Dryer Blower Wheel for Maytag MGD6200KW1 - Part WP694089

    Bulkhead parts diagram

    Dryer Blower Wheel

    Part #694089

    Replaced by #WP694089

    Info Icon
    Manufacturer substitution
    This part replaces 694089. Substitute parts can look different from the original.
    In Stock
    $28.92
    17% OFF Phone Price : $34.92Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Dryer Idler Pulley for Maytag MGD6200KW1 - Part WP691366

    Cabinet parts diagram

    Dryer Idler Pulley

    Part #691366

    Replaced by #WP691366

    Info Icon
    Manufacturer substitution
    This part replaces 691366. Substitute parts can look different from the original.
    In Stock
    $15.12
    12% OFF Phone Price : $17.12Info Icon
    Minus Item
    Qty
    Plus Item
  • Dryer Thermal Fuse for Maytag MGD6200KW1 - Part WP3392519

    Bulkhead parts diagram

    Dryer Thermal Fuse

    Part #3392519

    Replaced by #WP3392519

    Info Icon
    Manufacturer substitution
    This part replaces 3392519. Substitute parts can look different from the original.
    In Stock
    $35.56
    Minus Item
    Qty
    Plus Item

Maytag GAS DRYER MGD6200KW1 FAQs

A Maytag dryer typically lasts about 13 years with normal household use and basic maintenance. For your Maytag MGD6200KW1 gas dryer, consistent airflow care (lint screen and venting) and avoiding overloads are the biggest factors in reaching that lifespan.

Typical lifespan and what affects it

Most dryers fail early due to heat and airflow stress, not because the drum “wears out.” We see lifespan change the most based on:

  • Vent restriction (long runs, crushed flex duct, clogged hood)
  • Heavy loads and frequent overloading
  • Running with a dirty lint screen or lint buildup inside the cabinet
  • Worn drum support parts (belt, rollers, idler)
  • Heat system wear on gas models (igniter, coils, sensors)

Quick maintenance that adds years

These steps reduce overheating, shorten dry times, and lower wear on parts.

  • Clean the lint screen before every load
  • Check outside vent hood for strong airflow while running
  • Keep the vent run short and smooth (avoid kinks and excess length)
  • Do not overload; leave room for tumbling
  • If you hear squealing or thumping, address it early before it damages the drum

Common “end-of-life” symptoms and likely parts

Symptom What it usually points to Example part for MGD6200KW1
Squealing, chirping Belt or idler pulley wear Belt 341241
Thumping, rumbling Worn drum rollers Dryer drum support roller WPW10314173
Runs but no heat Ignition or gas valve coil issue Igniter 279311 or dryer gas valve coil kit 279834
Long dry times Airflow restriction or blower issue Dryer blower wheel WP694089

Why it matters

A dryer that is restricted on airflow runs hotter and longer, which accelerates wear on the drive system (belt, rollers, idler) and the gas heat components. Keeping airflow strong is the simplest way to hit the full expected service life.

Last updated: February 2026

On a Maytag MGD6200KW1 gas dryer, a “bad heating element” usually is not the cause of no-heat because gas models heat with a burner assembly. If the drum tumbles but clothes stay cold, we focus on the igniter, gas valve coils, radiant sensor, airflow, and temperature sensing.

What you’ll notice when heat is failing

  • Dryer runs but there’s no heat at all.
  • Heat starts for a minute, then stops and never returns.
  • Long dry times even on timed dry.
  • Burning smell or scorching can happen with restricted venting.
  • Repeated cycling with lukewarm air can point to airflow or sensor issues.

Quick checks (before testing parts)

  1. Clean the lint screen and confirm strong airflow at the outside vent hood.
  2. Make sure the gas shutoff valve is fully open.
  3. Try a Timed Dry cycle (some sensor cycles reduce heat if airflow is poor).
  4. If the dryer will not start at all, use gas dryer wont start troubleshooting video.

Common no-heat parts on this model (gas heat)

Symptom Most likely checks Model-relevant part examples
No glow in burner area Igniter, thermal cut-off Igniter 279311, dryer thermal cut-off fuse kit W11050897
Glows but no flame Gas valve coils, gas valve Dryer gas valve coil kit 279834, dryer gas valve (if needed)
Flame starts then quits Coils, radiant sensor, venting Dryer gas valve coil kit 279834, dryer radiant sensor WP338906

Why it matters

Replacing an “element” on a gas dryer wastes time and money. On the MGD6200KW1, accurate diagnosis usually comes down to burner ignition parts and safe, unrestricted venting so the dryer can heat and cycle correctly.

Last updated: February 2026

On a Maytag dryer like model MGD6200KW1, the model number is printed on the appliance’s rating label. We most often see it on the door opening area (door jamb) or on the back of the cabinet near the top.

Most common places to check

  • Open the dryer door and look along the door frame/door opening on the cabinet
  • Check the inside edge of the front panel near the door opening
  • Look on the back of the dryer cabinet, usually near the top
  • If your dryer is stacked or tight to a wall, use a flashlight and check the rear label from the side

What the label looks like (so you know you found the right one)

The rating label typically includes:

  • Model number (example: MGD6200KW1)
  • Serial number
  • Type (gas dryer)
  • Electrical ratings and other manufacturing information

Why it matters

We use the exact model number to match the correct Maytag gas dryer parts for your unit. Even small model-number differences can change which belt, igniter, or control parts fit.

Quick part examples for MGD6200KW1

What you’re replacing Example part for this model When it’s commonly needed
Drum drive belt Belt 341241 Drum won’t tumble, squealing, belt snapped
Door switch Dryer door switch WP3406107 Dryer won’t start when door is closed
Ignition components Igniter 279311 Dryer runs but won’t heat

Last updated: February 2026

On the Maytag MGD6200KW1 gas dryer, the F01 (sometimes shown as FO1) error code points to an electronic control problem, most often the main control board (ACU) not processing signals correctly. This can show up as a no-start condition, no heat, or the drum not tumbling.

What to do first (quick checks)

  • Reset power: unplug the dryer (or switch off the breaker) for 2 minutes, then restore power.
  • Confirm the door is fully closing and latching; a weak door switch can mimic control issues.
  • Try a different cycle (Timed Dry vs. Auto) to see if the behavior changes.
  • If the display is erratic or buttons do not respond consistently, treat it as a control/console signal issue.
  • If the dryer runs but will not heat, check the gas-heat ignition sequence components as well.

Parts that commonly relate to F01 symptoms on MGD6200KW1

F01 is usually control-related, but these parts can be involved depending on the exact symptom.

Symptom you see Most likely area Example part for this model
Dead display, random beeping, won’t start Main control (ACU) Appliance control unit (acu) W11481389
Buttons/knob not responding correctly User interface/encoder Encoder, mega assembly W11627521
Starts then stops, or heat drops out mid-cycle Gas ignition circuit Dryer gas valve coil kit 279834

Why it matters

F01 is a control-system fault; continuing to run the dryer can lead to repeated shutdowns, incomplete drying, or intermittent operation that is hard on components like the drive motor and gas burner controls.

If the dryer also has a no-heat complaint

On a gas dryer like the MGD6200KW1, no-heat alongside F01 can be a separate ignition issue. If the drum tumbles but there is no flame, we focus on the igniter, radiant sensor, and gas valve coils. Our gas dryer wont heat troubleshooting video walks through the common checks in the right order.

Last updated: February 2026
