GE PWE23KSDFSS bottom-mount refrigerator Parts

On the GE PWE23KSDFSS bottom-mount refrigerator, the bottom grille (base grille/toe grille) typically comes off by removing any retaining screws (if present) and then pulling the grille straight out to release the clips. Reinstall by aligning it and sliding it back into place. For your exact fastener locations, use the PWE23KSDFSS owner's manual.

Steps to remove the bottom grille

• Unplug the refrigerator or switch off power at the breaker (safer when working near wiring and fans).
• Look along the top edge of the grille for screws; remove them with a Phillips screwdriver if you see them.
• Grip the grille at both ends and pull straight toward you to pop it off the retaining clips.
• If it feels stuck, pull evenly from both sides; do not twist hard (twisting can crack the plastic tabs).
• Set the grille aside and keep any screws together for reinstallation.

If the grille will not come off

Most “won’t budge” cases are caused by hidden screws, tight clips, or the grille catching on the floor.

• Recheck for screws at the ends or along the top lip.
• Slightly open the fresh food doors to improve your grip and access.
• Make sure the refrigerator is not sitting too low; leveling legs can press the grille into the floor.
• Pull from the ends first, then work toward the center.
• If you need to access the condenser area for cleaning, confirm the correct access points in the PWE23KSDFSS owner's manual.

Quick comparison: screws vs. clips

What you see	What it usually means	What to do
Phillips screws visible	Grille is screw-retained	Remove screws first, then pull out
No screws visible	Grille is clip-retained	Pull straight out to release clips
Grille drags on floor	Unit may be low/tilted	Adjust leveling legs, then remove

Why it matters

Removing the bottom grille correctly helps prevent broken tabs and makes it easier to clean dust from the lower front area, which supports steady airflow and efficient cooling.

Last updated: February 2026

For GE Profile refrigerators like model PWE23KSDFSS, the most common issues are ice maker and water dispenser problems (no ice, slow water, leaking) and cooling complaints (warm fresh-food section or freezer). These symptoms are often tied to airflow, water supply, or control/sensor components; use the PWE23KSDFSS owner's manual for model-specific checks.

Most common symptoms we see

• Ice maker not making ice or making small/hollow cubes
• Water dispenser slow, sputtering, or leaking
• Fresh-food section too warm while freezer seems OK
• Unusual fan noise, weak airflow, or temperature swings
• Door alarm beeping because a door is not sealing or closing fully

Quick checks that solve many calls

1. Confirm temperatures: set freezer near 0°F and fresh food near 37°F; allow 24 hours to stabilize.
2. Check door sealing and alignment: a poor seal causes frost, moisture, and temperature instability.

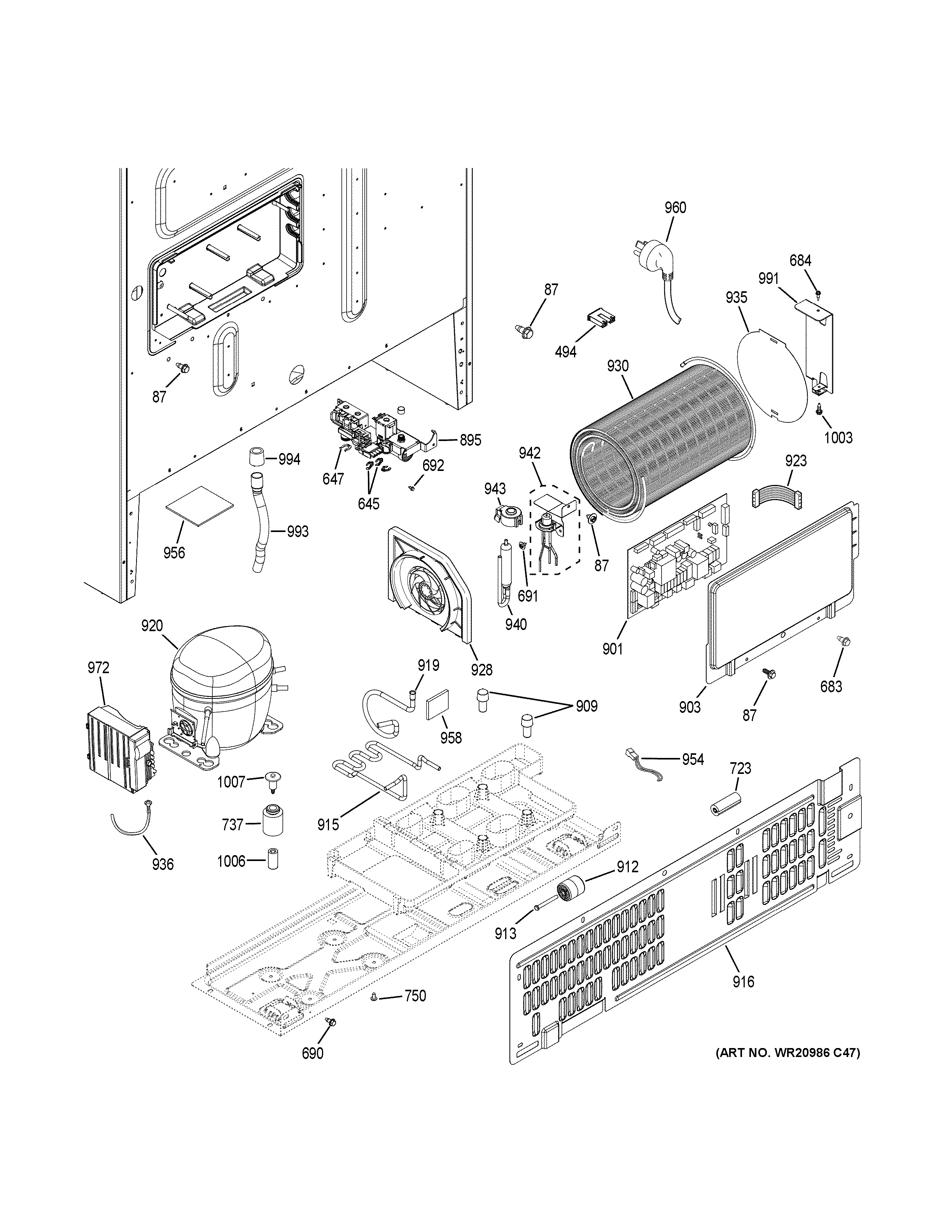

3. Clean condenser area: dust buildup reduces cooling efficiency and can mimic “not cooling” problems.
4. Inspect airflow: do not block vents with food packages; restricted vents cause warm spots.
5. For dispenser issues: replace the water filter on schedule and purge air after filter changes.

Parts that commonly relate to these problems (PWE23KSDFSS)

Symptom	Common cause	Example part on this model page
Warm temps, weak airflow, fan noise	Evaporator fan not running or noisy	Refrigerator evaporator fan motor WR60X26866
Temperature swings, odd readings	Sensor out of range	Refrigerator temperature sensor WR55X10025
Slow water, bad taste, low flow	Clogged filter	GE refrigerator water filter RPWFE
No water to dispenser/ice maker	Inlet valve not opening fully	Refrigerator water inlet valve assembly WR57X20873

Why it matters

Ice and water issues can look like “the fridge is failing,” but they are often maintenance or flow-related (filter, air in the line, supply pressure). Cooling complaints frequently come down to air movement (fans, vents, coils) before major sealed-system parts.

Helpful DIY guides for common GE issues

• Use how to replace the water filter in a GE refrigerator for correct filter replacement and flushing steps.
• If the alarm keeps sounding, follow how to reset the door alarm on a GE refrigerator.
• If you see a code or flashing display, check GE refrigerator error codes.

For replacement parts for PWE23KSDFSS, order from the parts list for this model or search by model number on Sears PartsDirect.

Last updated: February 2026

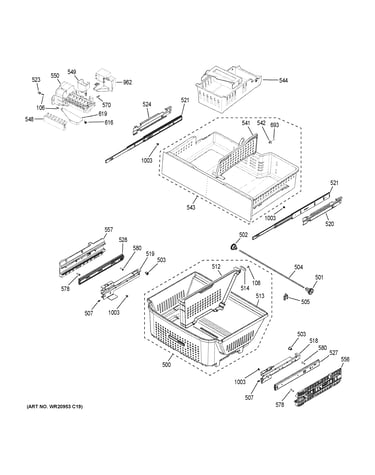

In a GE PWE23KSDFSS bottom-mount refrigerator, the “bottom compartment” is most commonly the freezer compartment (the lower section with drawers/bins). If you mean the bottom drawers inside the fresh food section, those are typically called crisper drawers (produce drawers).

Common names you’ll hear (and what they mean)

• Freezer compartment: The entire bottom section on a bottom-mount refrigerator.

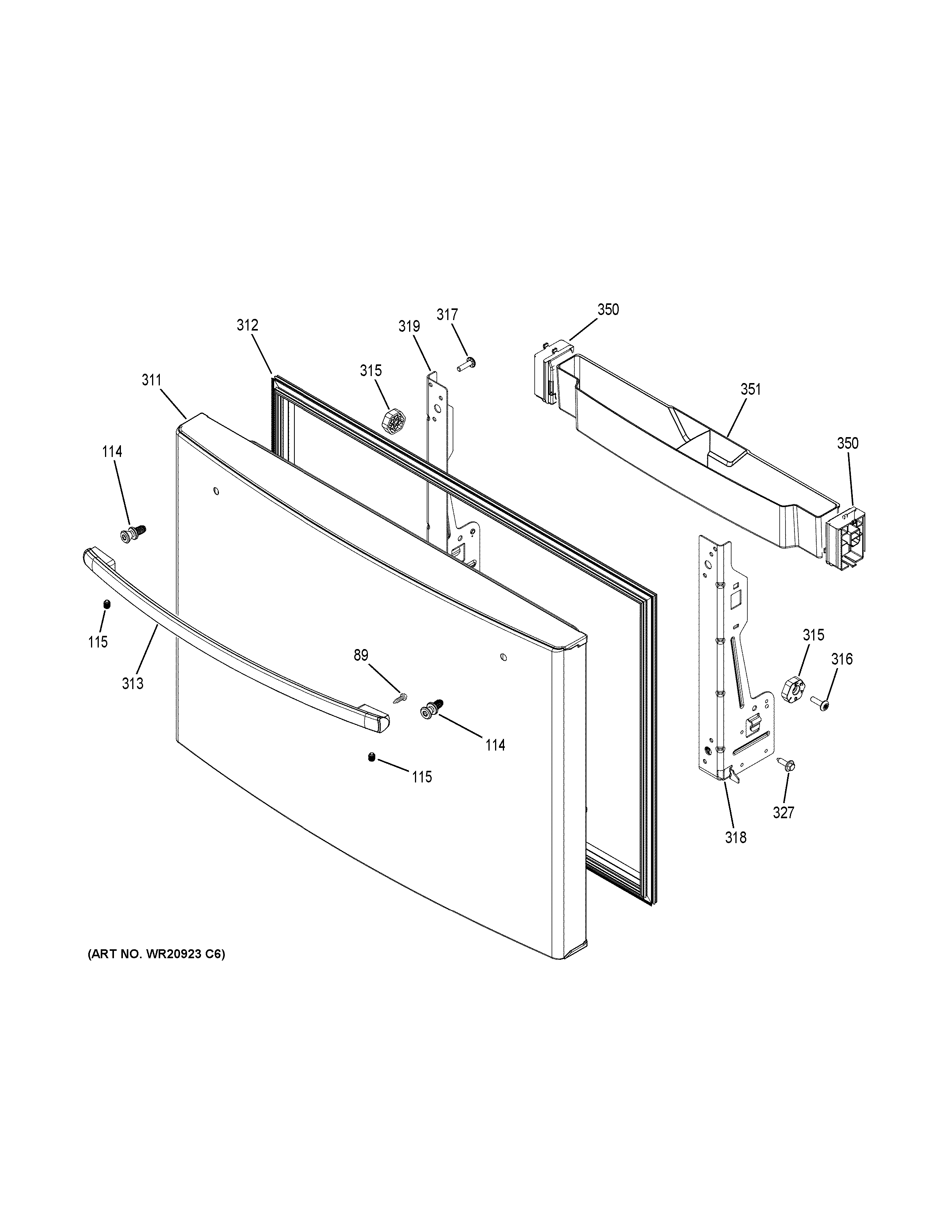

• Freezer drawer: The pull-out drawer that gives access to the freezer.
• Freezer bin: A removable bin inside the freezer drawer.
• Crisper drawer: Fresh food drawer designed to help keep fruits and vegetables fresh.
• Deli drawer: A fresh food drawer meant for meats, cheeses, and snacks.

Quick ID guide

If the compartment is…	It’s usually called…	Where it is
The whole lower section that freezes food	Freezer compartment	Bottom of the refrigerator
A removable container in the freezer	Freezer bin	Inside the freezer drawer
A humidity-style produce drawer	Crisper drawer	Bottom area of the fresh food section
A wide snack/meat drawer	Deli drawer	Fresh food section, often mid-to-lower

Parts that match what you’re describing (for this model)

If you’re trying to replace a broken bottom “compartment,” match the name to the part type:

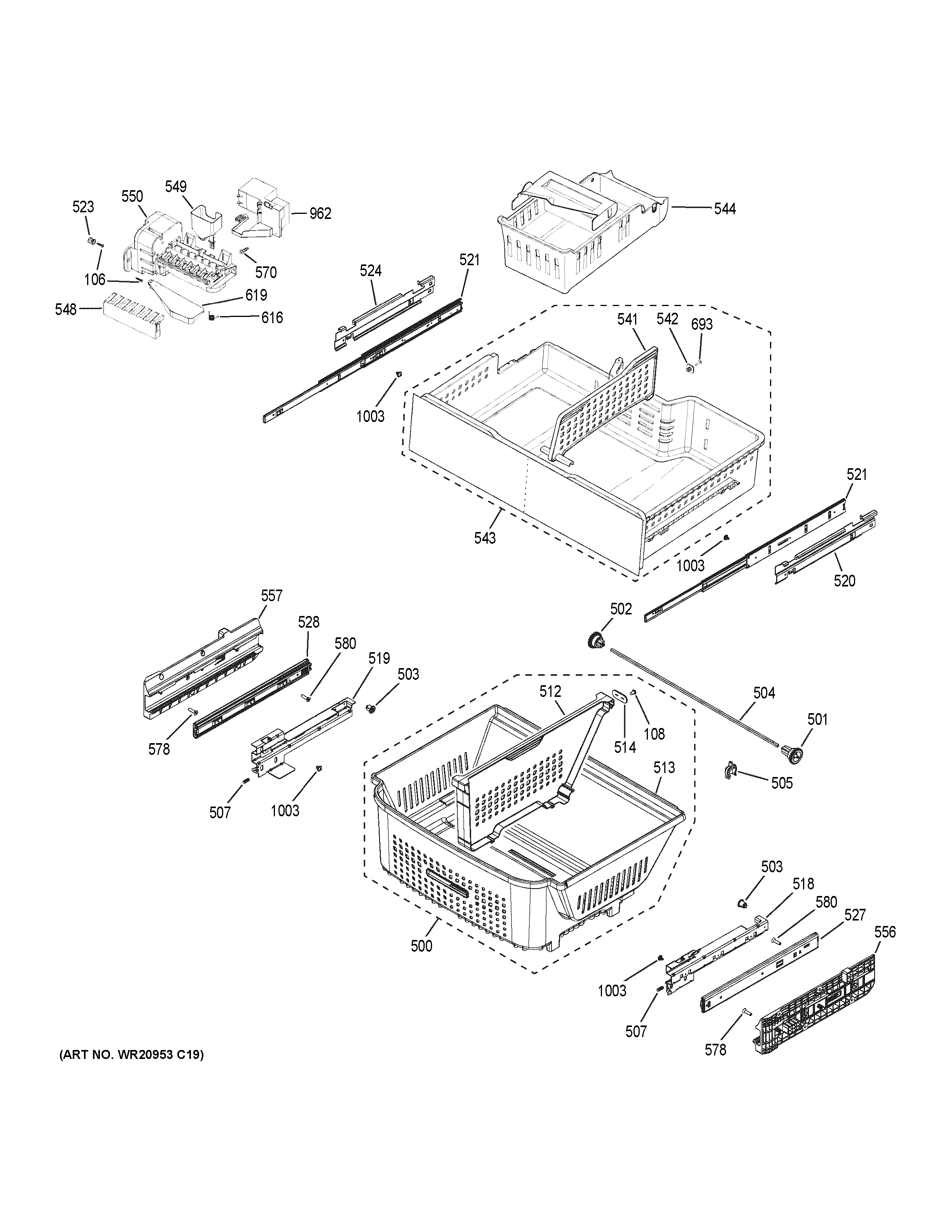

• For a broken freezer bin, check the refrigerator freezer bottom bin WR21X10254.

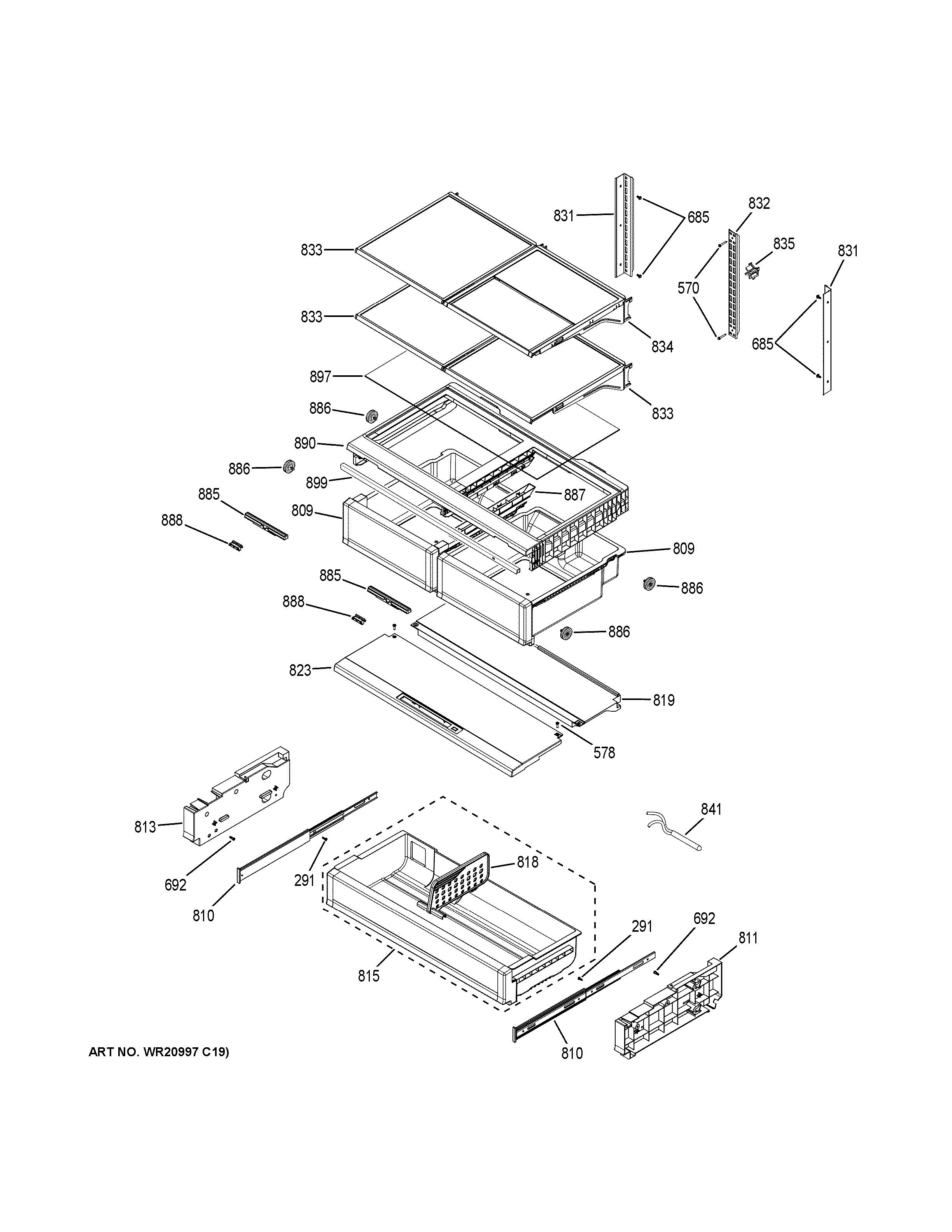

• For a broken deli drawer, check the refrigerator deli drawer WR32X10884 or the refrigerator deli drawer front cover WR32X24044.

Why it matters

Using the right name helps you get the correct replacement part the first time, especially on bottom-mount designs where “bottom compartment” could mean the freezer drawer, a freezer bin, or the crisper/deli drawers in the fresh food section.

For diagrams and the exact drawer/bin naming used for your GE PWE23KSDFSS, we recommend checking the PWE23KSDFSS owner's manual. You can also search by model number on Sears PartsDirect if you’re shopping beyond the parts shown here.

Last updated: February 2026
