GE WSM2700WAWAA washer/dryer Parts
Here are the diagrams and repair parts for GE WSM2700WAWAA washer/dryer, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for WSM2700WAWAA Washer/Dryer

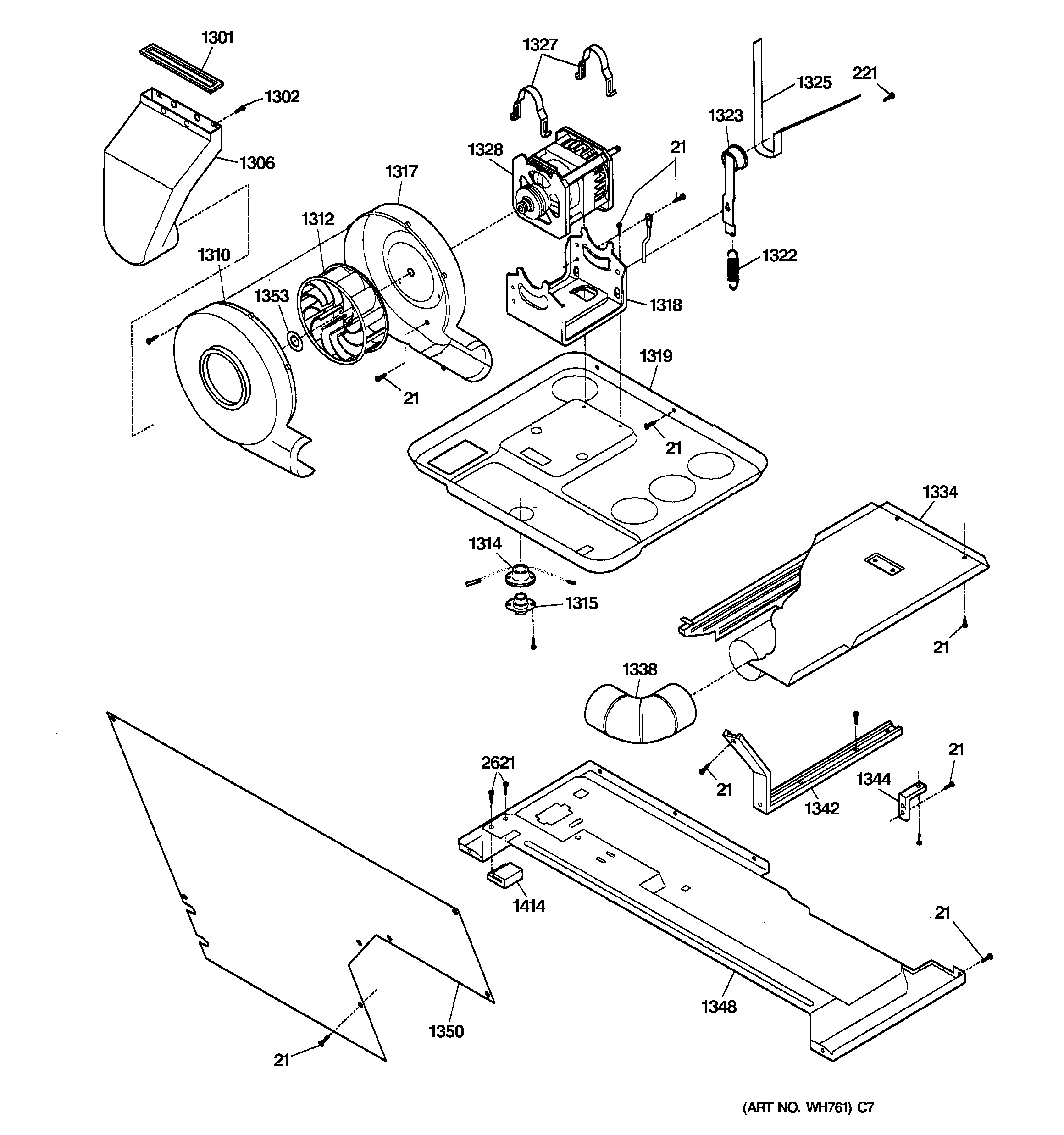

Dryer motor, blower & belt diagram
Dryer Belt
Part #WE12X0090Replaced by #WE12X10009
Manufacturer substitutionThis part replaces WE12X0090. Substitute parts can look different from the original.In Stock$71.038% OFF Phone Price : $77.03
Qty
Dryer motor, blower & belt diagram
Laundry Center Dryer Idler Arm
Part #WE01X10071Replaced by #WE03X29378

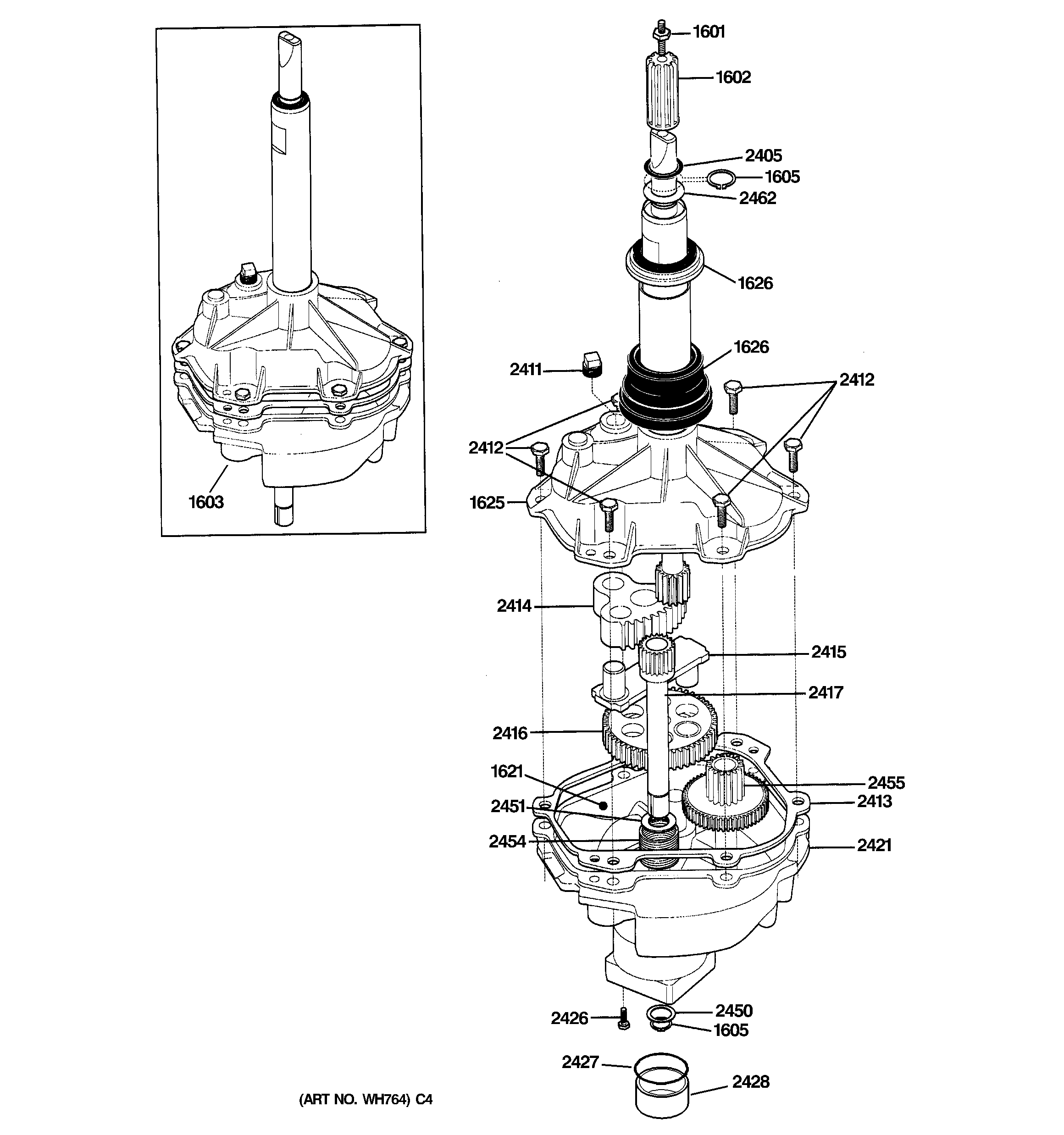

Manufacturer substitutionThis part replaces WE01X10071. Substitute parts can look different from the original.In Stock$87.596% OFF Phone Price : $93.59QtyTransmission diagram
Washer Tub Seal Assembly

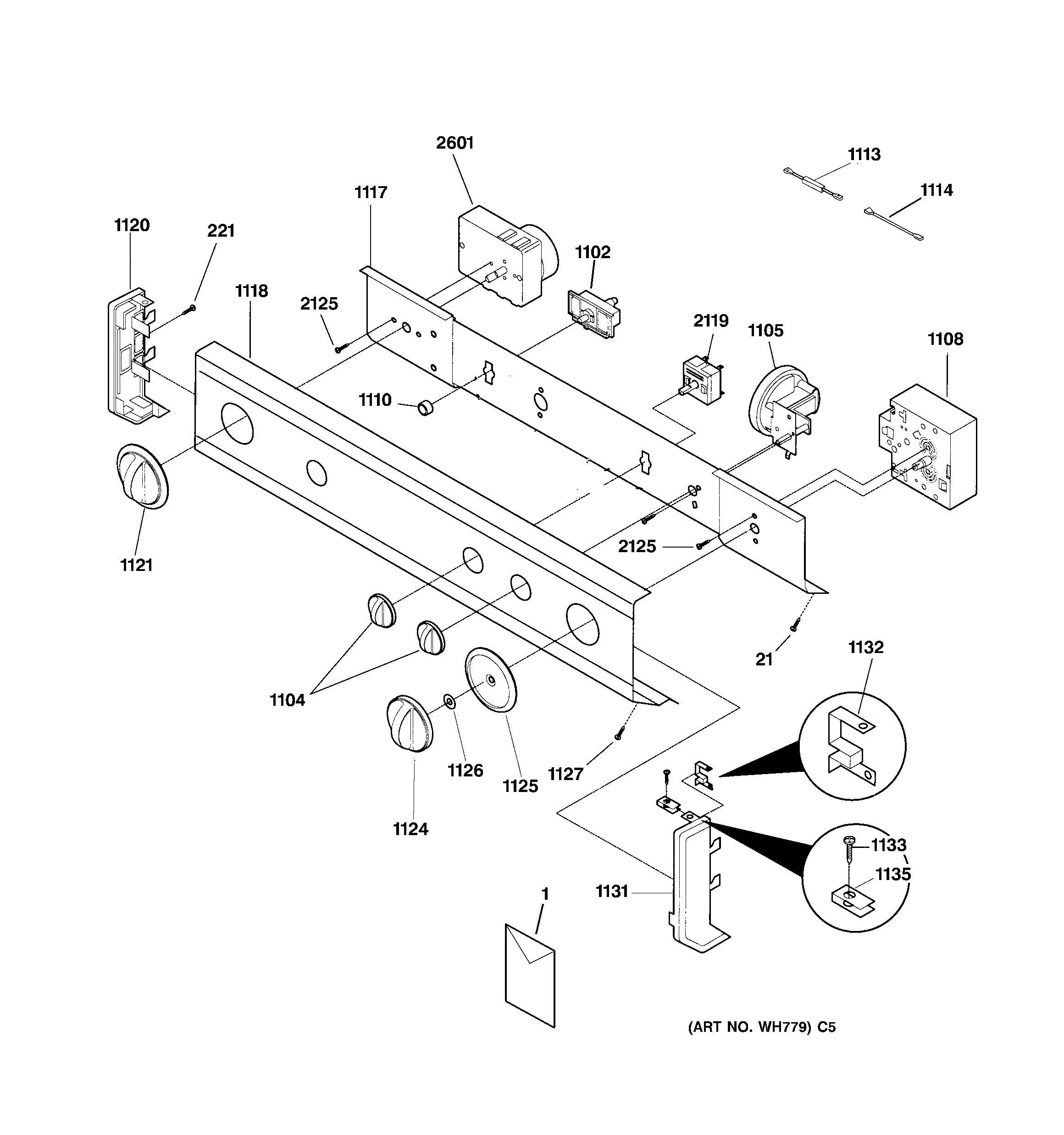

In Stock$131.4612% OFF Was : $149.03QtyControl panel diagram
Timer Knob
Part #WE01X10070Replaced by #WE01X10160

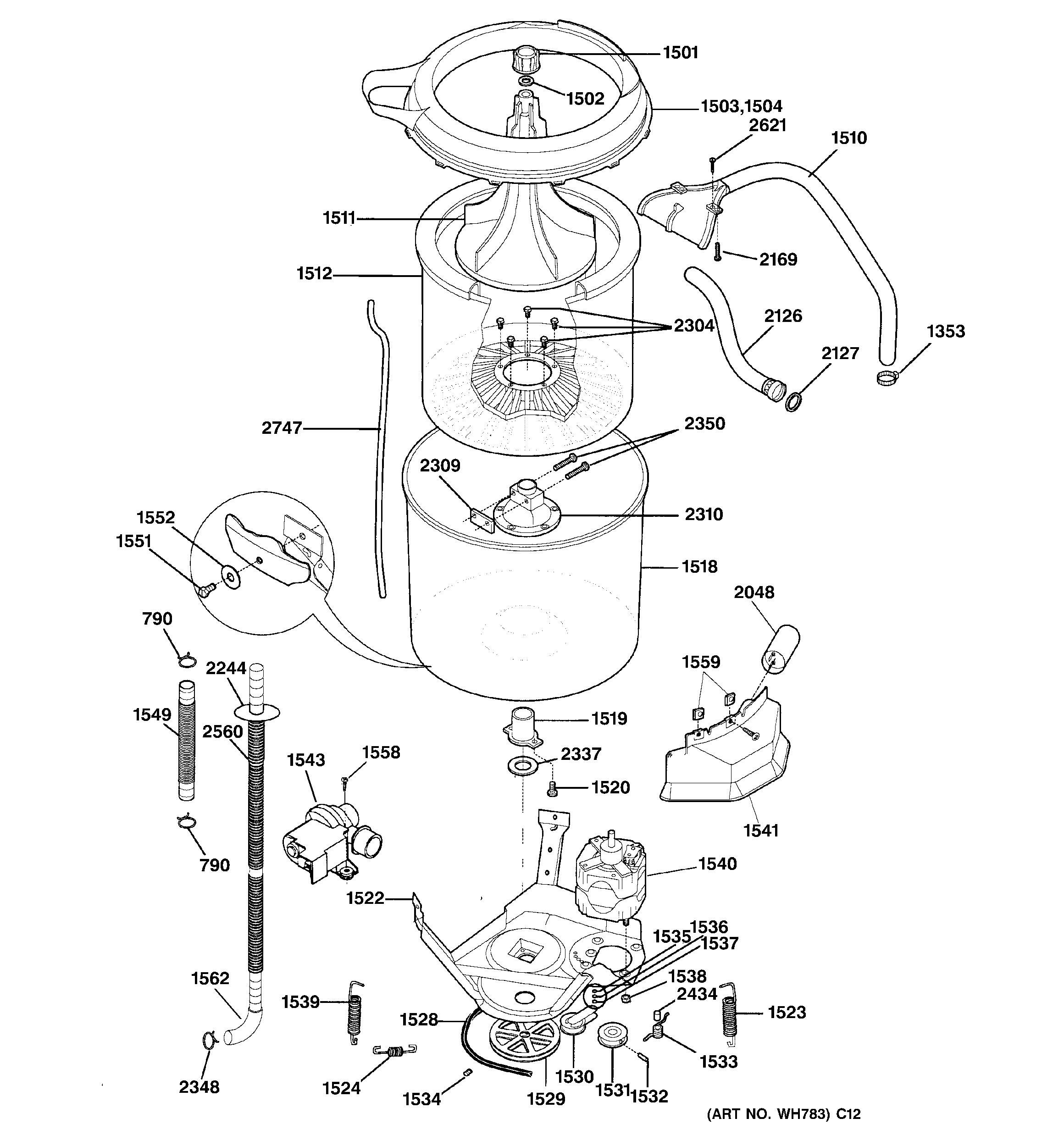

Manufacturer substitutionThis part replaces WE01X10070. Substitute parts can look different from the original.In Stock$66.978% OFF Phone Price : $72.97QtyWasher motor & tub diagram
Belt
Part #WH07X10002Replaced by #WH07X10009
Manufacturer substitutionThis part replaces WH07X10002. Substitute parts can look different from the original.In Stock$94.426% OFF Phone Price : $100.42QtyControl panel diagram
Timer D
Part #WE04X0775Replaced by #WE4X775
Manufacturer substitutionThis part replaces WE04X0775. Substitute parts can look different from the original.In Stock$178.826% OFF Phone Price : $190.82QtyWasher motor & tub diagram
In.hose 4 Ft
Part #WH41X0058Replaced by #WH41X10207
Manufacturer substitutionThis part replaces WH41X0058. Substitute parts can look different from the original.This item is not returnableIn Stock$24.4620% OFF Phone Price : $30.46QtyDryer motor, blower & belt diagram
Pan

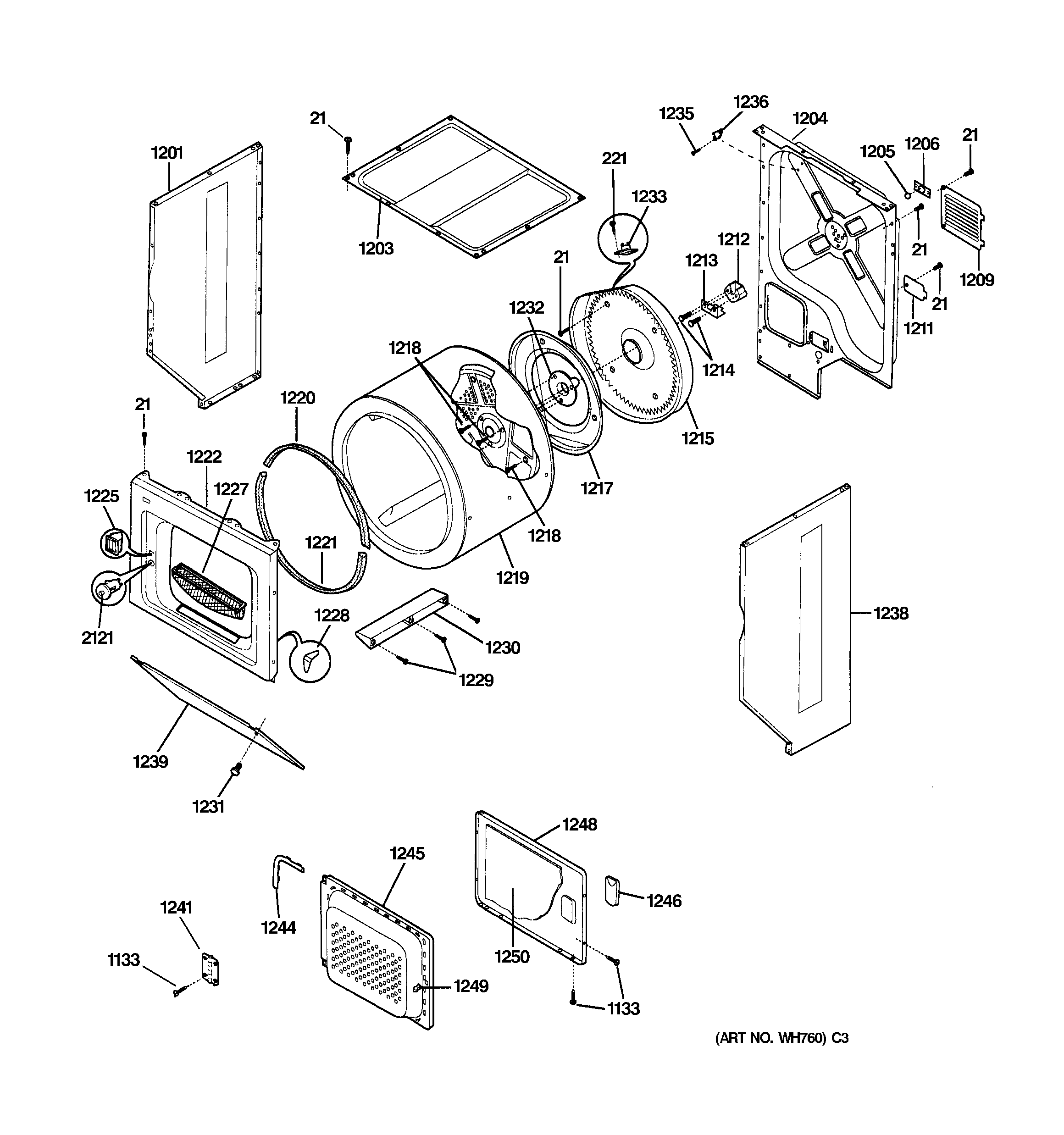

In Stock$149.56QtyDryer upper cabinet, drum & heater diagram
Inner Door

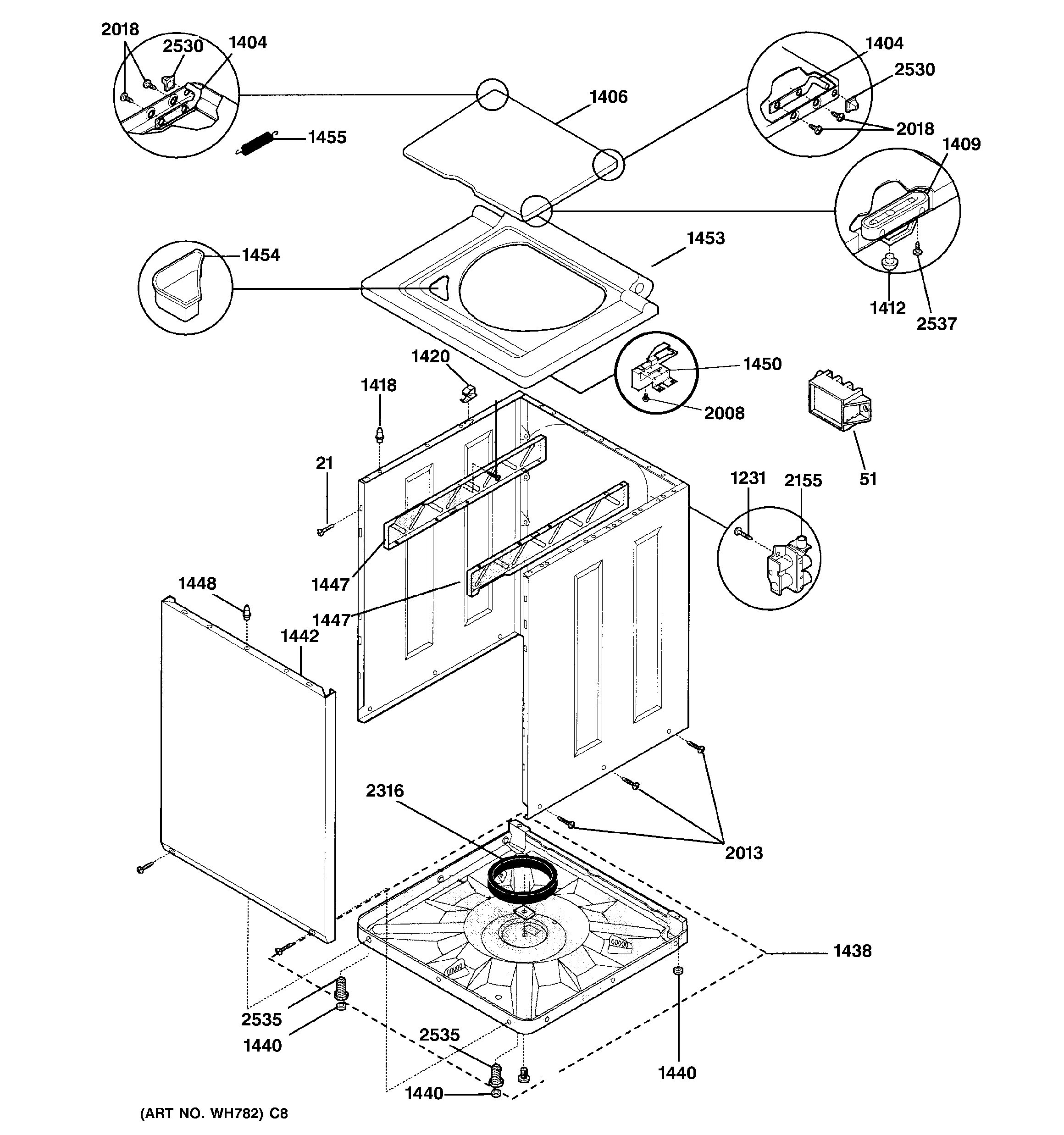

In Stock$272.67QtyWasher lower cabinet & top diagram
Base
In Stock$468.90Qty
