Model # 79042763510 Official Kenmore Elite dual-fuel range
Here are the diagrams and repair parts for Official Kenmore Elite 79042763510 dual-fuel range, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error CodesBy Schematic
By Part

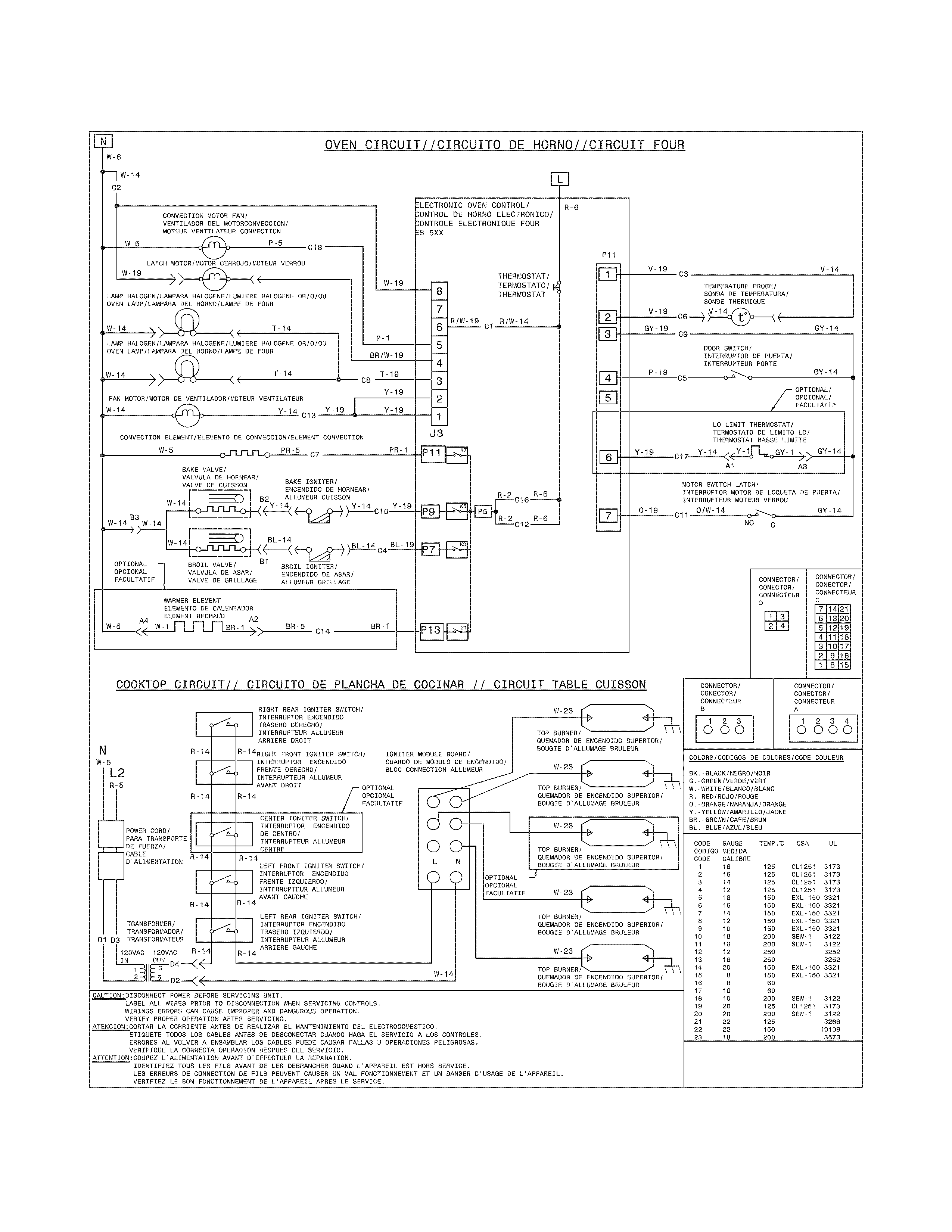

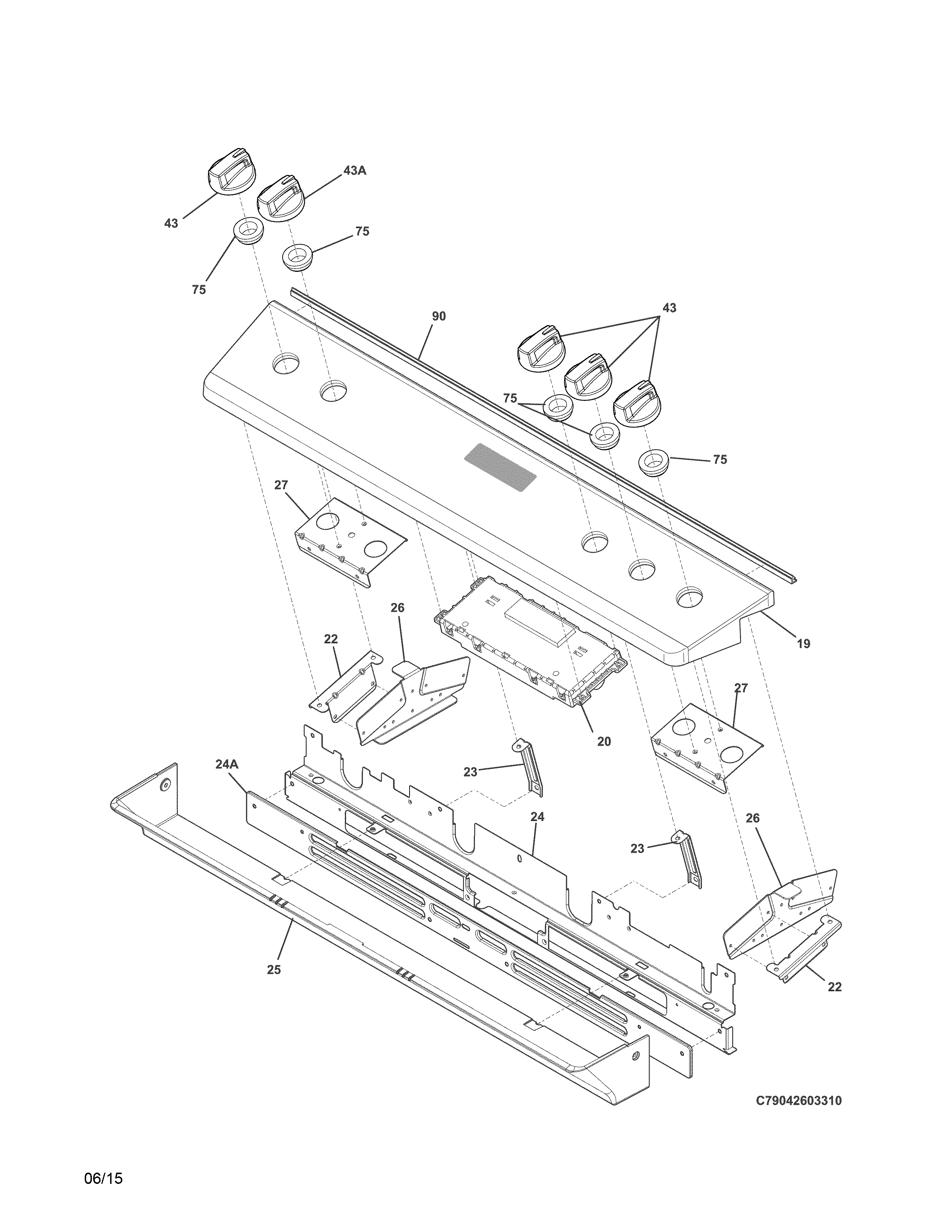

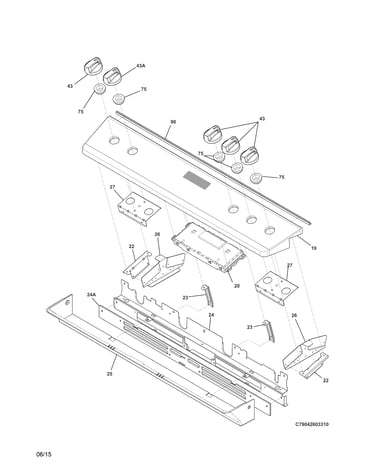

SELECT DIAGRAM
Browse Parts for79042763510 Dual-Fuel Range
- #8

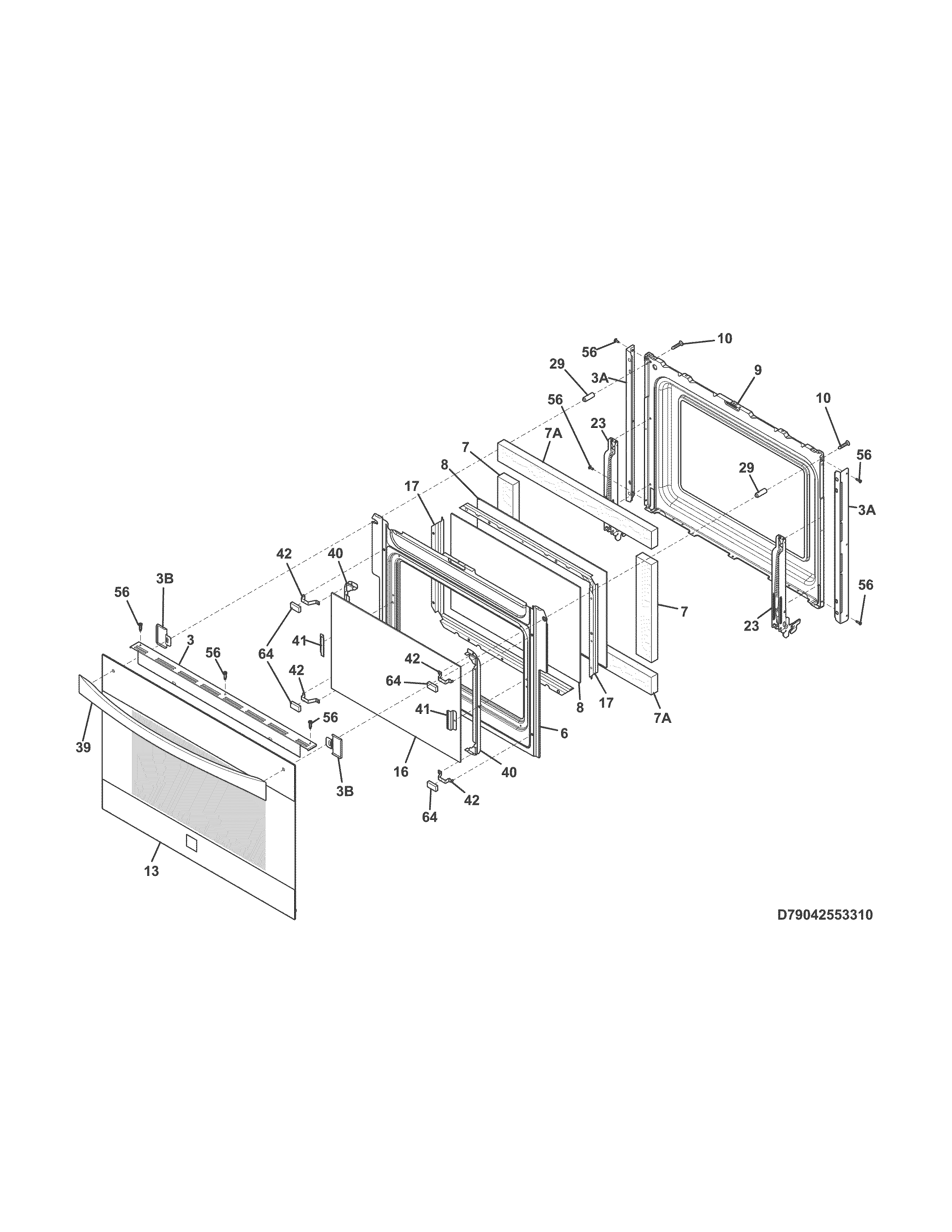

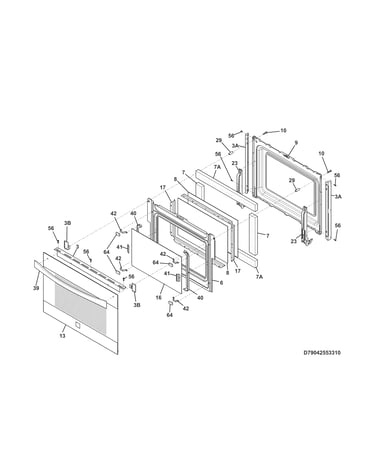

Door diagram
Range oven door inner glassPart #316117504
Replaced by #5304503232
?Manufacturer substitutionThis part replaces 316117504. Substitute parts can look different from the original.$75.14 |7% OFF Phone Price : $81.14In Stock - #8

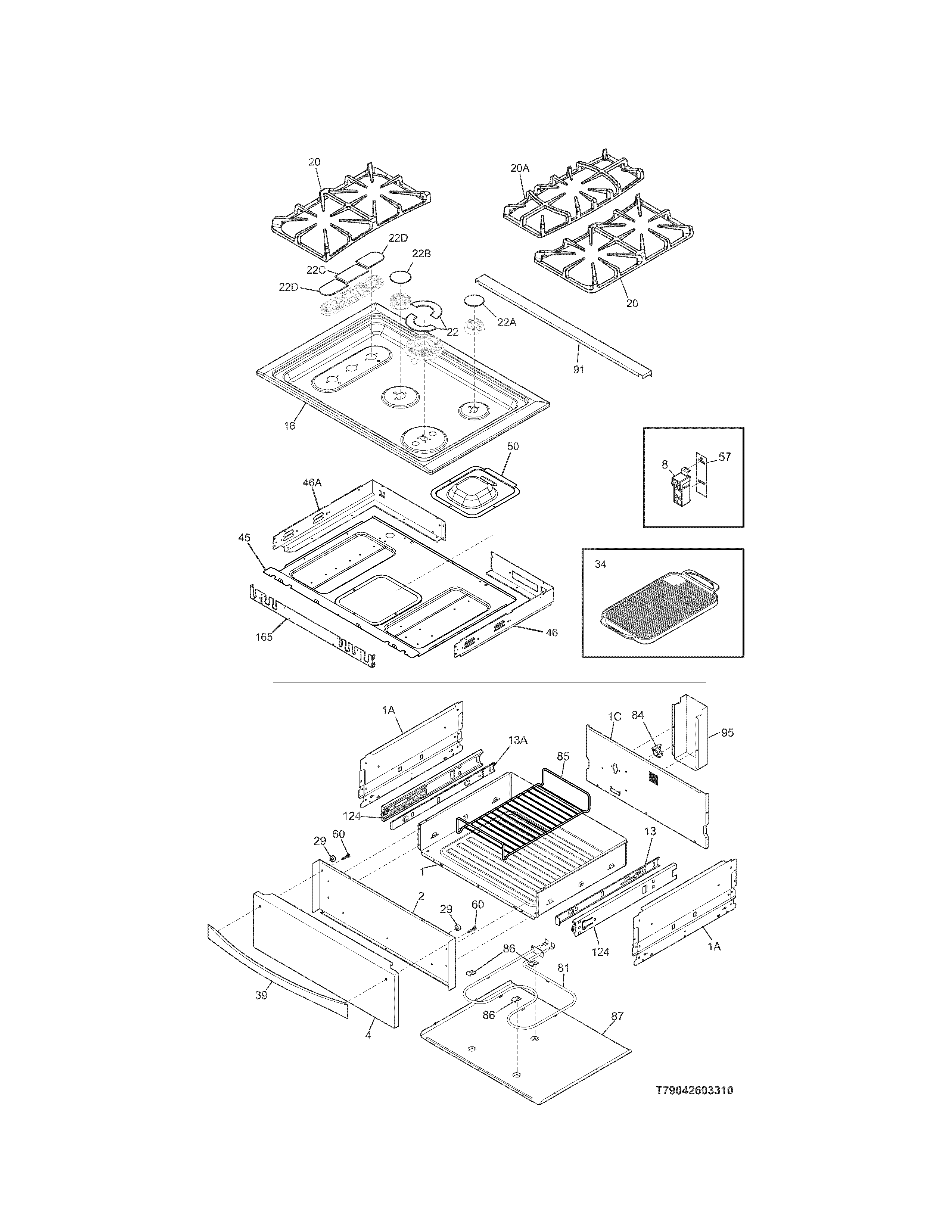

Top/drawer diagram
Range spark modulePart #316262404
Replaced by #5304508269
?Manufacturer substitutionThis part replaces 316262404. Substitute parts can look different from the original.$61.46 |9% OFF Phone Price : $67.46In Stock - #4

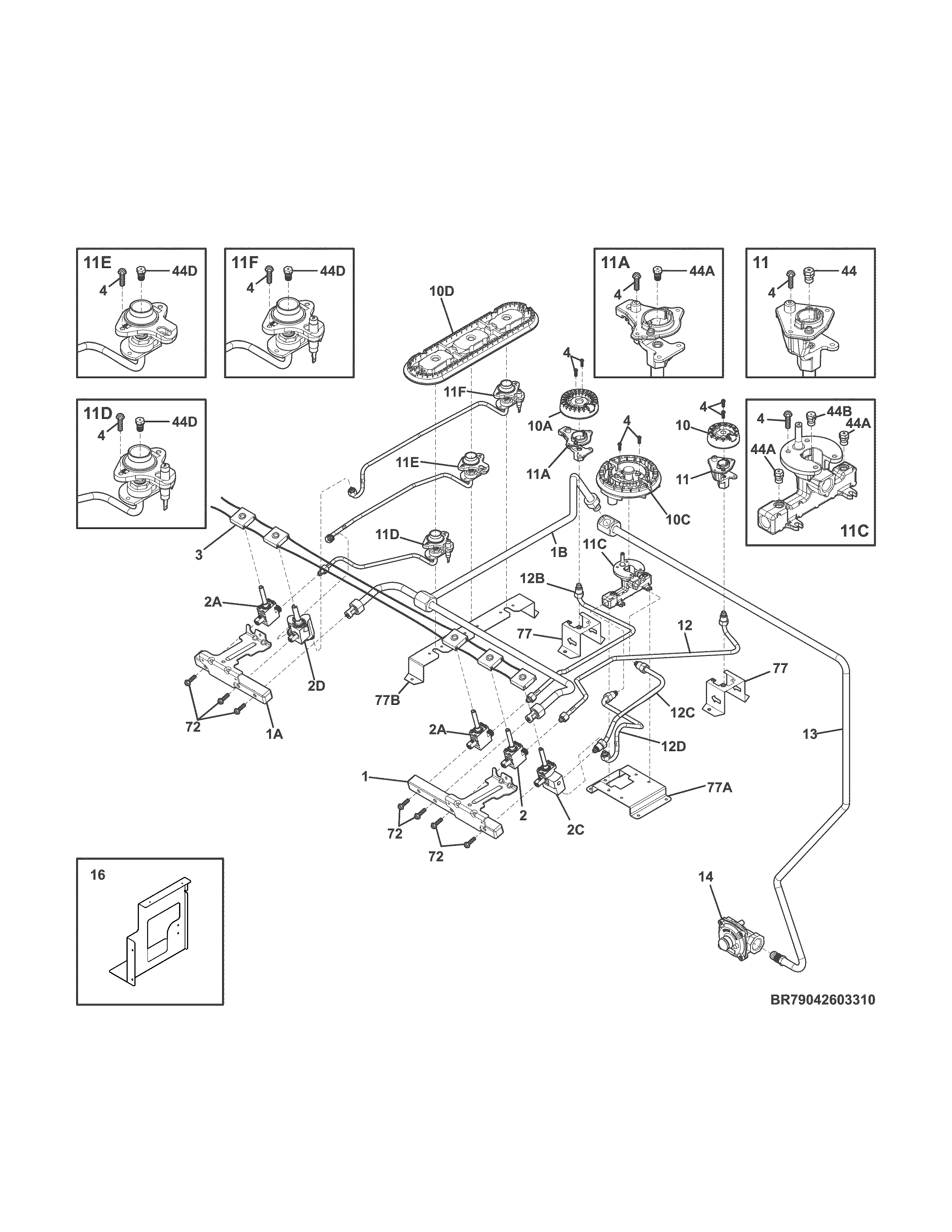

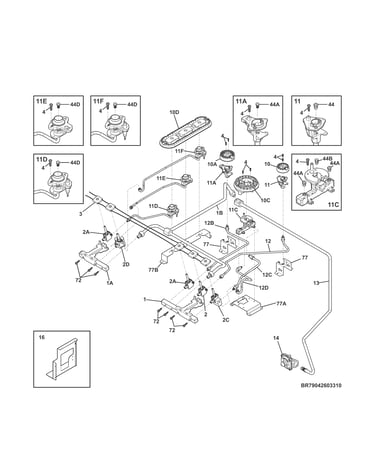

Burner diagram
Range screwPart #5304472956
Replaced by #316240600
?Manufacturer substitutionThis part replaces 5304472956. Substitute parts can look different from the original.$11.17 |15% OFF Phone Price : $13.17In Stock - #37

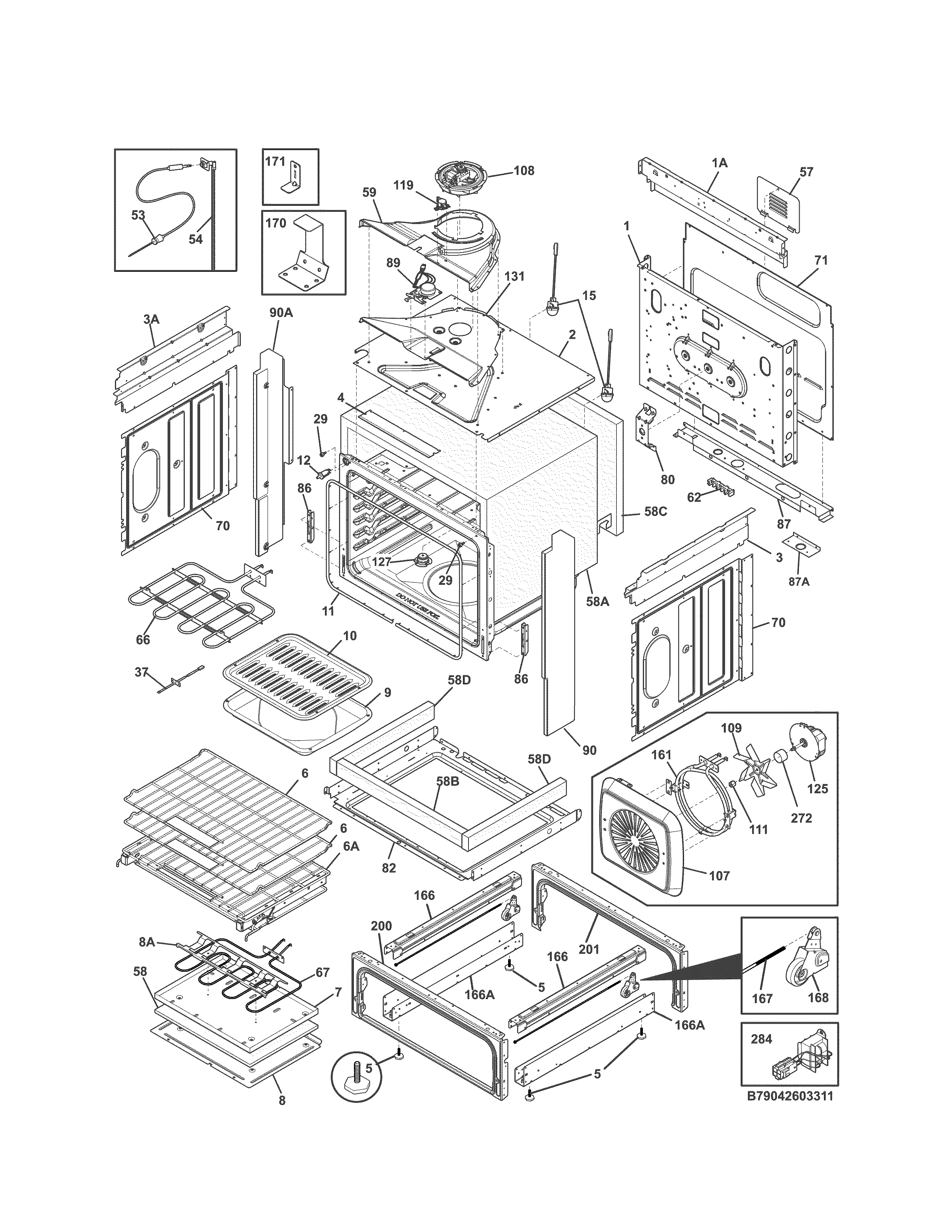

Body diagram
Range oven temperature sensorPart #318562500
Replaced by #5304504897
?Manufacturer substitutionThis part replaces 318562500. Substitute parts can look different from the original.$31.06 |16% OFF Phone Price : $37.06In Stock - #22B
Top/drawer diagram
Range surface burner cap, 9,500-btu (matte black)Part #316261804
Replaced by #5304508442
?Manufacturer substitutionThis part replaces 316261804. Substitute parts can look different from the original.$31.28 |16% OFF Phone Price : $37.28In Stock - #10A
Burner diagram
Range surface burner headPart #316558300
$38.29 |14% OFF Phone Price : $44.29In Stock - #62
Body diagram
Terminal blockPart #5303935061
Replaced by #5304409888
?Manufacturer substitutionThis part replaces 5303935061. Substitute parts can look different from the original.$22.93 |21% OFF Phone Price : $28.93In Stock - #22A
Top/drawer diagram
Range surface burner cap, 5,000-btu (matte black)Part #316261704
Replaced by #5304508441
?Manufacturer substitutionThis part replaces 316261704. Substitute parts can look different from the original.This item is not returnable$29.59 |17% OFF Phone Price : $35.59In Stock - #NI
Burner diagram
Range lp conversion kitPart #318565417
Replaced by #GRLP4
?Manufacturer substitutionThis part replaces 318565417. Substitute parts can look different from the original.$56.02 |10% OFF Phone Price : $62.02In Stock - #10
Burner diagram
Tappan range surface burner headPart #316438200
$47.03 |11% OFF Phone Price : $53.03In Stock
