Model # DCLR333ET1WW Official GE electric dryer

Here are the diagrams and repair parts for Official GE DCLR333ET1WW electric dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

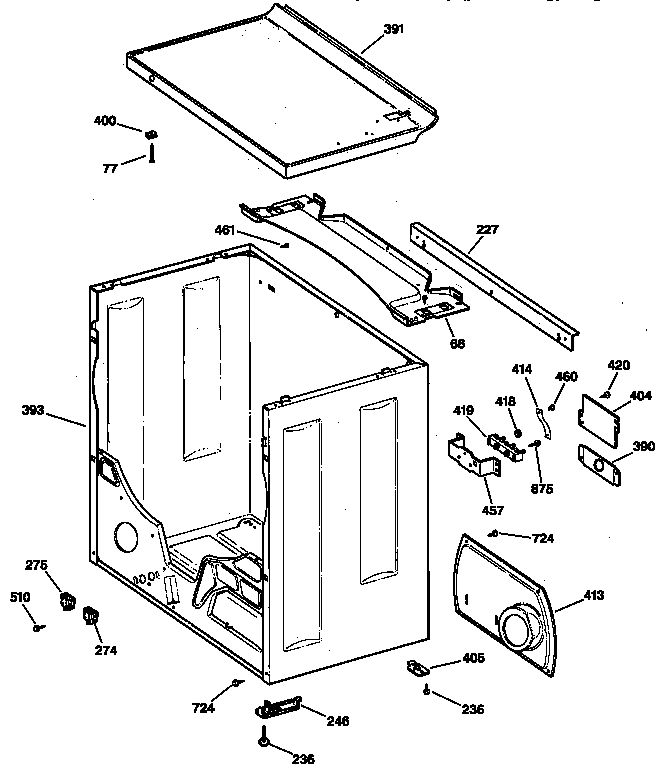

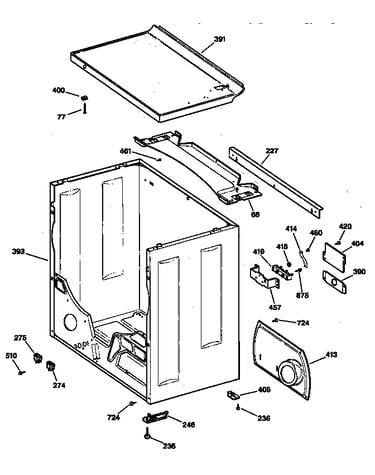

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 119 parts  |

Washer Control Knob (replaces We01x10033, We01x10156, We01x2721, We1x1207, We1x1208, We1x2721, Wh01x2721) WH1X2721
Washer control knob (replaces we01x10033, we01x10156, we01x2721, we1x1207, we1x1208, we1x2721, wh01x2721)

Part #WH1X2721

BEST SELLER
This item is not returnable
$5.40
16% OFF Phone Price : $6.40
In Stock
Timer Knob WE1X1208
#19

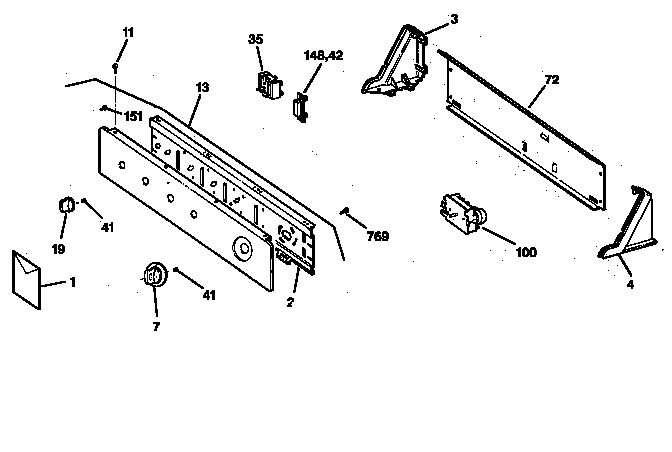

Control assembly diagram

Timer knob

Part #WE1X1208

Replaced by #WH1X2721

?
Manufacturer substitution
This part replaces WE1X1208. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.40
16% OFF Phone Price : $6.40
In Stock
Dryer Timer Knob (white) (replaces We01x10036) WE1X1263
#7

Control assembly diagram

Dryer timer knob (white) (replaces we01x10036)

Part #WE1X1263

BEST SELLER
This item is not returnable
$10.89
16% OFF Phone Price : $12.89
In Stock
Latch Clip WE1X1032
#232

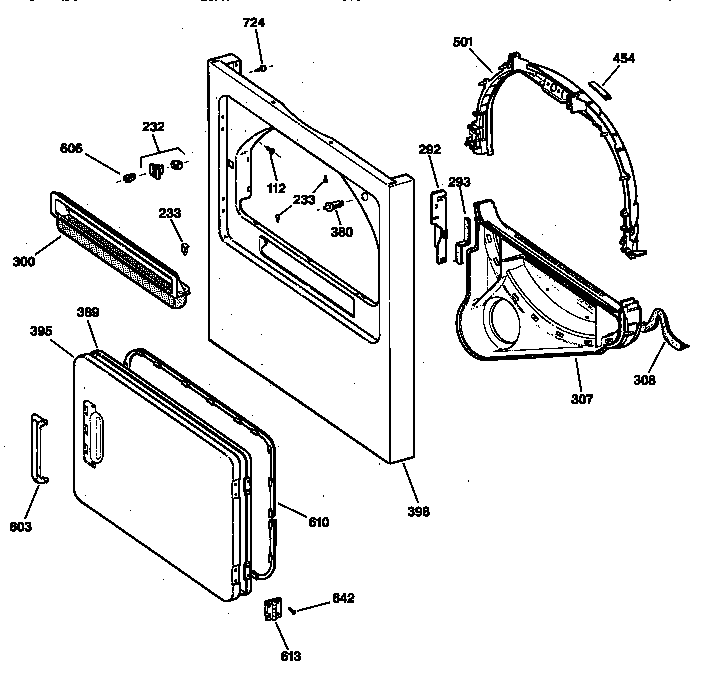

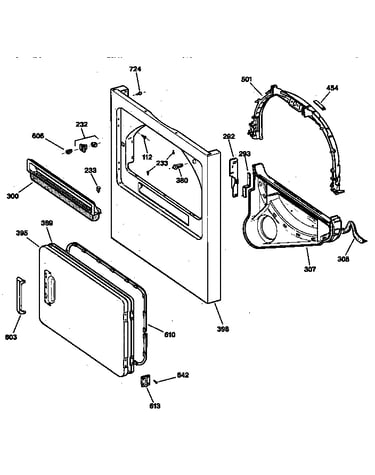

Cabinet front diagram

Latch clip

Part #WE1X1032

Replaced by #WE1M1011

?
Manufacturer substitution
This part replaces WE1X1032. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$10.55
16% OFF Phone Price : $12.55
In Stock
Dryer Drum Front Bearing (replaces We03x0077) WE3X77
#501

Cabinet front diagram

Dryer drum front bearing (replaces we03x0077)

Part #WE3X77

BEST SELLER
$36.68
12% OFF Phone Price : $41.68
In Stock
Handle,doo WE1X1188
#603

Cabinet front diagram

Handle,doo

Part #WE1X1188

Replaced by #WE01X20419

?
Manufacturer substitution
This part replaces WE1X1188. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$21.30
19% OFF Phone Price : $26.30
In Stock
Dryer Drive Belt WE12X0082
#213

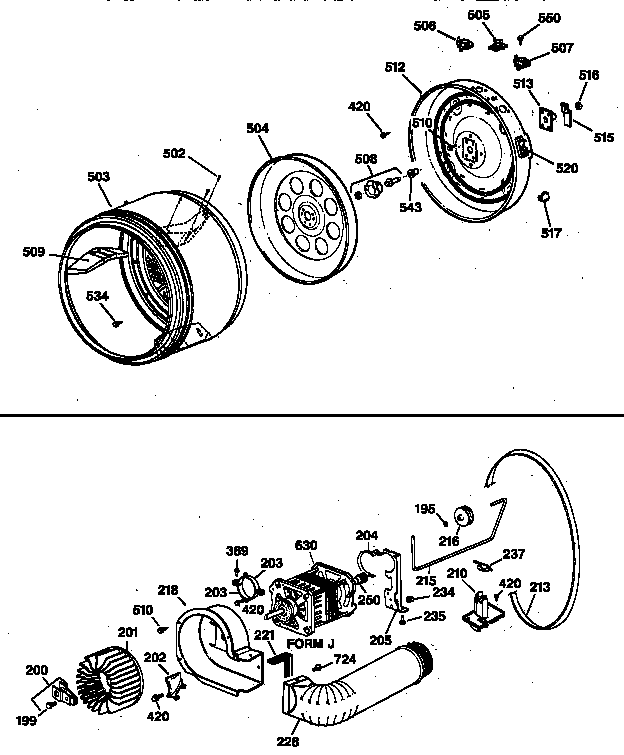

Drum, heater asm., blower & drive assembly diagram

Dryer drive belt

Part #WE12X0082

Replaced by #WE12X10014

?
Manufacturer substitution
This part replaces WE12X0082. Substitute parts can look different from the original.
BEST SELLER
$20.46
20% OFF Phone Price : $25.46
In Stock
Dryer Drum Glide Bearing WE3X87
#454

Cabinet front diagram

Dryer drum glide bearing

Part #WE3X87

$7.09
12% OFF Phone Price : $8.09
In Stock
Dryer Drum Bearing WE3X75
#543

Drum, heater asm., blower & drive assembly diagram

Dryer drum bearing

Part #WE3X75

This item is not returnable
$6.82
13% OFF Phone Price : $7.82
In Stock
Dryer High-limit Thermostat (replaces We04x0584, We4x162, We4x186, We4x543) WE4X584
#507

Drum, heater asm., blower & drive assembly diagram

Dryer high-limit thermostat (replaces we04x0584, we4x162, we4x186, we4x543)

Part #WE4X584

This item is not returnable
$18.44
10% OFF Phone Price : $20.44
In Stock
