Kenmore 11031632611 washer Parts

You can identify your Kenmore washer model by finding the model and serial tag on the machine, then matching that model number to the parts list and manual. On Kenmore model 11031632611, the model number is also recorded in the setup paperwork in the installation guide.

Where to look for the model number tag

Check these common locations first (the exact spot varies by washer style):

• On the back of the control panel (often easiest to see with a flashlight)
• Along the side of the main cabinet near the bottom edge
• Under the lid opening on top-load washers (around the rim)
• Behind the door or in the door jamb on front-load washers
• On the rear panel of the cabinet

What to write down (and why)

Record both the model number and serial number exactly as shown.

What you find	What it’s used for	Example for this page
Model number	Ensures diagrams and parts match your washer	11031632611
Serial number	Helps confirm production series and compatible revisions	(varies by unit)

Quick tips to avoid mix-ups

These details prevent ordering the wrong Kenmore washer parts:

• Copy every digit; Kenmore model numbers are long and easy to transpose
• Use the tag, not the control panel label or cycle names
• If the tag is worn, take a clear photo and zoom in to confirm characters
• Match the model number to the 11031632611 owner’s manual to confirm you’re in the right documentation

Why it matters

Kenmore washers can look similar across multiple model families, but internal components (like the lid lock, drain pump, or washplate) can differ. Using the correct model number keeps part selection and troubleshooting accurate.

Last updated: February 2026

On Kenmore model 11031632611, we force a drain by canceling the cycle, then correcting the most common drain blockers: a kinked/over-inserted drain hose, a clogged pump path, or a siphoning setup. Once the drain path is clear and the hose is installed correctly, the washer will pump out normally.

Quick steps to force a drain

• Press Pause/Cancel (or Cancel) to stop the cycle, then select Drain/Spin if your console has it.
• If the tub still will not drain, unplug the washer for safety.
• Check the drain hose routing: straighten kinks and remove any crushing behind the cabinet.
• Verify standpipe or laundry tub setup: only about 4.5 in. of hose should go into the standpipe, and the top of the standpipe or tub must be at least 39 in. high.
• If you have a floor drain, confirm the required siphon-break setup described in the installation guide.

Drain hose setup that prevents “no drain” and siphoning

Incorrect drain hose installation can look like a pump failure. These are the key requirements we follow for this style of Kenmore top-load washer:

Item to check	Correct setup	What happens if wrong
Standpipe/laundry tub height	39 in. to 96 in. from washer bottom	Too low can siphon; too high can prevent pumping
Hose insertion depth	About 4.5 in. into standpipe	Too deep can siphon or restrict flow
Hose securing	Tie strap to tub leg or standpipe	Hose can pop out and flood or lose drain flow

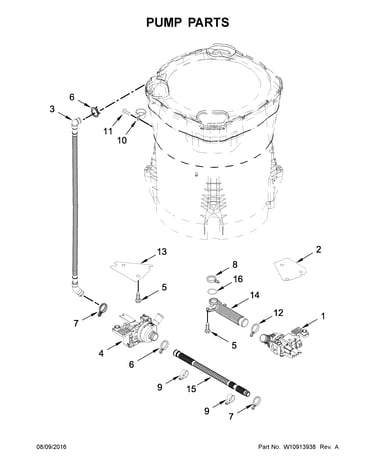

When to suspect a drain pump problem

If the hose setup is correct and you hear humming, grinding, or no pump sound at all, the pump or a blockage at the pump is likely.

• Standing water remains after Drain/Spin
• You hear the motor but little or no water flow
• Draining is slow and the hose is clear
• The washer drains sometimes, then stops

For this model, the replacement part is the washer drain pump W10876600.

Why it matters

A washer that cannot drain will not spin correctly, leaving clothes soaked and increasing strain on the drive system. Correct hose height and insertion depth also prevent siphoning, which can cause repeated fill and drain behavior.

Last updated: February 2026

A Kenmore washer typically lasts 10 to 15 years. For your Kenmore top-load high efficiency washer model 11031632611, lifespan depends most on load balance, correct installation and leveling, and routine maintenance outlined in the 11031632611 use and care guide.

Typical lifespan and what affects it

Most washers reach the 10 to 15 year range when they are installed correctly and not routinely overloaded.

• Frequent overloading or consistently unbalanced loads shortens drivetrain life
• Poor leveling increases vibration and wear on suspension and drive components
• Using non-HE detergent in an HE washer can cause excess suds and stress the drain system
• Hard water and detergent buildup increase odor, residue, and component strain
• Small leaks or slow drains that go uncorrected can lead to bigger failures

Signs it is nearing end of life

These symptoms usually mean repair frequency and cost start rising.

Symptom	Common underlying issue	What we check first
Won’t drain or drains slowly	Pump restriction or failing pump	Hoses, clogs, drain pump
Loud grinding or slipping in spin	Drive/clutch or gear case wear	Clutch, rotor/stator, gear case
Repeated out-of-balance events	Load habits or suspension wear	Leveling, load size, suspension
Lid won’t lock or cycle won’t start	Lid lock failure	Lid lock and wiring

How we help you extend the life of model 11031632611

These steps prevent the most common wear patterns we see on top-load HE washers.

• Level the washer and confirm the floor is solid; follow the 11031632611 installation guide
• Redistribute loads when the washer reports an off-balance condition; the manual advises opening the lid, redistributing, closing the lid, then pressing Start
• Use only HE detergent and measure carefully
• Keep the drain path clear and avoid pushing the drain hose too high above the floor
• Fix early drain issues before they strain the pump; a common replacement is the washer drain pump W10876600

Why it matters

A washer that is level, properly installed, and maintained usually reaches the full 10 to 15 year lifespan; it also cleans better, spins out more water, and avoids repeat breakdowns that can cost more than the machine is worth.

Last updated: February 2026

The Kenmore washer model 11031632611 is a top-loading high-efficiency, low-water washer; the exact cubic-feet tub capacity is listed in the specifications for this model family in the 11031632611 owner’s manual.

How to find the exact capacity for model 11031632611

Use these steps to pull the published number quickly and avoid mixing it up with a similar 110-series washer.

• Open the 11031632611 owner’s manual and look for a “Specifications” section
• Confirm the full model number on the washer’s model and serial tag matches 11031632611
• If the manual lists multiple models (for example, 110.31632610 and 110.31633611), match your exact model line
• If you are planning an install in a closet, verify overall dimensions and required spacing in the 11031632611 installation guide

What “cubic feet capacity” means on this washer

This rating is the interior wash basket volume. On low-water HE top-load washers, the water level sits lower than many older designs, so the tub can look “less full” even when the load size is correct.

• Load items loosely so they can circulate
• Use HE detergent only to prevent oversudsing
• Avoid packing bulky items tightly; it increases out-of-balance risk

Quick reference

Spec you’re looking for	Where to find it	Why it matters
Tub capacity (cu. ft.)	11031632611 owner’s manual specifications	Helps you choose the right load size
Cabinet dimensions and clearances	11031632611 installation guide	Ensures proper fit, airflow, and service access

Why it matters

Using the correct load size for the published capacity improves cleaning and spin performance and reduces strain on drive components such as the washplate and clutch.

Last updated: February 2026
