Kenmore
Garbage Disposal

Model # 175605540 Official Kenmore garbage disposal

Here are the diagrams and repair parts for Official Kenmore 175605540 garbage disposal, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 25 parts  |

Garbage Disposal Reverse Switch 70360
#35

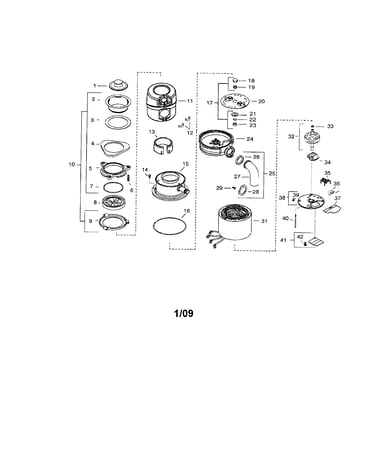

Disposer diagram

Garbage disposal reverse switch

Part #70360

The manufacturer no longer makes this part, and there's no substitute part

Garbage Disposal Centrifugal Switch 2467
#34

Disposer diagram

Garbage disposal centrifugal switch

Part #2467

The manufacturer no longer makes this part, and there's no substitute part

Garbage Disposal Stator End Cap Bolt 2486A
#40

Disposer diagram

Garbage disposal stator end cap bolt

Part #2486A

The manufacturer no longer makes this part, and there's no substitute part

Garbage Disposal Housing Lower Cover 72647A
#41

Disposer diagram

Garbage disposal housing lower cover

Part #72647A

The manufacturer no longer makes this part, and there's no substitute part

Garbage Disposal Shredder Blade Seal Kit 70647
#17

Disposer diagram

Garbage disposal shredder blade seal kit

Part #70647

The manufacturer no longer makes this part, and there's no substitute part

Garbage Disposal Shredder Blade 71022
#20

Disposer diagram

Garbage disposal shredder blade

Part #71022

The manufacturer no longer makes this part, and there's no substitute part

Shaft Assembly 70422
#32

Disposer diagram

Shaft assembly

Part #70422

The manufacturer no longer makes this part, and there's no substitute part

Garbage Disposal Container O-ring 2539
#16

Disposer diagram

Garbage disposal container o-ring

Part #2539

The manufacturer no longer makes this part, and there's no substitute part

Clip 73449
#12

Disposer diagram

Clip

Part #73449

The manufacturer no longer makes this part, and there's no substitute part

Garbage Disposal Drain Stopper 4310
#1

Disposer diagram

Garbage disposal drain stopper

Part #4310

The manufacturer no longer makes this part, and there's no substitute part
