Model #315117151 Craftsman 3" dustless belt sander

Here are the diagrams and repair parts for Craftsman 315117151 3" dustless belt sander, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profileOwner’s manual

    Showing 10 of 71 parts

    Sander Tracking Knob Spring

    #44

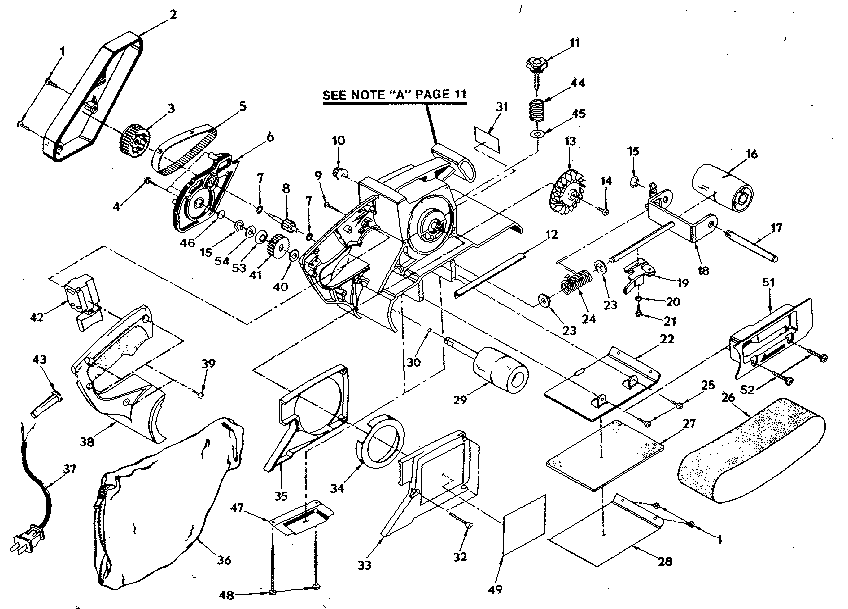

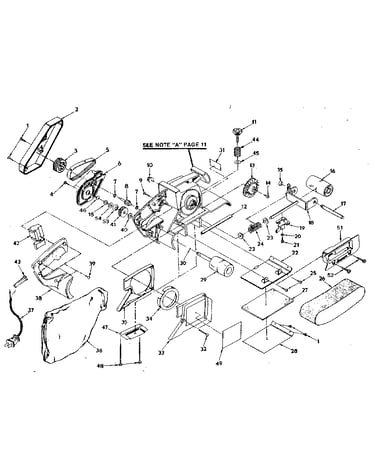

    Gear and platen assembly Diagram

    Sander tracking knob spring

    Part #616247001
    ?
    Manufacturer substitution
    This part replaces 616247-001. Substitute parts can look different from the original.
    This part replaces 616247-001
    This item is not returnable
    $2.68 |
    15% OFF MSRP:$3.16

    In Stock

    Screw

    #1

    Gear and platen assembly Diagram

    Screw

    Part #610122003
    ?
    Manufacturer substitution
    This part replaces 610122-003. Substitute parts can look different from the original.
    This part replaces 610122-003
    This item is not returnable
    $2.49 |
    28% OFF MSRP:$3.45

    In Stock

    Idler Shaft

    #17

    Gear and platen assembly Diagram

    Idler shaft

    Part #999954002
    ?
    Manufacturer substitution
    This part replaces 999954-002. Substitute parts can look different from the original.
    This part replaces 999954-002
    This item is not returnable
    $2.49 |
    12% OFF MSRP:$2.83

    In Stock

    Ball Bearing

    #7

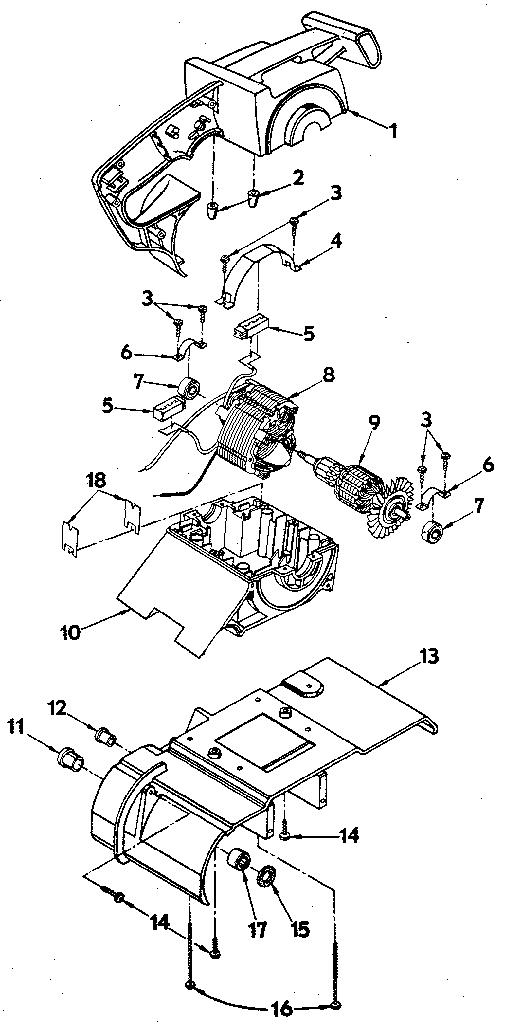

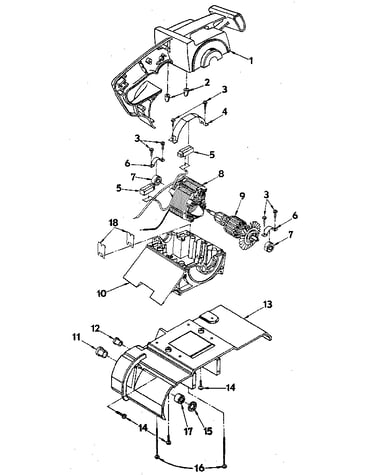

    Section "a" Diagram

    Ball bearing

    Part #990353-001

    The manufacturer no longer makes this part, and there's no substitute part

    Router Screw, #10-32 x 3/8-in

    #14

    Gear and platen assembly Diagram

    Router screw, #10-32 x 3/8-in

    Part #660324001
    ?
    Manufacturer substitution
    This part replaces 998401-001. Substitute parts can look different from the original.
    This part replaces 998401-001
    This item is not returnable
    $2.43

    In Stock

    Screw

    #25

    Gear and platen assembly Diagram

    Screw

    Part #612665-005

    The manufacturer no longer makes this part, and there's no substitute part

    Thrust Disc

    #46

    Gear and platen assembly Diagram

    Thrust disc

    Part #616103-802

    The manufacturer no longer makes this part, and there's no substitute part

    Spring Wsher

    #20

    Gear and platen assembly Diagram

    Spring wsher

    Part #622347-001

    The manufacturer no longer makes this part, and there's no substitute part

    Timing Belt

    #5

    Gear and platen assembly Diagram

    Timing belt

    Part #989368-000

    The manufacturer no longer makes this part, and there's no substitute part

    Bumper

    #2

    Section "a" Diagram

    Bumper

    Part #617834-001

    The manufacturer no longer makes this part, and there's no substitute part
