Kenmore Elite 66512774K311 undercounter dishwasher Parts

To hard reset the Kenmore Elite dishwasher model 66512774K311, we reset the control by canceling the current cycle and draining, then restarting a new cycle. This clears many stuck-button, mid-cycle, and control confusion issues without replacing parts.

Hard reset steps (control reset)

1. Open the door slightly to stop the cycle; wait for spraying to stop.
2. Press and hold CANCEL/DRAIN until the Cancel/Drain light turns on.
3. Close the door; let it drain completely (the light typically turns off after about 2 minutes).
4. To fully reset the control, press and hold CANCEL/DRAIN twice.
5. Select your new cycle and options, then press START/RESUME and close the door.

If the buttons still do not respond

A “reset” will not work if the controls are locked. On this model, we turn Control Lock off using the Top Rack Only button.

• Check for a Locked indicator light.
• Press and hold TOP RACK ONLY for 3 seconds to toggle Control Lock off.
• If needed, wake the control first by pressing START/RESUME or CANCEL/DRAIN, or by opening and closing the door.
• Try the hard reset steps again.

Quick reference table

Symptom	What to do	What it fixes
Dishwasher stuck mid-cycle	CANCEL/DRAIN, then drain	Clears a hung cycle and drains water
Controls seem “frozen”	CANCEL/DRAIN twice	Resets the control logic
Buttons flash, Locked light on	Hold TOP RACK ONLY 3 seconds	Disables Control Lock

Why it matters

A proper hard reset prevents repeat problems like incomplete draining, cycle interruptions, and false “won’t start” complaints. It also helps you avoid unnecessary part replacement (such as an electronic control board) when the issue is only a locked or confused control.

For the exact button layout and indicator meanings on 66512774K311, use the 66512774K311 owner’s manual.

Last updated: January 2026

Common Kenmore dishwasher problems (including the Kenmore Elite 66512774K311) usually fall into a few buckets: it will not start or run, it will not fill or drain, cleaning is poor, drying is weak, or you see hard-water residue and odors. Many issues trace back to loading, water temperature, filters, or a small failed part.

Most common symptoms and what to check first

• Will not start or run: confirm the door is fully closed and latched; if the Start/Resume light is blinking, press Start/Resume and close the door within 3 seconds (per the 66512774K311 owner's manual).
• Detergent not dispensing: check for a blocked dispenser door (often caused by tall items); use fresh detergent.
• Cycle runs too long: normal pauses can happen during a cycle; also verify incoming hot water.
• Not drying: use rinse aid and confirm hot water is available.
• Will not fill: confirm household water supply is on; a failed inlet valve can also cause this.
• Water remains in tub or will not drain: check for a kinked drain hose and food obstructions; if connected to a disposer, confirm the disposer knockout plug was removed.

Parts that commonly cause these problems

If basic checks do not fix the issue, these model-compatible parts are common suspects:

Symptom	Common part involved	Example part for 66512774K311
Won’t start (door won’t latch)	Door latch/switch	Dishwasher door latch WPW10653840

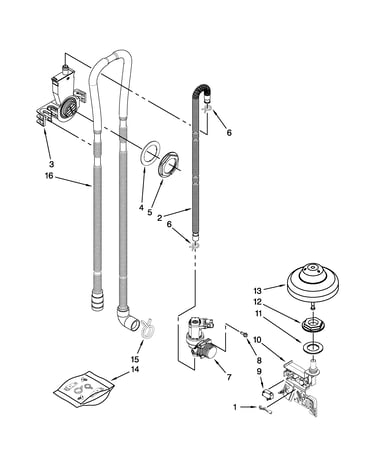

Won’t fill or fills slowly	Water inlet valve	Dishwasher water inlet valve W11175771
Won’t drain, standing water	Drain pump or drain hose	Dishwasher drain pump WPW10531320
Poor drying, cool water	Heater/heating element	Heater W10703867

Hard water, cloudy dishes, and odors (very common)

The manual notes that extremely hard water can cause mineral deposits and poor cleaning. For best results:

• Use rinse aid consistently.
• Clean the ULTRACLEAN filters at least monthly.
• Use a dishwasher cleaner monthly.
• If hardness is 15 grains or more, use a water softener.
• Set the water heater to 120°F (49°C) for proper cleaning and sanitizing performance.

Why it matters

Dishwashers often “act broken” when water temperature, loading, or filtration is off. Fixing those basics first prevents repeat clogs, protects the pump and heater, and improves cleaning and drying without replacing unnecessary parts.

Last updated: January 2026

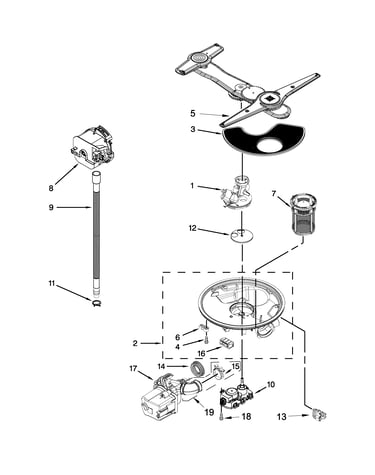

On Kenmore Elite dishwasher model 66512774K311, the F4E1 code points to a wash motor (circulation pump/drive motor) problem, meaning the dishwasher is not moving water through the spray arms correctly. After correcting the cause (often replacing the motor/pump assembly), clear the code using the keypad reset sequence in the 66512774K311 owner’s manual.

What you’ll notice when F4E1 is active

• Dishes come out dirty because spray pressure is weak or stops
• You may hear a hum, grinding, or intermittent motor sound
• The cycle may pause, drain, or end early
• Water may be present but not circulating well

Quick checks before replacing parts

Turn off power at the breaker before inspecting anything.

• Confirm the tub has water early in the cycle; if it is not filling, check the water supply and the dishwasher water inlet valve W11175771
• Clean the filter area and remove debris that can jam the pump intake
• Make sure spray arms spin freely and are not blocked by tall items
• If the unit is not draining well, check the drain path and consider the dishwasher drain pump WPW10531320

How to clear the F4E1 code (keypad reset)

Many Kenmore Elite dishwashers clear stored fault codes with a keypad sequence:

1. Press any 3 keys in a 1-2-3 pattern
2. Repeat the same pattern 3 times (1-2-3, 1-2-3, 1-2-3)
3. Let the dishwasher run the short reset/drain routine

Step	What it does	What to watch for
Restore power	Enables reset	Display wakes up
Enter 1-2-3 sequence x3	Clears stored fault	Lights cycle/change
Reset routine runs	Verifies basic functions	Draining or brief run

Why it matters

The wash motor is the heart of cleaning performance. When it cannot circulate water, detergent does not dissolve properly, spray arms do not scour dishes, and the dishwasher may protect itself by stopping the cycle.

Last updated: January 2026

To identify your Kenmore dishwasher model, we look for the model and serial tag on the dishwasher itself, not the front panel. On Kenmore Elite model 66512774K311, the tag is typically visible when you open the door and check the tub rim or the inner door frame; confirm the full model number before ordering parts.

Where to look (fast checklist)

• Open the dishwasher door fully.
• Check the top edge of the tub opening (the rim under the countertop).
• Check the left and right inner door frame (door jamb area).
• Look along the side walls near the front of the tub.
• Wipe the area with a damp cloth; labels can be hidden by residue.

What the model number looks like

Kenmore dishwasher model numbers are usually a long number string. For this unit, you want to match 66512774K311 exactly (including any suffix letters/numbers).

What you find	What it means	What to do next
Model number (example: 66512774K311)	Identifies the exact design and parts	Use it to match diagrams and parts
Serial number	Production code and date info	Keep it for service records
Partial or worn label	Missing digits can cause wrong parts	Recheck other label locations

Why it matters

We use the model number to ensure parts fit and function correctly. Even small model variations can change rack hardware, the door latch, or water system components.

If the label is missing or unreadable

• Check for a second tag on the side of the tub opening.
• Compare your control panel layout and interior features to the diagrams in the 66512774K311 owner's manual.
• If you are replacing a common wear item, match by both model number and part ID, such as the dishwasher door latch WPW10653840 or the dishwasher water inlet valve W11175771.

Last updated: January 2026
