Model # SHX46L15UC/43 Official Bosch dishwasher

Here are the diagrams and repair parts for Official Bosch SHX46L15UC-43 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

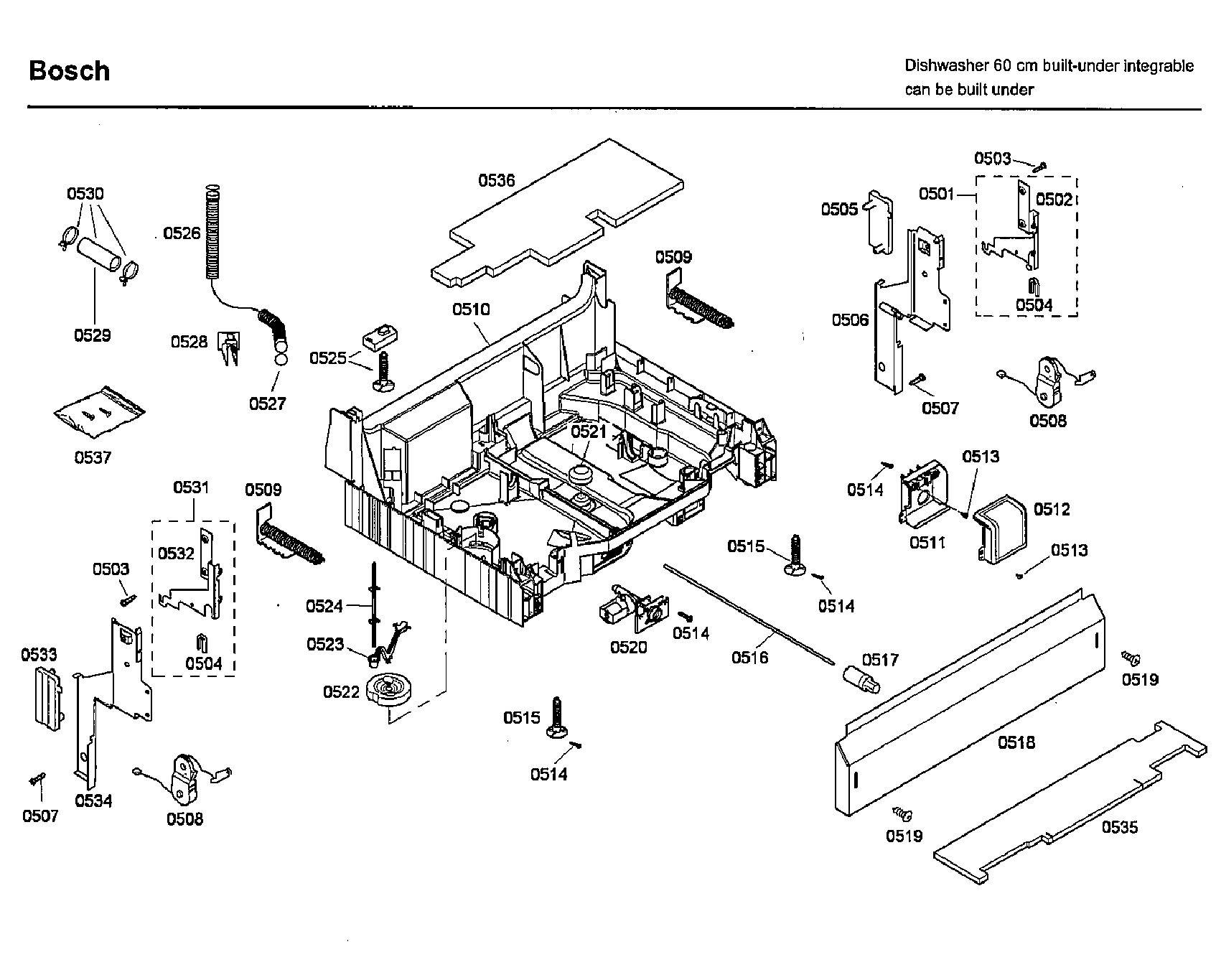

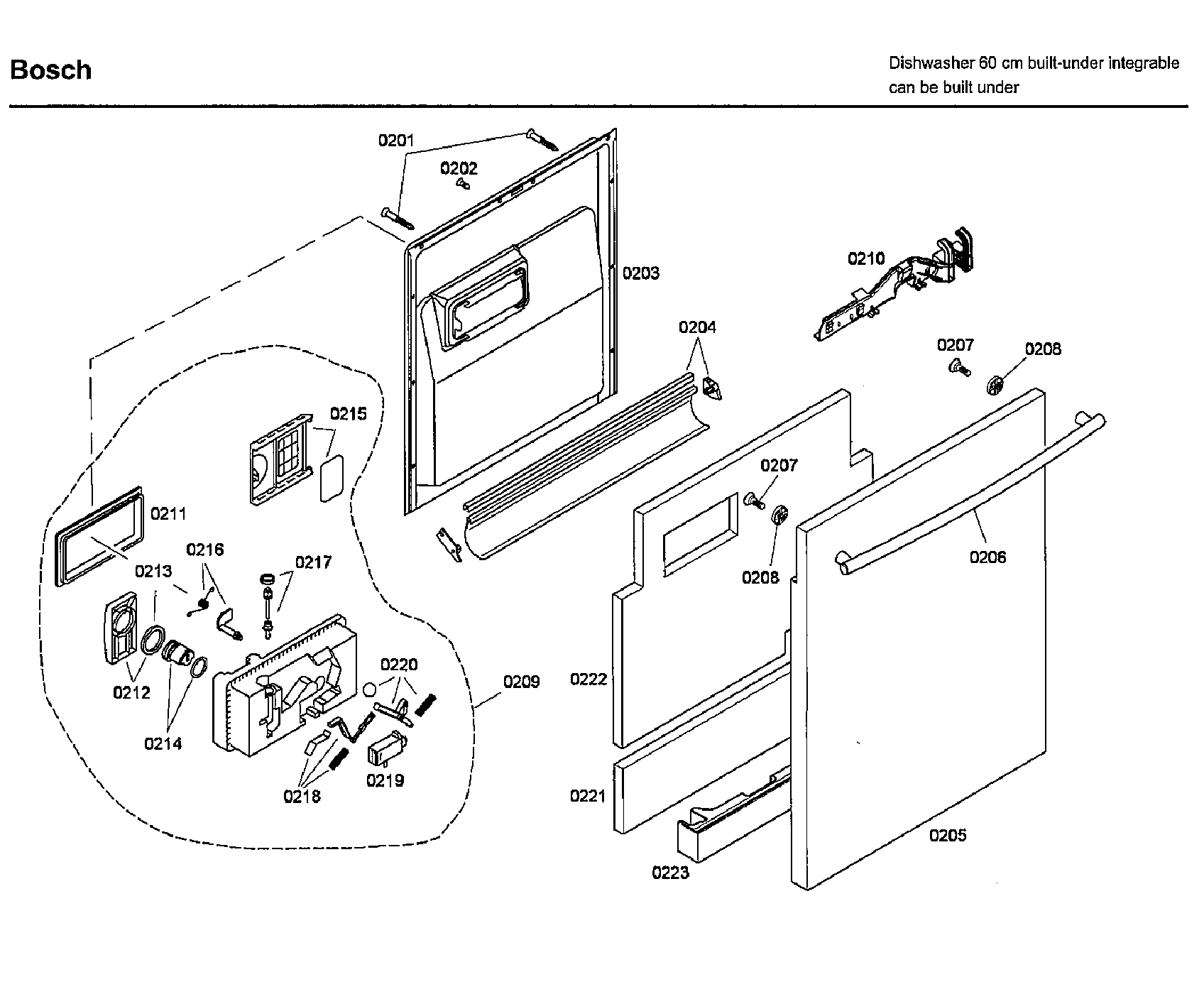

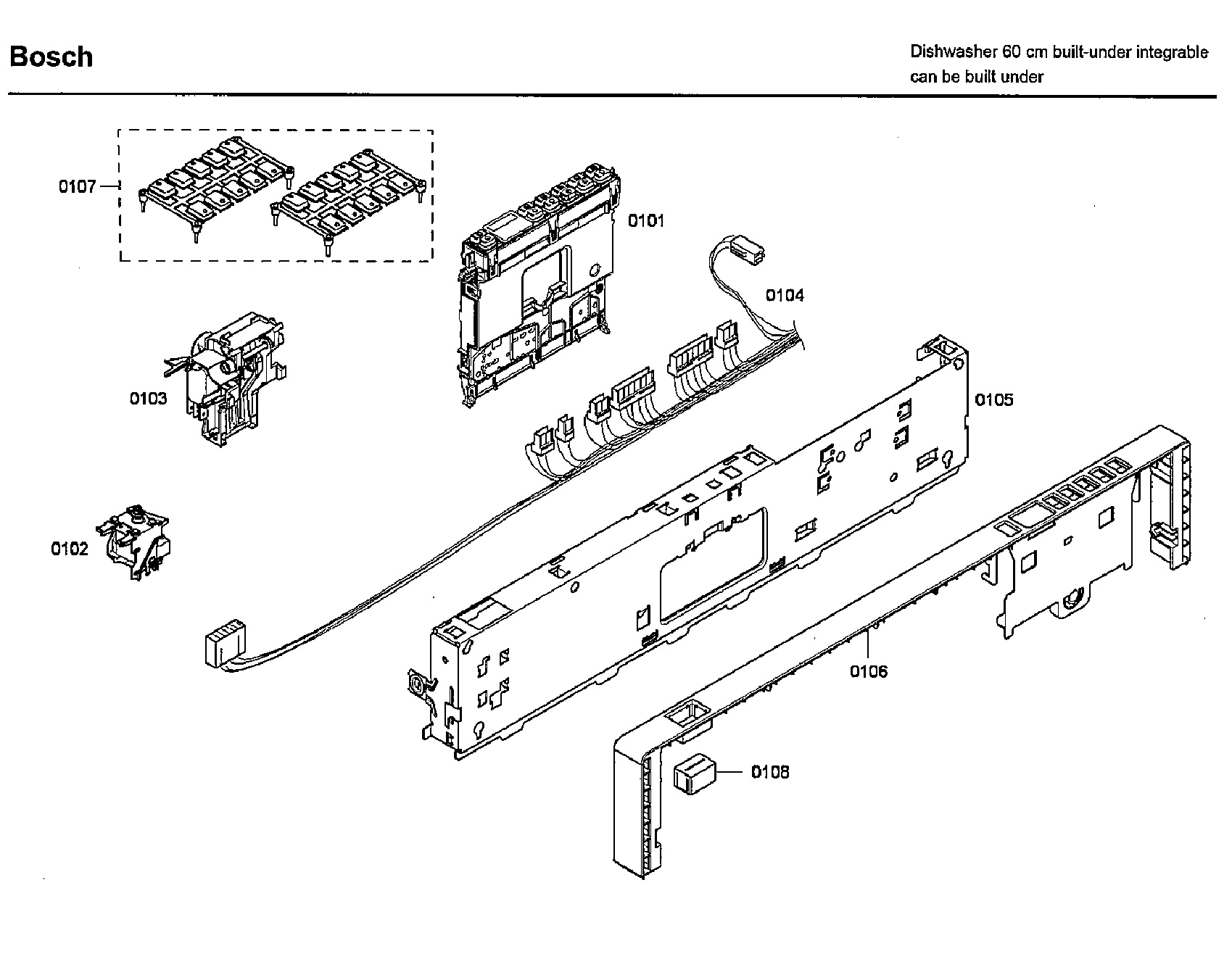

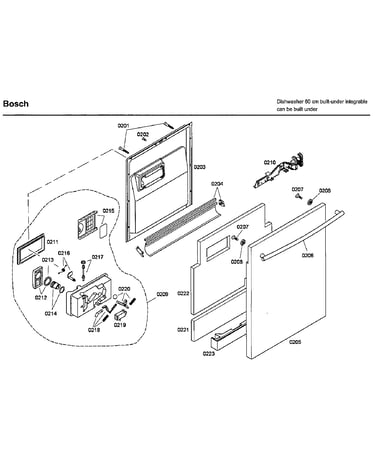

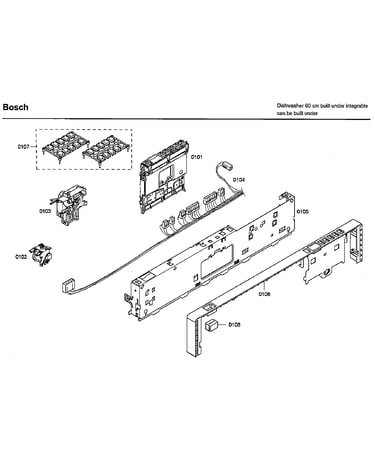

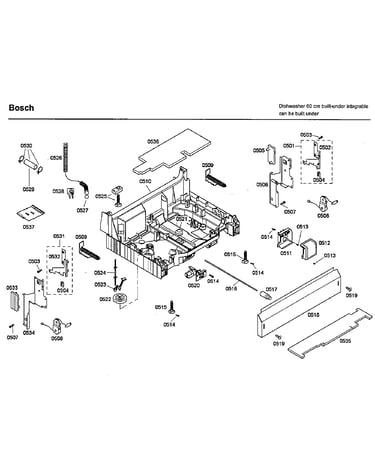

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 150 parts  |
Dishwasher Drain Pump (replaces 00184178, 167082k, 642239) 00642239
#417

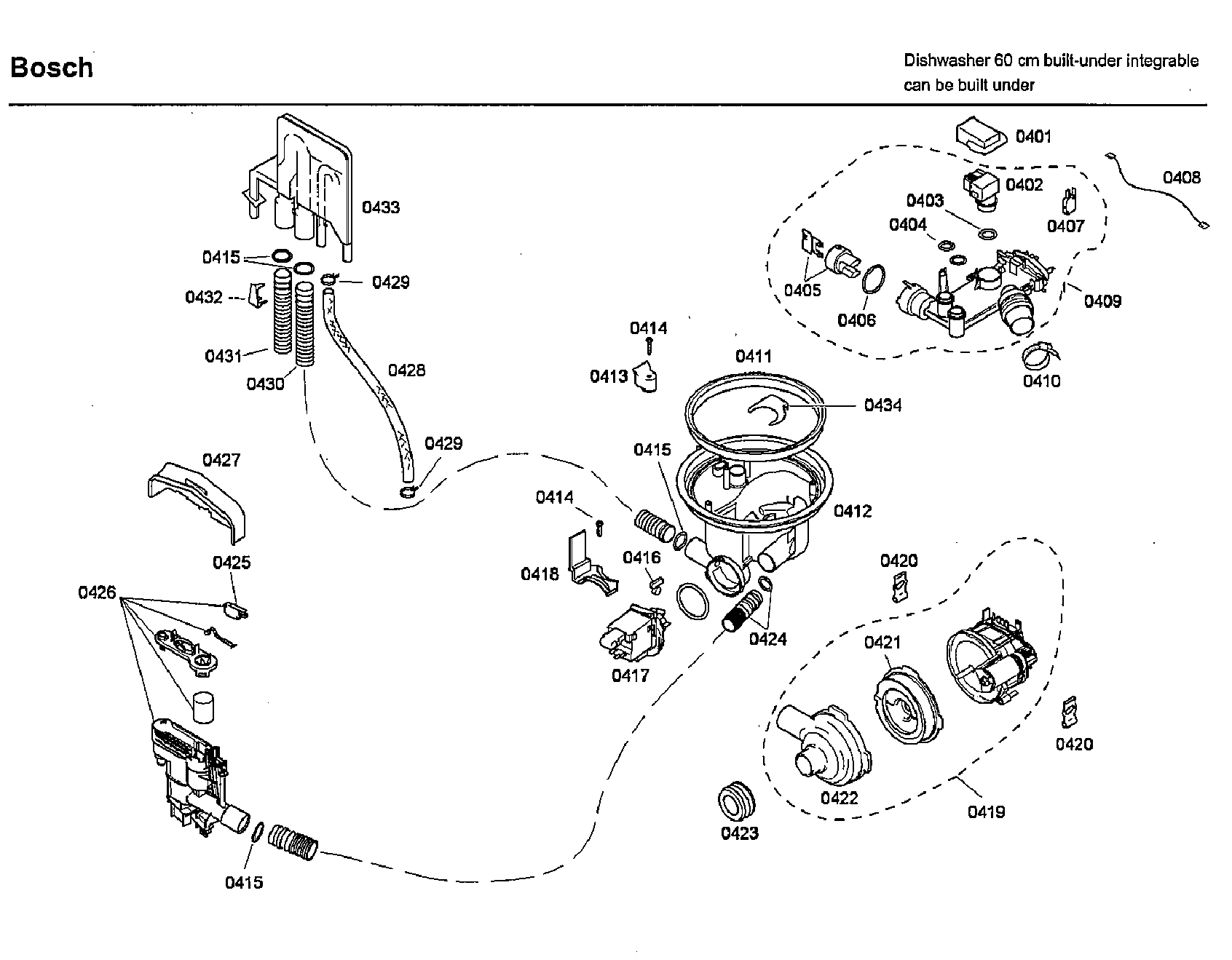

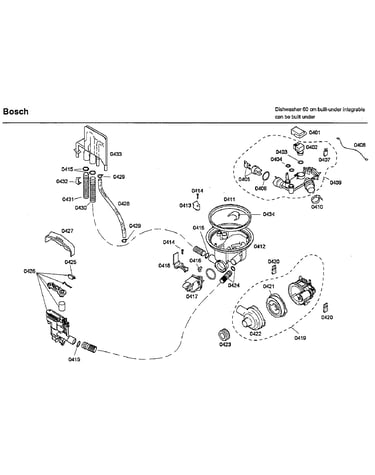

Pump diagram

Dishwasher drain pump (replaces 00184178, 167082k, 642239)

Part #00642239

BEST SELLER
$126.36 |
9% OFF Phone Price : $138.36
In Stock
Dishwasher Door Seal (replaces 494772) 00494772
#307

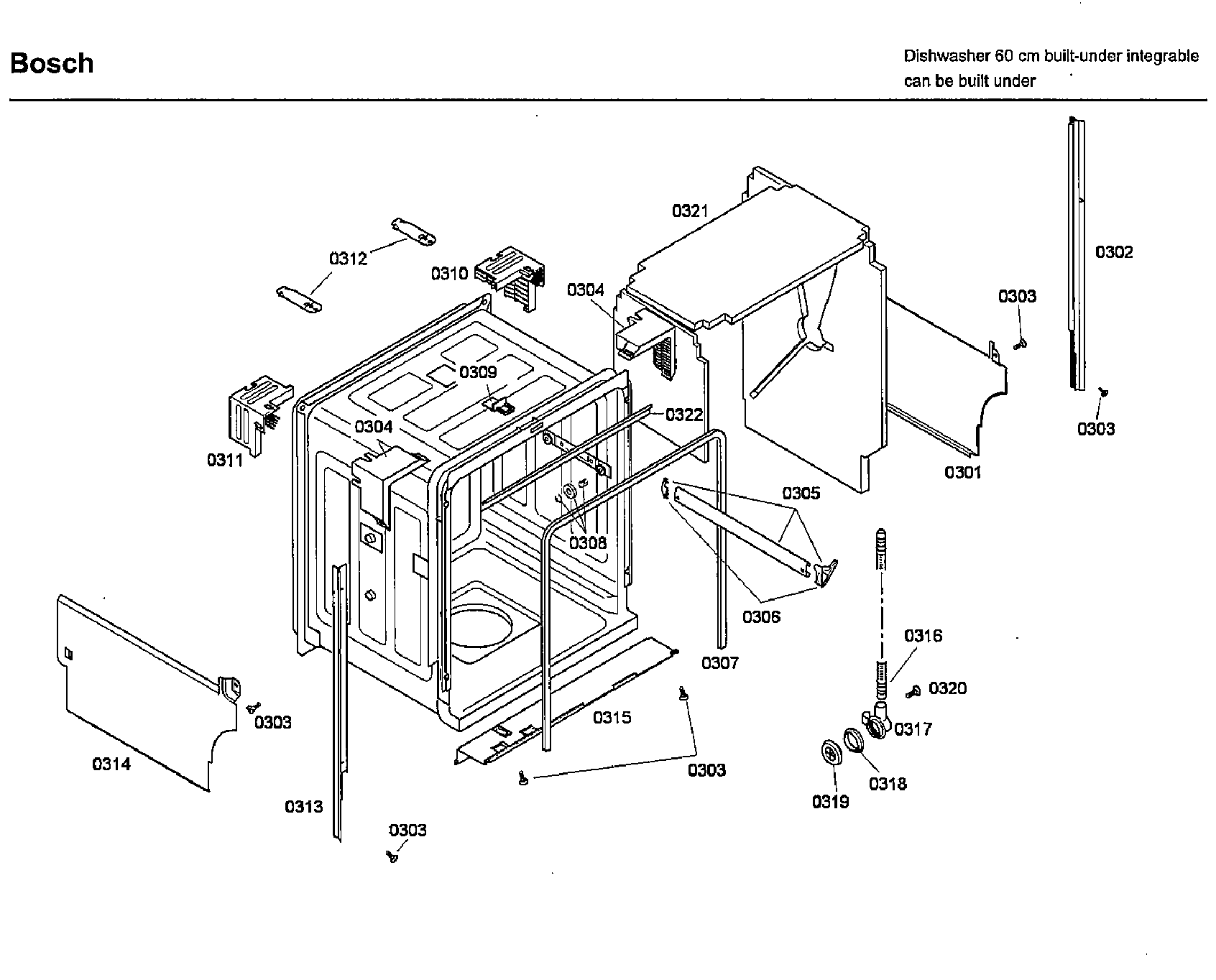

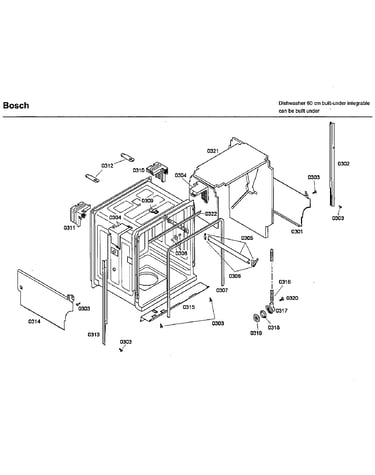

Frame diagram

Dishwasher door seal (replaces 494772)

Part #00494772

BEST SELLER
$29.72 |
17% OFF Phone Price : $35.72
In Stock
Dishwasher Circulation Pump (replaces 442548) 00442548
#419

Pump diagram

Dishwasher circulation pump (replaces 442548)

Part #00442548

BEST SELLER
$236.57 |
5% OFF Phone Price : $248.57
In Stock
Dishwasher Hose Clamp (replaces 00417502, 00606311, 172272) 00172272
#410

Pump diagram

Dishwasher hose clamp (replaces 00417502, 00606311, 172272)

Part #00172272

BEST SELLER
$28.11 |
18% OFF Phone Price : $34.11
In Stock
Dishwasher Circulation Pump Gasket (replaces 171598) 00171598
#423

Pump diagram

Dishwasher circulation pump gasket (replaces 171598)

Part #00171598

$28.09 |
18% OFF Phone Price : $34.09
In Stock
Dishwasher Heating Element (replaces 00480316, 480317) 00480317
#409

Pump diagram

Dishwasher heating element (replaces 00480316, 480317)

Part #00480317

$260.67 |
$12.00 OFF Phone Price : $272.67
In Stock
Mounting Bracket 00605007
#312

Frame diagram

Mounting bracket

Part #00605007

Replaced by #00619985

?
Manufacturer substitution
This part replaces 00605007. Substitute parts can look different from the original.
$13.89 |
13% OFF Phone Price : $15.89
In Stock
Dishwasher Water Inlet Valve (replaces 00492043, 263833) 00263833
#433

Pump diagram

Dishwasher water inlet valve (replaces 00492043, 263833)

Part #00263833

$124.53 |
9% OFF Phone Price : $136.53
In Stock
Dishwasher Drain Hose (replaces 00280795, 00284311, 298564) 00298564
Dishwasher drain hose (replaces 00280795, 00284311, 298564)

Part #00298564

$31.39 |
16% OFF Phone Price : $37.39
In Stock
Dishwasher Tine Row Clip 00418498
#624

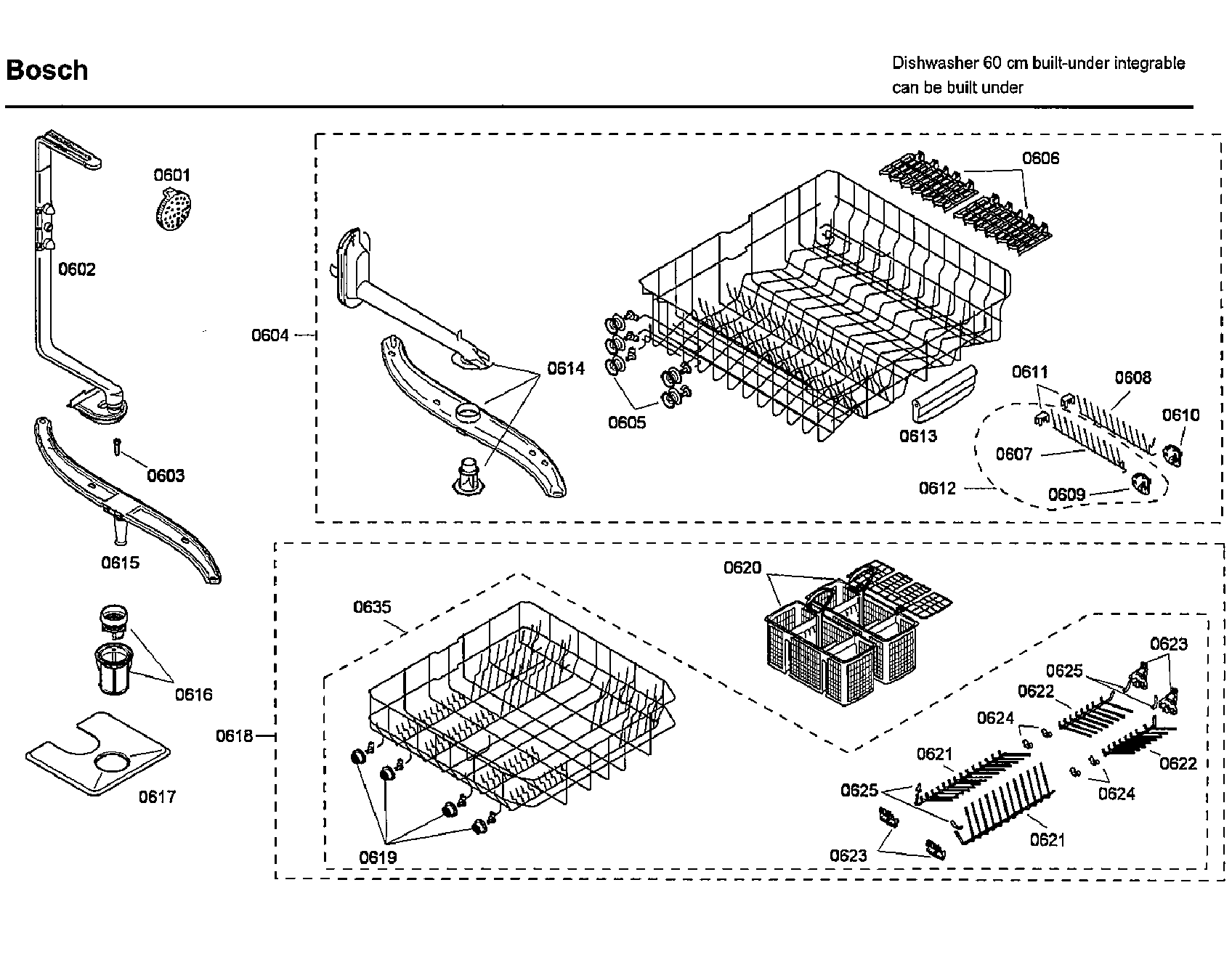

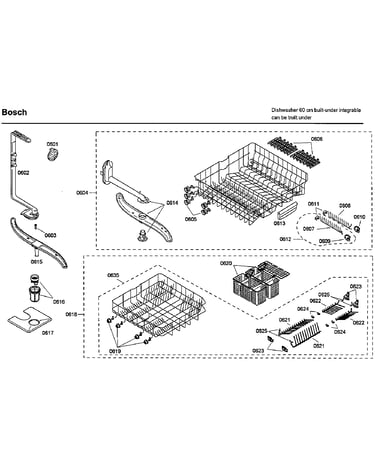

Rack diagram

Dishwasher tine row clip

Part #00418498

This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
