Frigidaire
Compact Refrigerator

Model # FFRU17B2QWA Official Frigidaire refrigerator

Here are the diagrams and repair parts for Official Frigidaire FFRU17B2QWA refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 95 parts  |

Freezer Gasket And Liner Fastener Kit 5304406520
#NI

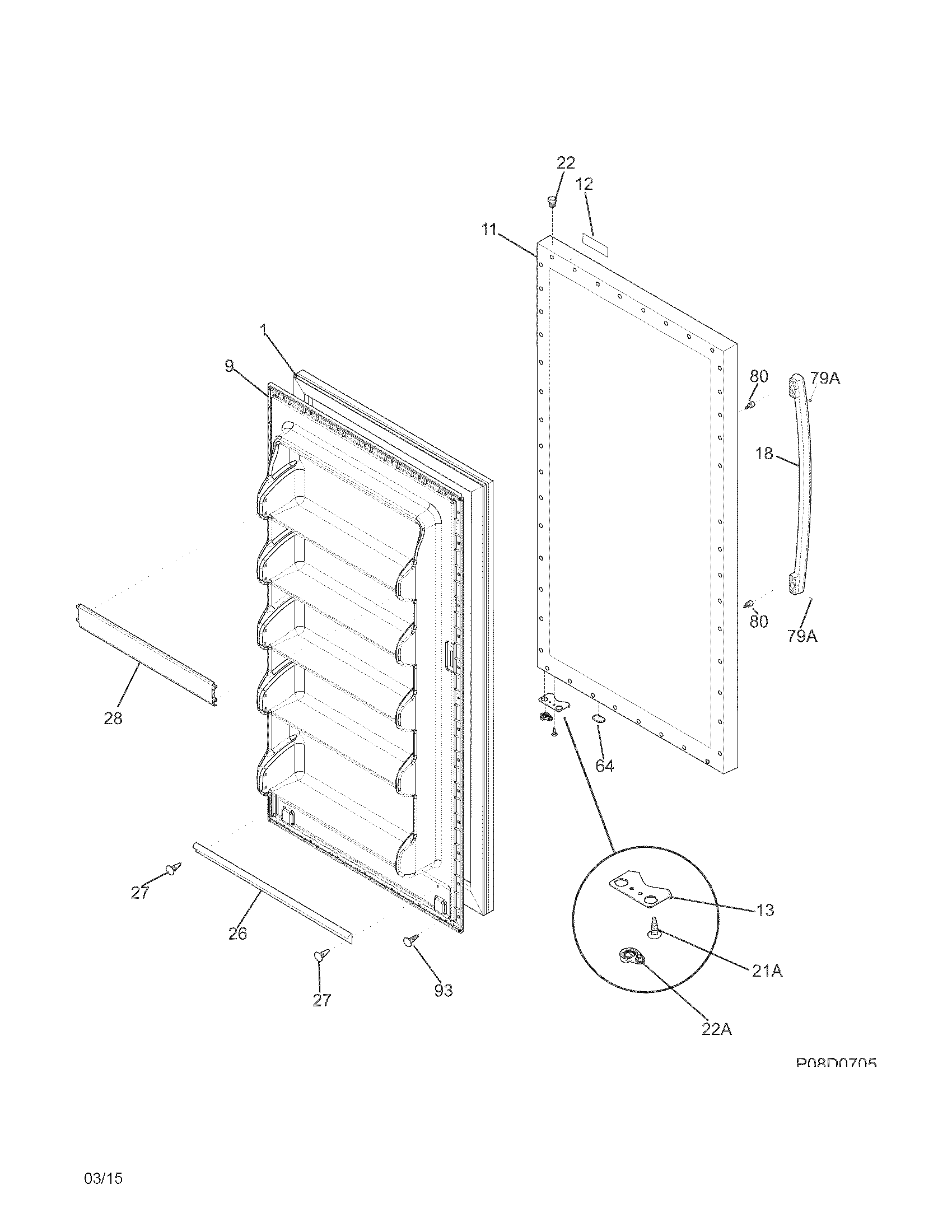

Door diagram

Freezer gasket and liner fastener kit

Part #5304406520

BEST SELLER
$30.86
14% OFF Phone Price : $35.86
In Stock
Freezer Evaporator Fan Motor 297250000
#13

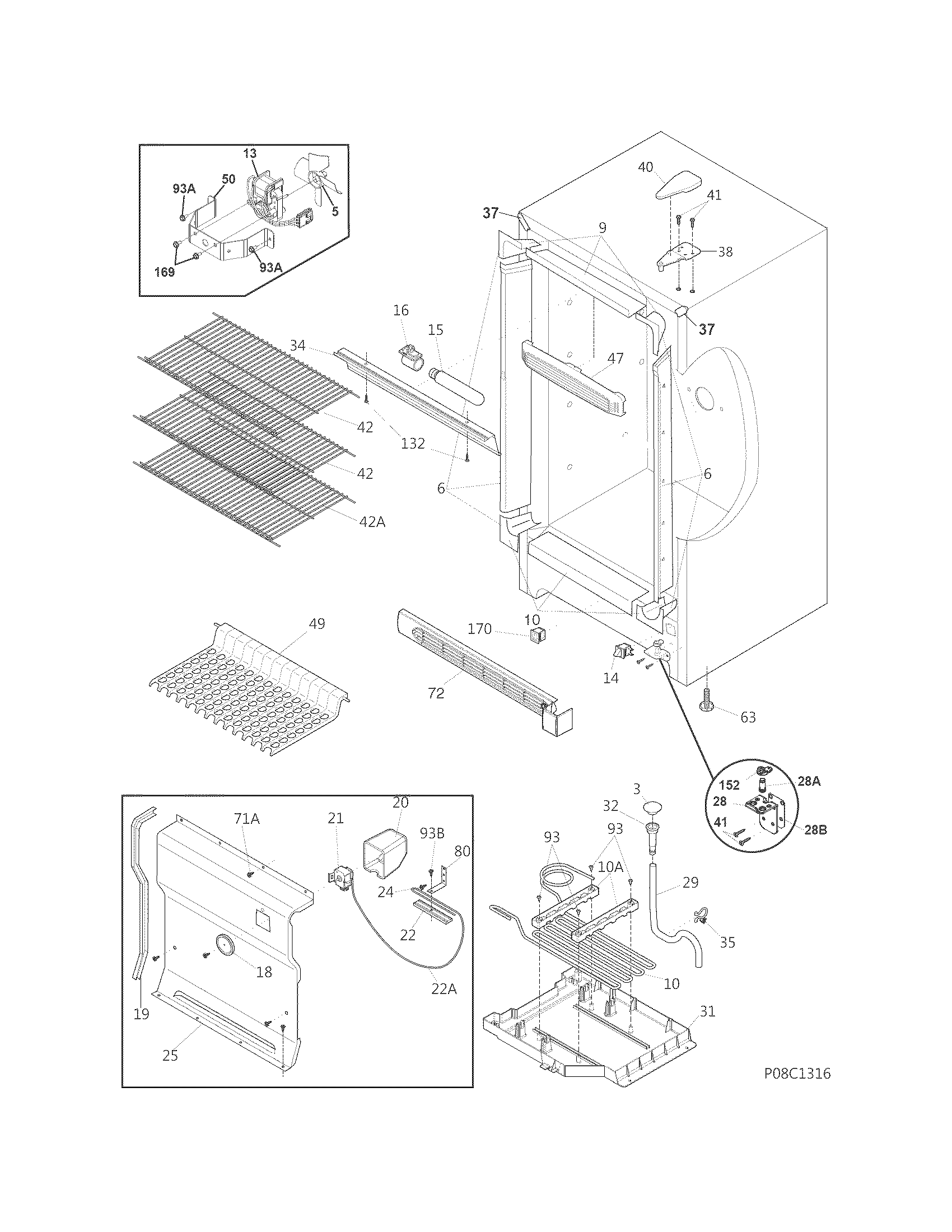

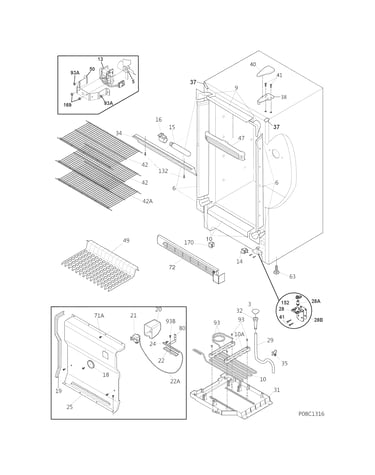

Cabinet diagram

Freezer evaporator fan motor

Part #297250000

Replaced by #297309000

?
Manufacturer substitution
This part replaces 297250000. Substitute parts can look different from the original.
BEST SELLER
$43.61
10% OFF Phone Price : $48.61
In Stock
Refrigerator Door Handle Screw (replaces 218755503, 241531502, 7218755504) 218755504
#80

Door diagram

Refrigerator door handle screw (replaces 218755503, 241531502, 7218755504)

Part #218755504

BEST SELLER
$9.22
10% OFF Phone Price : $10.22
In Stock
Freezer Defrost Timer 297318010
#23

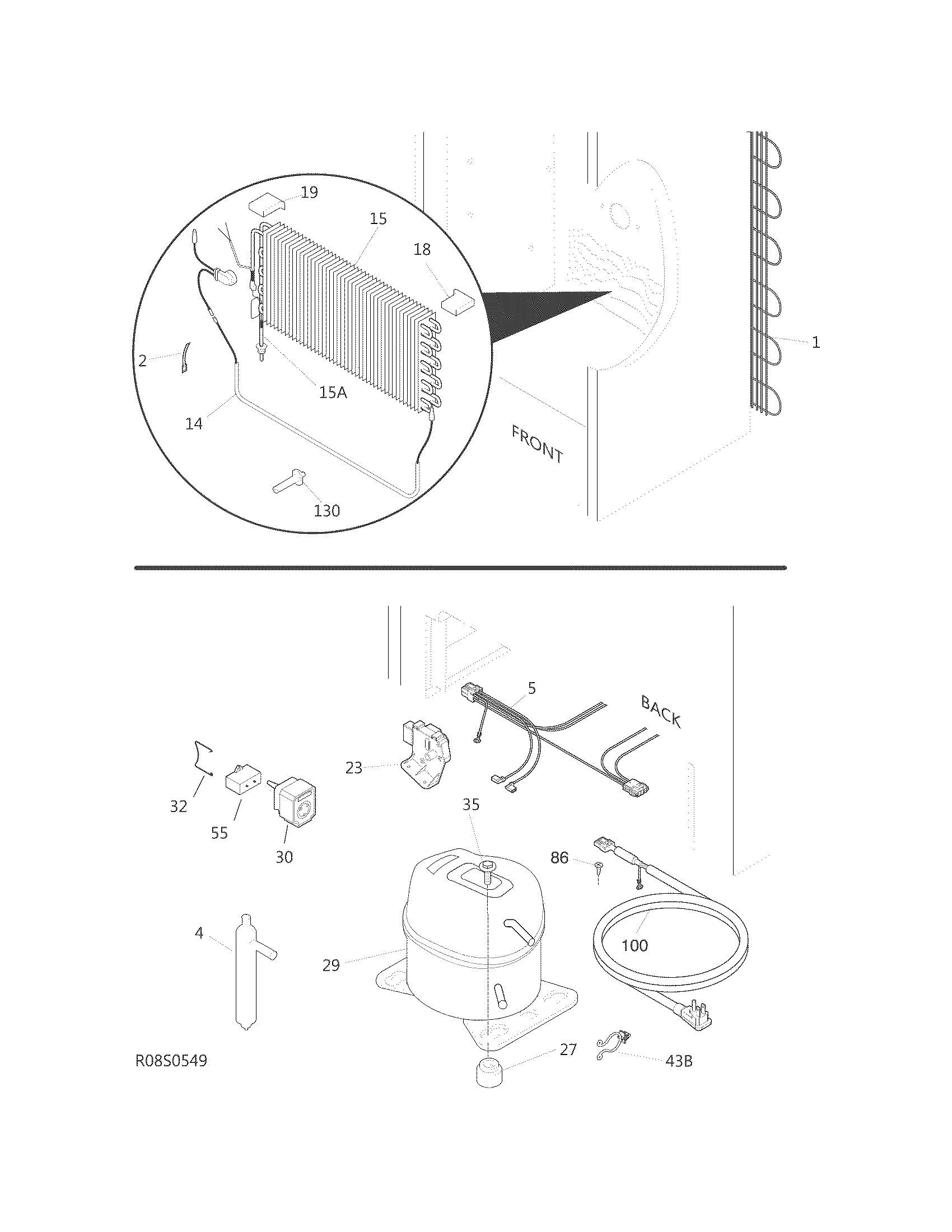

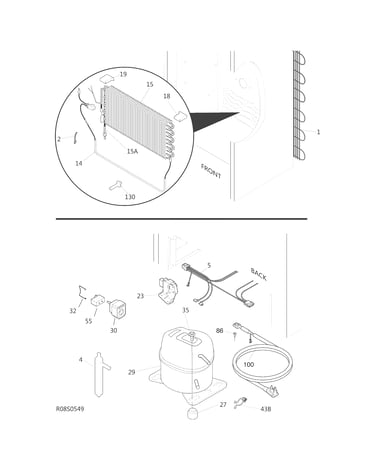

System diagram

Freezer defrost timer

Part #297318010

Replaced by #5304518034

?
Manufacturer substitution
This part replaces 297318010. Substitute parts can look different from the original.
BEST SELLER
$44.30
10% OFF Phone Price : $49.30
In Stock
Freezer Door Gasket 216522376
#1

Door diagram

Freezer door gasket

Part #216522376

Replaced by #5304505529

?
Manufacturer substitution
This part replaces 216522376. Substitute parts can look different from the original.
BEST SELLER
$171.69
6% OFF Phone Price : $181.69
In Stock
Closure 297416000
#152

Cabinet diagram

Closure

Part #297416000

Replaced by #5304511026

?
Manufacturer substitution
This part replaces 297416000. Substitute parts can look different from the original.
BEST SELLER
$10.39
16% OFF Phone Price : $12.39
In Stock
Freezer Door Hinge, Upper 297283800
#38

Cabinet diagram

Freezer door hinge, upper

Part #297283800

Replaced by #297283803

?
Manufacturer substitution
This part replaces 297283800. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$18.08
10% OFF Phone Price : $20.08
In Stock
Dryer Filter 297396820
#4

System diagram

Dryer filter

Part #297396820

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 297396820. Substitute parts can look different from the original.
BEST SELLER
$10.30
37% OFF MSRP : $16.34
In Stock
Freezer Door Secondary Gasket 297387100
#26

Door diagram

Freezer door secondary gasket

Part #297387100

This item is not returnable
$20.09
20% OFF Phone Price : $25.09
In Stock
Freezer Evaporator Cover Gasket (replaces 7216204902) 216204902
#19

Cabinet diagram

Freezer evaporator cover gasket (replaces 7216204902)

Part #216204902

$27.84
15% OFF Phone Price : $32.84
In Stock
