LG dryer model DLG1002W does not have a heating element reset you press like a button. When heat stops, the practical “reset” is restoring power and correcting the cause of overheating or no-heat (most often a restricted vent or a power or gas supply issue). Use the DLG1002W owner’s manual for the exact checks and error-code meanings.

What to do first (safe reset steps)

• Turn the dryer off and unplug it (or switch the breaker off) for 2 to 5 minutes.
• Clean the lint screen and confirm it seats correctly.
• Inspect and clean the vent path: dryer outlet, transition duct, wall duct, and outside hood.
• Restore power and run a timed dry cycle to test heat.
• If you have a gas model, confirm the house gas shutoff and dryer gas shutoff are fully open.

If it still will not heat

The manual’s troubleshooting points to power supply, gas supply (gas models), and airflow as the most common causes of “no heat.” A blocked vent can also trip safety thermostats.

Quick symptom-to-likely-cause table

What you notice	Most common cause	What to check next
Runs but no heat (electric)	Incorrect power supply or tripped breaker	Verify correct outlet/breaker; check cord connections per manual
Runs but no heat (gas)	Gas supply off or ignition problem	Confirm shutoffs open; inspect igniter circuit
Long dry times, very hot cabinet	Restricted exhaust airflow	Clean/repair venting; rerun duct check
Stops heating after a few minutes	Overheating protection opening	Fix vent restriction; check thermostats

Parts that commonly relate to no-heat or overheating

If airflow is good and power or gas supply is correct, these model-compatible parts are often involved:

• Dryer high-limit thermostat AGM30045804 (opens if the dryer overheats)
• Dryer blower thermostat 6931EL3002M (helps regulate temperature)
• LG dryer burner igniter 5318EL3001A (gas ignition component)

Why it matters

A dryer that “needs resetting” is usually reacting to a condition that can keep coming back, especially vent restrictions. Fixing airflow and supply issues helps restore normal heat, shortens dry times, and reduces repeat shutdowns.

Last updated: February 2026

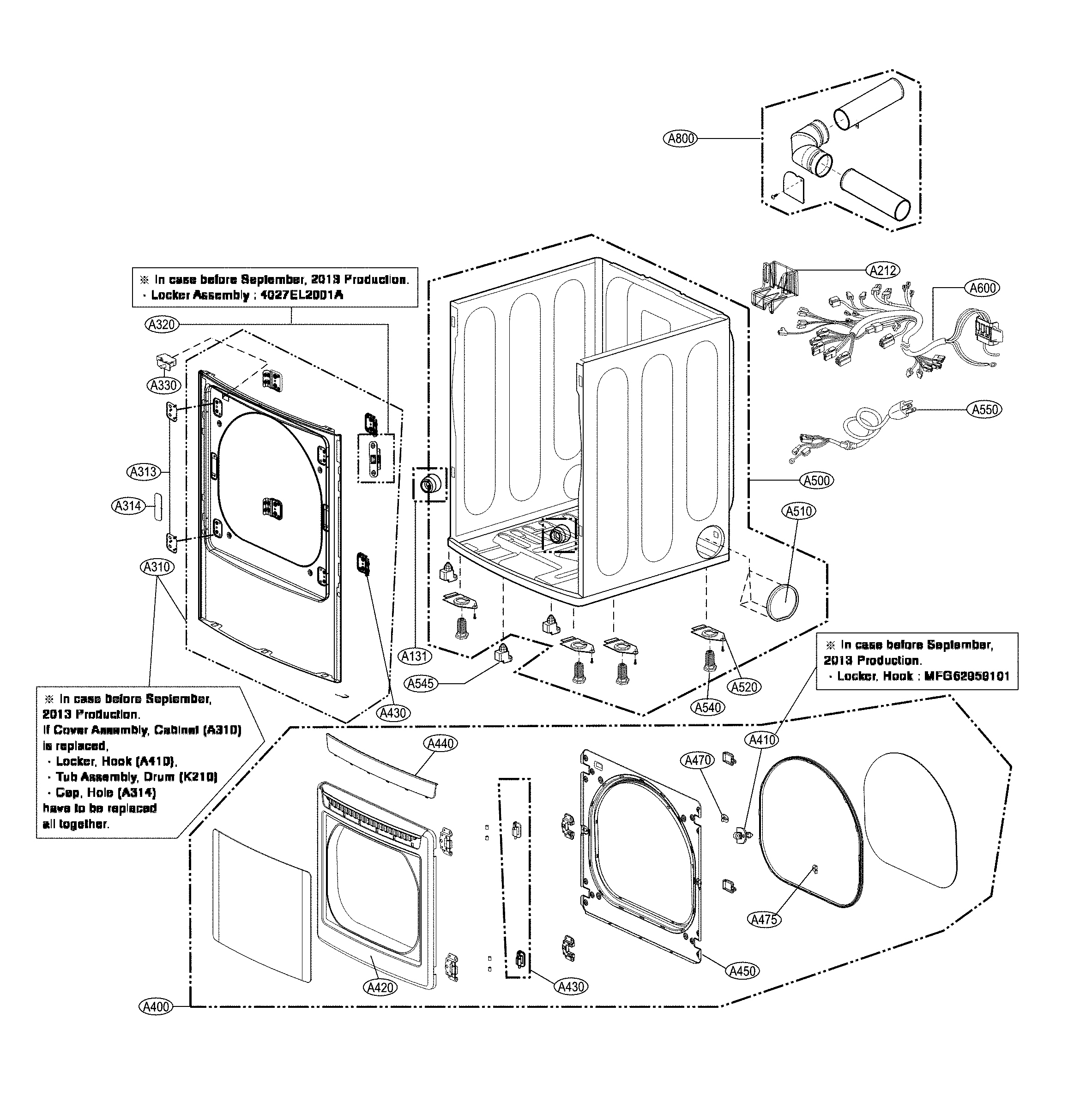

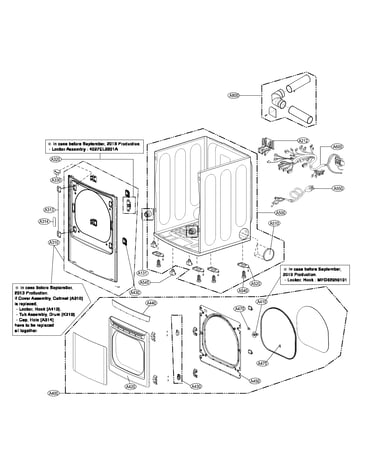

To remove the front panel on an LG DLG1002W dryer, we unplug the dryer, open the door, remove the mounting screws, then lift and pull the front panel forward while supporting its weight. Disconnect the door switch harness (and any light wiring) before fully separating the panel.

Safety and prep

• Unplug the dryer (or switch off the breaker) before removing any panels.
• If this is a gas model, close the gas shutoff valve.
• Wear cut-resistant gloves; cabinet edges are sharp.
• Keep a small container for screws so none get lost.
• Take a quick photo of wire connections before unplugging harnesses.

Front panel removal steps (typical LG layout)

1. Open the door and locate the front panel mounting screws (commonly along the lower front and sometimes inside the door opening).
2. Support the front panel with one hand while removing the screws.
3. Pull the panel slightly forward, then lift up to unhook it from the lower tabs/clips.
4. Disconnect the door switch wire harness (and drum light connector if equipped).
5. Set the panel aside on a protected surface.

What you may need

Item	Why it helps
Phillips screwdriver or nut driver	Removes front panel and bracket screws
Gloves	Protects hands from sharp sheet metal
Phone/camera	Records wire routing and connector locations

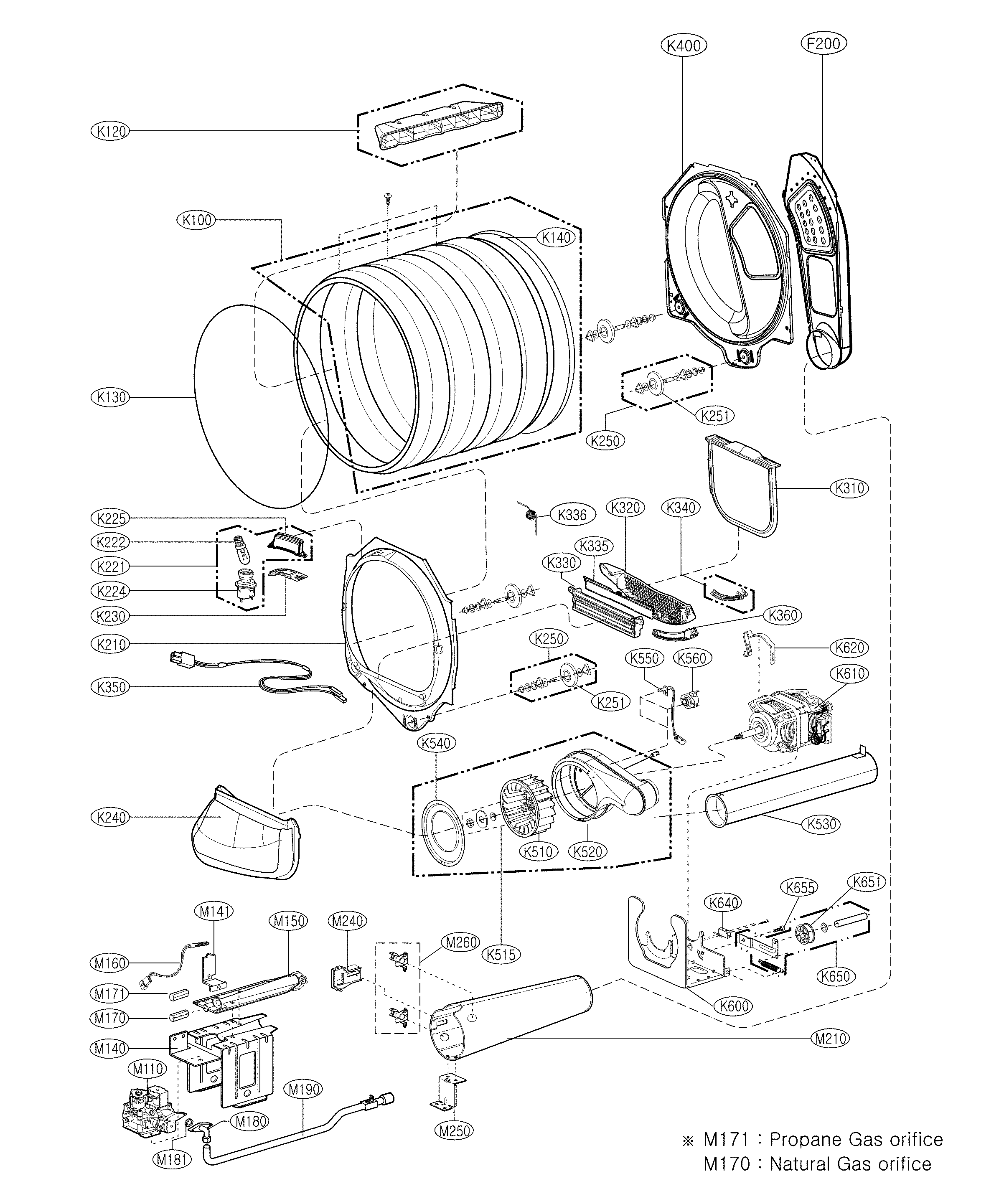

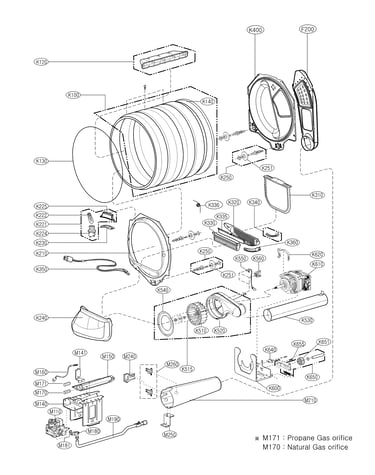

If you are removing the front to reach the drum

Front-panel removal is commonly done to access the drum, belt, idler pulley, and support rollers. If your dryer squeals, thumps, or will not tumble, these parts are frequent causes:

• LG dryer drum belt 4400EL2001F (broken or slipping belt)
• LG dryer idler pulley 4561EL3002A (worn pulley bearing)
• Dryer drum support roller (flat spots or noise)

Why it matters

Removing the front panel the right way prevents broken plastic tabs, stripped screws, and damaged wiring. It also makes reassembly faster because the door switch harness and panel alignment stay correct.

For model-specific panel fastener locations and wiring routing, follow the disassembly guidance in the DLG1002W manual.

Last updated: February 2026

The average lifespan of an LG DLG1002W dryer is about 13 years with normal use and basic maintenance. Keeping airflow strong (clean lint system and venting) and fixing wear items early helps this model reach its full service life.

What affects lifespan the most

• Vent restriction and overheating (a major dryer killer)
• Load size and cycle choices (overloading strains the motor and belt)
• Lint control and cleaning habits (lint buildup raises heat and run time)
• Wear parts condition (belt, rollers, idler pulley)
• Gas ignition and heat control parts (for gas models like DLG1002W)

Quick maintenance checklist (high impact)

Use the schedule in your DLG1002W owner's manual as your baseline.

• Clean the lint screen before every load
• Vacuum lint from the lint screen housing regularly
• Confirm strong airflow at the outside vent hood
• Clean the full vent duct at least yearly (more often with long runs)
• Stop using the dryer if you see vent blockage codes like d90/d95 until the vent is corrected

Common wear parts to plan for

These parts often wear out before the dryer does; replacing them can prevent bigger damage.

Symptom	Common wear area	Example part for this model
Squealing, thumping, rumbling	Drum support and belt path	Dryer drum support roller 4581EL2002H
Drum not turning, burning rubber smell	Belt	LG dryer drum belt 4400EL2001F
Dryer runs but clothes take too long to dry	Airflow and lint system	Dryer lint screen by LG 5231EL1001C

Why it matters

A dryer that takes longer to dry runs hotter and longer, which accelerates failure of thermostats, the motor, and gas ignition components. Good airflow is the simplest way to protect performance and extend the life of your LG dryer.
