Whirlpool WFW9250WW00 washer Parts

Whirlpool washer parts are sometimes interchangeable across models, but we recommend matching parts by the exact model number (WFW9250WW00) and the correct part ID. Even small design changes can affect fit, sealing, wiring, and performance, especially on front-load washers.

The safe way to confirm interchangeability

Use your model’s parts list and diagrams in the WFW9250WW00 owner's manual to identify the correct replacement, then match by part ID (not just by how the part looks).

• Confirm the full model number: WFW9250WW00
• Match the part ID (example: WPW10212596) rather than a generic description
• Compare electrical ratings and connector style for switches, valves, and control boards
• Compare hose port sizes and clamp style for drain and dispenser plumbing
• Verify revisions and substitutions listed for your model before ordering

Common examples (what usually swaps, what usually does not)

Part type	Often interchangeable?	Why
Screws, nuts, some clamps	Sometimes	Dimensions and thread pitch must still match
Hoses and door boot parts	Sometimes	Fit and sealing surfaces vary by tub and cabinet design
Valves, latches, control boards	Less often	Wiring, firmware, and mounting differences are common

For example, if you are troubleshooting filling issues, the correct inlet valve for this model is the washer water inlet valve WPW10212596. Using a “similar” valve can cause leaks, slow fill, or error codes.

Why it matters

Interchangeable-looking parts can still create problems like water leaks (door boot and clamps), vibration (drive belt fit), or no-start conditions (door latch and controls). Matching by model and part ID protects wash performance and prevents repeat repairs.

If you’re seeing an error code while diagnosing a part mismatch, use the Whirlpool duet he front load washer error codes guide to narrow the failure to the right circuit or component.

Last updated: February 2026

On a Whirlpool front load washer like model WFW9250WW00, the model number is printed on a rating label. The most common spot is the door opening area (door jamb) after you open the washer door; other common locations are the back of the control panel or the cabinet side near the bottom.

Most common places to check

• Door jamb: open the door and look around the opening on the cabinet frame
• Behind the door: check the inner edge area near the hinge or latch side
• Back of the control panel: look behind the console area
• Side of the cabinet: near the lower front side panel area
• Rear panel: less common, but worth a quick look

What the label looks like (and what to write down)

The rating label usually includes several identifiers. We recommend copying these exactly:

• Model number (example format: WFW9250WW00)
• Serial number
• Electrical ratings (volts/amps)

What you need	Why it matters	Example format
Model number	Ensures you get the right parts and diagrams	WFW9250WW00
Serial number	Helps match production version when parts changed	Letters and numbers

Why it matters

Whirlpool front load washers can have small design changes within the same product line. Using the exact model number helps us match the correct parts (like a door boot, water inlet valve, or control board) and the correct procedures in the WFW9250WW00 owner's manual.

Last updated: February 2026

On the Whirlpool WFW9250WW00 washer, the F5 E3 (often shown as E3 F5) error means the door is not locking correctly. The washer will usually pause or stop to prevent leaks and protect the door lock system. Use the steps below to restore normal operation; see the WFW9250WW00 owner's manual for model-specific reset and diagnostic details.

What to do first (quick checks)

• Press Pause/Cancel (or Power) once, wait 30 seconds, then restart the cycle.
• Open the door and remove any clothing caught between the bellow and the door glass.
• Firmly close the door; push near the latch area until you feel it seat.
• Unplug the washer for 1 minute (or switch off the breaker), then restore power.
• If the tub is overfilled with suds, run a Rinse/Drain and Spin after suds settle.

Common causes on a front-load Whirlpool washer

Likely cause	What you’ll notice	What usually fixes it
Door not fully closed	Door feels “bouncy” or misaligned	Re-seat door, reduce load size
Latch/lock not engaging	Clicking but no lock	Inspect latch area; replace lock if failed
Door boot (bellow) interference	Rubber lip folded into door path	Reposition boot; check for tears
Control not sensing lock	Intermittent error	Power reset; check wiring; replace control if needed

Parts that are often involved

If the error returns after the quick checks, the door lock circuit is the next place we look.

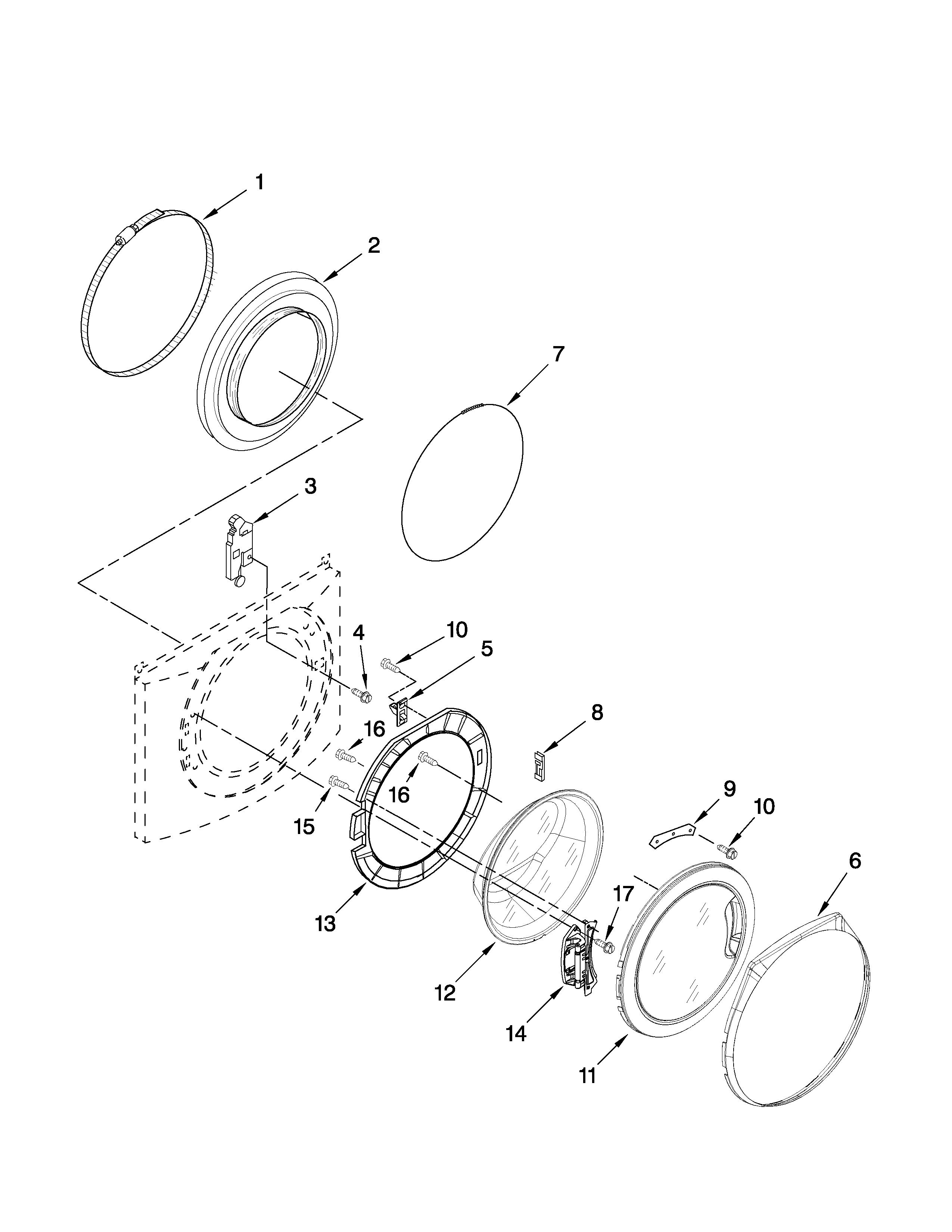

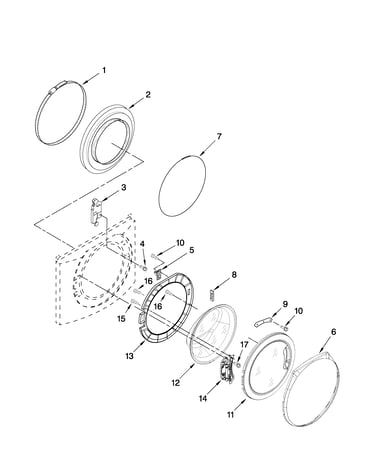

• Latch WPW10253483 (door lock assembly): the most common fix when the lock will not engage.
• Washer bellow WPW10381562: a warped or torn bellow can keep the door from closing squarely.
• Check the door strike and wiring connections to the latch for looseness or corrosion.

Why it matters

A front-load washer relies on a verified door lock before it will tumble or spin at high speed. Fixing an F5 E3/E3 F5 issue quickly helps prevent cycle interruptions, water leaks at the door, and repeated strain on the latch mechanism.

For additional code context, use Whirlpool duet he front load washer error codes.

Last updated: February 2026

For Whirlpool washers, the most common problems are not draining or not spinning. On your Whirlpool WFW9250WW00 front-load washer, this is often tied to a restricted drain path (coins, lint, small socks) or a door-lock issue that prevents high-speed spin; confirm cycle and error guidance in the WFW9250WW00 owner's manual.

Most common symptoms and what they usually mean

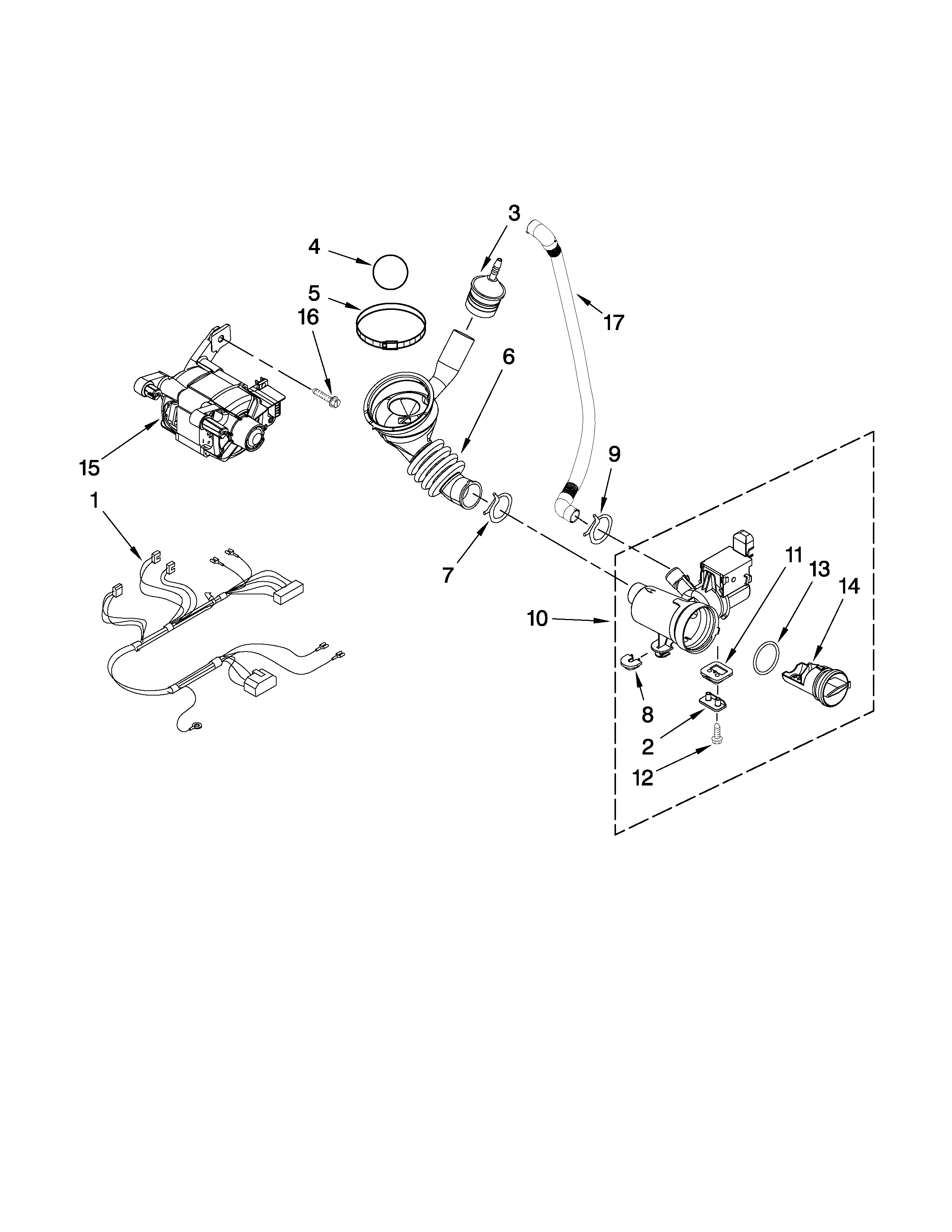

• Won’t drain: drain pump filter or hose restriction, or a failing drain pump
• Won’t spin: load out of balance, door lock not engaging, or control not sensing proper drain

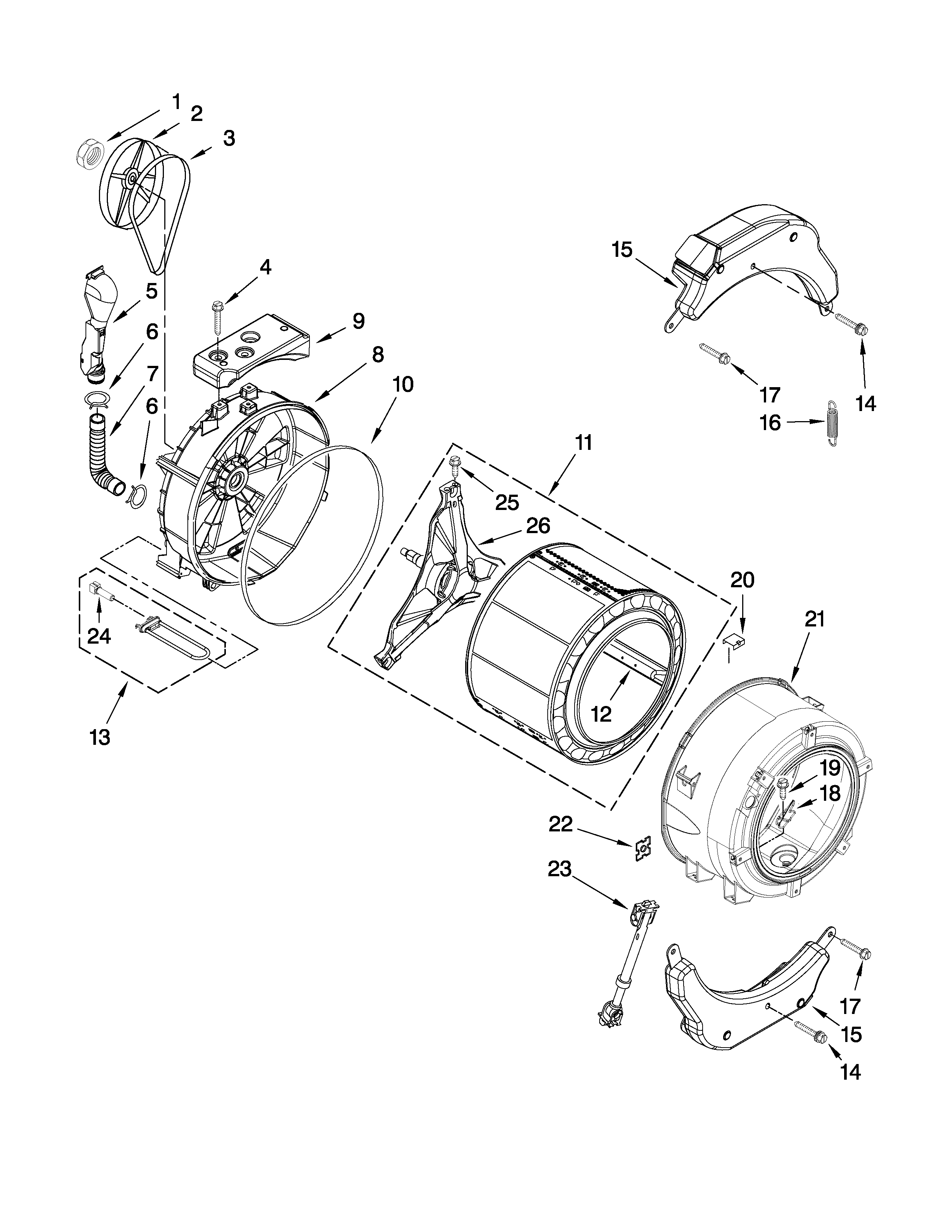

• Loud noise: foreign object in pump, worn belt, or tub/bearing wear
• Leaks at the door: torn door boot (bellow) or loose clamp
• Won’t fill: clogged inlet screens or a failing inlet valve

Quick checks we recommend first (WFW9250WW00)

1. Power reset: unplug for 2 minutes, then retry a Drain/Spin.
2. Load check: reduce bulky items and redistribute.
3. Drain path: inspect the pump area and hoses for debris; many “won’t drain” calls are simple clogs.
4. Door closure: close firmly; if the door does not lock, the washer may stop before spin.
5. Water supply: verify both hot and cold valves are fully open.

Parts that commonly solve these issues

Symptom	Commonly involved part	When it’s a strong suspect
Leaks at door	Washer bellow WPW10381562	Visible tears, mold damage, or water at the front lip
Door boot won’t seal after service	Washer door boot spring clamp WP8540108	Clamp is stretched, rusted, or won’t stay seated
Won’t fill or fills slowly	Washer water inlet valve WPW10212596	Good water pressure but weak/no flow into dispenser
No/weak tumble or spin	Washer drive belt WP8540101	Belt is glazed, cracked, or slipping under load

Error codes can point you to the fastest fix

If your display shows an error, match it to the symptom before replacing parts. Use the Whirlpool duet he front load washer error codes guide to narrow down whether you are dealing with drain, lock, or fill problems.

Why it matters

Drain and spin problems can leave clothes soaking wet and can strain the motor and control system. Catching a simple clog or a worn door boot early helps prevent leaks, odors, and repeat breakdowns.

Last updated: February 2026
