KitchenAid KUIS155HRS0 ice cube maker Parts
Here are the diagrams and repair parts for KitchenAid KUIS155HRS0 ice cube maker, as well as links to manuals and error code tables, if available.
Installation guideBy Schematic
By Part
SELECT DIAGRAM

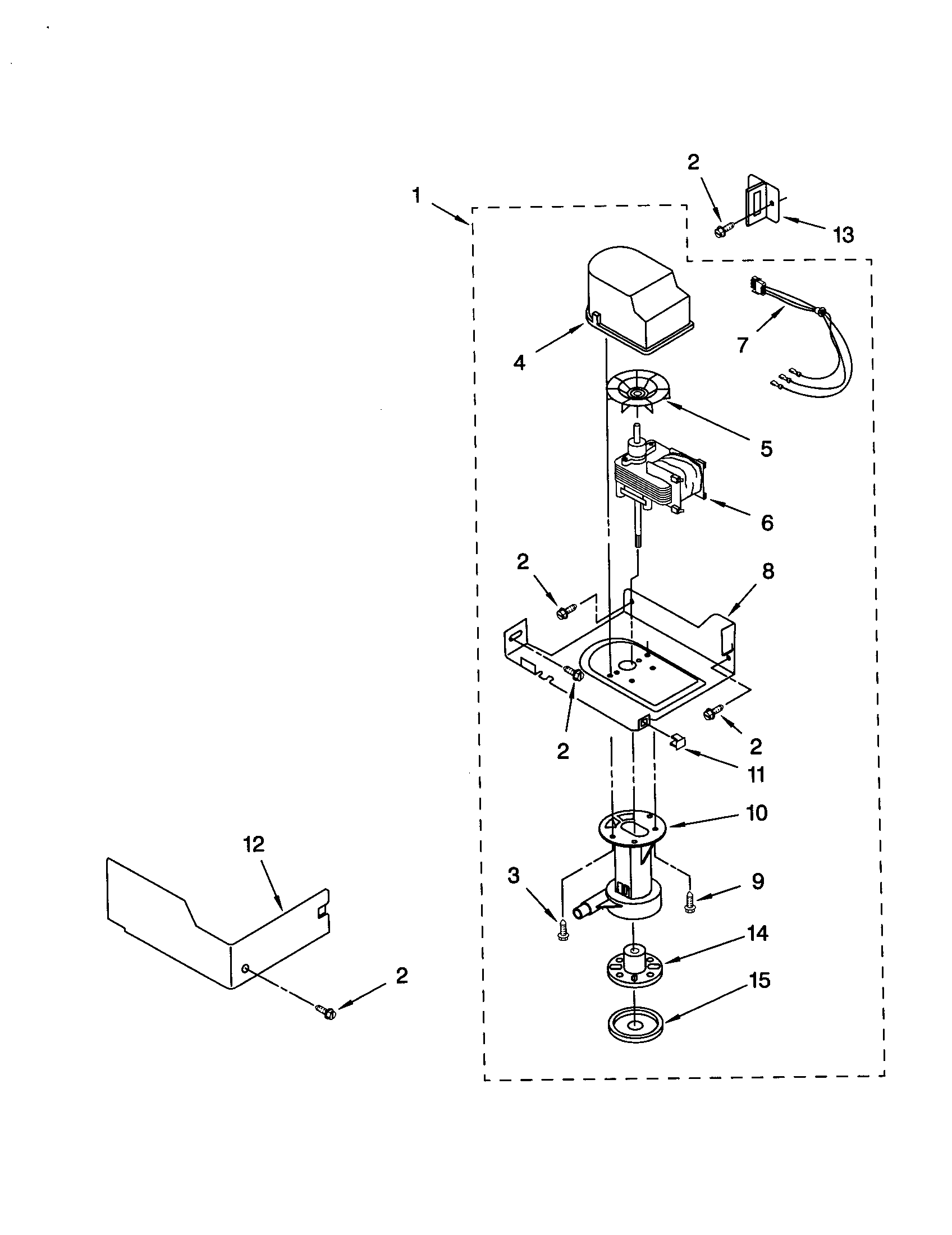

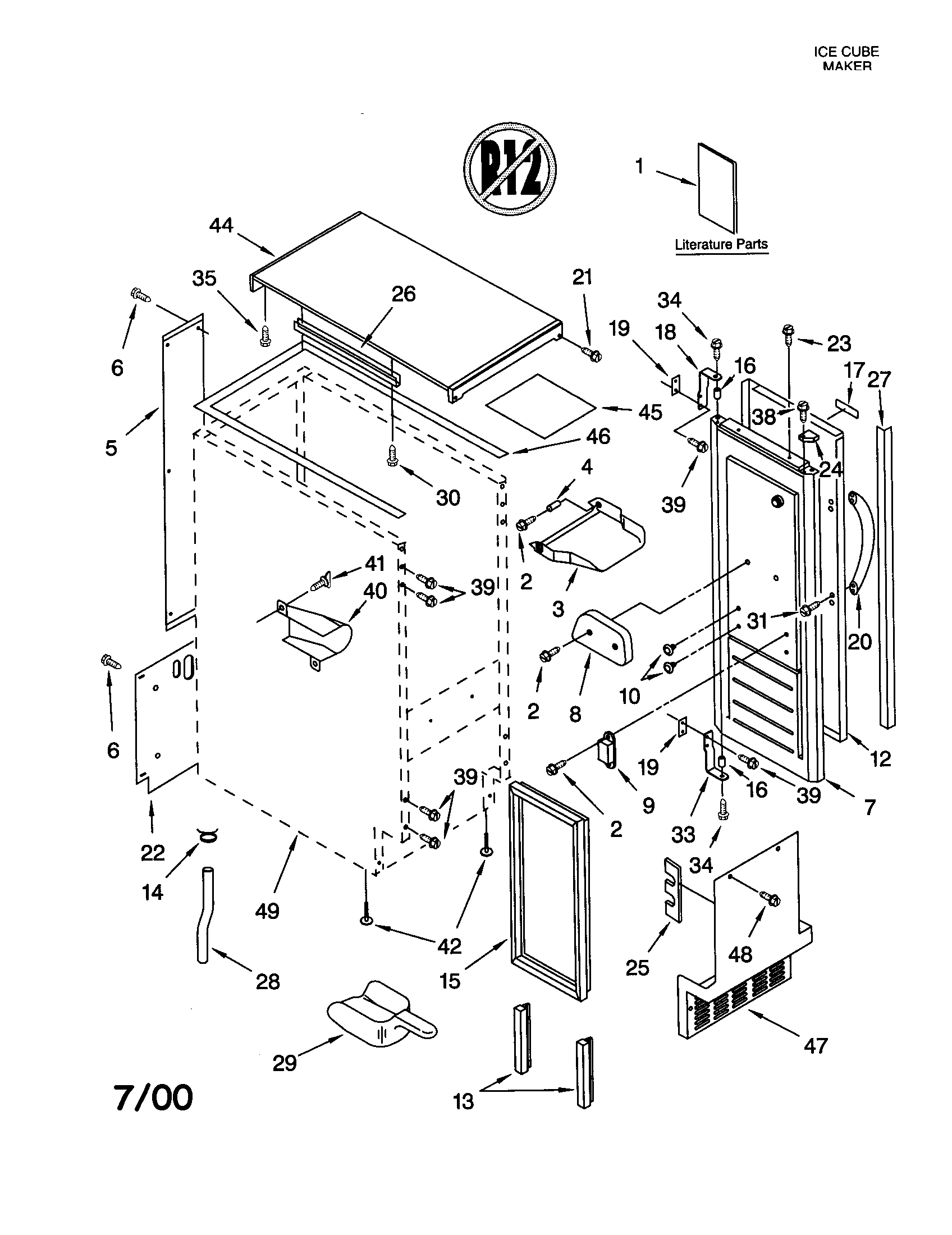

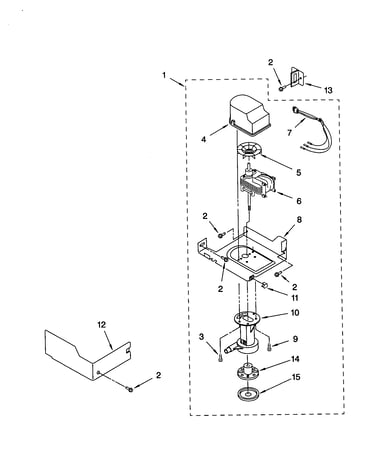

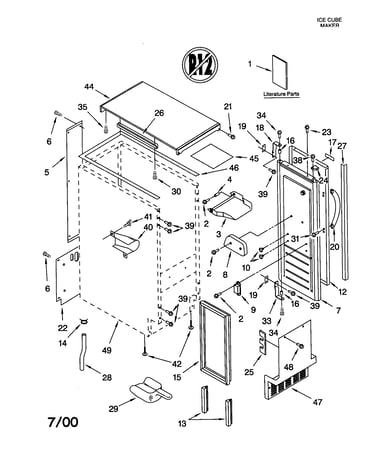

Browse Parts for KUIS155HRS0 Ice Cube Maker

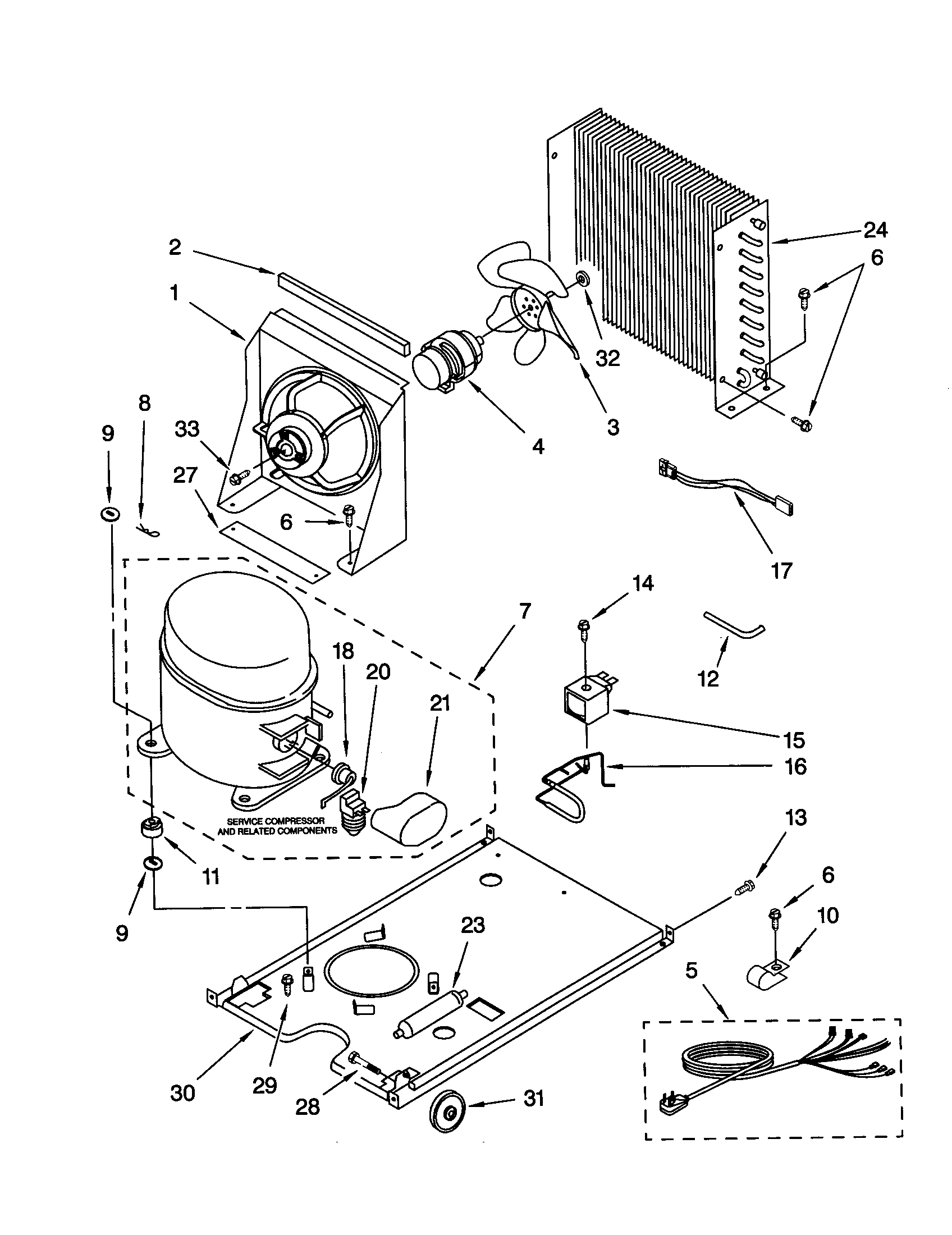

Unit diagram
Drier
Part #2180801Replaced by #W10843121
Manufacturer substitutionThis part replaces 2180801. Substitute parts can look different from the original.In Stock$34.5715% OFF Phone Price : $40.57
Qty

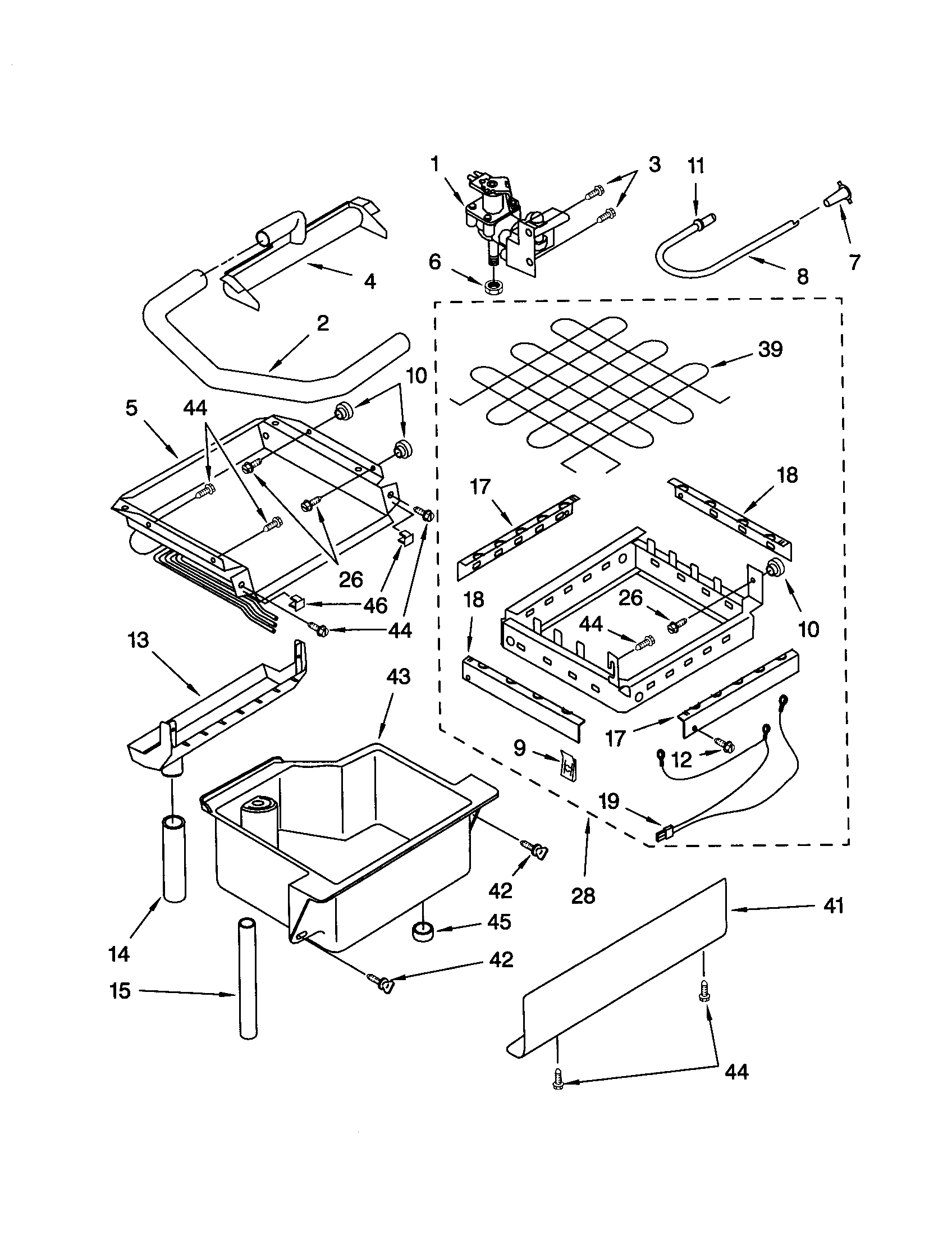

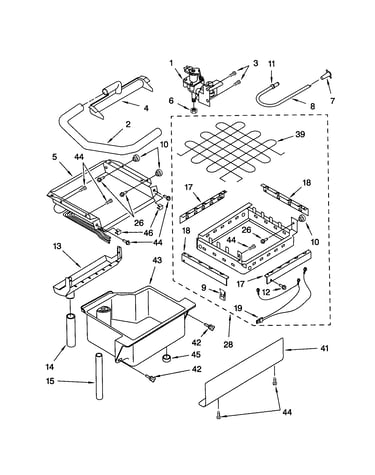

Evaporator/ice cutter grid/water diagram
Water Tube
Part #2174662Replaced by #W10823511
Manufacturer substitutionThis part replaces 2174662. Substitute parts can look different from the original.In Stock$37.4814% OFF Phone Price : $43.48Qty#NI
All parts diagram
Cement
Part #797403Replaced by #WP279368
Manufacturer substitutionThis part replaces 797403. Substitute parts can look different from the original.In Stock$52.1810% OFF Phone Price : $58.18QtyUnit diagram
Compressor
Part #2176659Replaced by #W10309988

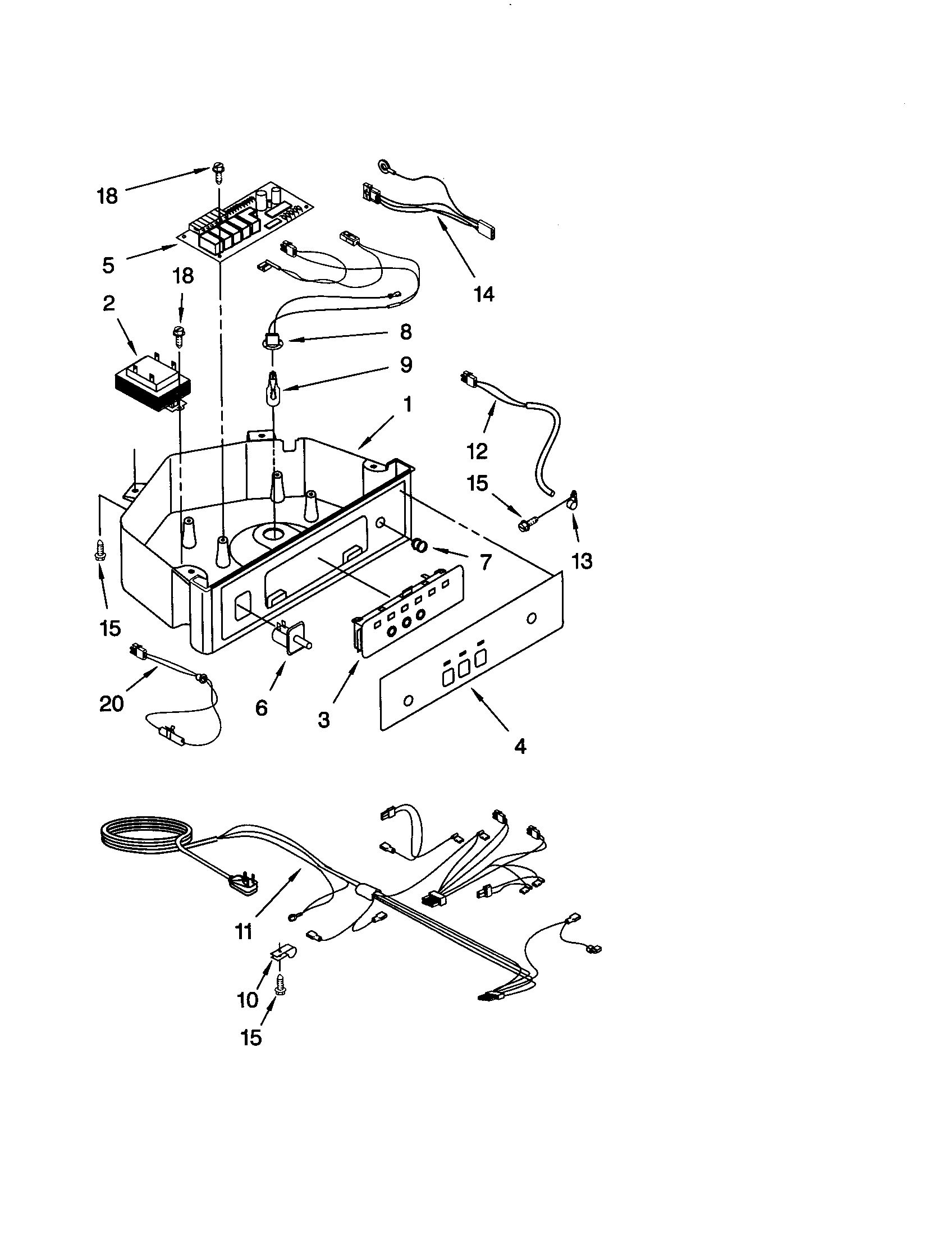

Manufacturer substitutionThis part replaces 2176659. Substitute parts can look different from the original.In Stock$335.76$12.00 OFF Phone Price : $347.76QtyControl panel diagram
Refrigerator Door Switch
Part #2149705Replaced by #WP2149705
Manufacturer substitutionThis part replaces 2149705. Substitute parts can look different from the original.In Stock$38.5013% OFF Phone Price : $44.50Qty#NI
All parts diagram
Refrigerator Service Valve
Part #978025Replaced by #WP978025
Manufacturer substitutionThis part replaces 978025. Substitute parts can look different from the original.In Stock$41.1813% OFF Phone Price : $47.18QtyControl panel diagram
Thermostat
Part #2185679Replaced by #WPW10503764
Manufacturer substitutionThis part replaces 2185679. Substitute parts can look different from the original.In Stock$72.088% OFF Phone Price : $78.08QtyEvaporator/ice cutter grid/water diagram
Refrigerator Water Tube Fitting
Part #627018Replaced by #WP627018
Manufacturer substitutionThis part replaces 627018. Substitute parts can look different from the original.This item is not returnableIn Stock$8.9810% OFF Phone Price : $9.98QtyEvaporator/ice cutter grid/water diagram
Evaporator
Part #2208328Replaced by #WPW10218037
Manufacturer substitutionThis part replaces 2208328. Substitute parts can look different from the original.In Stock$477.70$12.00 OFF Phone Price : $489.70QtyEvaporator/ice cutter grid/water diagram
Cutter Grid
Part #2185614Replaced by #WP2313637
Manufacturer substitutionThis part replaces 2185614. Substitute parts can look different from the original.In Stock$208.385% OFF Phone Price : $220.38Qty
