Model #KSCS25MVMS00 KitchenAid side-by-side refrigerator

Here are the diagrams and repair parts for KitchenAid KSCS25MVMS00 side-by-side refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

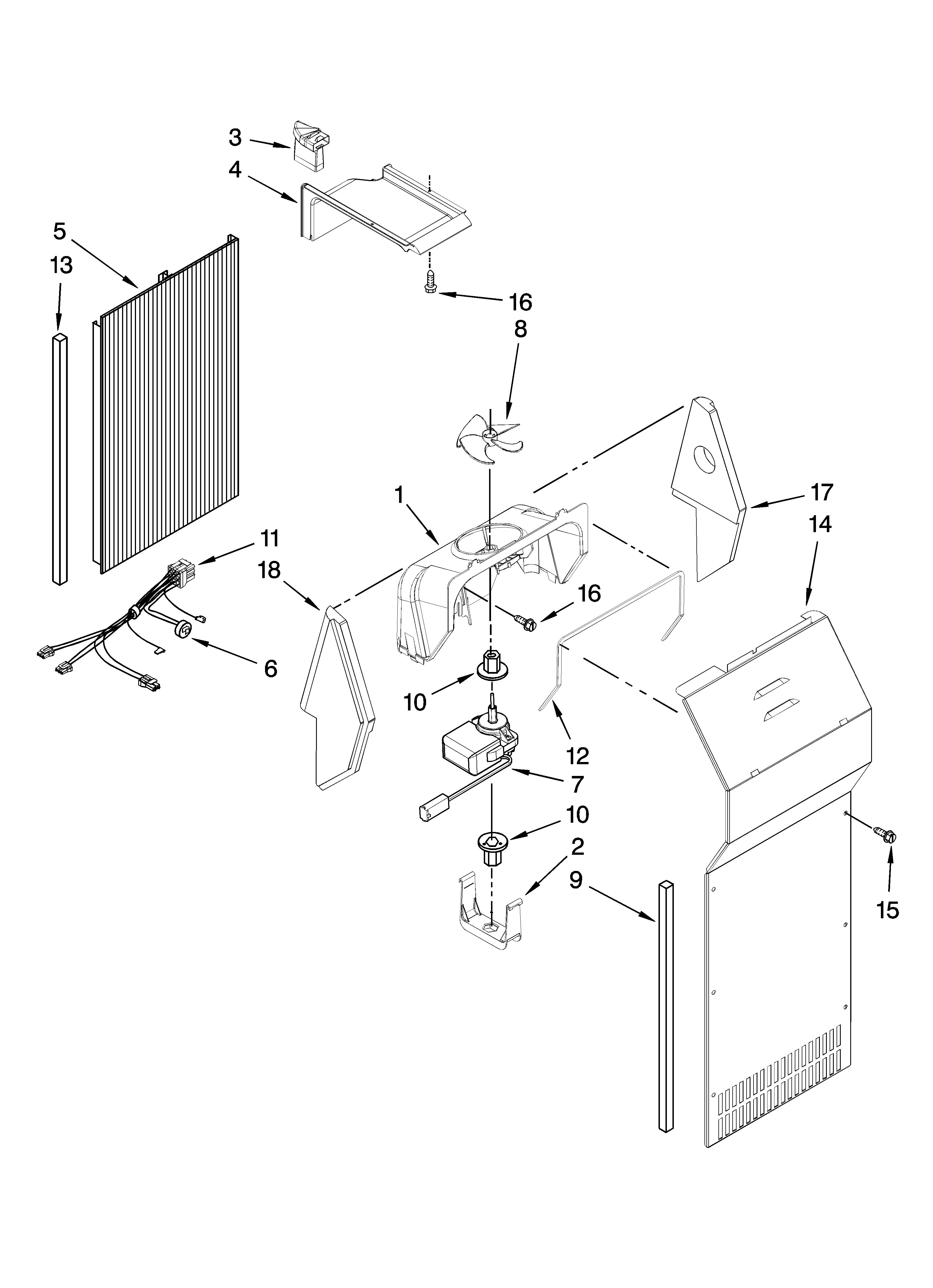

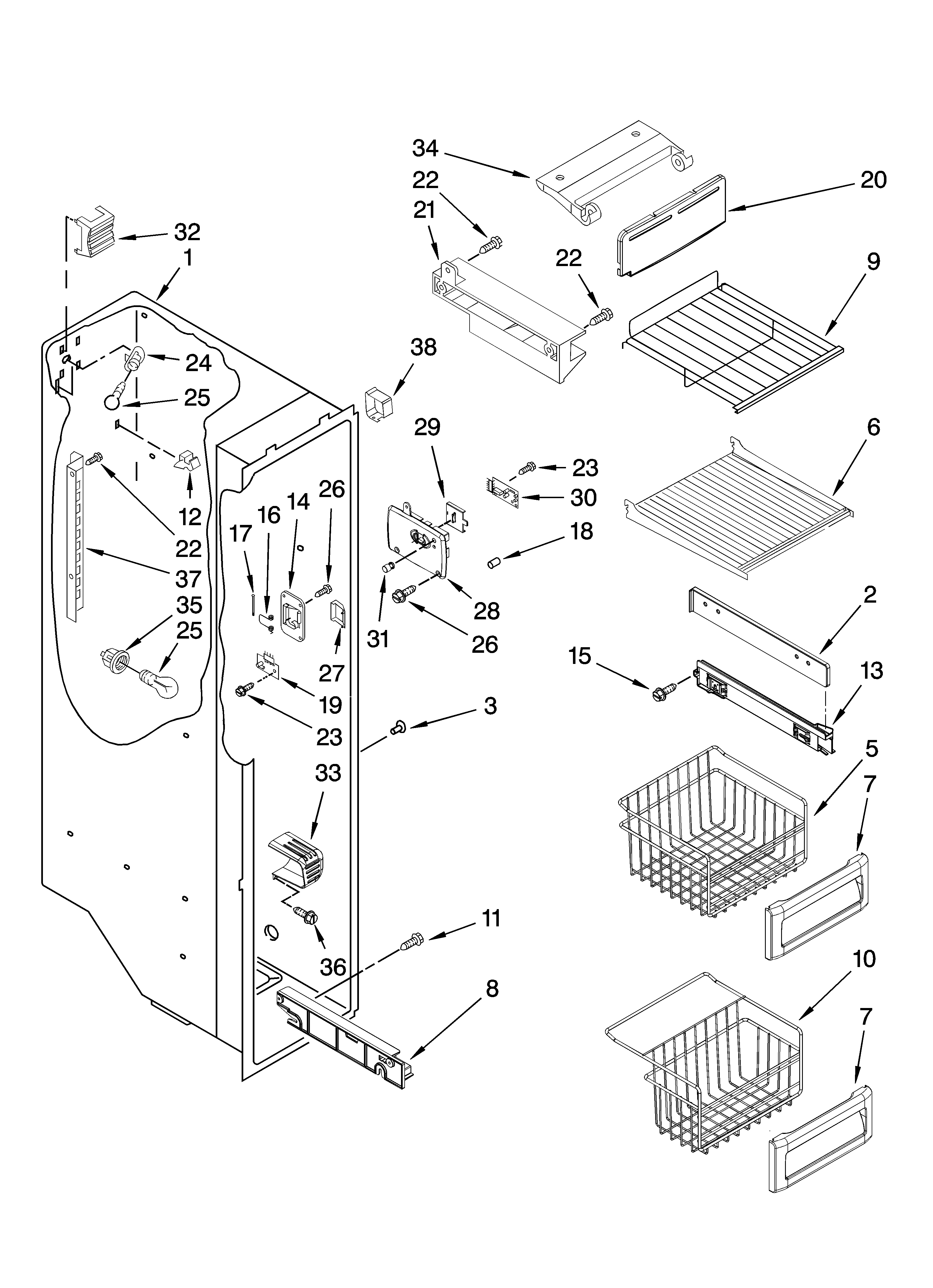

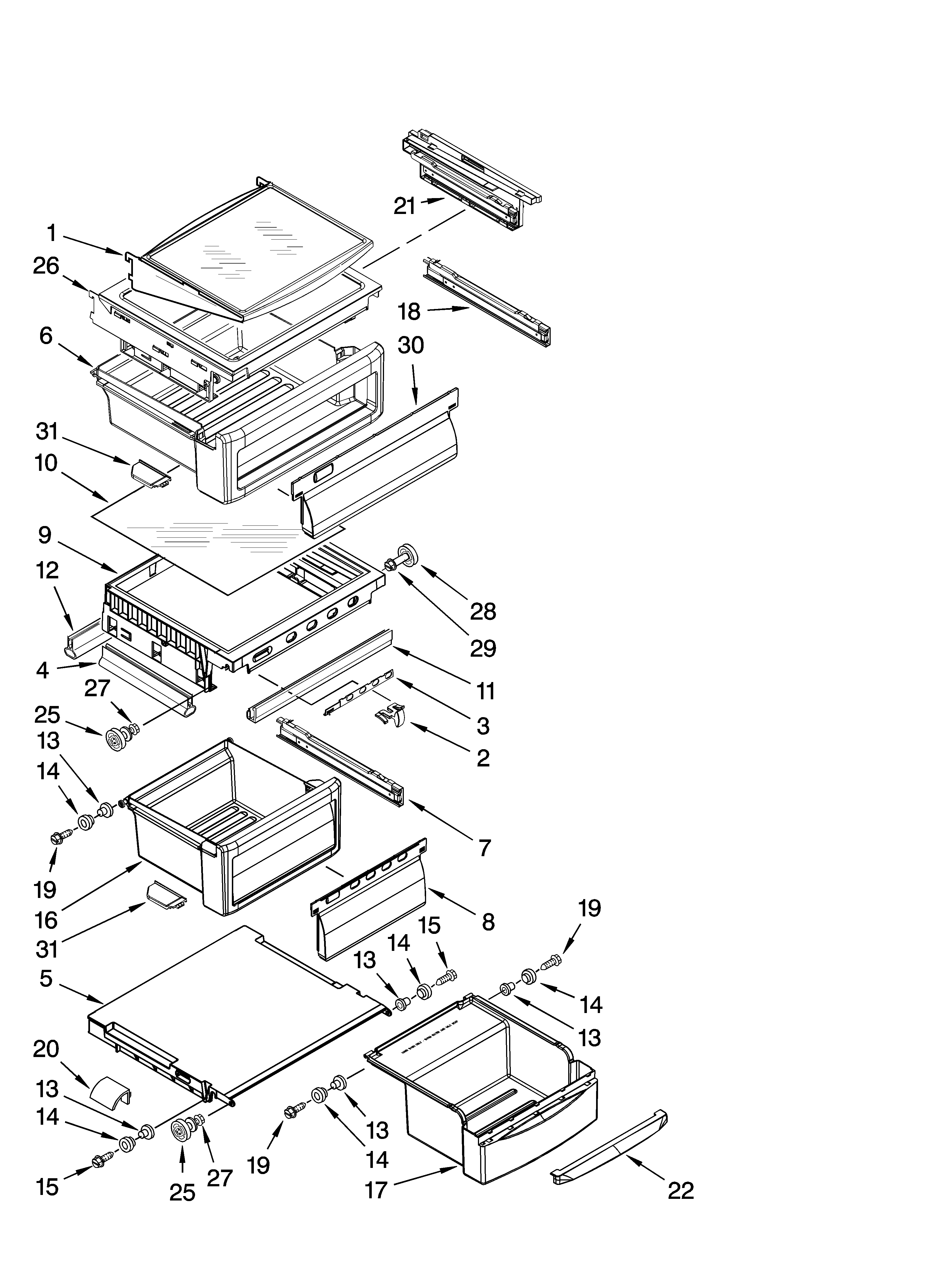

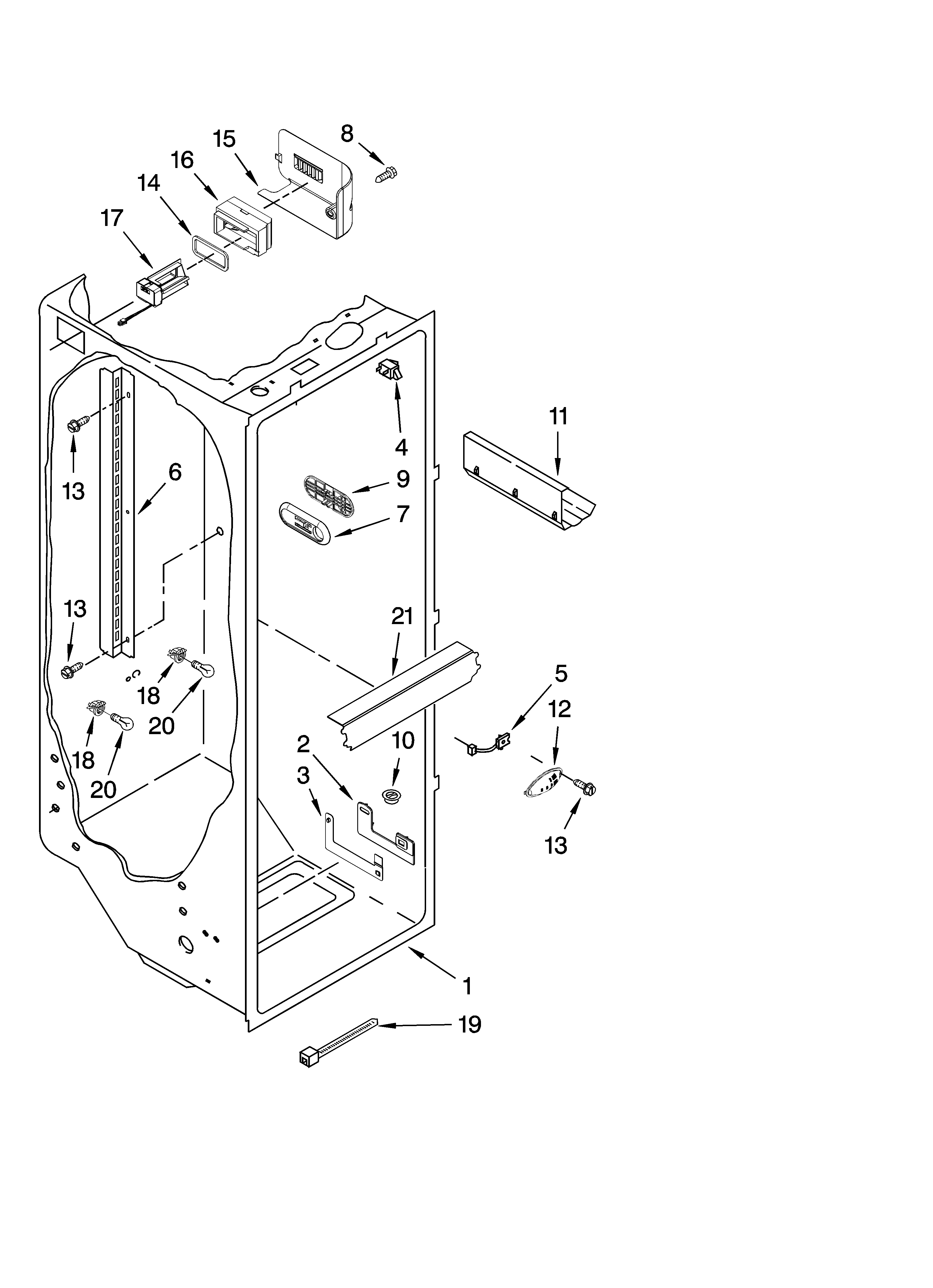

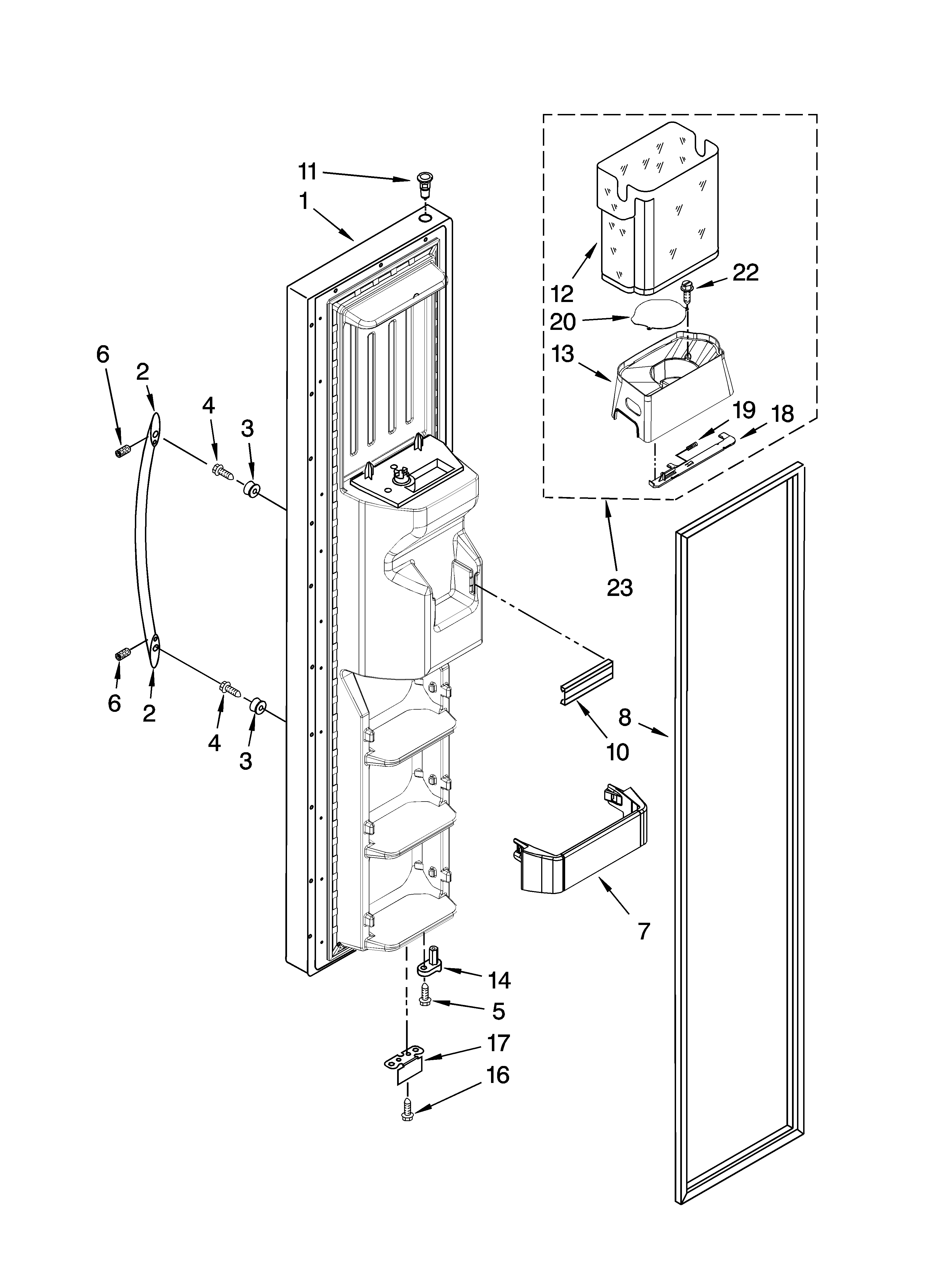

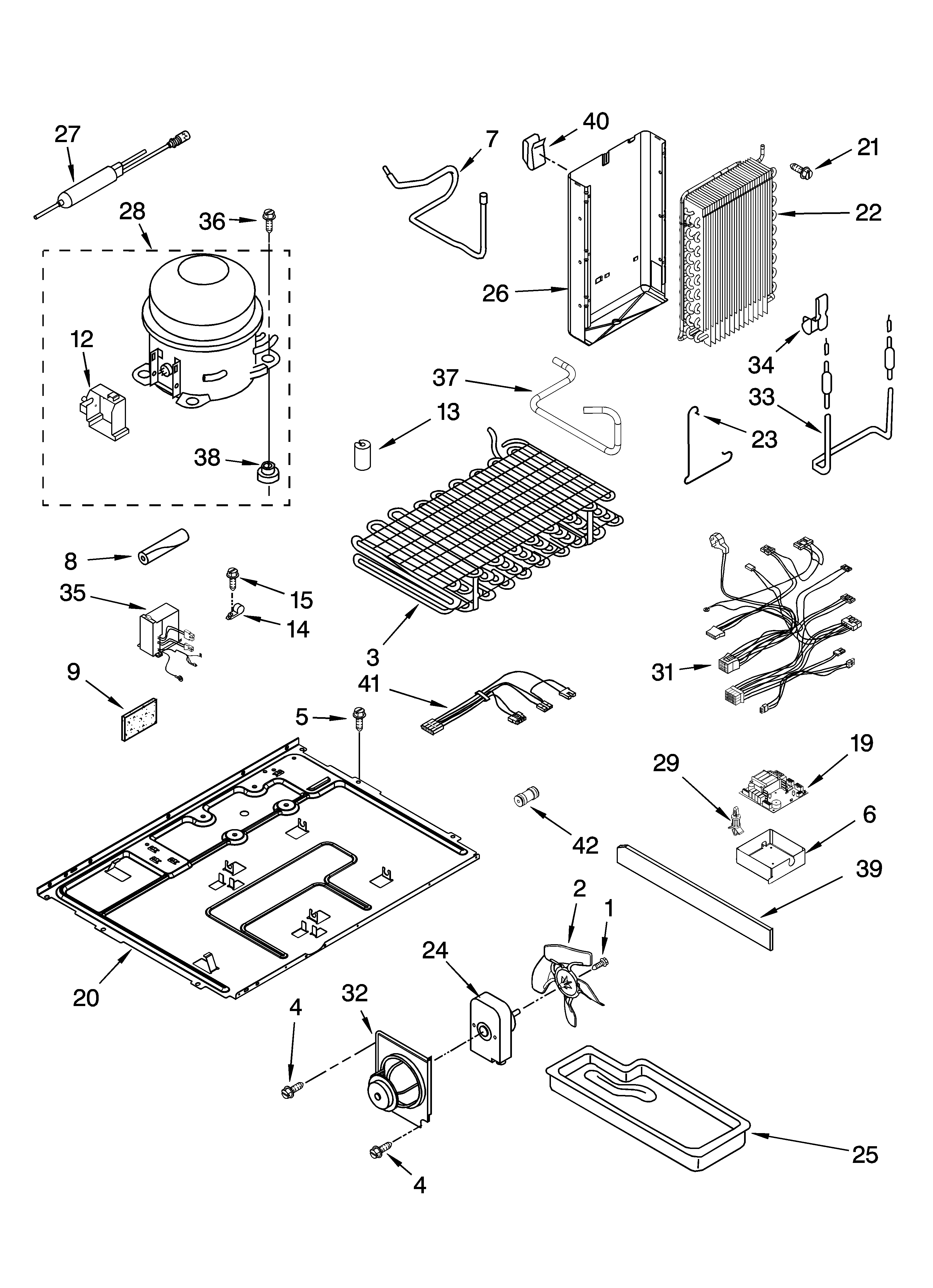

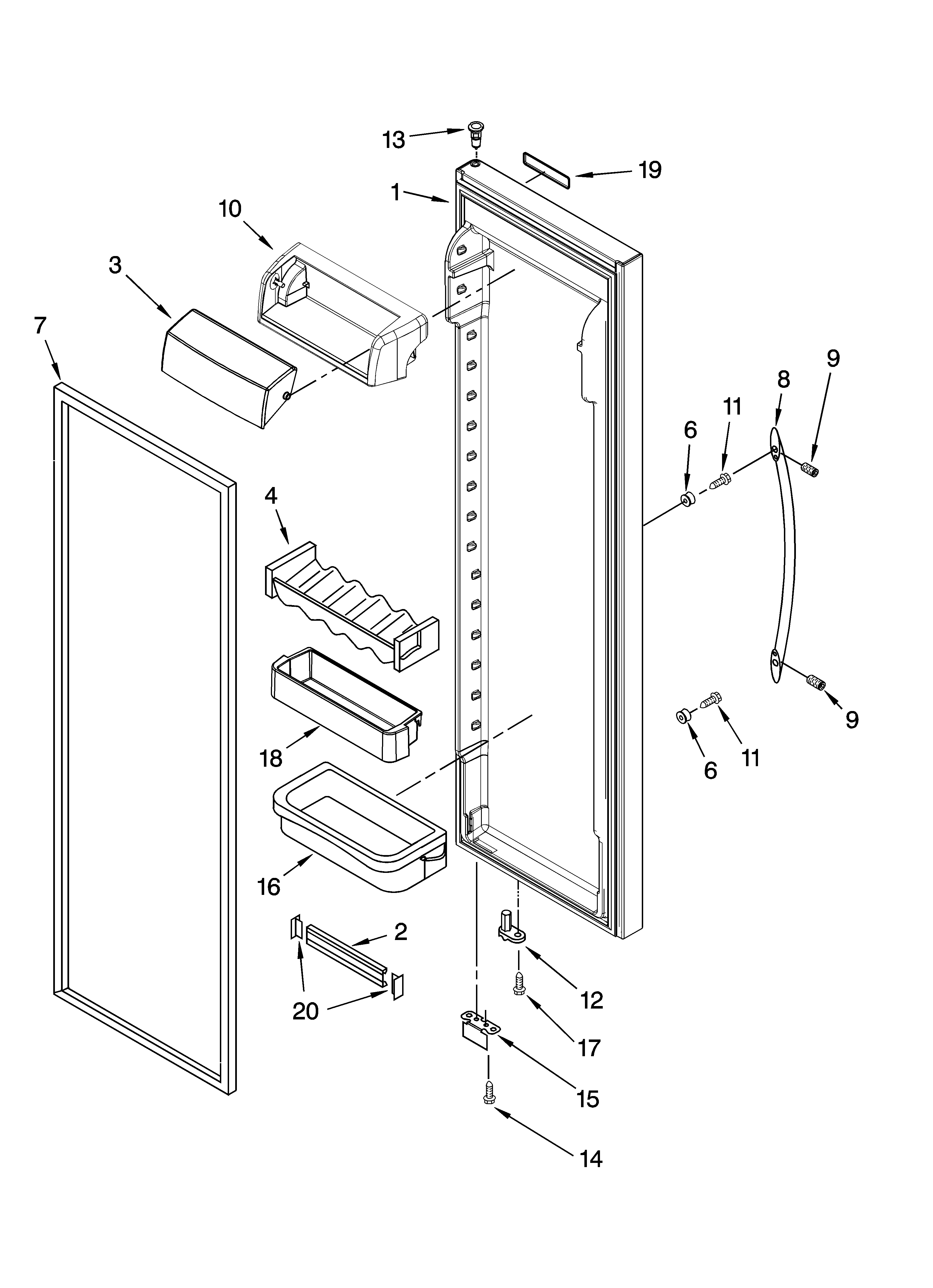

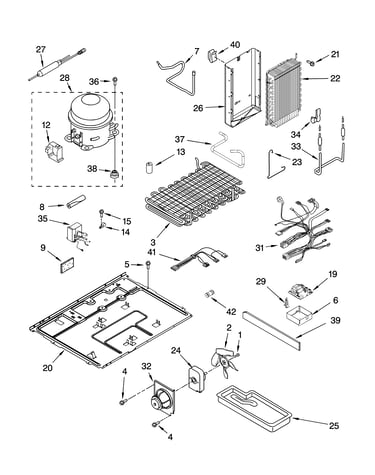

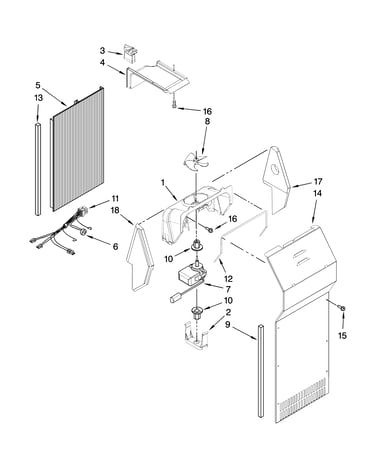

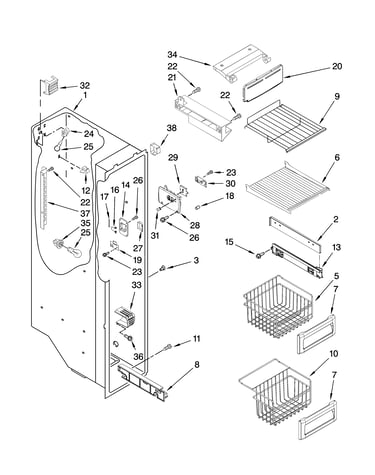

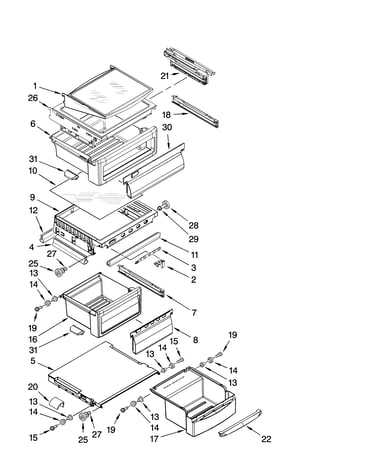

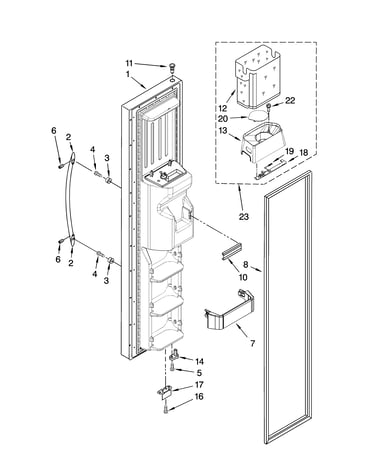

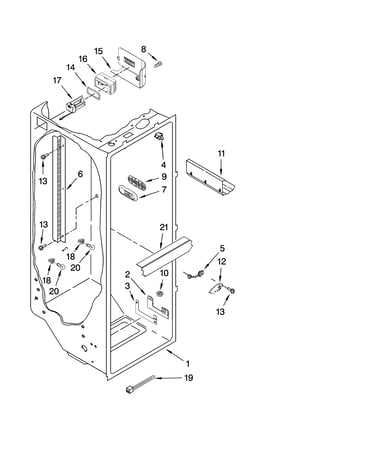

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 260 parts

    Whirlpool EveryDrop 3 Refrigerator Water Filter#28

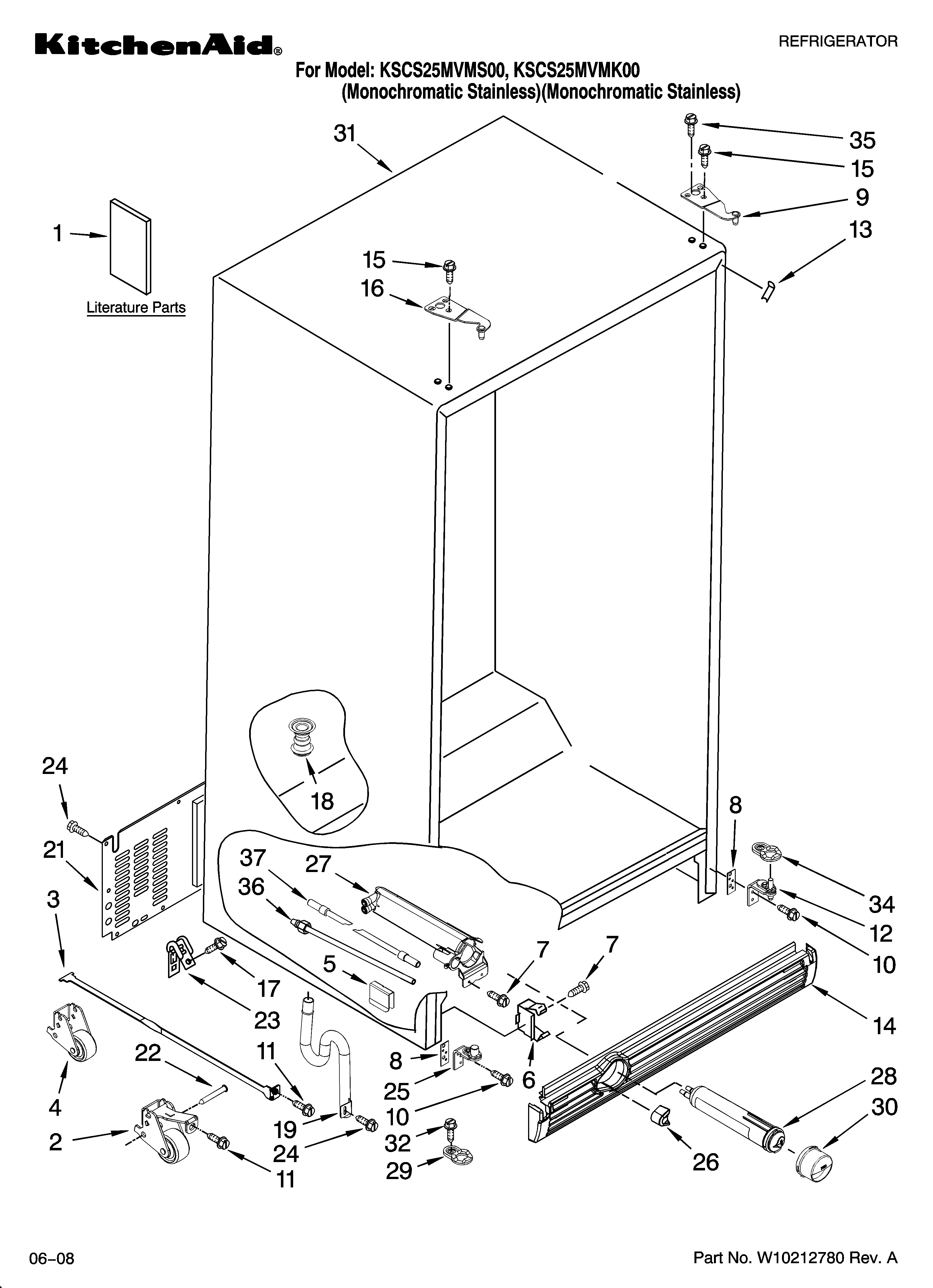

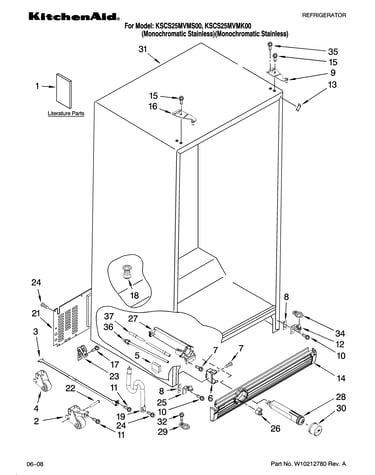

    Cabinet parts Diagram

    Refrigerator filter

    Part #8212650
    Replaced by #EDR3RXD1
    ?
    Manufacturer substitution
    This part replaces 8212650. Substitute parts can look different from the original.
    BEST SELLER

    Get free shipping with Automatic Reorder

    Back Order
    $59.99

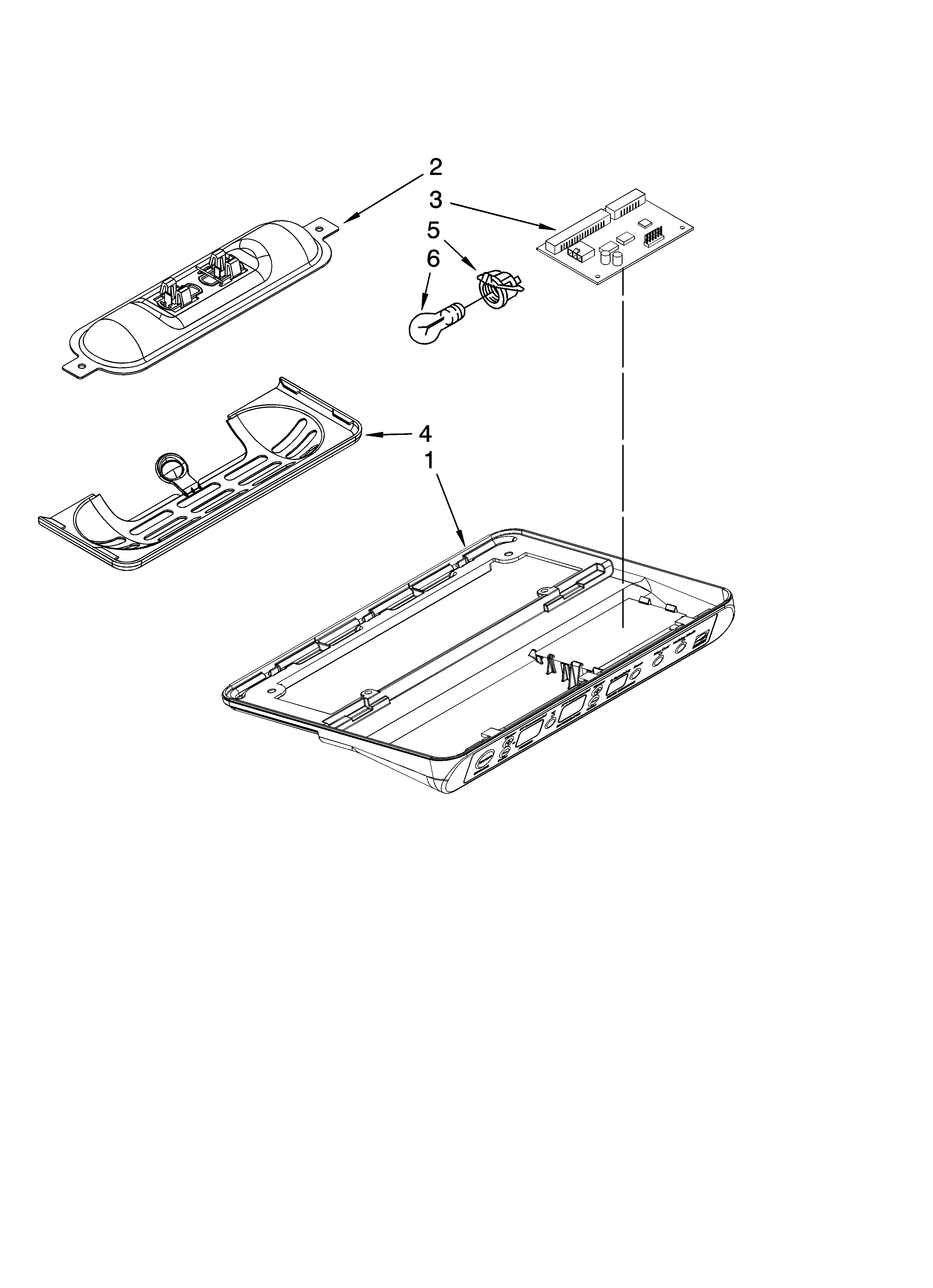

    Appliance Light Bulb, 40-watt

    See All Related Diagrams

    Refrigerator light bulb

    Part #2255743
    Replaced by #40A15
    ?
    Manufacturer substitution
    This part replaces 2255743. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $6.50
    Refrigerator Ice Maker Assembly#100

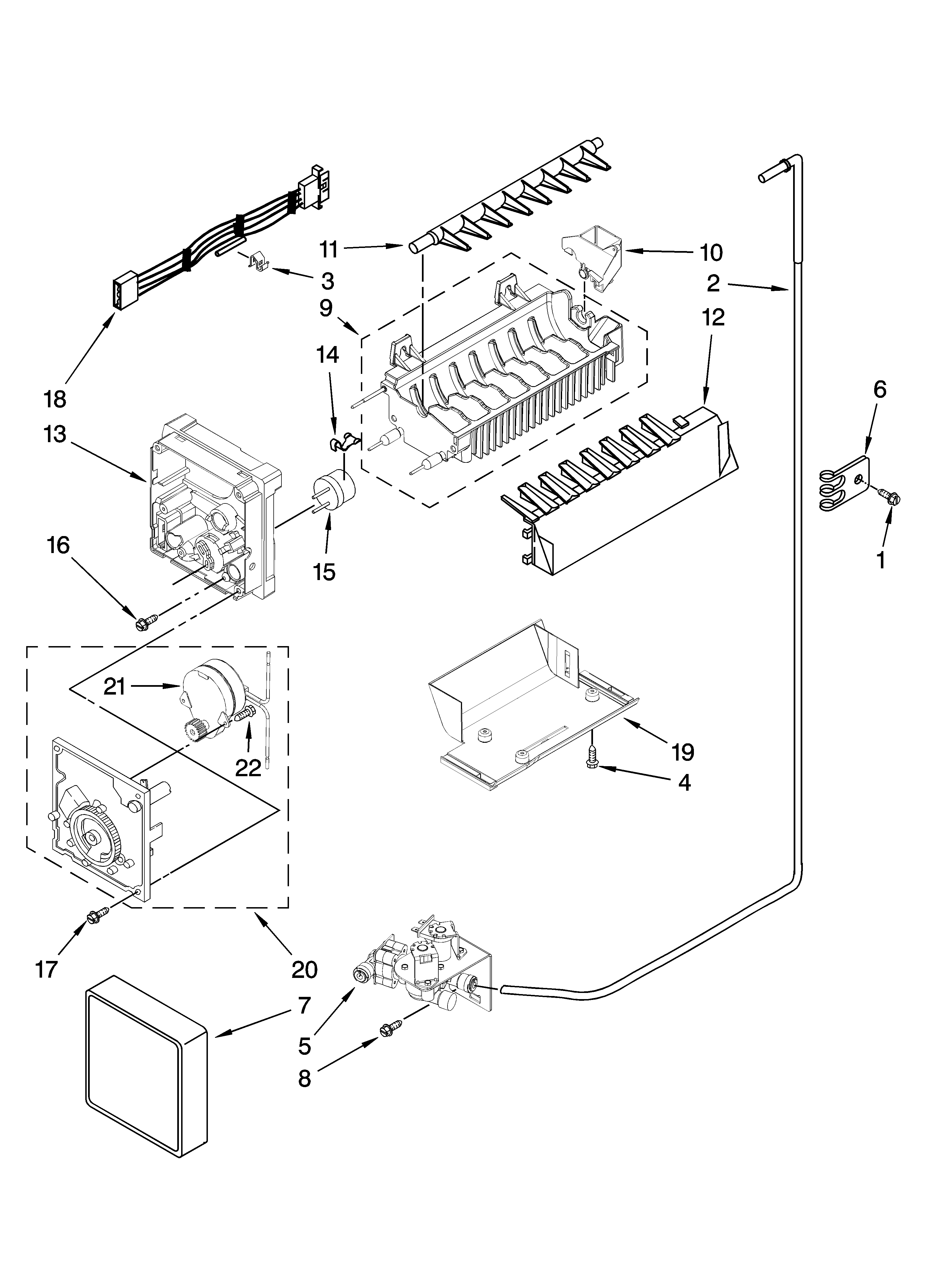

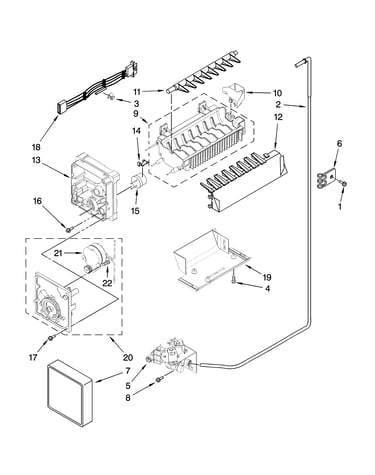

    Icemaker parts, optional parts (not included) Diagram

    Refrigerator ice maker

    Part #W10190960
    Replaced by #2198597
    ?
    Manufacturer substitution
    This part replaces W10190960. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $168.59
