Kenmore
Side-By-Side Refrigerator

Model #59695308200 Kenmore side-by-side refrigerator

Here are the repair parts and diagrams for your Kenmore 59695308200 side-by-side refrigerator.

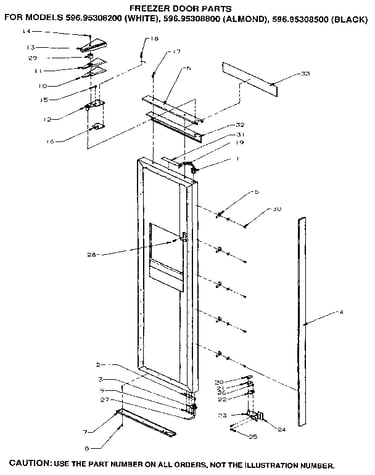

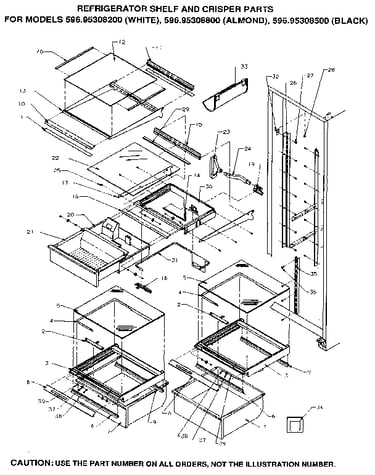

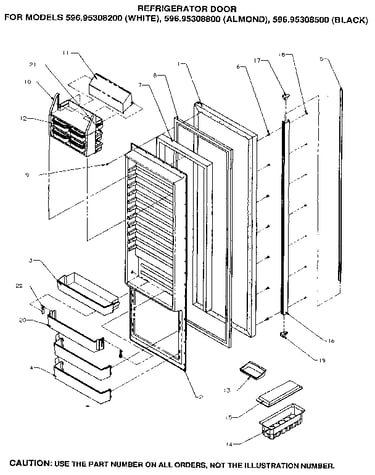

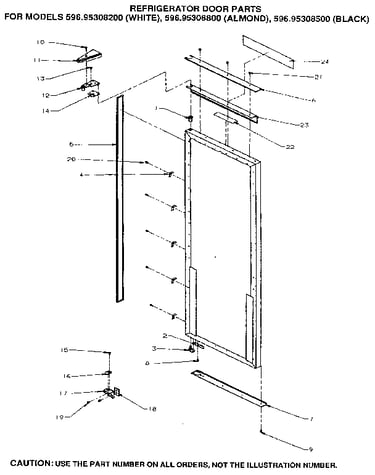

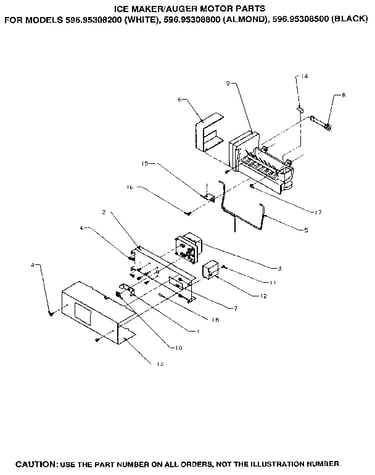

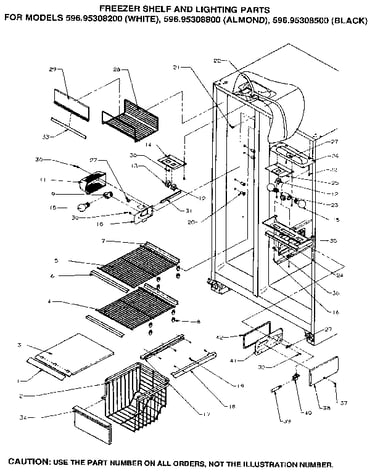

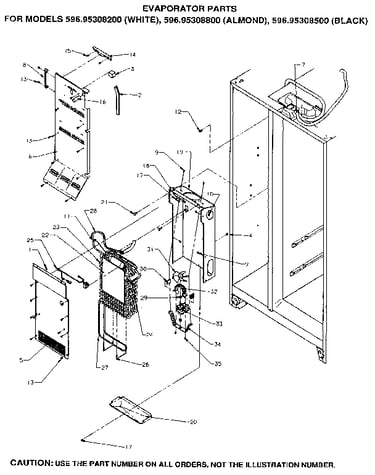

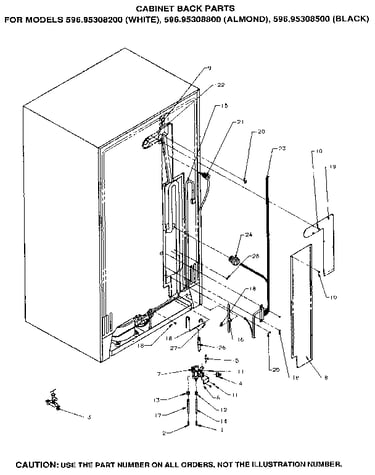

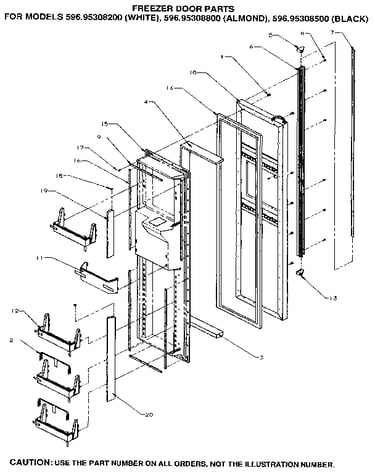

The diagram(s) below can help you find the right part.  If you’d like help, we invite you to call our customer service number at the top of the page, or click chat.

On this page, you can also find any manuals, installation guides and error code tables associated with this model.

For advice on diagnosing problems with appliances, lawn & garden equipment and other products, check out the videos, repair guides and articles in our DIY section.

Save to my profileError Codes

Showing 10 of 450 parts

Refrigerator Nut

#1

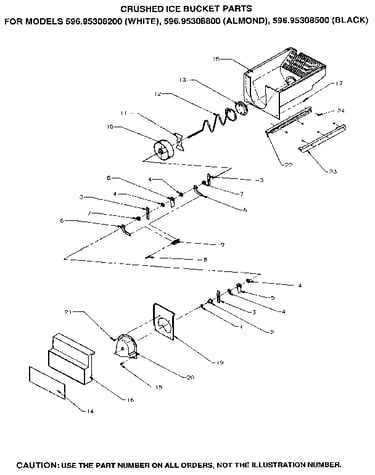

Crushed ice bucket Diagram

Refrigerator nut

Part #WPM0223101
?This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including  M0223101
This part replaces M0223101
This item is not returnable

$3.29

In Stock

Refrigerator Ice Bin

#15

Crushed ice bucket Diagram

Refrigerator ice bin

Part #WP10111905
?This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including  10111901
This part replaces 10111901

$98.09

Back Order

Refrigerator Ice Maker Thermostat Retainer

#6

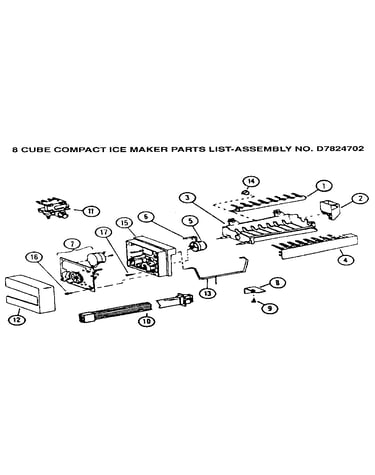

8 cube compact ice maker Diagram

Refrigerator ice maker thermostat retainer

Part #WP2315522
?This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including  R0191094
This part replaces R0191094
This item is not returnable

$7.06

In Stock

Screw

#23

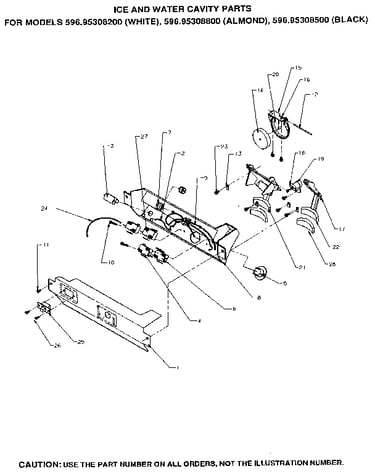

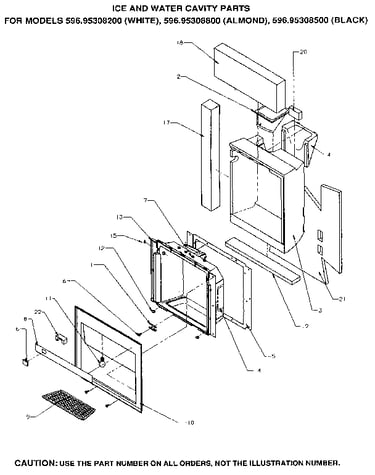

Ice and water cavity Diagram

Screw

Part #M0211018
?This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including  M0211116
This part replaces M0211116
This item is not returnable

$2.78

In Stock

Refrigerator Dispenser Lever

#21

Ice and water cavity Diagram

Refrigerator dispenser lever

Part #12002642
?This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including  D7750303
This part replaces D7750303

$33.57

In Stock

Refrigerator Speed Nut

#4

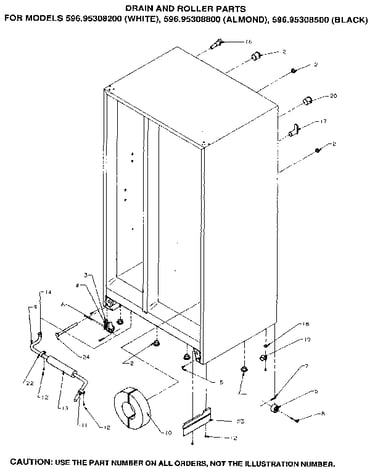

Drain and roller Diagram

Refrigerator speed nut

Part #M0286708
?This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including  M0286708
This part replaces M0286708

$24.21

In Stock

Refrigerator Freezer Glide

#22

Crushed ice bucket Diagram

Refrigerator freezer glide

Part #67005375
?This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including  D7849903
This part replaces D7849903

$148.51

In Stock

Screw

#30

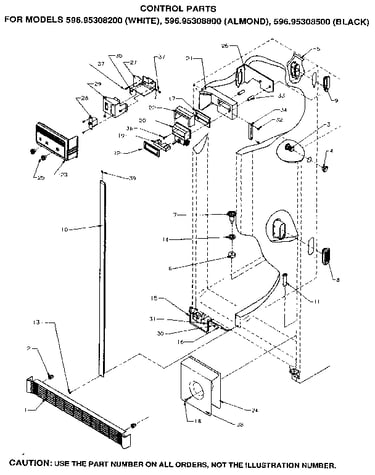

Control Diagram

Screw

Part #M0211016
?This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including  M0211016
This part replaces M0211016
This item is not returnable

$4.20

In Stock

Refrigerator Screw

#13

Control Diagram

Refrigerator screw

Part #W11245710
?This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including  M0210816
This part replaces M0210816

$7.79

In Stock

Refrigerator Screw

#3

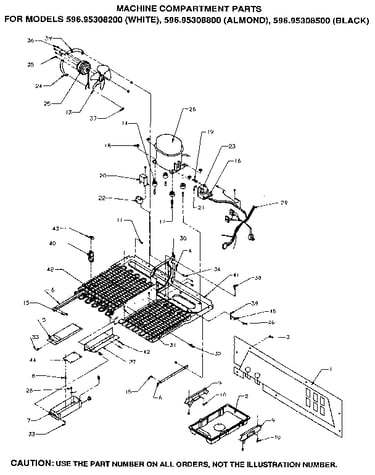

Machine compartment Diagram

Refrigerator screw

Part #WP489464
?This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including  M0219704
This part replaces M0219704
This item is not returnable

$4.78

In Stock
