Kenmore 62534713 automatic water softener

Kenmore 62534713 automatic water softener Parts

Here are the diagrams and repair parts for Kenmore 62534713 automatic water softener, as well as links to manuals and error code tables, if available.

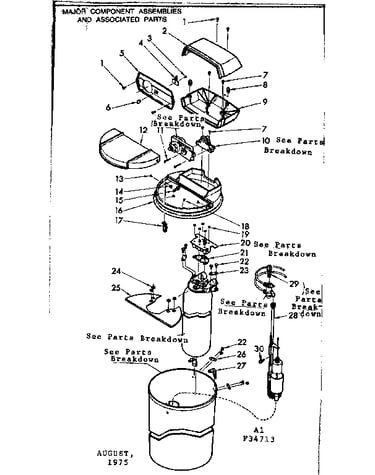

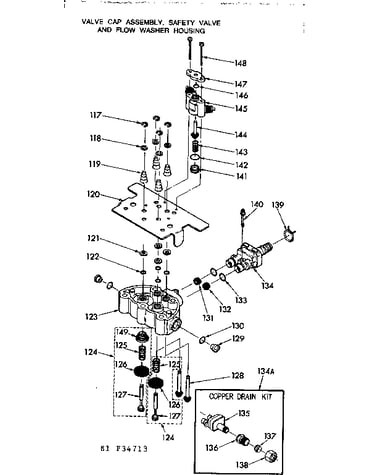

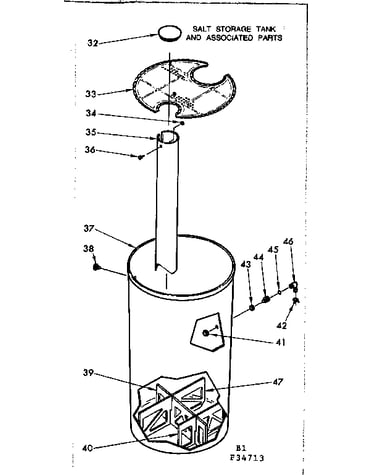

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for 62534713 Water Treatment

  • Water Softener Ferrule Nut for Kenmore 62534713 - Part 1202600

    Nut

    Part #503514

    Replaced by #1202600

    Info Icon
    Manufacturer substitution
    This part replaces 503514. Substitute parts can look different from the original.
    In Stock
    $10.36
    16% OFF Phone Price : $12.36Info Icon
    Minus Item
    Qty
    Plus Item
  • Water Softener Ferrule Nut for Kenmore 62534713 - Part 1202600

    Ferrule

    Part #503862

    Replaced by #1202600

    Info Icon
    Manufacturer substitution
    This part replaces 503862. Substitute parts can look different from the original.
    In Stock
    $10.36
    16% OFF Phone Price : $12.36Info Icon
    Minus Item
    Qty
    Plus Item
  • Water Softener Resin for Kenmore 62534713 - Part 0502272

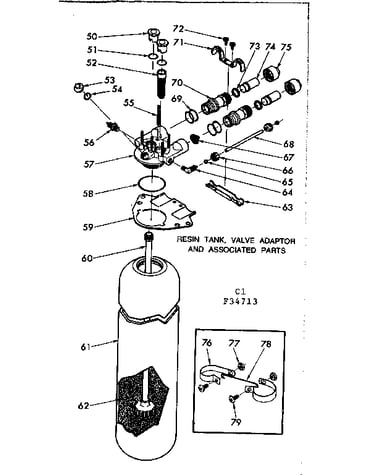

    Resin tank, valve adaptor & assoc. parts diagram

    Resin

    Part #505644

    Replaced by #0502272

    Info Icon
    Manufacturer substitution
    This part replaces 505644. Substitute parts can look different from the original.
    In Stock
    $274.79
    $12.00 OFF Phone Price : $286.79Info Icon
    Minus Item
    Qty
    Plus Item
  • Water Softener Brine Valve Float And Seal for Kenmore 62534713 - Part 7097202

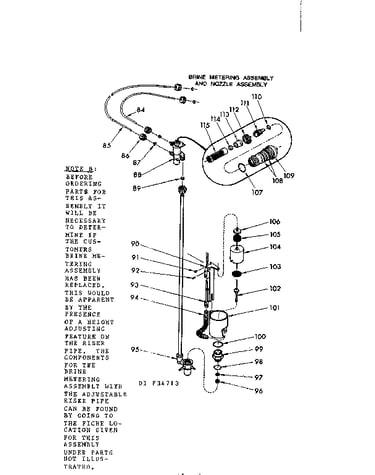

    Brine metering assem. & nozzle assem. diagram

    Float

    Part #516914

    Replaced by #7097202

    Info Icon
    Manufacturer substitution
    This part replaces 516914. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $7.93
    11% OFF Phone Price : $8.93Info Icon
    Minus Item
    Qty
    Plus Item
  • Float Seal for Kenmore 62534713 - Part 0516947

    Brine metering assem. & nozzle assem. diagram

    Water Softener Brine Valve Float Seal

    Part #516947

    Replaced by #0516947

    Info Icon
    Manufacturer substitution
    This part replaces 516947. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $10.36
    16% OFF Phone Price : $12.36Info Icon
    Minus Item
    Qty
    Plus Item

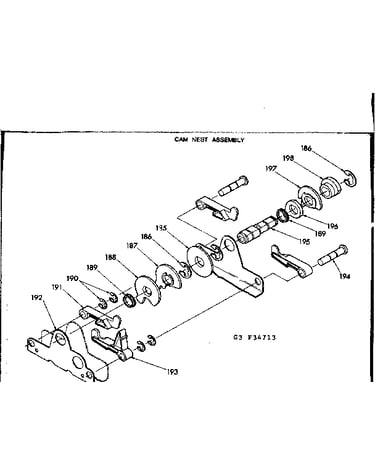

  • Whirlpool Water Softener Cam Bearing for Kenmore 62534713 - Part 0503288

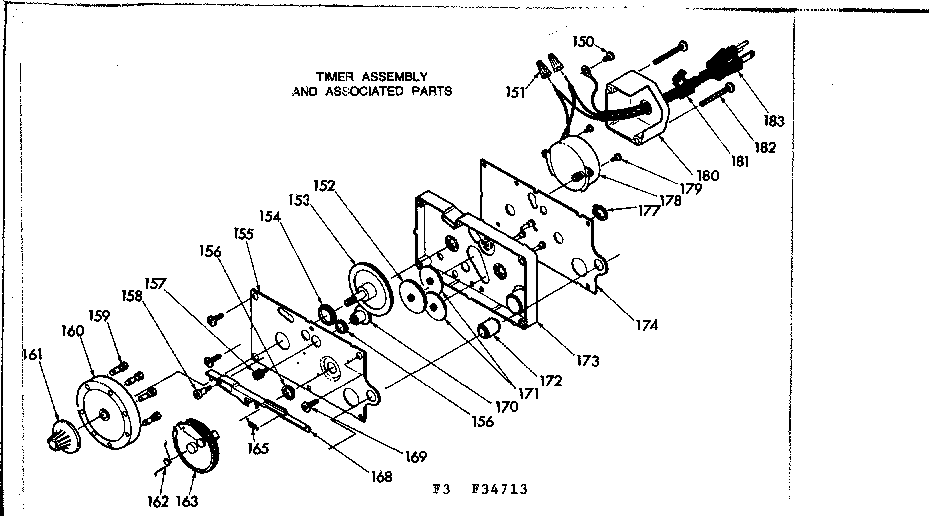

    Timer assembly & associated parts diagram

    Bushing

    Part #503288

    Replaced by #0503288

    Info Icon
    Manufacturer substitution
    This part replaces 503288. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $10.68
    16% OFF Phone Price : $12.68Info Icon
    Minus Item
    Qty
    Plus Item
  • Water Softener Brine Valve Float Seal for Kenmore 62534713 - Part 0516211

    Brine metering assem. & nozzle assem. diagram

    Water Softener Brine Valve Seal

    Part #516211

    Replaced by #0516211

    Info Icon
    Manufacturer substitution
    This part replaces 516211. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $10.68
    16% OFF Phone Price : $12.68Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Water Softener Installation Adapter Tube for Kenmore 62534713 - Part 0507615

    Resin tank, valve adaptor & assoc. parts diagram

    Tube

    Part #507615

    Replaced by #0507615

    Info Icon
    Manufacturer substitution
    This part replaces 507615. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $23.90
    20% OFF Phone Price : $29.90Info Icon
    Minus Item
    Qty
    Plus Item
  • Water Softener Brine Valve Float Weight for Kenmore 62534713 - Part 7168647

    Brine metering assem. & nozzle assem. diagram

    Lead Washer

    Part #505957

    Replaced by #7168647

    Info Icon
    Manufacturer substitution
    This part replaces 505957. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $21.55
    22% OFF Phone Price : $27.55Info Icon
    Minus Item
    Qty
    Plus Item
  • Bushing for Kenmore 62534713 - Part 503287

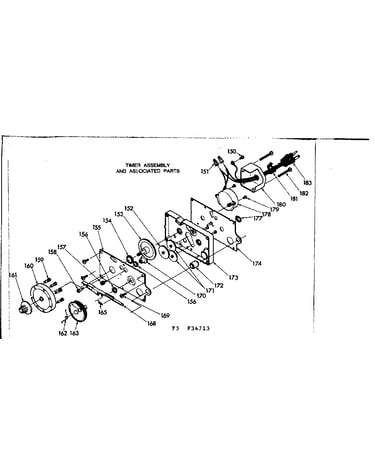

    Timer assembly & associated parts diagram

    Bushing

    Part #503287
    This item is not returnable
    In Stock
    $2.99
    Minus Item
    Qty
    Plus Item
