Model # MER6772BAS Official Maytag range

Here are the diagrams and repair parts for Official Maytag MER6772BAS range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

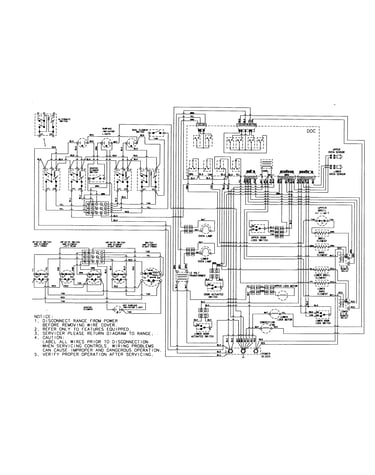

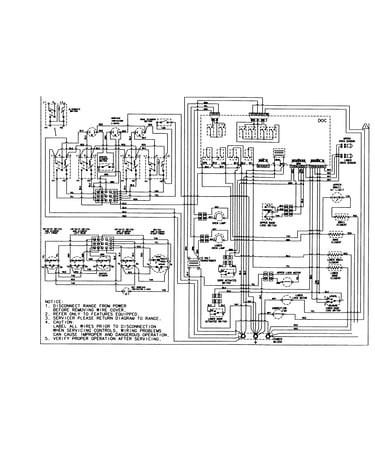

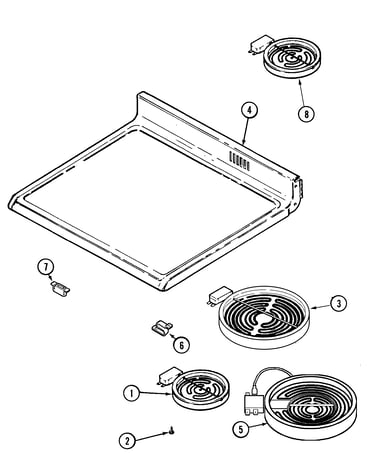

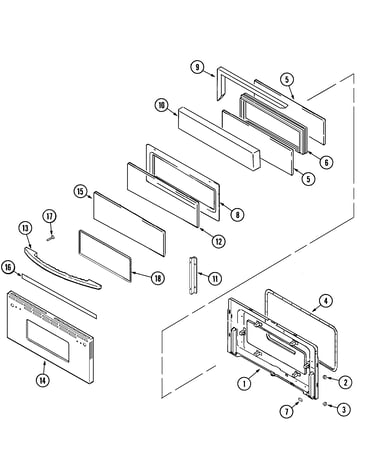

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
PART LIST
Showing 10 of 173 parts  |
Range Bake Element (replaces 7406P428-60)
#2

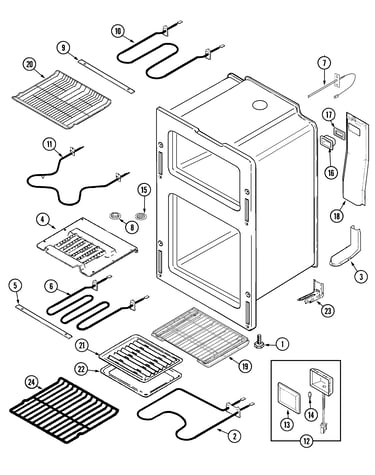

Oven diagram

Grill element

Part #74004107

Replaced by #WP7406P428-60

?
Manufacturer substitution
This part replaces 74004107. Substitute parts can look different from the original.
BEST SELLER
$39.05 |
11% OFF Phone Price : $44.05
In Stock
Range Bake Element (replaces 7406P427-60, W10314702)
#11

Oven diagram

Range bake element (replaces 7406p427-60, w10314702)

Part #74004105

BEST SELLER
$67.16 |
7% OFF Phone Price : $72.16
In Stock
Range Oven Light Bulb (replaces 74004458, 74009925)
#14

Oven diagram

Range oven light bulb

Part #74004458

Replaced by #WP74009925

?
Manufacturer substitution
This part replaces 74004458. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$19.19 |
9% OFF Phone Price : $21.19
Back Order
Range Broil Element (replaces 74004106, 7406P237-60, 7406P474-60)
#10

Oven diagram

Broiler element

Part #74004106

Replaced by #W10201551

?
Manufacturer substitution
This part replaces 74004106. Substitute parts can look different from the original.
BEST SELLER
$47.29 |
10% OFF Phone Price : $52.29
In Stock
Range Oven Door Gasket (replaces W10162384)
#15

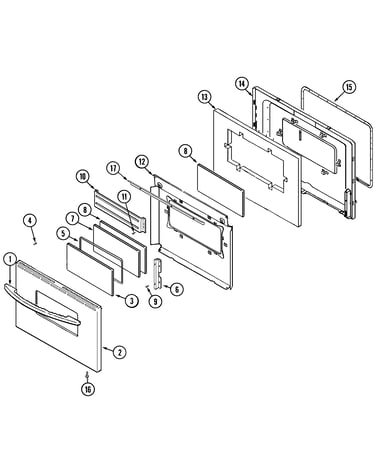

Door (lower-bac/bas) diagram

Door gasket

Part #7201P046-60

Replaced by #WPW10162384

?
Manufacturer substitution
This part replaces 7201P046-60. Substitute parts can look different from the original.
$64.38 |
7% OFF Phone Price : $69.38
In Stock
Range Oven Rack
#24

Oven diagram

Oven rack

Part #74001757

Replaced by #WPW10282492

?
Manufacturer substitution
This part replaces 74001757. Substitute parts can look different from the original.
$56.89 |
8% OFF Phone Price : $61.89
In Stock
Refrigerator Screw (replaces W10362924, W11546547, WP489355)
#29

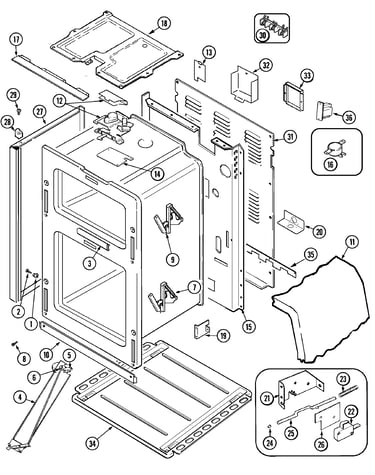

Body diagram

Screw

Part #7101P313-60

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 7101P313-60. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Range Surface Element Control Switch (replaces 7403P238-60)
#4A

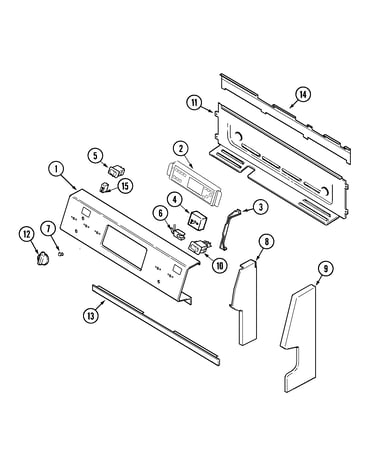

Control panel diagram

Range surface element control switch

Part #7403P238-60

Replaced by #WP7403P238-60

?
Manufacturer substitution
This part replaces 7403P238-60. Substitute parts can look different from the original.
$50.39 |
10% OFF Was : $55.99
In Stock
Refrigerator Screw (replaces W10362924, W11546547, WP489355)
Screw

Part #7101P338-60

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 7101P338-60. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Refrigerator Screw (replaces W10362924, W11546547, WP489355)
Screw

Part #74001530

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 74001530. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
