Craftsman 358341060 chainsaw Parts

On the Craftsman 358341060 electric chainsaw, the serial number is typically stamped or printed on the motor housing on a flat spot. Once you find it, record it exactly as shown so you can match the correct parts and documentation.

Where to check on the saw

Look for a label, stamp, or etched marking in these common locations:

• Motor housing (either side), especially on a flat surface
• Near the power cord entry point or cord strain relief
• Around the handle area where labels are easier to read
• Near the bar clamp area (close to where the guide bar mounts)
• On the underside of the housing (you may need to turn the saw over)

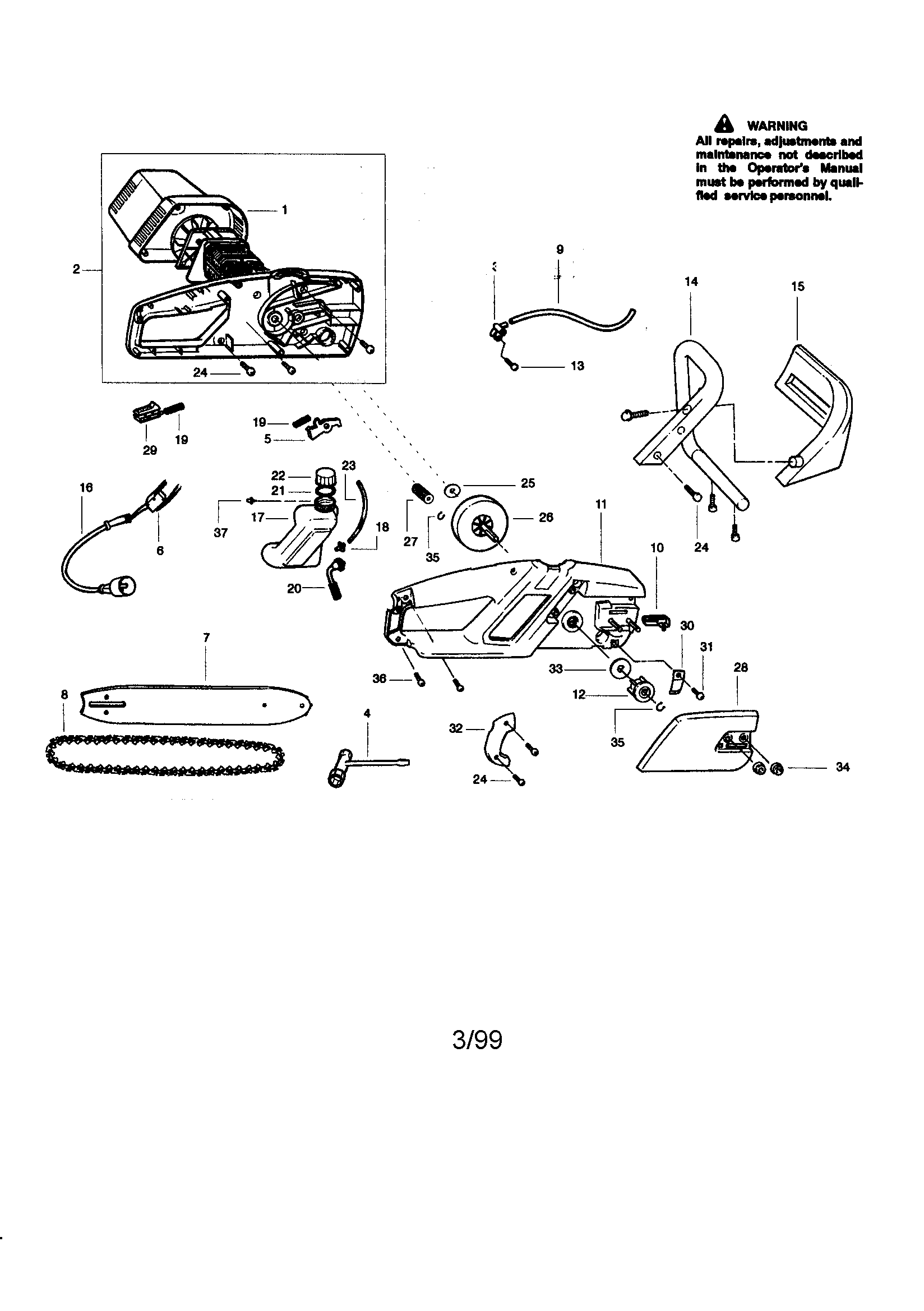

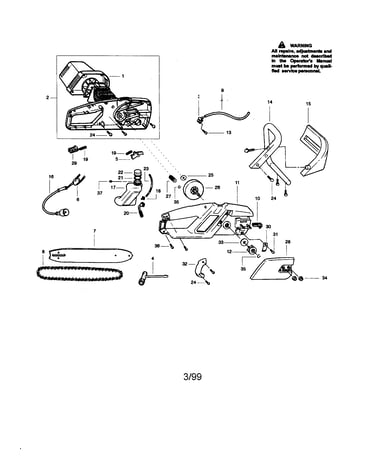

For diagrams and the names of key components (bar oil cap, handguard, bar clamp, chain adjustment screw), use the 358341060 owner's manual.

How to read and record it

Serial numbers vary by production run, but these tips help avoid mistakes:

• Write down every digit and letter in order
• Copy any dashes or spaces only if they appear on the label
• Take a clear photo before the label gets dirty or worn
• Record the model number too: 358341060 (model and serial are different)

If the label is dirty or hard to see

Use safe cleaning steps so you do not damage the marking:

• Unplug the chainsaw before handling it
• Wipe with a dry cloth first, then a slightly damp cloth
• Avoid harsh solvents that can remove printed ink
• Use a flashlight at an angle to make stamped numbers stand out

Why it matters

We use the serial number to help confirm the correct version of parts and documentation for your Craftsman chainsaw, especially for items that must match the saw’s bar and chain setup.

What you have	What it’s used for
Model number (358341060)	Identifies the product family and parts list
Serial number	Identifies the specific unit and production run

If you need replacement cutting components after you identify your unit, common matches for this model include the bar 16" 160SDET041 and the chain 91PX056G. You can also search by model number on Sears PartsDirect.

Last updated: February 2026

The model number for this Craftsman electric chainsaw is 358341060. You’ll see it printed as 358.341060 in the documentation for the 12 Amp electric chain saw with a 16-inch bar; confirm the exact formatting on the product label and in the 358341060 owner's manual.

Where to find the model number on the saw

We typically see the model number in one of these spots on Craftsman chainsaws:

• On the rating/data label on the motor housing or handle area
• Near the power cord entry point or trigger handle
• On the original carton label (if you still have it)
• In the operator documentation (cover page and parts list)

Model number vs. part numbers (quick comparison)

Use the model number to match the correct parts diagram; use part numbers and part IDs to order the exact replacement.

What you’re looking at	Example for this saw	What it’s used for
Model number	358341060 (often shown as 358.341060)	Identifies the exact chainsaw version
Part number	71-3629	Manufacturer number for a replacement part
Part ID	91PX056G	Sears PartsDirect identifier for the part page

Common parts that must match the model

If you’re confirming the model so you can buy the right cutting components, these are the most common match-critical items:

• Guide bar length and mount pattern (example: bar 16" 160SDET041)
• Chain pitch, gauge, and drive link count (example: chain 91PX056G)
• Chain brake components (example: ayp chainsaw chain brake assembly 530029850)

Why it matters

Using the correct model number (358341060) prevents ordering a bar, chain, or chain brake that fits a different Craftsman platform. Even small differences in bar mount or chain specs can cause poor cutting performance or unsafe operation.

You can also search by model number on Sears PartsDirect to pull up the exact parts list and diagrams for 358341060.

Last updated: February 2026

For the Craftsman 358341060 electric chainsaw, Craftsman is the brand on the tool; the actual manufacturer can vary by production run and era. The most reliable way to identify who built your specific saw is to match the model and identification information shown in the 358341060 owner's manual and on the saw’s data label.

How to identify the manufacturer on your specific saw

We use the model number to find the correct parts and documentation, but the manufacturer is best confirmed from the unit’s identification markings.

• Unplug the chainsaw before inspecting labels or removing covers.
• Look for a data label on the housing, handle area, or near the motor vents.
• Note the full model number (358341060) and any additional prefix/suffix codes.
• Check for an “assembled by” or manufacturer name line on the label.
• Compare what you find to the model information in the 358341060 owner's manual.

What we can confirm from the documentation

The operator’s manual for this model identifies it as a Craftsman electric chain saw with a 16-inch bar and provides operating and maintenance guidance (for example, bar and chain oil recommendations and chain tension checks). That confirms the model and configuration, not a single universal manufacturer name.

Quick reference (model-level)

Item	What we use it for	Where to find it
Model number: 358341060	Correct parts lookup and manual match	Data label and manual cover
Bar size: 16 in.	Matching bar and chain	Manual cover and parts list
Brand: Craftsman	Product line/labeling	Manual and housing

Why it matters

Manufacturer identification helps when you are matching exact replacement parts (bar, chain, chain brake components) and when you are following the correct safety and maintenance procedures for your specific build.

If you are replacing wear items, we list model-matched options such as the bar 16" 160SDET041 and the chain 91PX056G.

Last updated: February 2026

On the Craftsman 358341060 electric chainsaw, the chain keeps coming loose when the bar nuts are not tightened after tensioning, the adjusting screw is not set to remove sag, or the chain and guide bar are worn or mismatched. Set tension with the saw unplugged, then tighten the bar nuts.

Fix chain tension the right way (model-specific)

We follow the tensioning steps in the 358341060 owner's manual:

• Unplug the chainsaw before adjusting the chain.
• Loosen the bar nuts until they are finger tight.
• Turn the adjusting screw until the chain does not sag below the guide bar.
• Hold the tip of the guide bar up while you finish setting tension.
• Tighten the bar mounting nuts with a wrench.
• Recheck tension after a short test run; new chains stretch slightly.

Common causes when tension will not hold

If you tension it correctly and it still loosens, these are the most common reasons:

• Stretched or worn chain: the drive links and rivets wear, so it “grows” during use.
• Worn guide bar rails or nose area: uneven rails let the chain wander and lose tension.
• Loose or damaged hardware: bar nuts, washers, or fasteners not clamping the bar firmly.
• Chain brake issues: a dragging or misbehaving brake can create heat and rapid stretch.

Helpful parts for this model include the chain 91PX056G, the bar 16" 160SDET041, and the ayp chainsaw chain brake assembly 530029850. You can order these from the parts list for model 358341060 or search by model on Sears PartsDirect.

Quick checks before you cut again

• With the saw unplugged, pull the chain along the bar by hand; it should move freely.
• Look for visible sag under the bar; sag means it is too loose.
• Confirm the chain is installed in the correct direction.
• Make sure bar nuts are snugged only after you lift the bar tip and set final tension.

What “correct tension” looks like

Check	What you want	What it means if not
Chain sag under bar	No sag	Too loose; will derail/loosen
Hand-pull along bar	Smooth movement	Too tight or bar rails pinched
After a few cuts	Still snug	Chain stretched or bar/hardware worn

Why it matters

A loose chain can derail, cut rough, and increase kickback risk. Keeping the chain properly tensioned also reduces wear on the guide bar, sprocket area, and chain brake components.

Last updated: February 2026

No. For the Craftsman 358341060 electric chainsaw, we recommend using chainsaw bar and chain oil; it is made to cling to the chain and guide bar for proper lubrication. If bar oil is not available, SAE 30 oil is the correct short-term substitute (not regular motor oil). See the owner's manual for the exact lubrication guidance.

What to use (and what to avoid)

Use the oil that keeps the chain lubricated without flinging off.

• Best choice: chainsaw bar and chain oil
• Acceptable temporary substitute: SAE 30 oil
• Avoid: regular motor oil (it does not stay on the chain as well and can increase wear)
• Never run dry: fill the bar oil tank before each cutting session
• Recheck often: check oil level about every 15 minutes of operation

Quick check: are you getting enough oil?

If the chain looks dry or the saw cuts hot and rough, address lubrication first.

What you notice	What it usually means	What to do next
Chain looks dry, bar gets hot	Oil tank empty or oil not flowing	Refill tank; clean oil outlet and bar oil hole
Oil puddle after stopping	Often normal residual oil	Wipe and monitor; confirm cap is tight
Chain stops in the cut	Inadequate bar/chain lubrication	Verify oil level and oil passages are clear

Parts that can affect oiling

If you see oil seepage at the cap or inconsistent oil pickup, these parts are common suspects.

• Inspect and tighten the oil cap 530150552
• Check the oil pickup for clogging; replace the chainsaw oil pick-up assembly 530047663 if it is damaged or restricted
• Keep the bar oil hole and outlet clear of sawdust buildup

Why it matters

Bar and chain lubrication directly affects chain speed, cutting performance, and guide bar life. Using the right oil reduces friction and helps prevent premature wear on the chain, guide bar, and sprocket.

Last updated: February 2026
