GE PT7550SF2SS electric wall oven Parts

On the GE PT7550SF2SS electric wall oven, an F2 code is a function error that often relates to overheating, a temperature-sensing problem, or a control issue. We recommend canceling the cycle, letting the oven cool fully, then resetting power; if the code returns, focus on the oven temperature sensor circuit and related wiring.

• Press Cancel/Off.
• Let the oven cool for 1 hour.
• Try baking again.
• If the code repeats, turn off power at the breaker for at least 30 seconds, then restore power.
• If the code comes back again, move to sensor and airflow checks in the owner's manual.

A drifting or open sensor can make the control think the oven is too hot.

• Inspect the sensor harness for loose plugs, pinched wires, or heat damage.
• If you have a multimeter, test the sensor resistance at room temperature (many oven sensors read around 1,080 to 1,100 ohms at about 70°F).
• Replace the sensor if readings are far off or intermittent.

Helpful model-matched part:

• Wall oven temperature sensor WB21X10165

Poor airflow can cause real overheating.

• Make sure the oven vents are not blocked.
• Confirm the cooling fan runs when the oven is hot.
• Verify the bottom air duct opening is free of obstructions (installation checklist item).

Helpful model-matched part:

• Wall oven cooling fan assembly WB26X35088

If the sensor tests good and airflow is normal, the control may be misreading temperatures.

Helpful model-matched part:

• Board sensor WB27X28659

An F2 code is the oven telling you it cannot reliably control temperature. Fixing the sensor circuit or airflow problem helps prevent undercooking, overcooking, and repeated shutdowns.

Last updated: February 2026

A GE PT7550SF2SS electric wall oven lasts 15 years.

• Heat stress on electronics: frequent high-heat cooking and long bake times age control boards and sensors faster.
• Self-clean usage: high temperatures can shorten the life of door locks, wiring, and temperature sensing parts.
• Door seal condition: a worn gasket leaks heat, forcing longer run times and more cycling.
• Cooling airflow: blocked vents or a weak cooling fan raises internal temperatures.
• Prompt repairs: replacing a failing sensor or fan early prevents bigger failures.

If your oven starts running hot/cold, takes longer to preheat, or throws temperature-related errors, these model-matched parts are common fixes:

• Wall oven temperature sensor WB21X10165
• Wall oven cooling fan assembly WB26X35088
• Wall oven door seal WB35X32825

A wall oven that holds temperature accurately and vents heat correctly cooks more evenly and puts less strain on major components like the control board and wiring harness. Following the cleaning and use guidance in the owner's manual helps you reach the full 15-year service life.

Last updated: February 2026

To disable Control Lock on your GE PT7550SF2SS electric wall oven, press and hold the Lock Controls pad for 3 seconds to unlock the control panel. The Cancel/Off pad stays active even when the controls are locked (see the owner's manual).

• Press and hold Lock Controls for 3 seconds.
• Watch for the lock indicator to turn off (or for the display to confirm unlock).
• Try a simple function (like Oven Light or Bake) to confirm the keypad responds.
• If the oven is running, use Cancel/Off to stop cooking (it works even while locked).

Control Lock is a keypad feature, so problems are usually related to the touch panel, power, or a stuck key.

• Reset power: turn the breaker off for 1 minute, then back on.
• Make sure you are pressing the correct pad: Lock Controls (not Remote Enable).
• Press firmly and hold the full 3 seconds.
• If the keypad seems unresponsive in multiple areas, inspect for moisture or residue on the control surface and wipe it dry.

Control Lock prevents accidental keypad presses during cleaning or when children are nearby. Knowing that Cancel/Off is always active helps you stop the oven quickly even if the panel is locked.

Last updated: February 2026

An electric oven like the GE PT7550SF2SS is built around heating, temperature sensing, airflow, lighting, and door-sealing parts that work together to cook evenly and safely. The most common “core” parts are the bake and broil heating elements, oven racks, temperature sensor, cooling fan system, and the door gasket.

• Heating system: bake element (bottom) and broil element (top)
• Temperature control: oven temperature sensor and electronic control board(s)

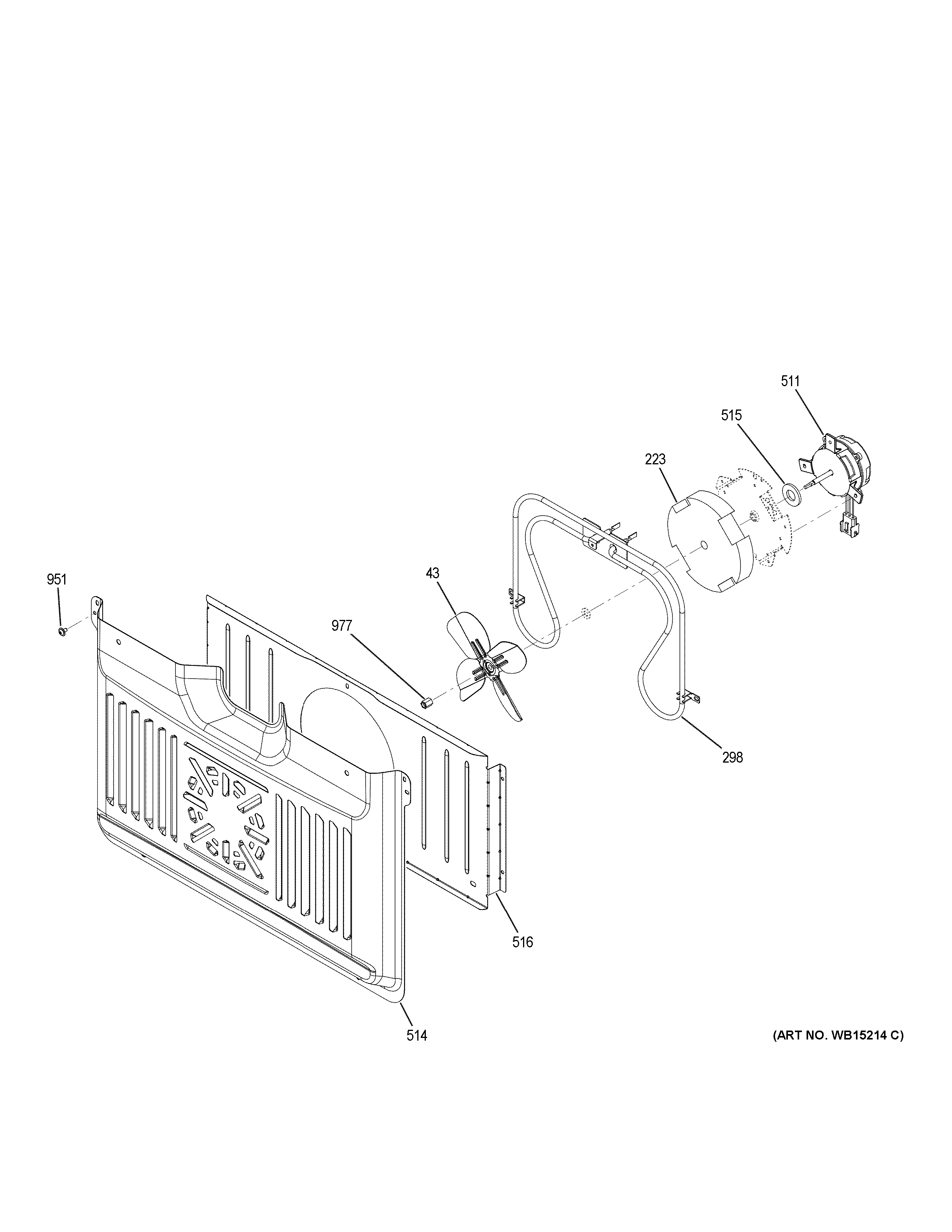

• Airflow and cooling: convection fan (if equipped) and cooling fan assembly

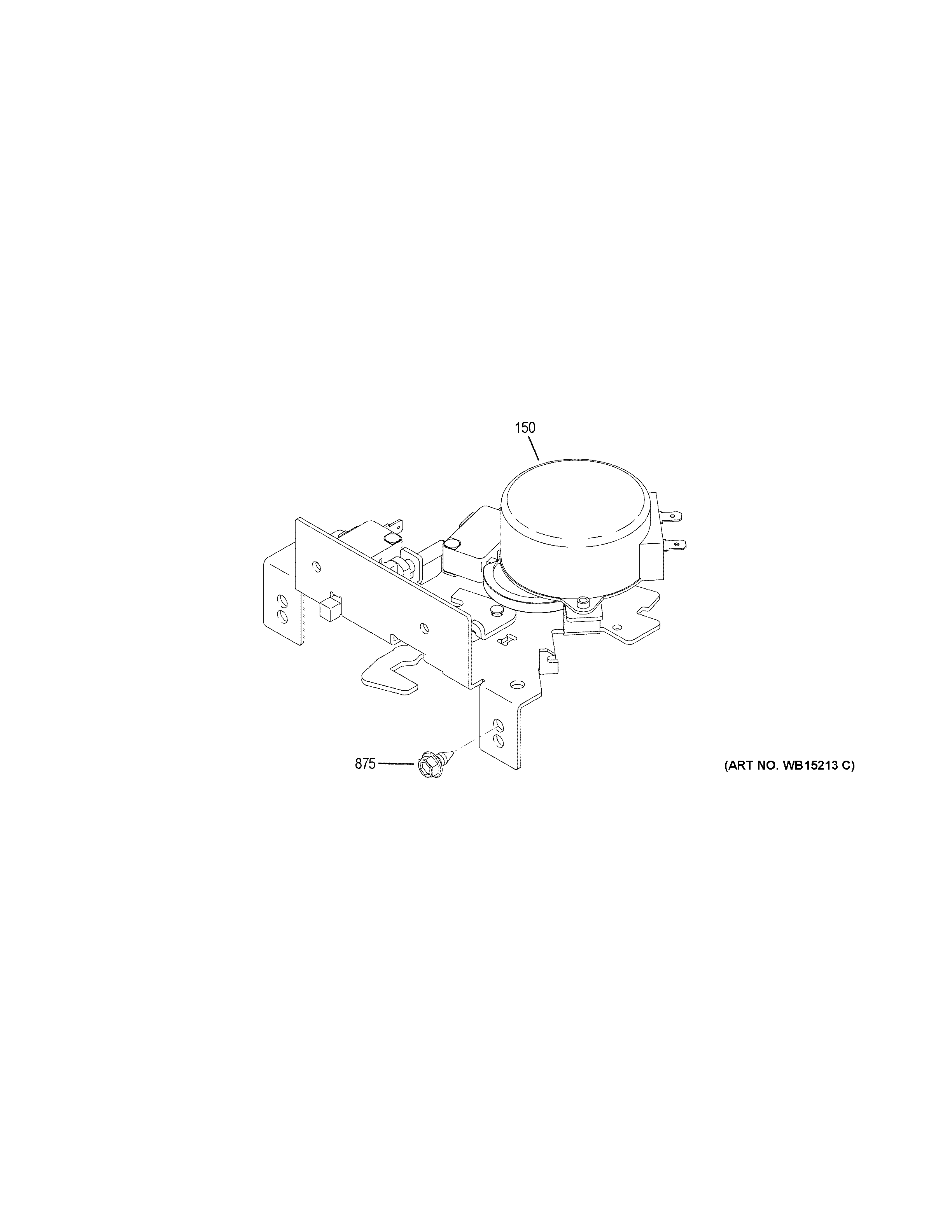

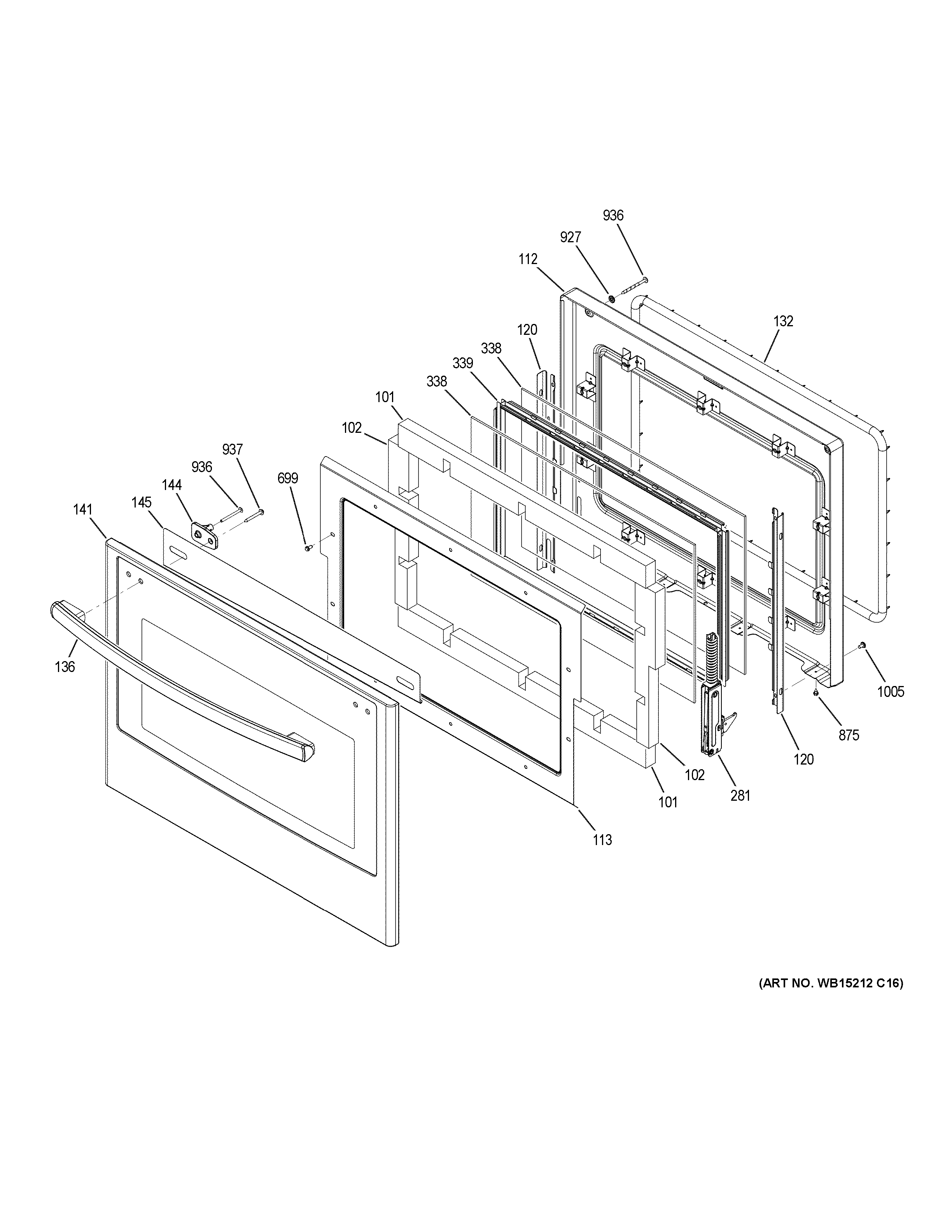

• Door and safety: door hinges, door seal (gasket), and door lock/latch (on models with self-clean)
• Interior basics: oven racks, rack supports, and the oven light bulb

These are examples of parts we commonly see serviced on this model:

Knowing the major oven components helps you troubleshoot faster. For example, uneven baking often points to a heating or sensing issue, while excessive exterior heat or long cool-down times often point to the cooling fan system.

• Turn off power at the breaker before inspecting wiring or components.
• Confirm the symptom (no heat, slow preheat, uneven bake, door won’t unlock, no light).
• Check the easiest items first (light bulb, door seal condition, loose connectors).
• Use the wiring diagram and component locations in the PT7550SF2SS owner’s manual.
• If the oven is being installed or reinstalled, follow the hard-wiring and junction box requirements in the PT7550SF2SS installation guide.

Last updated: February 2026
