Gas Snowblower

Model # C950-52475-8 Official Craftsman 5-hp snow thrower

Here are the diagrams and repair parts for Official Craftsman C950-52475-8 5-hp snow thrower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

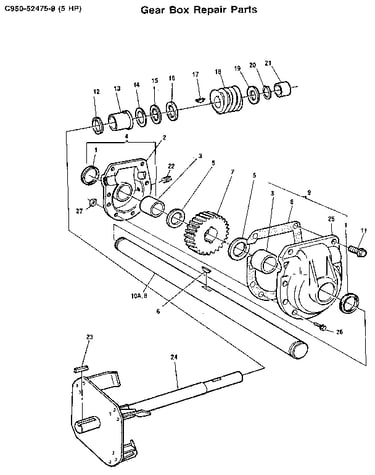

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 213 parts  |
Disc Wheel 53830
#63

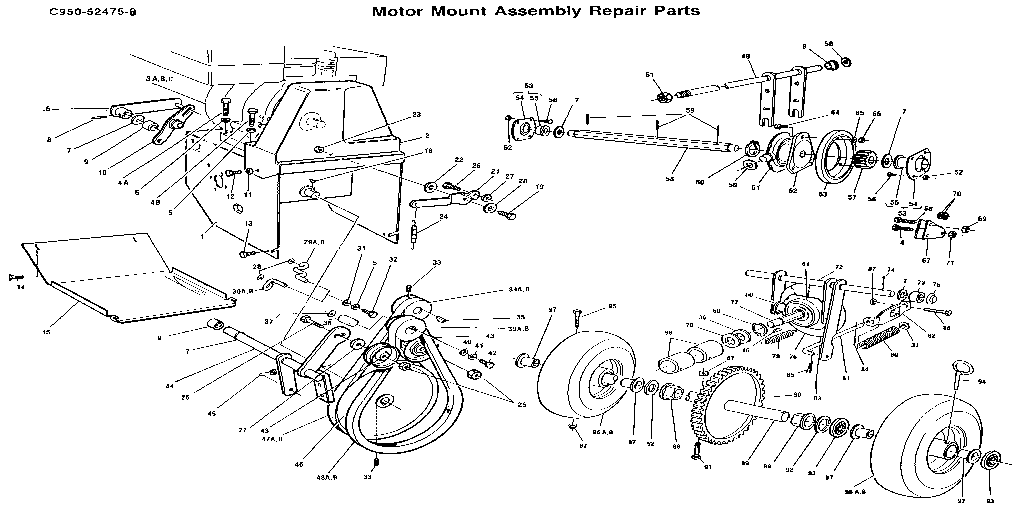

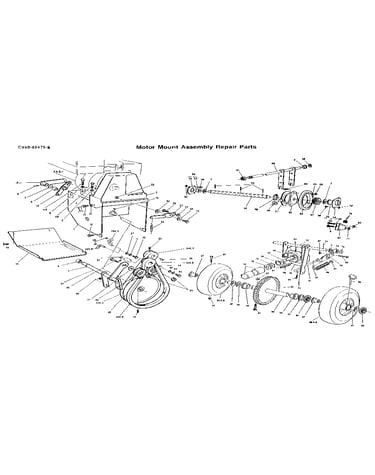

Motor mount assembly diagram

Disc wheel

Part #53830

Replaced by #1501435MA

?
Manufacturer substitution
This part replaces 53830. Substitute parts can look different from the original.
BEST SELLER
$27.05 |
18% OFF Phone Price : $33.05
In Stock
Tee Knob 9884
#13

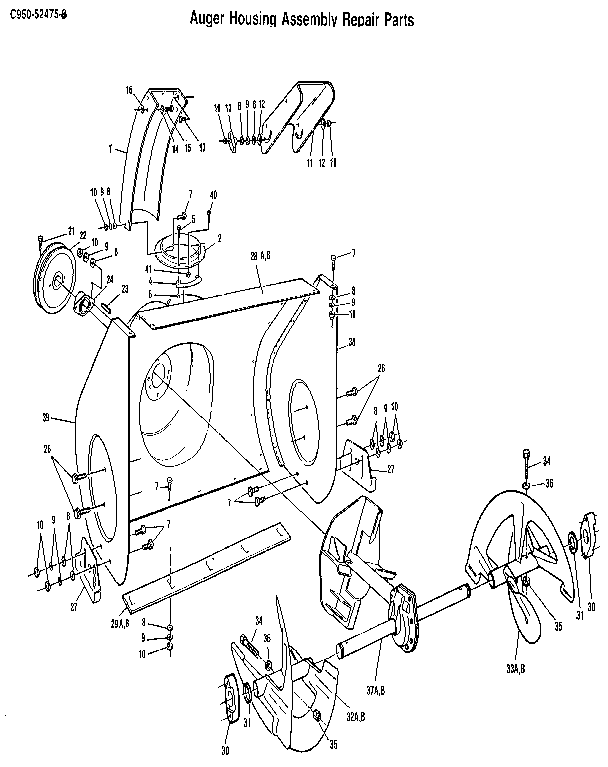

Auger housing assembly diagram

Tee knob

Part #9884

Replaced by #1501260MA

?
Manufacturer substitution
This part replaces 9884. Substitute parts can look different from the original.
$10.93 |
15% OFF Phone Price : $12.93
In Stock
Lock Nut 73826
Lock nut

Part #73826

Replaced by #703251

?
Manufacturer substitution
This part replaces 73826. Substitute parts can look different from the original.
$8.07 |
11% OFF Phone Price : $9.07
In Stock
Snowblower Auger Drive Belt 3887
#48B

Motor mount assembly diagram

Snowblower auger drive belt

Part #3887

Replaced by #3887MA

?
Manufacturer substitution
This part replaces 3887. Substitute parts can look different from the original.

Get free shipping with Automatic Reorder

$27.44 |
18% OFF Phone Price : $33.44
In Stock
1/4" Spacer 3943
#36

Auger housing assembly diagram

1/4" spacer

Part #3943

Replaced by #703058

?
Manufacturer substitution
This part replaces 3943. Substitute parts can look different from the original.
$12.09 |
14% OFF Phone Price : $14.09
In Stock
Clutch Cable 1579
#27

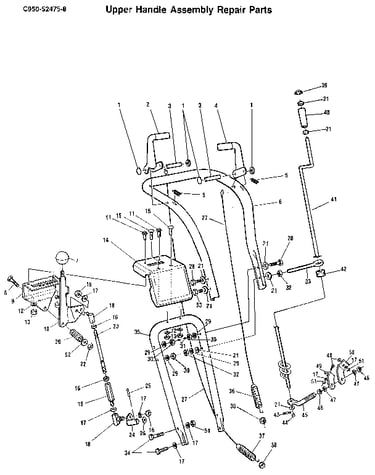

Upper handle assemble diagram

Clutch cable

Part #1579

Replaced by #1579MA

?
Manufacturer substitution
This part replaces 1579. Substitute parts can look different from the original.
$32.82 |
15% OFF Phone Price : $38.82
In Stock
Height Adjustment 85105
#27

Auger housing assembly diagram

Height adjustment

Part #85105

Replaced by #1740912BMYP

?
Manufacturer substitution
This part replaces 85105. Substitute parts can look different from the original.
$20.58 |
23% OFF Phone Price : $26.58
In Stock
Ball Joint 50782
#18

Upper handle assemble diagram

Ball joint

Part #50782

Replaced by #50782MA

?
Manufacturer substitution
This part replaces 50782. Substitute parts can look different from the original.
This item is not returnable
$30.12 |
17% OFF Phone Price : $36.12
In Stock
Idler Pulley 50793
#43

Motor mount assembly diagram

Idler pulley

Part #50793

Replaced by #1502120MA

?
Manufacturer substitution
This part replaces 50793. Substitute parts can look different from the original.
$34.31 |
15% OFF Phone Price : $40.31
In Stock
Nut 71038
Nut

Part #71038

Replaced by #703902

?
Manufacturer substitution
This part replaces 71038. Substitute parts can look different from the original.
This item is not returnable
$5.56 |
15% OFF Phone Price : $6.56
In Stock
