Kenmore
Sewing Machine

Model #1581340180 Kenmore sewing machine

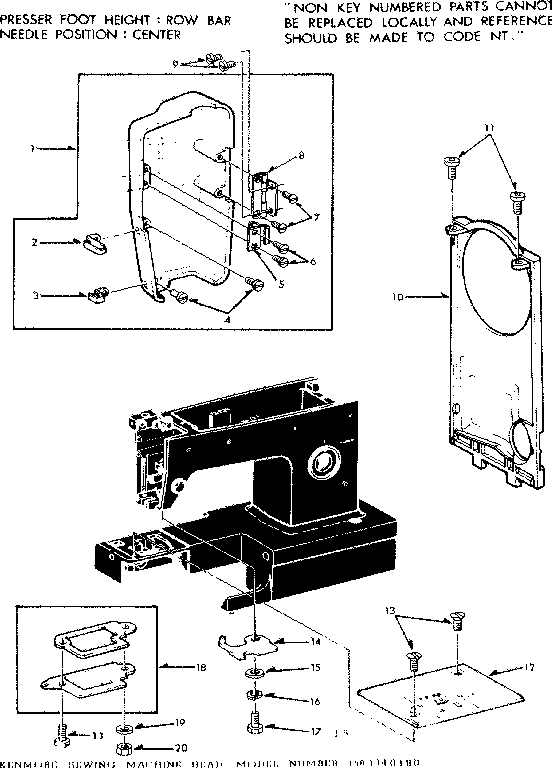

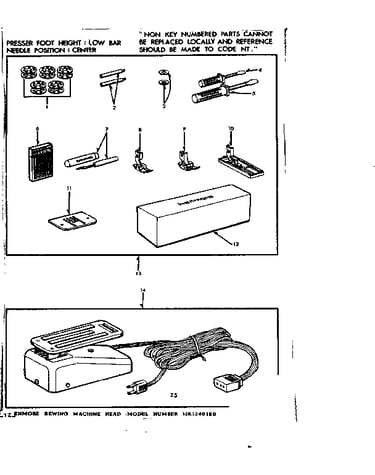

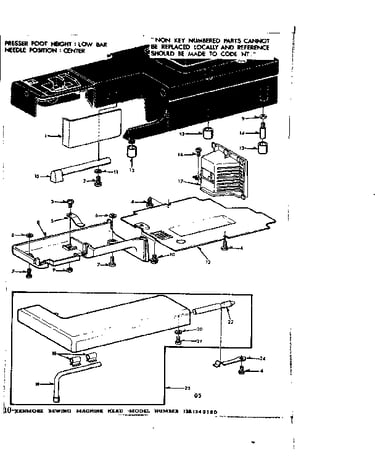

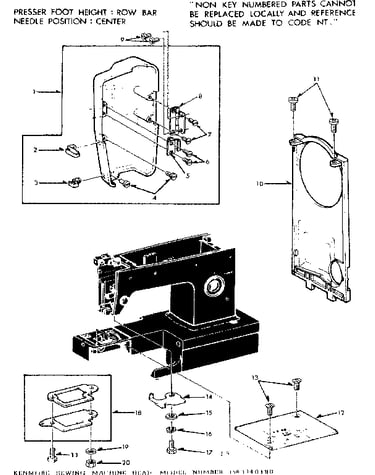

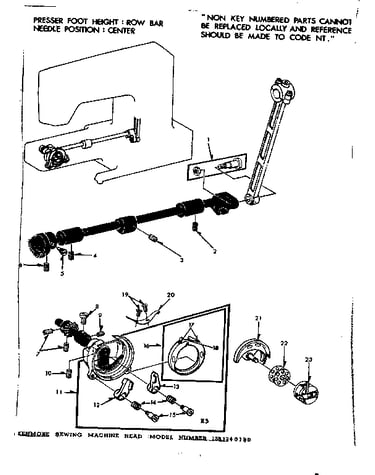

Here are the diagrams and repair parts for Kenmore 1581340180 sewing machine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 212 parts

    Washer

    #14

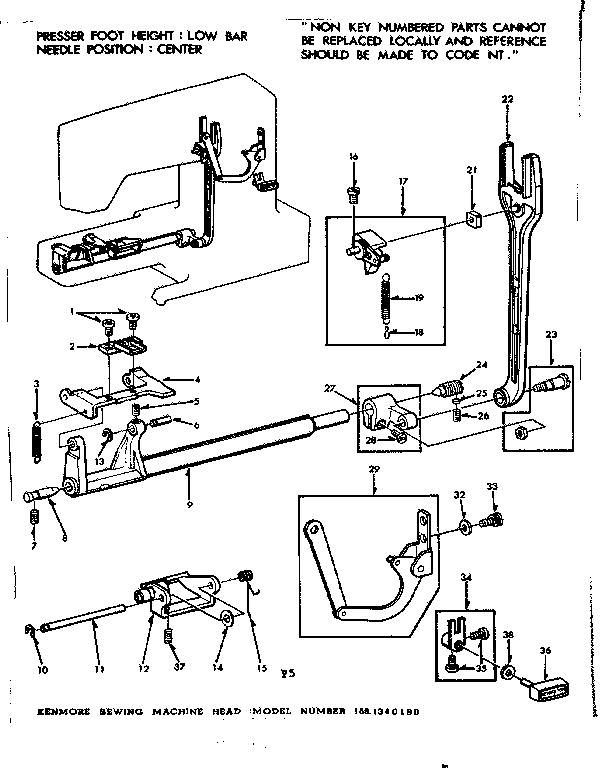

    Feed regulator assembly Diagram

    Washer

    Part #43858

    The manufacturer no longer makes this part, and there's no substitute part

    Bracket Assembly

    #12

    Feed regulator assembly Diagram

    Bracket assembly

    Part #48887

    The manufacturer no longer makes this part, and there's no substitute part

    Pin

    #8

    Feed regulator assembly Diagram

    Pin

    Part #45551

    The manufacturer no longer makes this part, and there's no substitute part

    Sewing Machine Belt

    #14

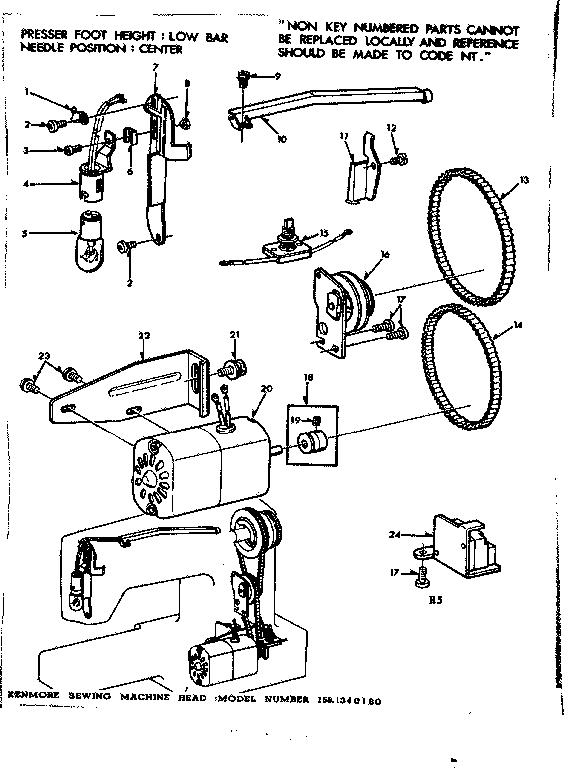

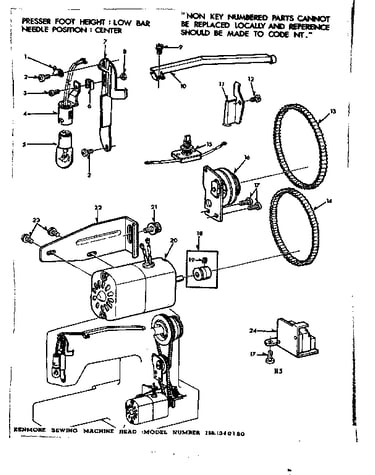

    Motor assembly Diagram

    Sewing machine belt

    Part #56973

    The manufacturer no longer makes this part, and there's no substitute part

    Control Panel

    #17

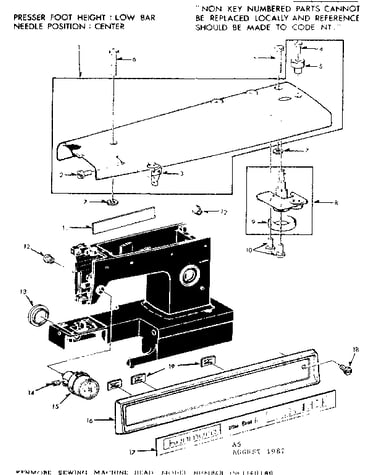

    Base assembly Diagram

    Control panel

    Part #59013

    The manufacturer no longer makes this part, and there's no substitute part

    Bracket

    #4

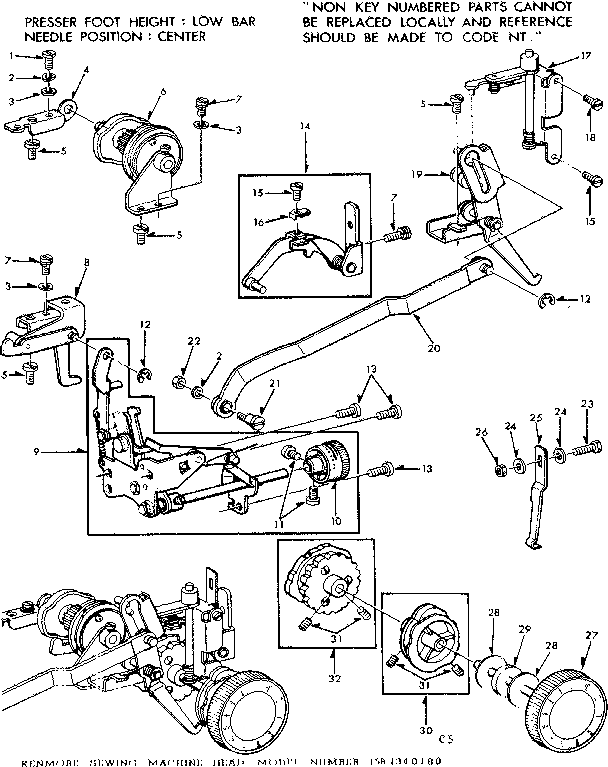

    Geared cam assembly Diagram

    Bracket

    Part #53222

    The manufacturer no longer makes this part, and there's no substitute part

    Reverse Lever

    #36

    Feed regulator assembly Diagram

    Reverse lever

    Part #53792

    The manufacturer no longer makes this part, and there's no substitute part

    Pivot Stud

    #2

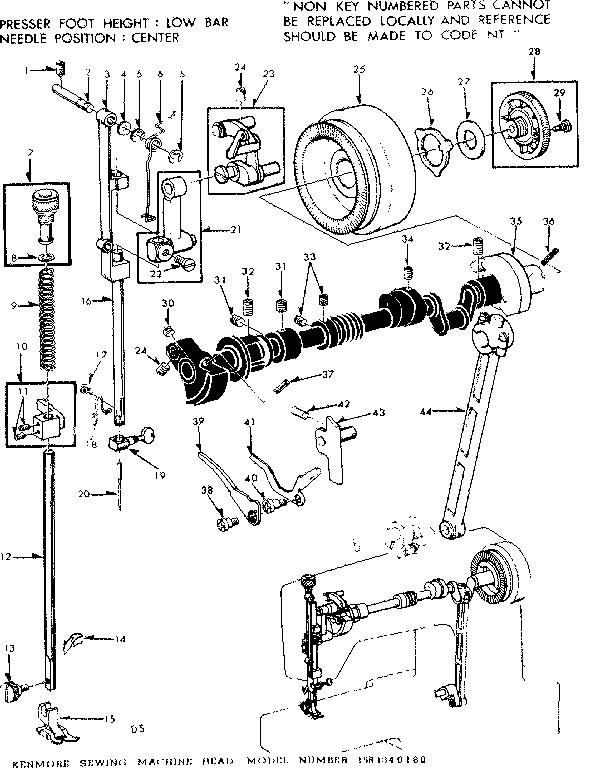

    Presser bar assembly Diagram

    Pivot stud

    Part #32881

    The manufacturer no longer makes this part, and there's no substitute part

    Slide Assembly

    #8

    Geared cam assembly Diagram

    Slide assembly

    Part #49776

    The manufacturer no longer makes this part, and there's no substitute part

    Hanger

    #18

    Feed regulator assembly Diagram

    Hanger

    Part #32305

    The manufacturer no longer makes this part, and there's no substitute part

    Symptoms common to all sewing machines

    Choose a symptom to see related sewing machine repairs.

    Main causes: power supply failure, bad power cord, faulty On/Off switch
    Main causes: faulty foot pedal, locked drive gears, wiring failure, bad drive motor
    Main causes: dirty shuttle race, improper thread routing, incorrect thread tension
    Main causes: lack of lubrication, lint buildup, worn drive belt, faulty drive motor
    Main causes: dirty shuttle race, wrong thread tension, bad needle timing, damaged needle, using the wrong type of needle
    Main causes: machine needs lubrication, internal gear failure
    Main causes: problems with the feed dogs, setting stitch length to 0
    Main causes: disengaged clutch, broken drive belt, internal drive gear failure
    Main causes: thread bunched up in the shuttle race, bad needle timing, internal drive gear failures

    Repair guides common to all sewing machines

    These step-by-step repair guides will help you safely fix what’s broken on your sewing machine.

    April 1, 2015
    By Lyle Weischwill
    How to replace a sewing machine on/off switch

    If the sewing machine is completely dead, replace the On/Off switch using these 6 steps.

    Repair difficulty
    Time required
     30 minutes or less
    April 1, 2015
    By Lyle Weischwill
    How to replace a sewing machine drive belt

    You can replace a broken sewing machine drive belt in about 15 minutes.

    Repair difficulty
    Time required
     15 minutes or less
    April 1, 2015
    By Lyle Weischwill
    How to replace a sewing machine drive motor

    If the drive motor on your sewing machine runs roughly or doesn't run at all, you can replace it in about 30 minutes using these simple steps.

    Repair difficulty
    Time required
     15 minutes or less

    Articles and videos common to all sewing machines

    Use the advice and tips in these articles and videos to get the most out of your sewing machine.

    January 18, 2016

    How to use a multimeter to test electrical parts video

    By Sears PartsDirect staff

    Learn how to use a multimeter to check for wiring problems in an appliance that's not working

    April 1, 2015

    Sewing machine common questions

    By Sears PartsDirect staff

    These answers to common questions can help you make the most of your sewing machine.
