KitchenAid YKERC508LS0 electric freestanding range Parts
Here are the diagrams and repair parts for KitchenAid YKERC508LS0 electric freestanding range, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error Codes
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for YKERC508LS0 Ranges

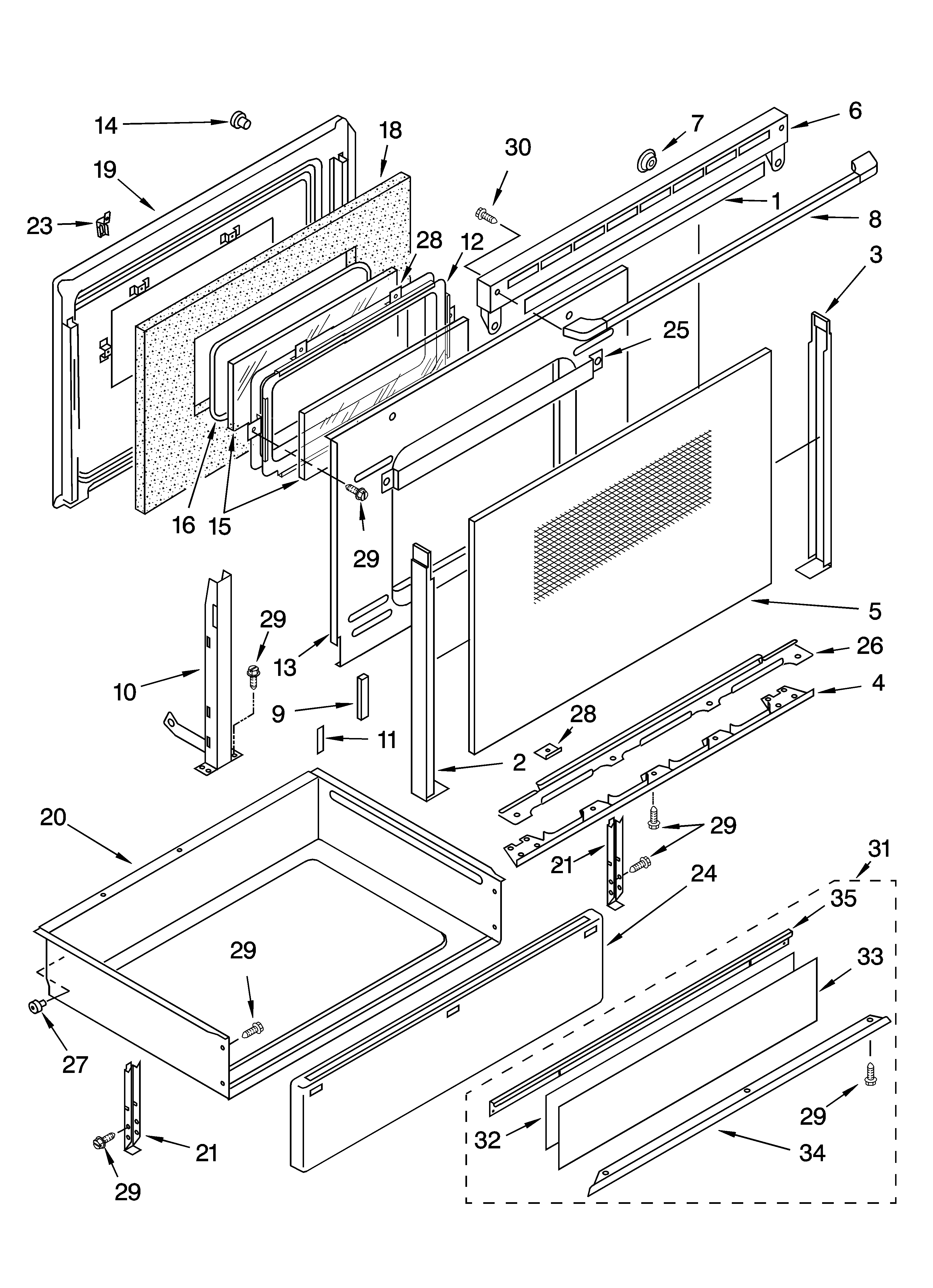

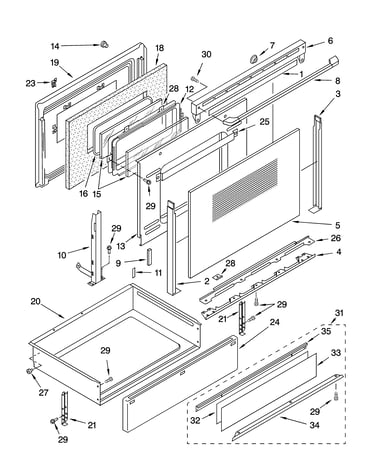

Door and drawer parts diagram
Clip
Part #90296Replaced by #WP90296
Manufacturer substitutionThis part replaces 90296. Substitute parts can look different from the original.This item is not returnableIn Stock$4.7617% OFF Phone Price : $5.76
Qty

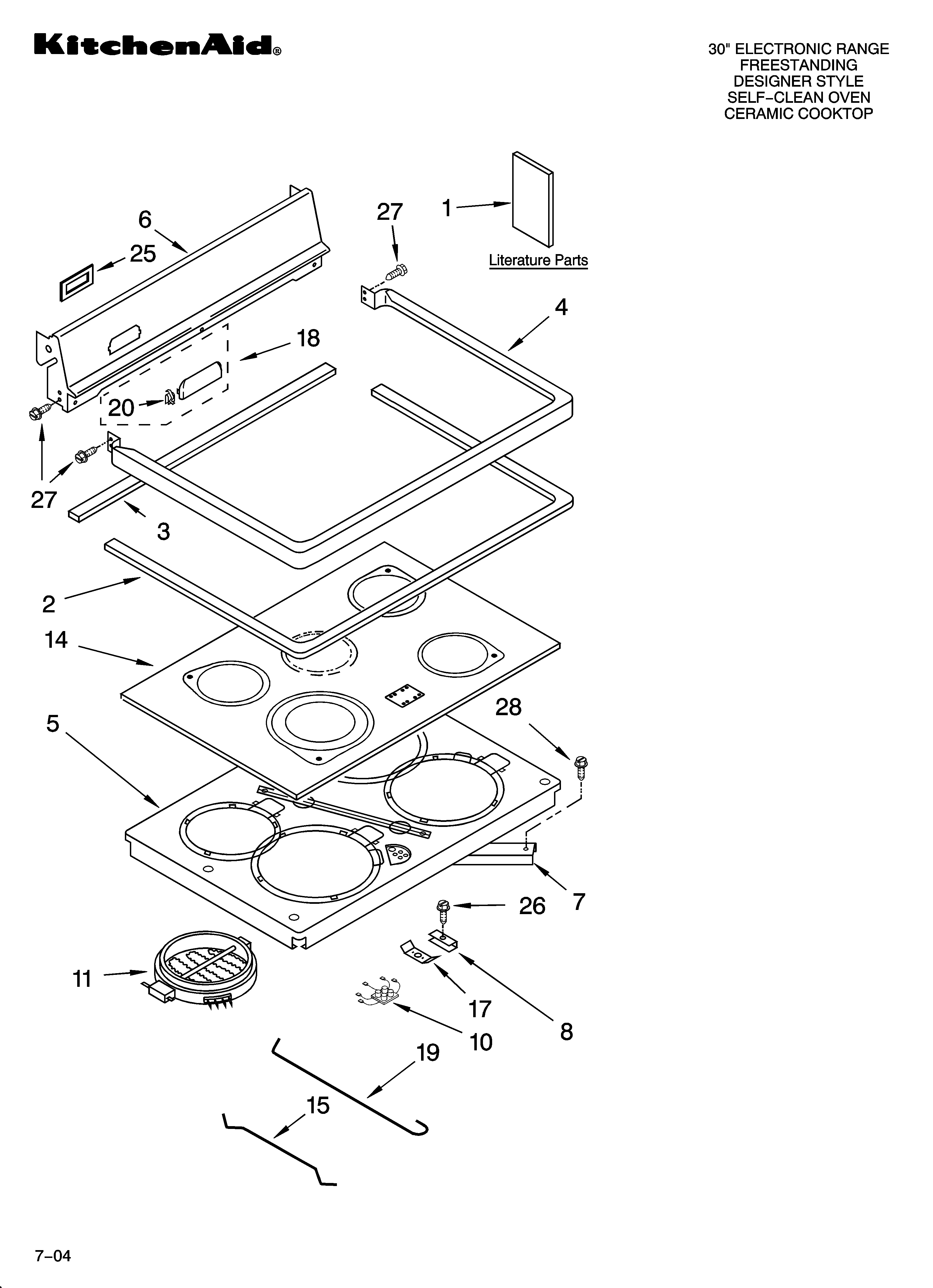

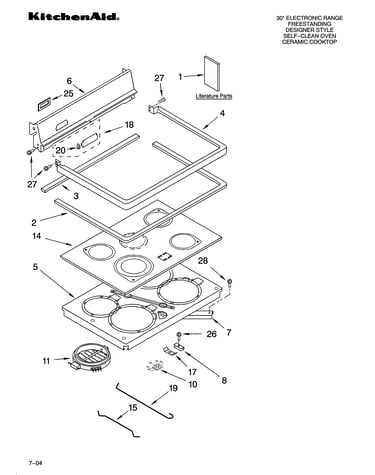

Cooktop parts diagram
Surface Element
Part #8523693Replaced by #W10823692

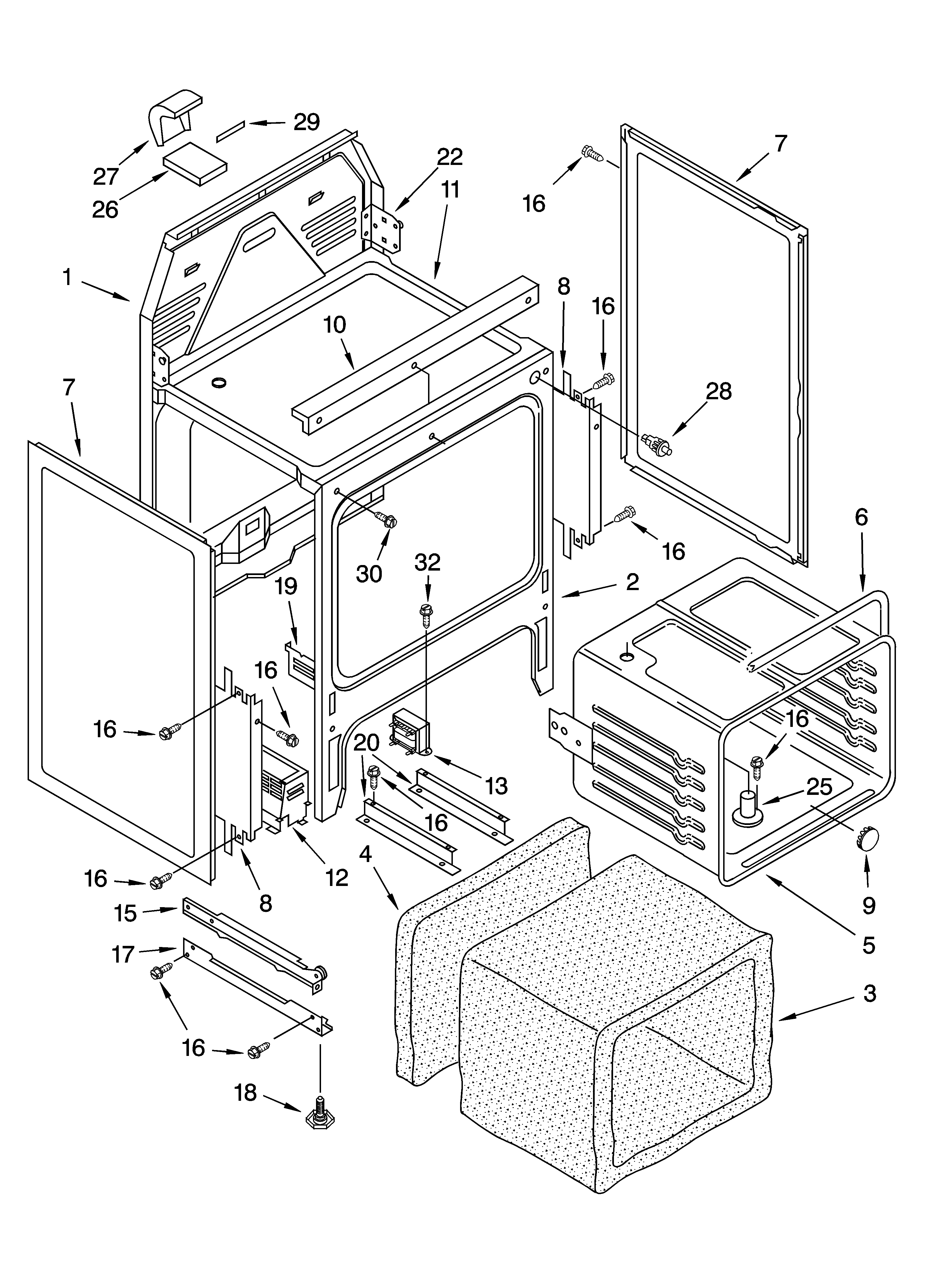

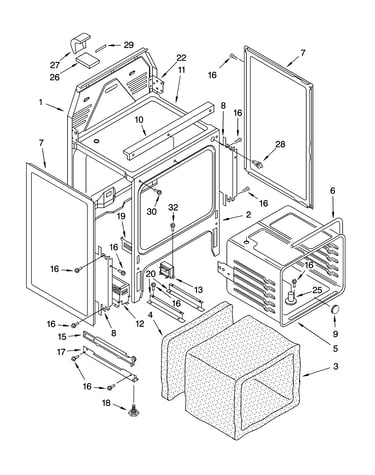

Manufacturer substitutionThis part replaces 8523693. Substitute parts can look different from the original.In Stock$124.569% OFF Phone Price : $136.56QtyOven chassis parts diagram
Level Foot
Part #312701Replaced by #WPW10058460
Manufacturer substitutionThis part replaces 312701. Substitute parts can look different from the original.This item is not returnableIn Stock$6.9513% OFF Phone Price : $7.95QtyCooktop parts diagram
Range Radiant Surface Element, 7-in
Part #8523697Replaced by #W10823699

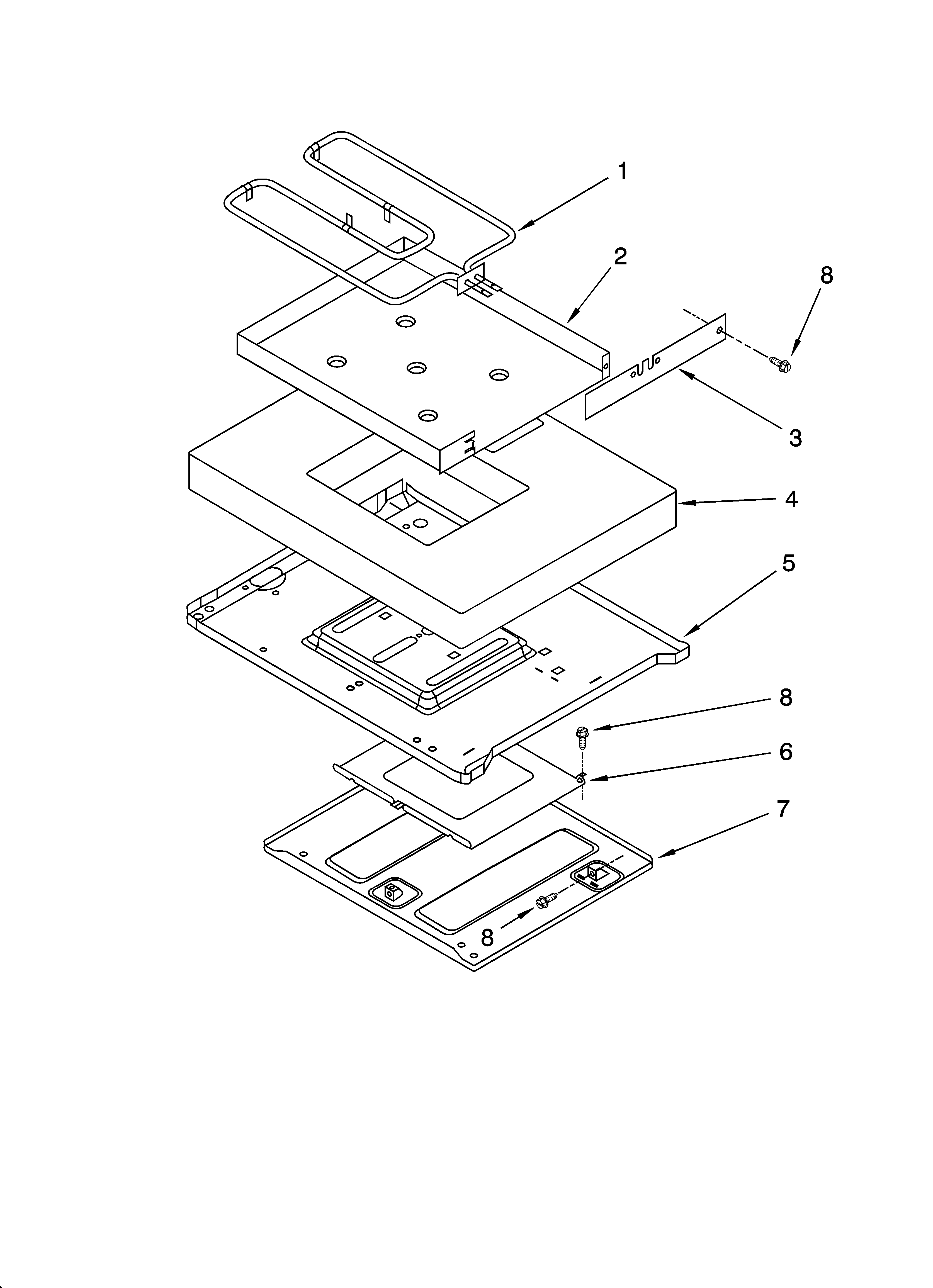

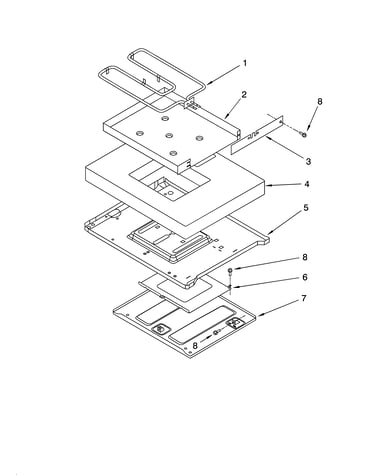

Manufacturer substitutionThis part replaces 8523697. Substitute parts can look different from the original.In Stock$77.5713% OFF Was : $89.16QtyHidden bake parts, miscellaneous parts diagram
Touch-up Paint
Part #4392899Replaced by #4392899
Manufacturer substitutionThis part replaces 4392899. Substitute parts can look different from the original.This item is not returnableIn Stock$15.1112% OFF Phone Price : $17.11QtyHidden bake parts, miscellaneous parts diagram
Power Cord
Part #9755404Replaced by #PT400

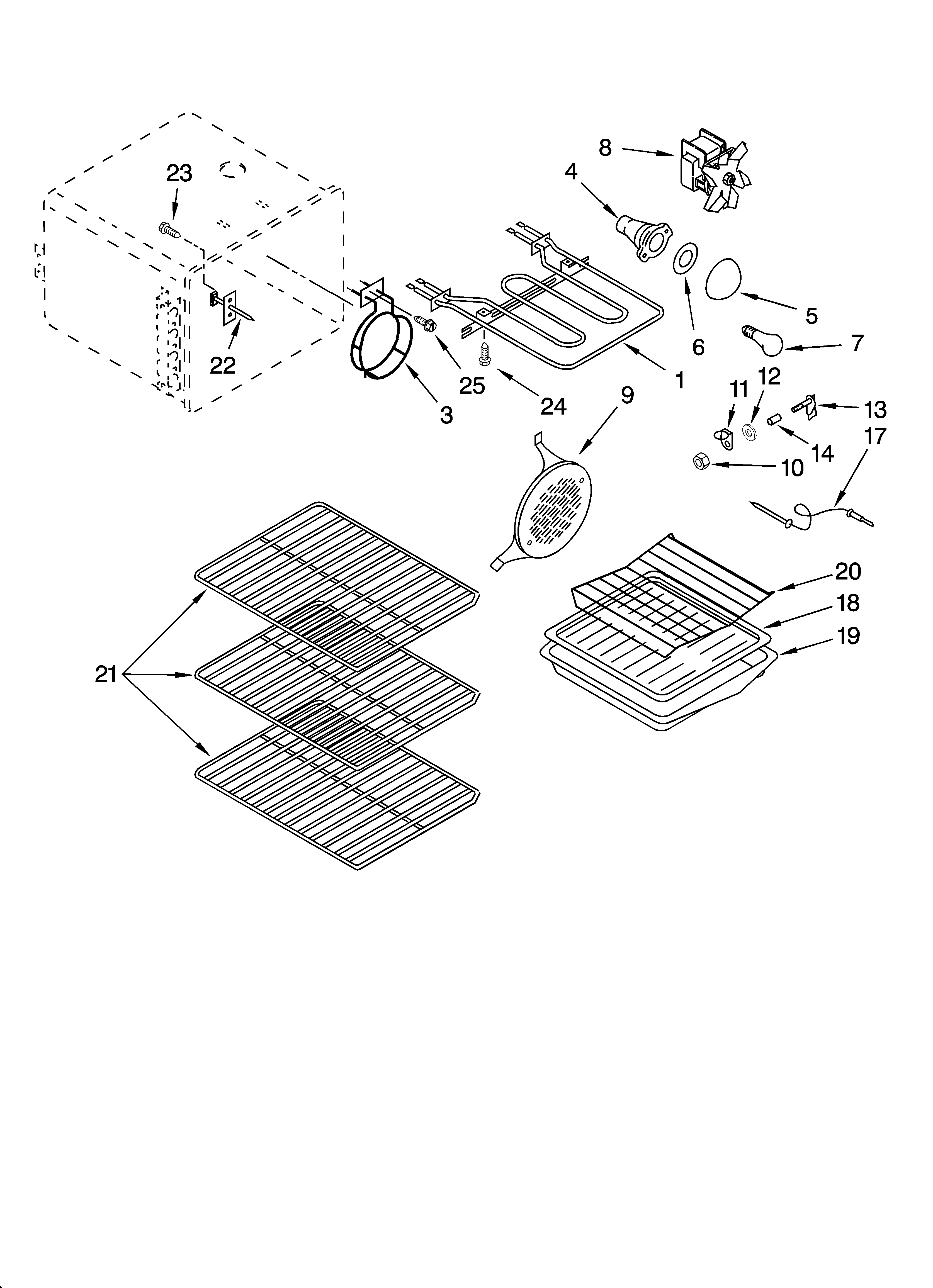

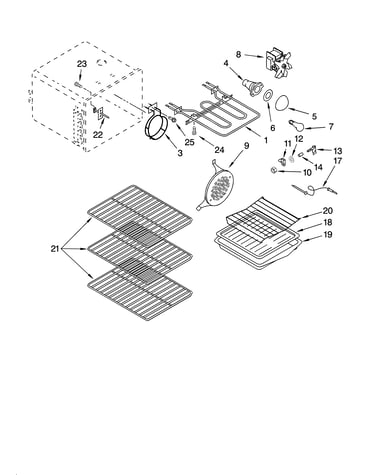

Manufacturer substitutionThis part replaces 9755404. Substitute parts can look different from the original.In Stock$28.2917% OFF Phone Price : $34.29QtyOven parts diagram
Gaskt-lite
Part #3184533Replaced by #WP3184533

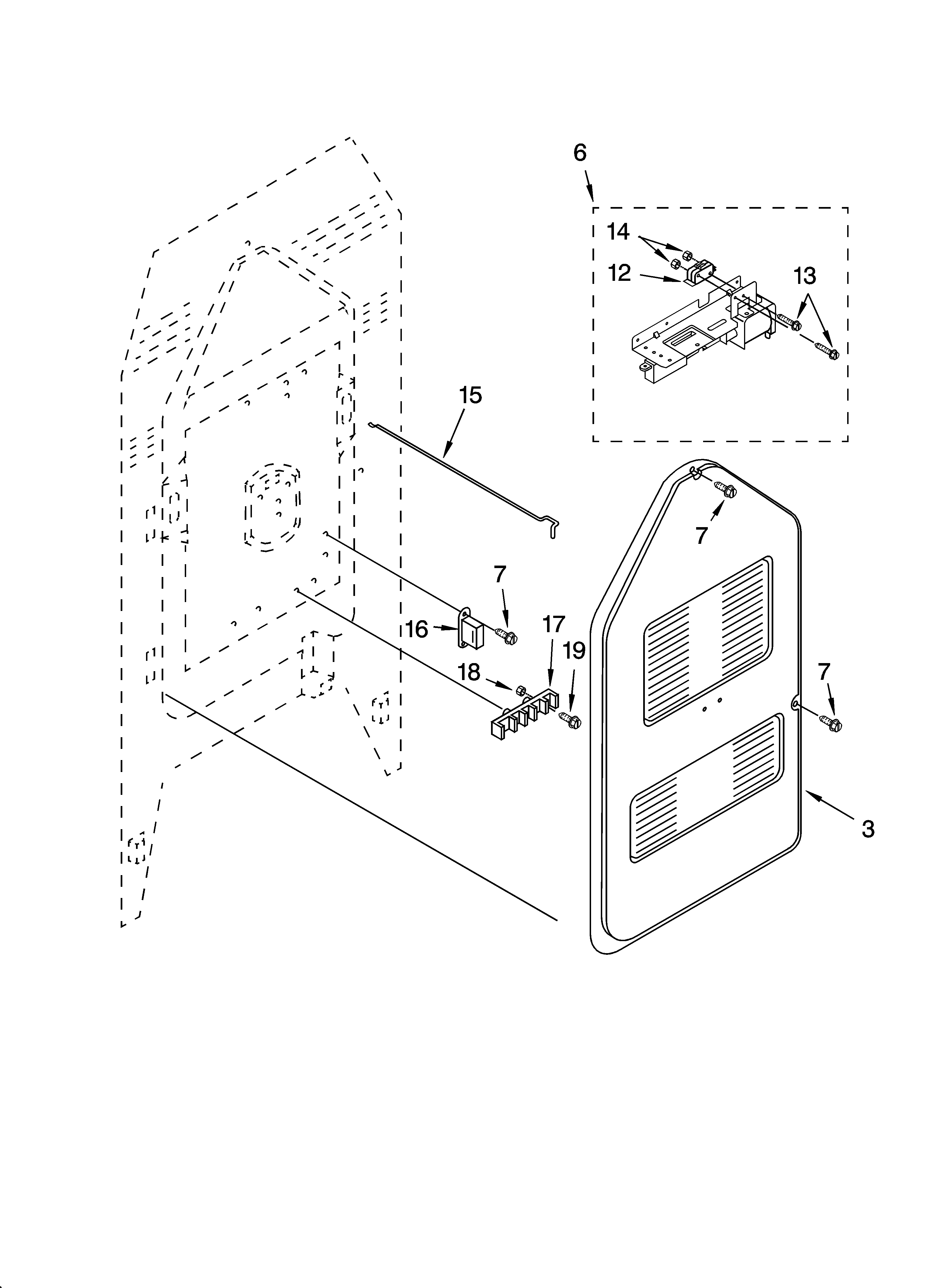

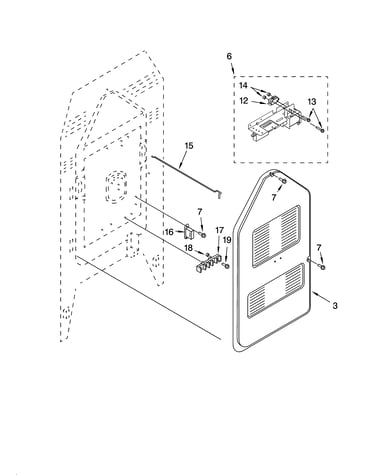

Manufacturer substitutionThis part replaces 3184533. Substitute parts can look different from the original.This item is not returnableIn Stock$7.6712% OFF Phone Price : $8.67QtyRear chassis parts diagram
Nut
Part #112432Replaced by #WP112432
Manufacturer substitutionThis part replaces 112432. Substitute parts can look different from the original.This item is not returnableIn Stock$4.8817% OFF Phone Price : $5.88QtyRear chassis parts diagram
Terminal Block
Part #9757403Replaced by #WP8203546

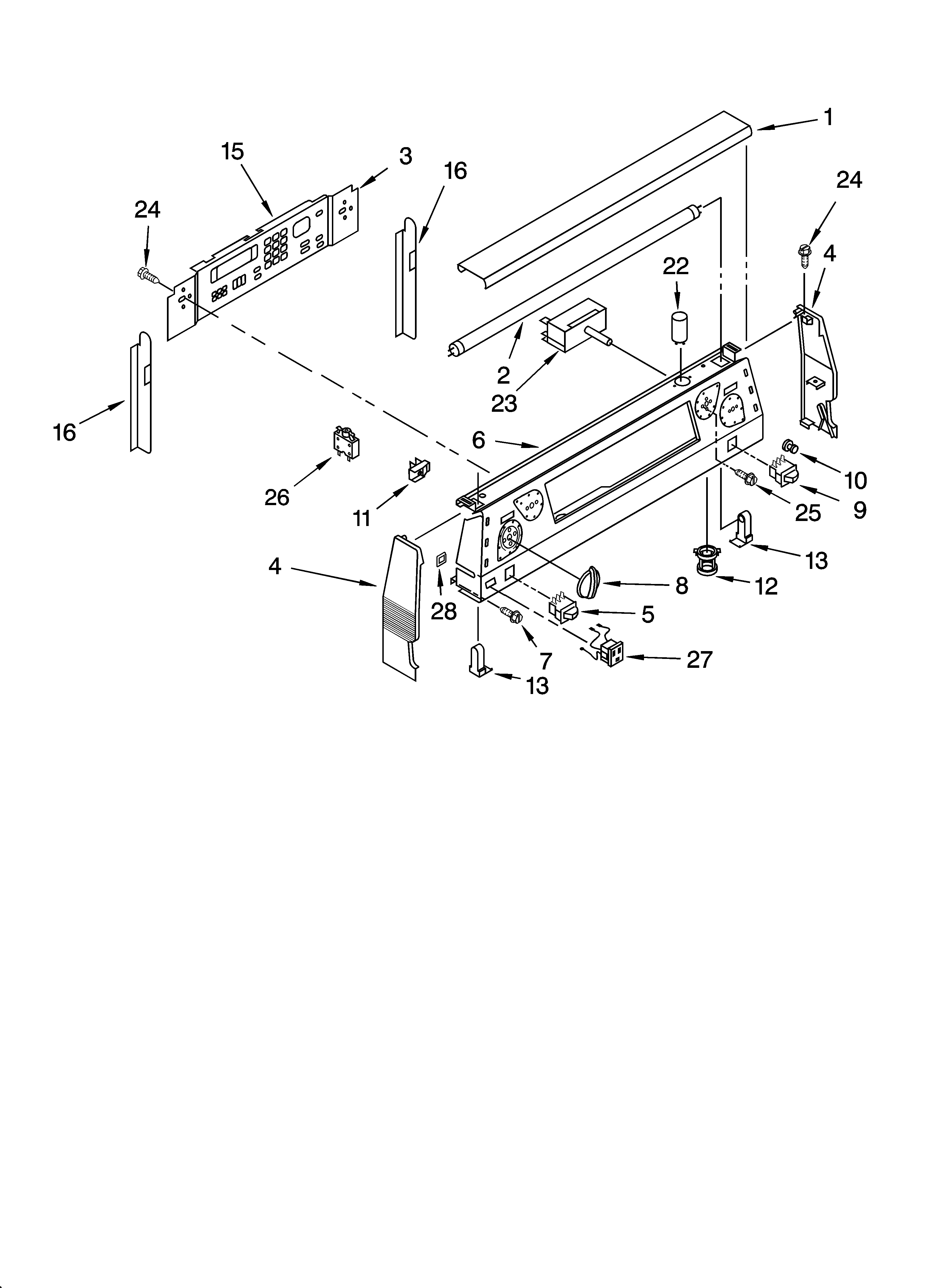

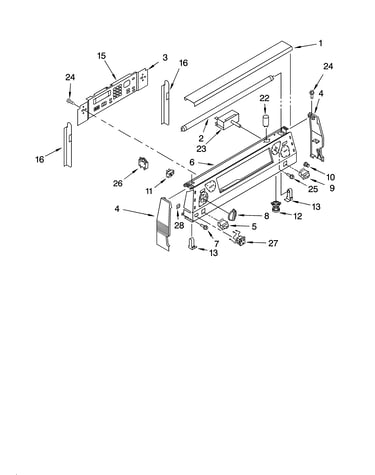

Manufacturer substitutionThis part replaces 9757403. Substitute parts can look different from the original.This item is not returnableIn Stock$20.9322% OFF Phone Price : $26.93QtyControl panel parts diagram
Light Lens
Part #9752589Replaced by #WP9750343
Manufacturer substitutionThis part replaces 9752589. Substitute parts can look different from the original.In Stock$28.59Qty
