Bosch
Dishwasher

Model # SPV5ES53UC/07 Official Bosch dishwasher

Here are the diagrams and repair parts for Official Bosch SPV5ES53UC-07 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

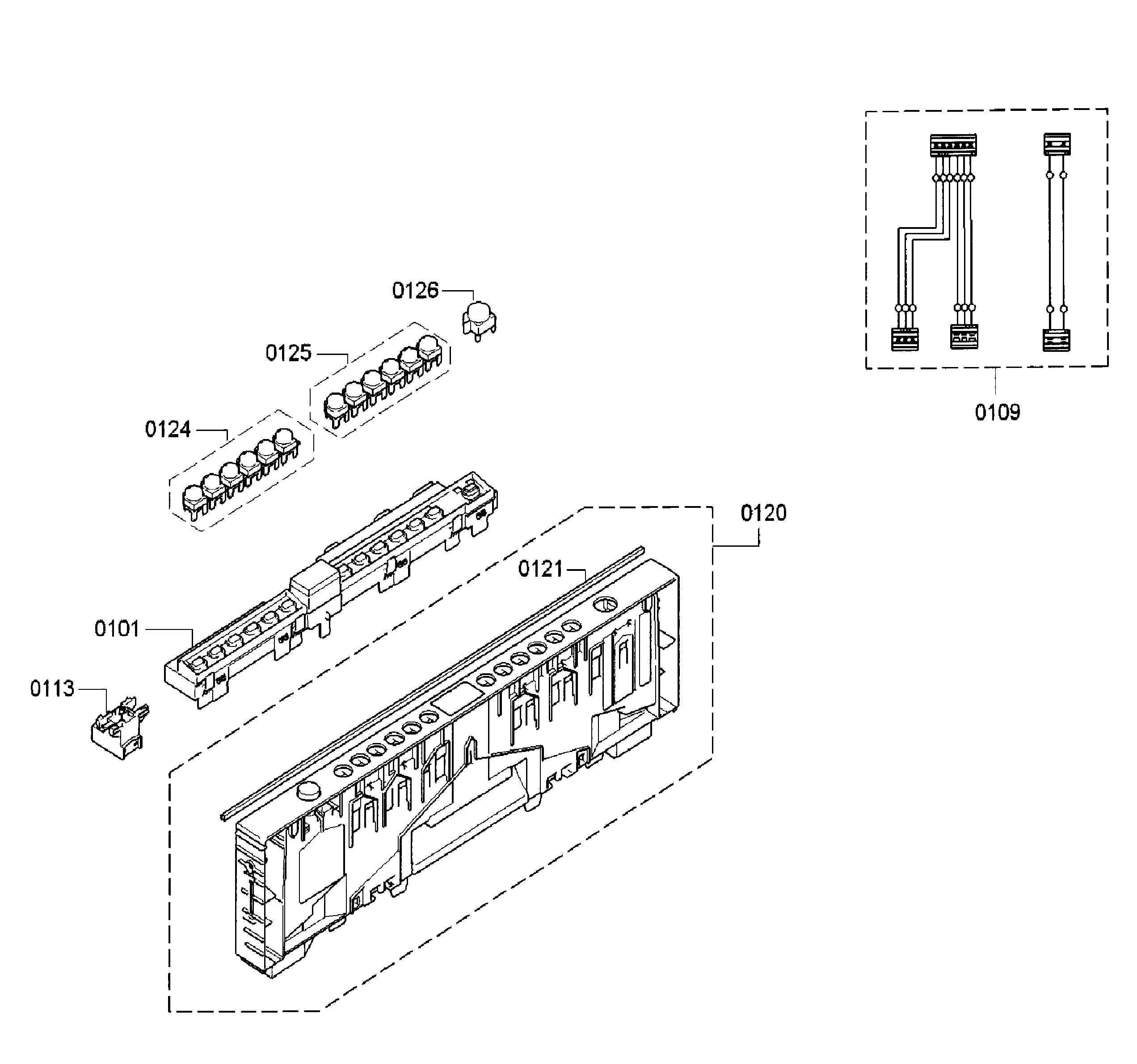

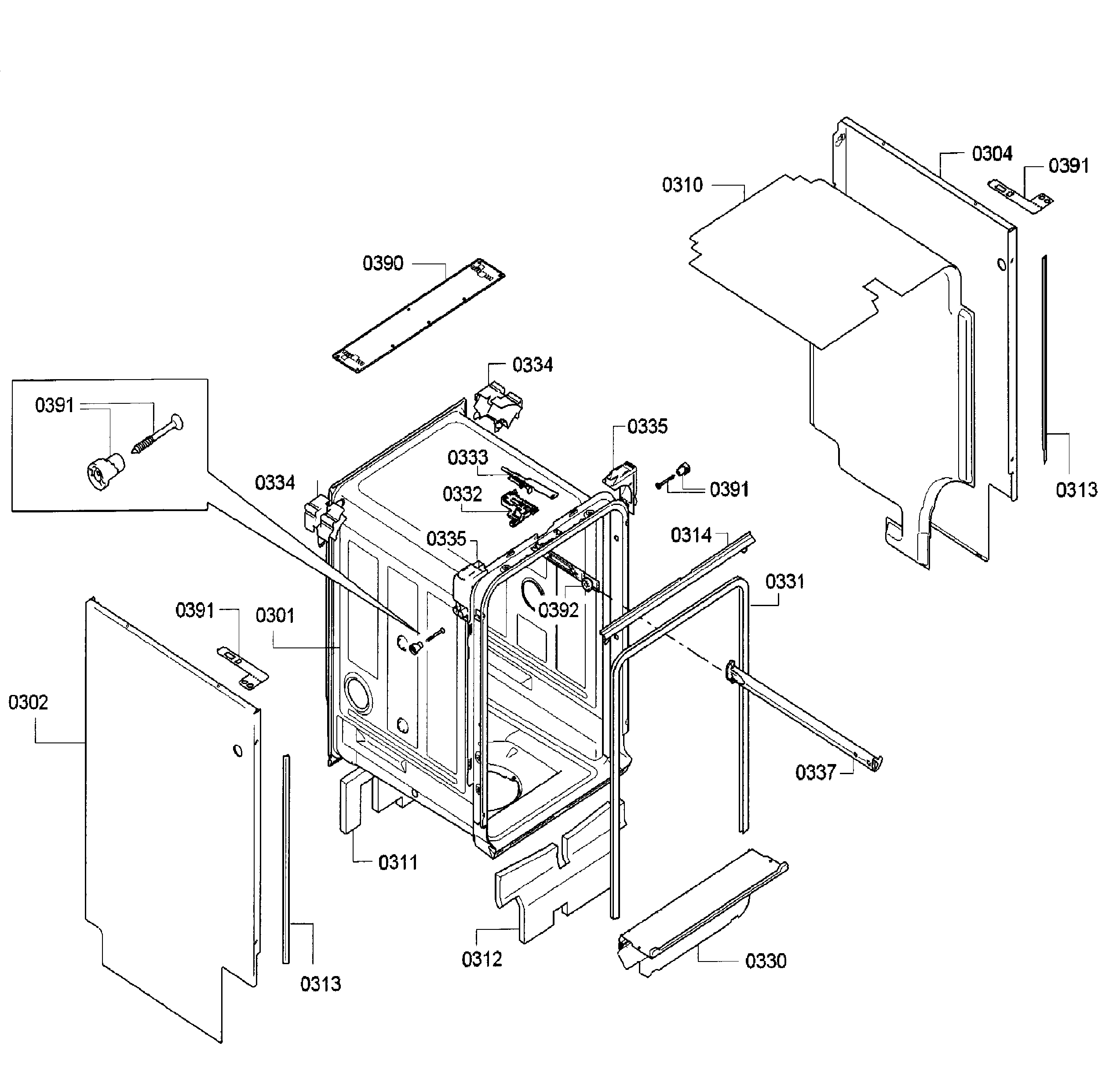

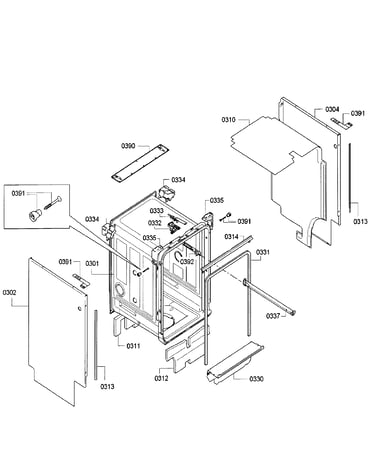

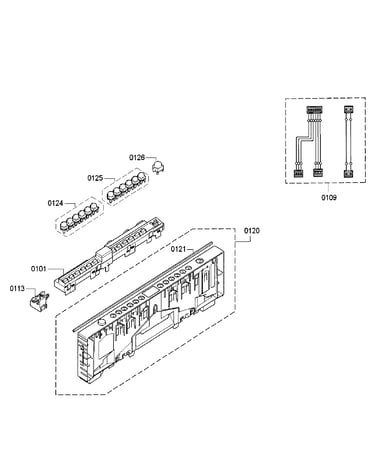

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 130 parts  |

Dishwasher Door Spring Kit (replaces 00623540, 00627230, 00628833, 00659339, 00751392, 623540, 627230, 659339, 751392, 754866) 00754866
Dishwasher door spring kit (replaces 00623540, 00627230, 00628833, 00659339, 00751392, 623540, 627230, 659339, 751392, 754866)

Part #00754866

BEST SELLER
$36.56
14% OFF Phone Price : $42.56
In Stock
Spring 00623540
#522

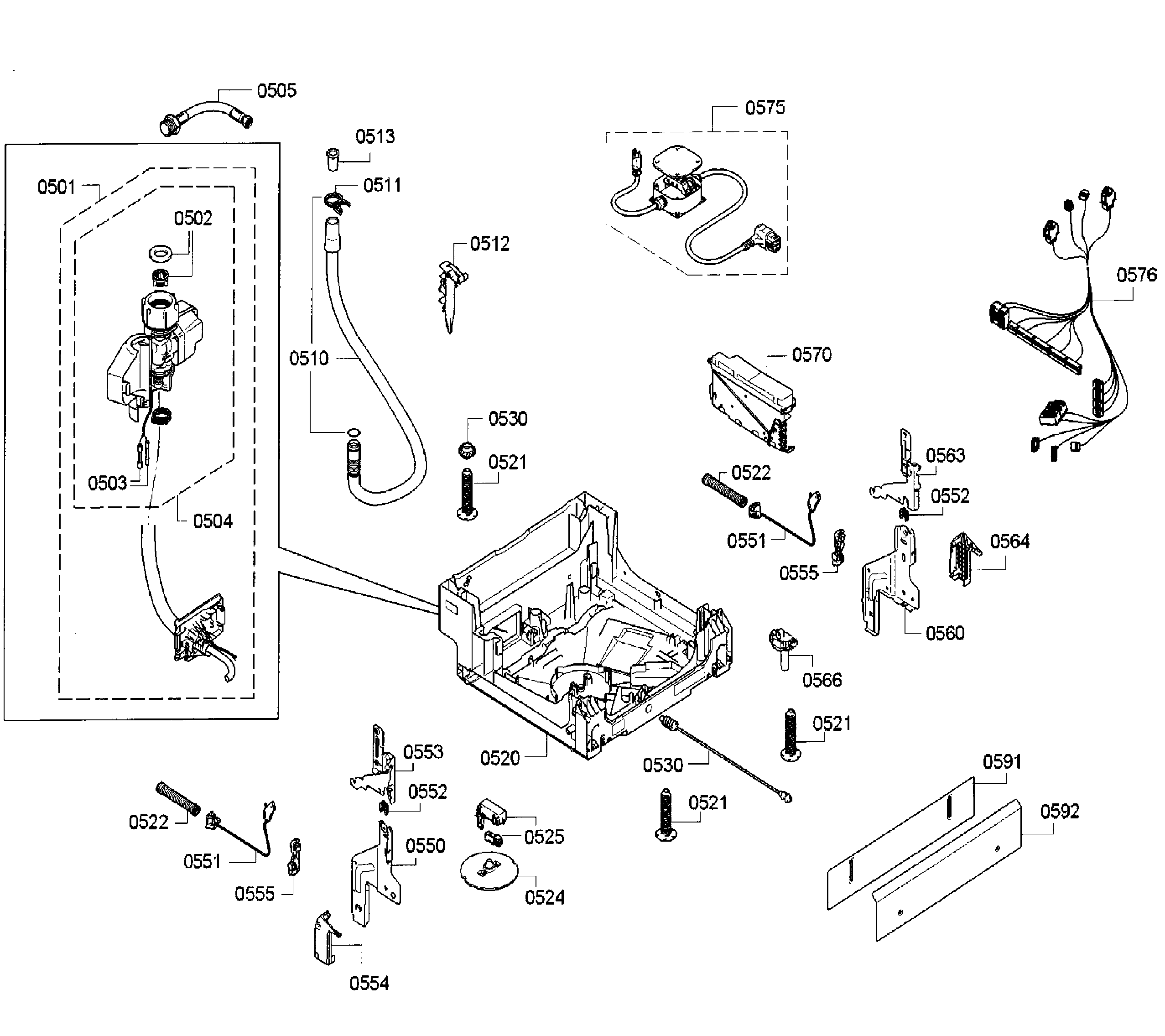

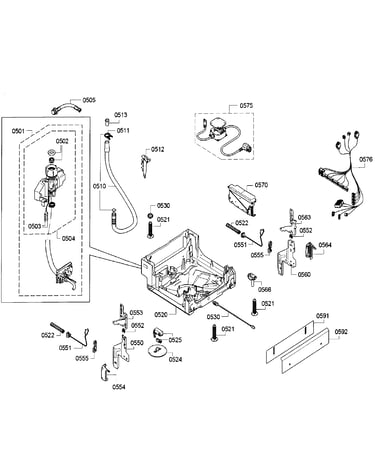

Base diagram

Spring

Part #00623540

Replaced by #00754866

?
Manufacturer substitution
This part replaces 00623540. Substitute parts can look different from the original.
BEST SELLER
$36.56
14% OFF Phone Price : $42.56
In Stock
Dishwasher Detergent Dispenser Assembly (replaces 645208) 00645208
#201

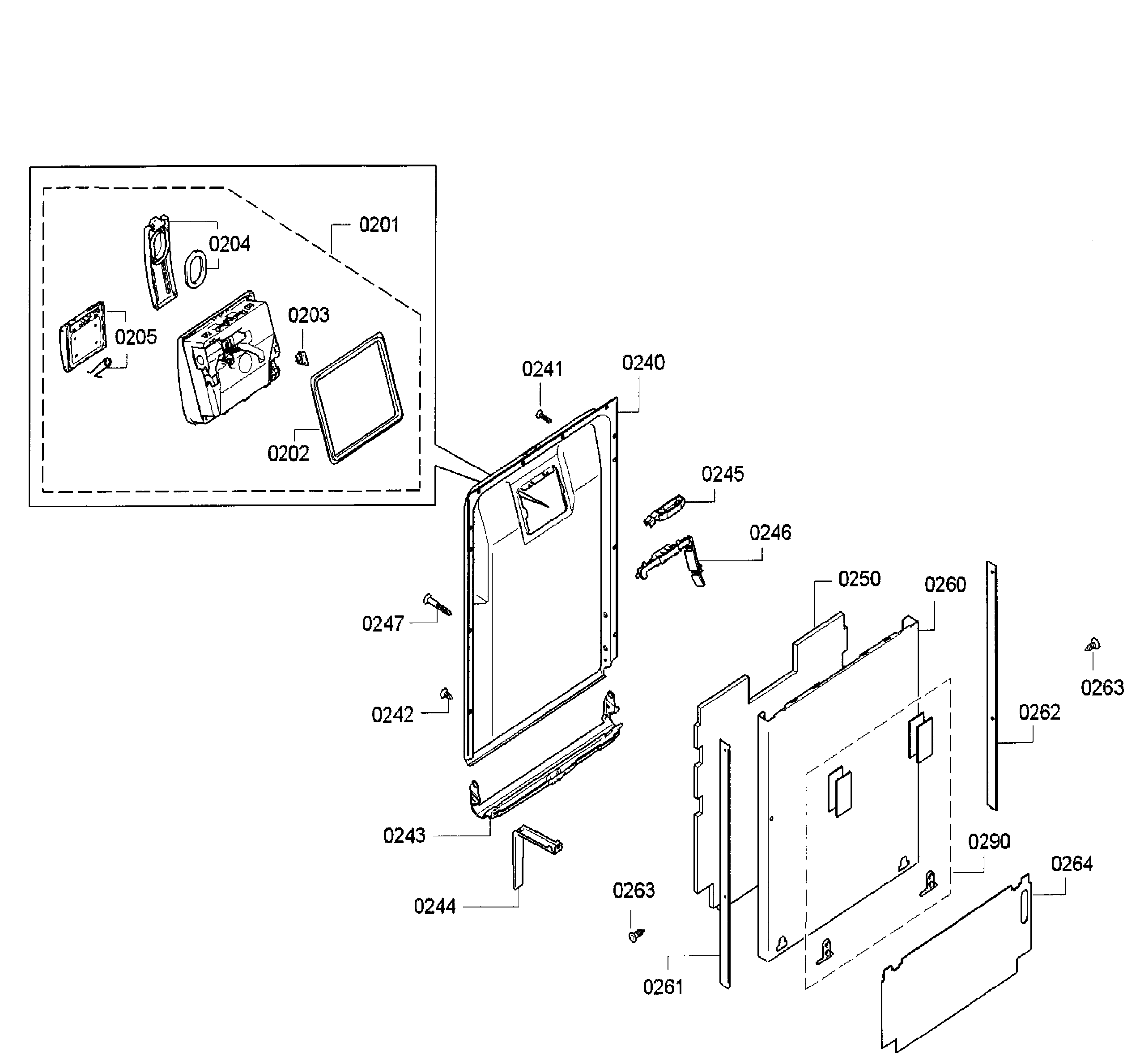

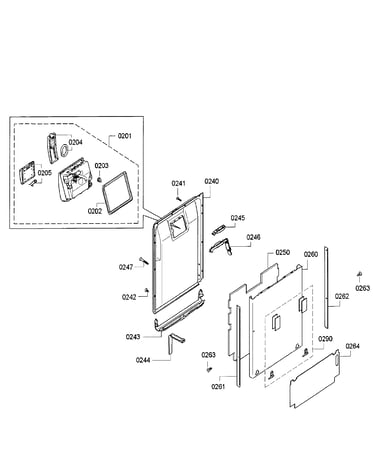

Door diagram

Dishwasher detergent dispenser assembly (replaces 645208)

Part #00645208

BEST SELLER
$80.03
7% OFF Phone Price : $86.03
In Stock
Dishwasher Heat Pump 00655250
#450

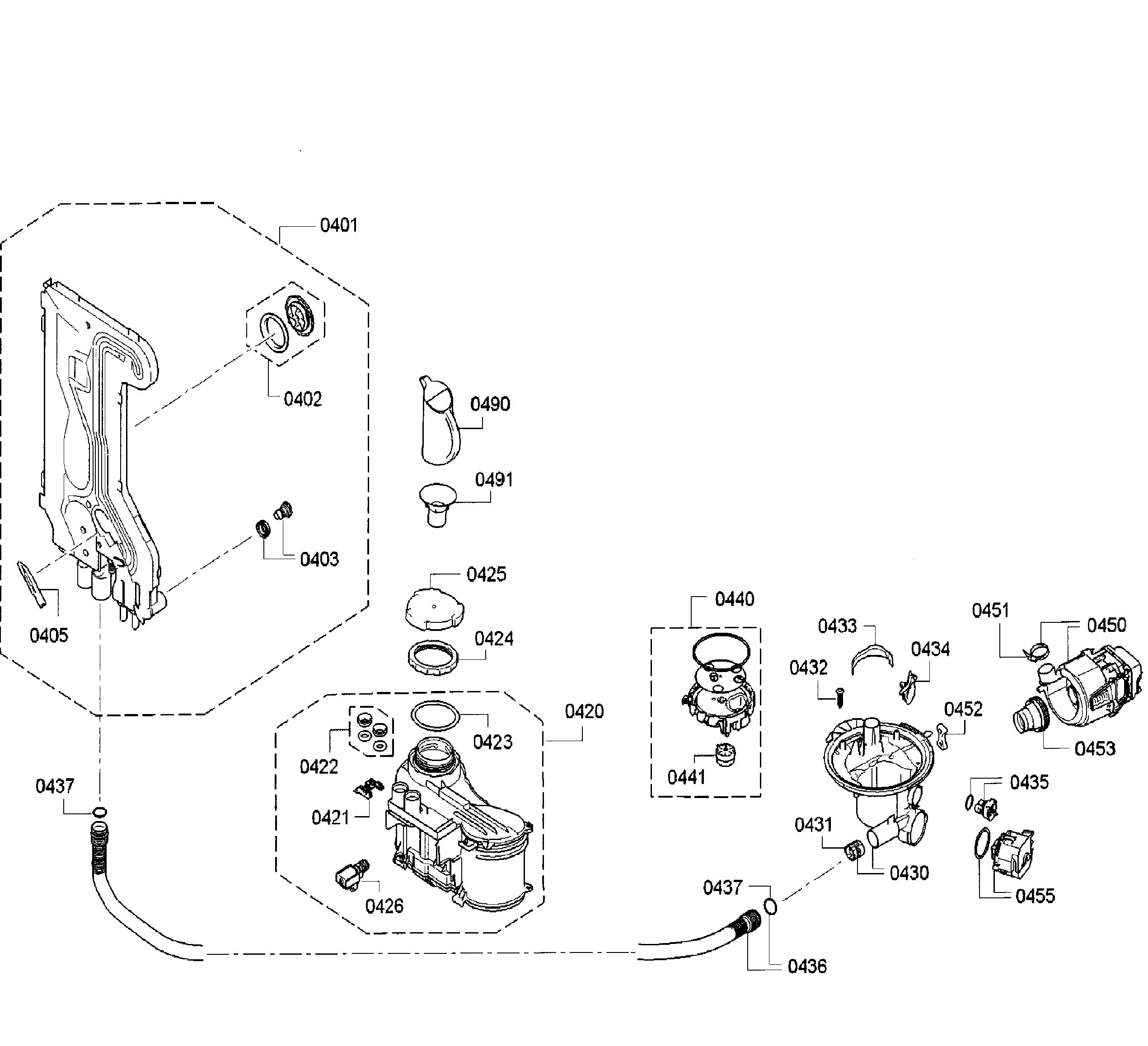

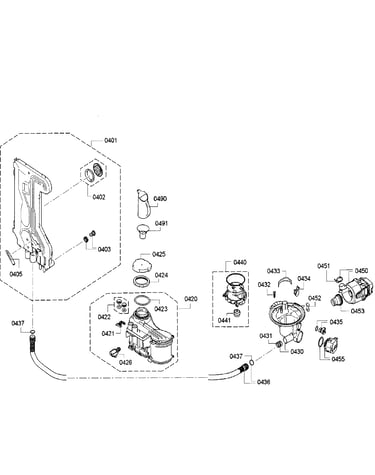

Pump diagram

Dishwasher heat pump

Part #00655250

Replaced by #00705174

?
Manufacturer substitution
This part replaces 00655250. Substitute parts can look different from the original.
BEST SELLER
$245.69
5% OFF Phone Price : $257.69
In Stock
Dishwasher Door Cable Roller (replaces 00611372, 00628834, 00628835, 623536, 628834, 628835) 00623536
#555

Base diagram

Dishwasher door cable roller (replaces 00611372, 00628834, 00628835, 623536, 628834, 628835)

Part #00623536

BEST SELLER
$20.16
23% OFF Phone Price : $26.16
In Stock
Dishwasher Circulation Pump Micro Filter (replaces 645038) 00645038
#611

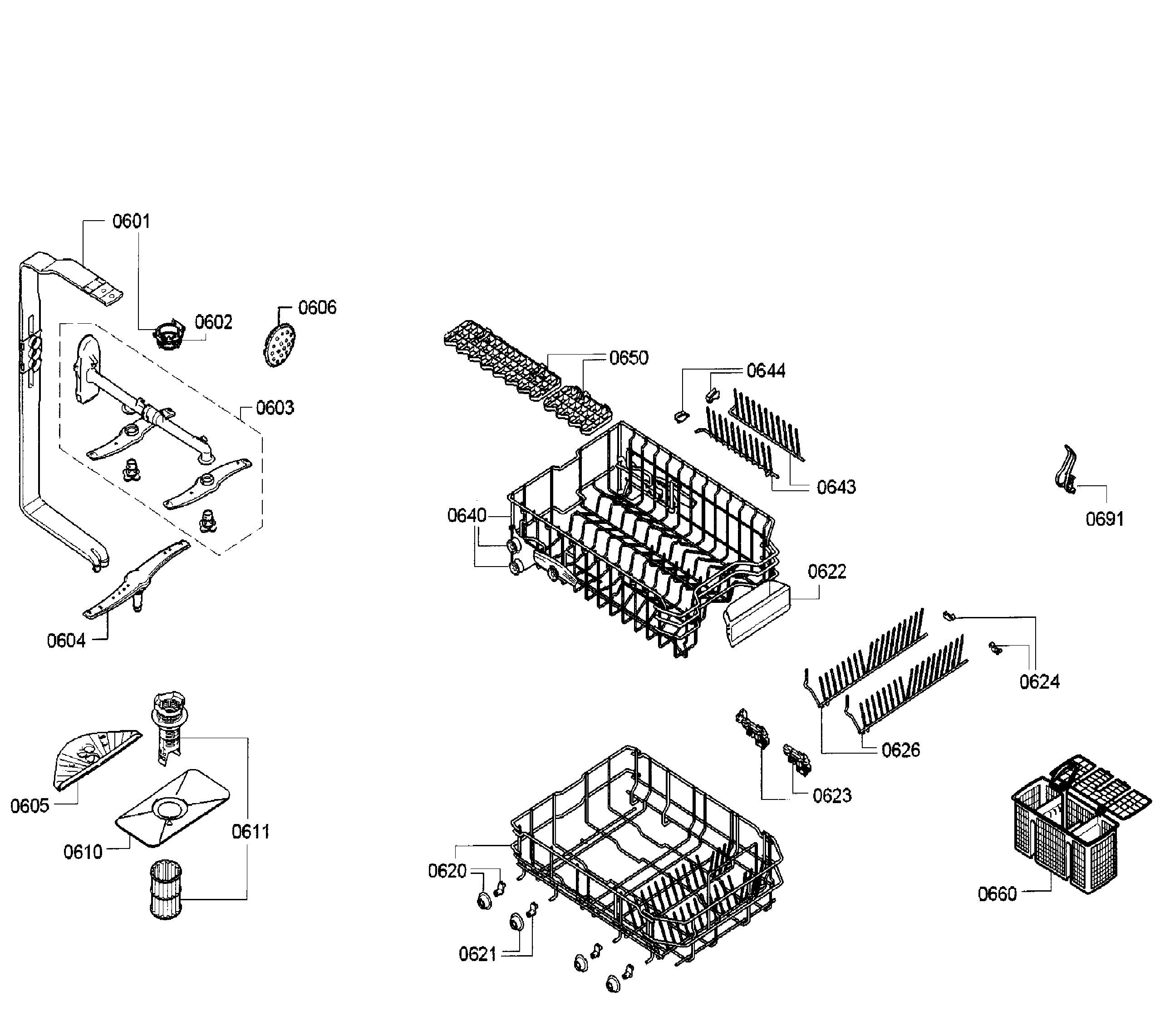

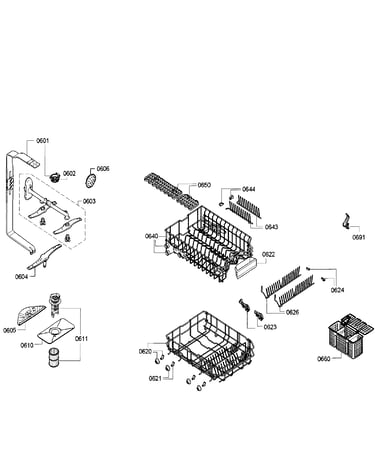

Racks diagram

Dishwasher circulation pump micro filter (replaces 645038)

Part #00645038

$37.73
14% OFF Phone Price : $43.73
In Stock
Dishwasher Drain Pump Lid (replaces 00628305, 611322) 00611322
#434

Pump diagram

Dishwasher drain pump lid (replaces 00628305, 611322)

Part #00611322

$25.09
19% OFF Phone Price : $31.09
In Stock
Dishwasher Detergent Dispenser Seal (replaces 645144) 00645144
#202

Door diagram

Dishwasher detergent dispenser seal (replaces 645144)

Part #00645144

This item is not returnable
$18.49
10% OFF Phone Price : $20.49
In Stock
Dishwasher Screw 00611311
#241

Door diagram

Dishwasher screw

Part #00611311

In Stock
Dishwasher Drain Hose (replaces 668114) 00668114
#510

Base diagram

Dishwasher drain hose (replaces 668114)

Part #00668114

$26.69
18% OFF Phone Price : $32.69
In Stock
