Yes, it’s worth replacing the engine on your Craftsman tractor model 917276761 when the tractor’s deck, frame, steering, and transmission are still solid and the total engine swap cost stays well below the cost of a comparable replacement tractor. If the tractor also needs major deck or drive repairs, replacement usually makes more sense.

• The tractor starts, drives, and stops safely (brakes and safety switches work)
• The mower deck is structurally sound (not cracked or severely rusted)
• You are not also facing multiple big-ticket repairs (deck spindles, transmission, steering)
• You can do the labor yourself or have a shop you trust
• The engine replacement cost is under about half the price of a comparable new tractor

Use the maintenance and service guidance in the 917276761 owner’s manual to evaluate the tractor’s overall condition, not just the engine.

Focus on these areas:

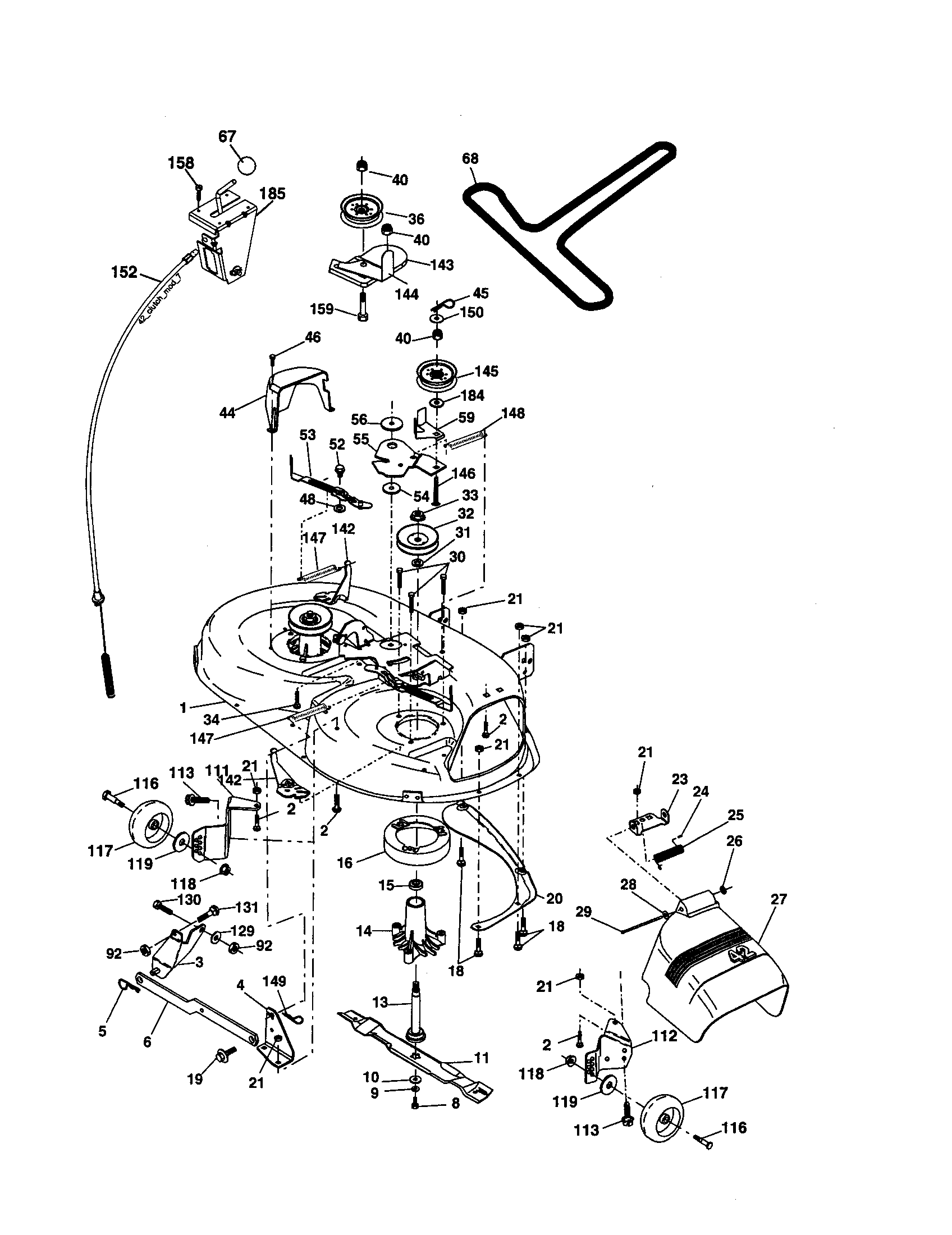

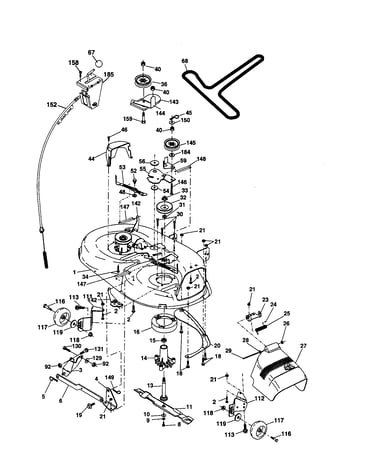

• Deck and blade system: bent blades, vibration, worn mandrels, damaged pulleys
• Belts and idlers: cracking, glazing, slipping under load
• Safety and controls: seat switch, brake operation, reverse operation system behavior
• Fuel and ignition basics: fresh fuel, clean air filter, good spark plug and wiring

If you’re hearing a single click or rapid clicking, a starter circuit issue is common; the riding lawn mower engine clicks but doesnt turn over video walks through the typical checks.

An engine swap can extend the life of a good chassis for years, but it does not fix worn deck components, unsafe brakes, or neglected maintenance. The manual also emphasizes keeping hardware tight and servicing blades, belts, and filters regularly, which protects your investment.

Last updated: January 2026

For a Craftsman riding tractor like model 917276761, a full engine replacement (parts plus labor) typically runs about $800 to $2,500. The engine itself is usually the biggest cost, and labor commonly takes around 4 to 8 hours depending on wiring, fuel system, and deck access.

• Engine type and horsepower (OEM vs aftermarket, single-cylinder vs V-twin)
• Labor time (shop rate and how much disassembly is required)
• Extra parts discovered during the swap (belts, pulleys, wiring, fuel lines)
• Delivery and core charges (varies by supplier and engine brand)
• Tune-up items often replaced at the same time (spark plug, air filter, oil)

Many tractors get quoted for an engine when the real issue is starting or fuel delivery. The troubleshooting chart in the 917276761 owner's manual points to common fixes like checking wiring, cleaning battery terminals, and testing the ignition switch, solenoid, or starter.

• Recharge/replace the battery; clean and tighten terminals
• Check fuses and wiring connections
• Test the ignition switch and safety interlock circuits
• Test the starter solenoid (a common failure point)
• Verify fresh fuel and a clean fuel filter

If you suspect a click-no-crank condition, we use the same diagnostic flow shown in riding lawn mower engine clicks but doesnt turn over video.

An engine swap can cost close to the value of an older riding mower. Confirming whether the problem is electrical (battery, solenoid, starter) or fuel-related first can save hundreds of dollars and get your Craftsman tractor running faster.

Last updated: January 2026

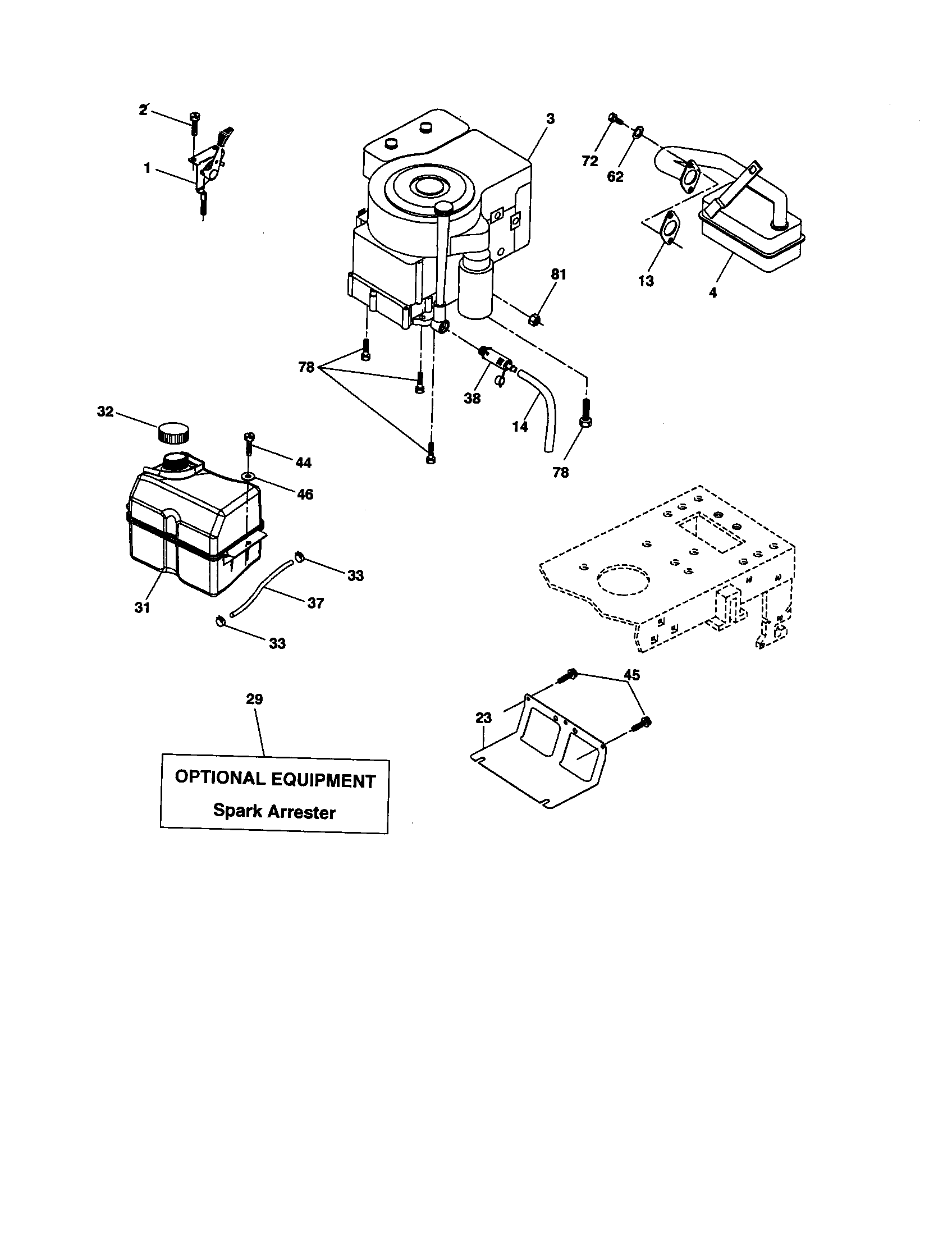

For Craftsman lawn tractor model 917276761, the operator’s manual identifies it as an 18.5 HP front-engine lawn tractor with a low-emission engine design. For the exact engine make and model (such as Briggs & Stratton and the engine model code), we use the engine ID label on your tractor and the specifications in the 917276761 owner's manual.

Use these quick checks to match the correct engine parts and tune-up items:

• Look for the engine ID label (often on the blower housing, valve cover, or near the starter)
• Record the engine model, type, and code exactly as printed
• Compare those numbers to the engine section in the 917276761 owner's manual
• If the label is dirty, wipe it gently; avoid scraping off the print
• Use the engine ID (not just horsepower) when ordering ignition, fuel, or starting parts

Horsepower helps confirm you are in the right family of engines, but it does not uniquely identify the engine manufacturer or model.

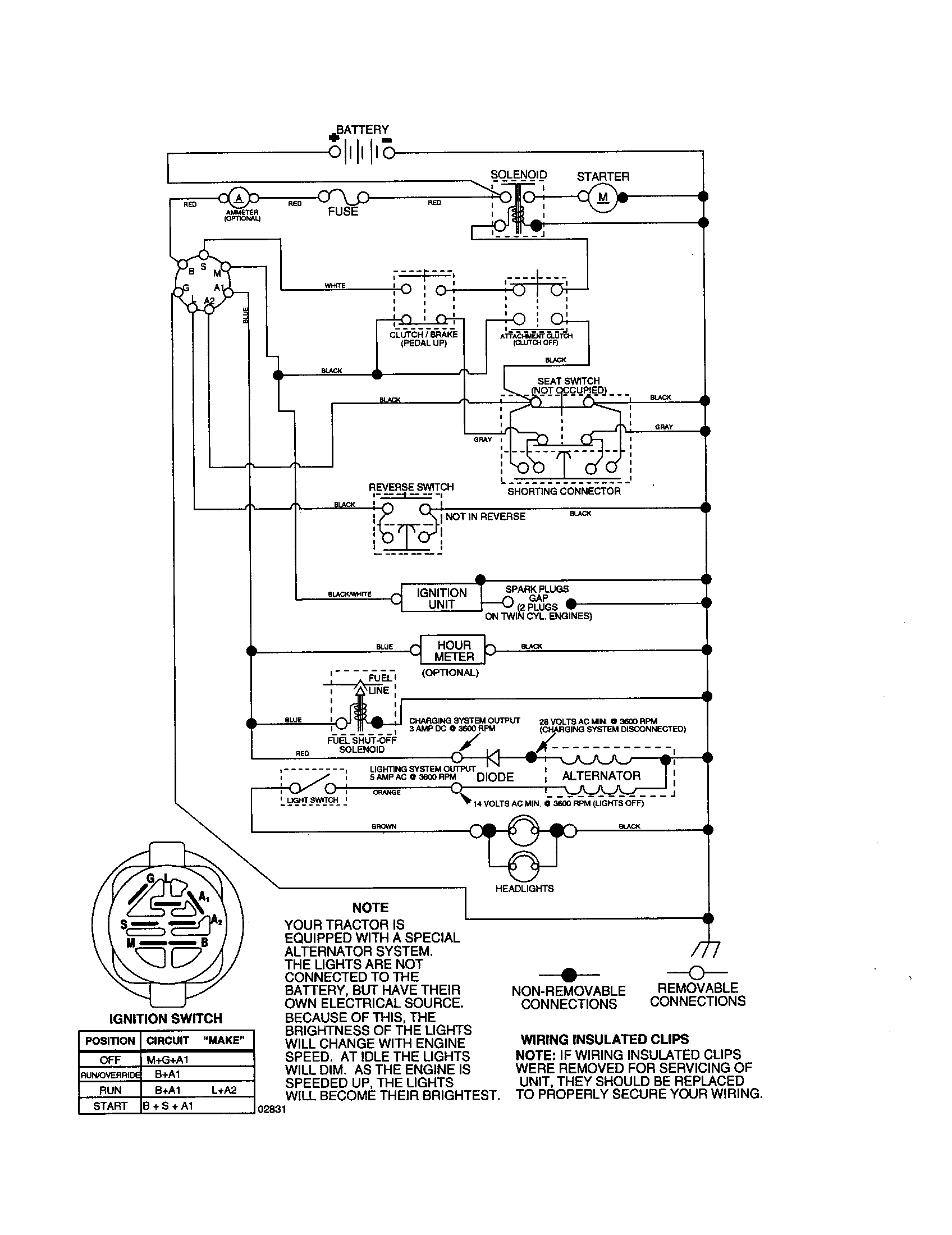

If the tractor clicks, cranks slowly, or will not crank, the starting circuit is usually the first place to check.

• Weak or discharged battery (common after storage)
• Loose or corroded battery cables
• Faulty starter solenoid (a common click-no-crank cause), such as lawn tractor starter solenoid 582042802
• Safety interlock switch issue (seat, brake, PTO)
• Ignition key wear or damage, such as molded ignition key 532140403

Using the exact engine identification prevents ordering the wrong carburetor parts, spark plug, air filter, or ignition components. On riding mowers, many engines share similar horsepower ratings, but use different service parts.

Last updated: January 2026

The Craftsman lawn tractor model 917276761 uses an 18.5 HP engine (per the operator documentation), and it is not identified as a 547cc IntelliPOWER engine for this model. For the correct engine maker and spec details, match the engine ID information shown in the 917276761 owner's manual.

Use these quick checks on the tractor and engine to confirm the manufacturer and exact displacement:

• Look for the engine model/type code label on the engine shroud or valve cover area.
• Record the engine model and spec numbers exactly as printed.
• Compare those numbers to the engine section in the 917276761 owner's manual.
• If the tractor was purchased used, verify the tractor model tag still reads 917276761.
• If your tractor has been repowered, the engine maker may differ from the original build.

“IntelliPOWER” is a branded engine technology used on certain newer riding mowers. The operator documentation we have for Craftsman 917276761 calls out an 18.5 HP, 42-inch mower configuration, not a 547cc IntelliPOWER engine.

Ordering the right tune-up parts (spark plug, air filter, fuel filter) and diagnosing no-start or no-crank problems depends on the engine manufacturer and spec number, not just the tractor model family name.

If you are troubleshooting starting issues while you confirm the engine details, our DIY video riding lawn mower engine spins but wont start video is a good next step.
