Maytag MER6870AAC electric range Parts
Here are the diagrams and repair parts for Maytag MER6870AAC electric range, as well as links to manuals and error code tables, if available.
Owner’s manual
Error CodesBy Schematic
By Part

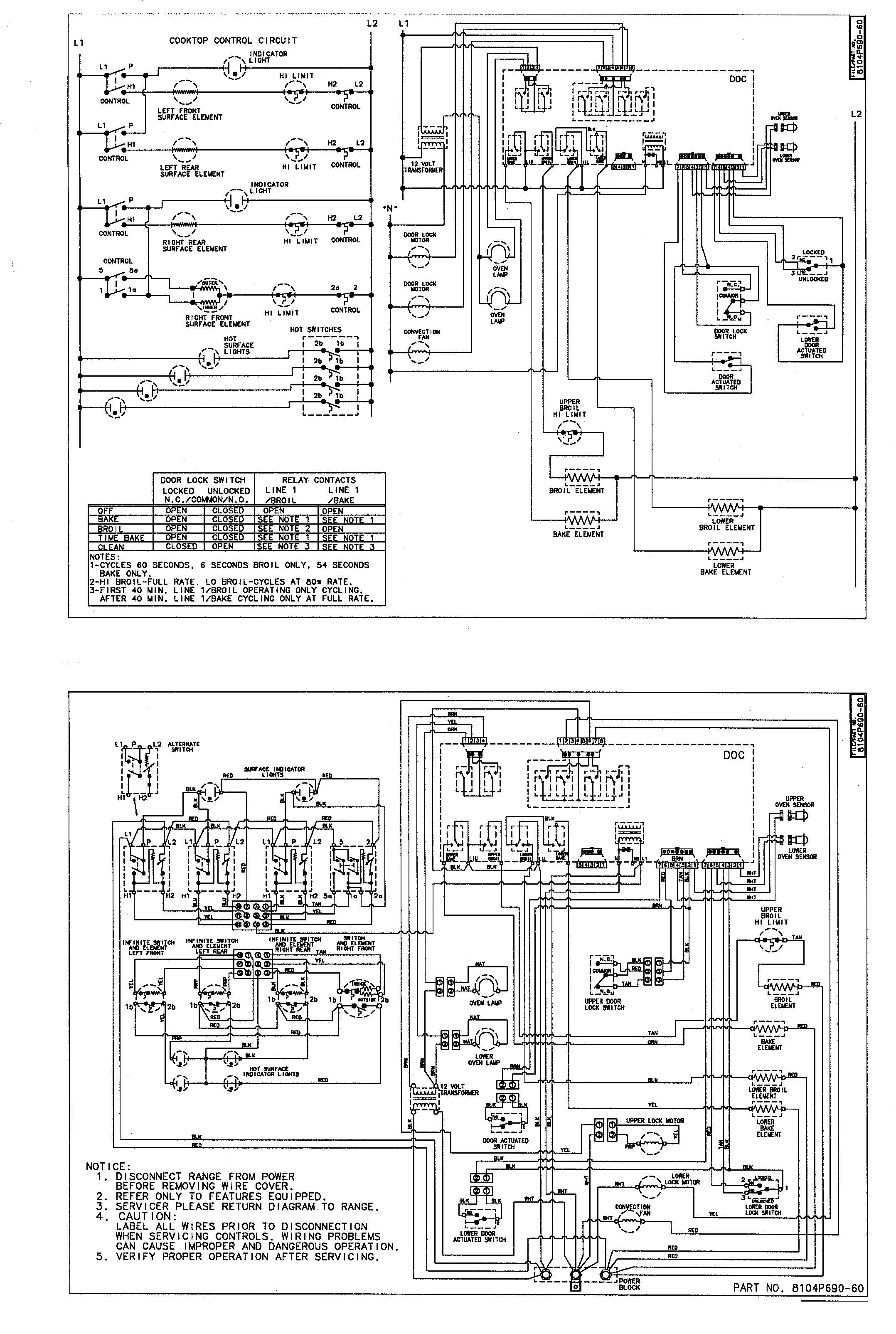

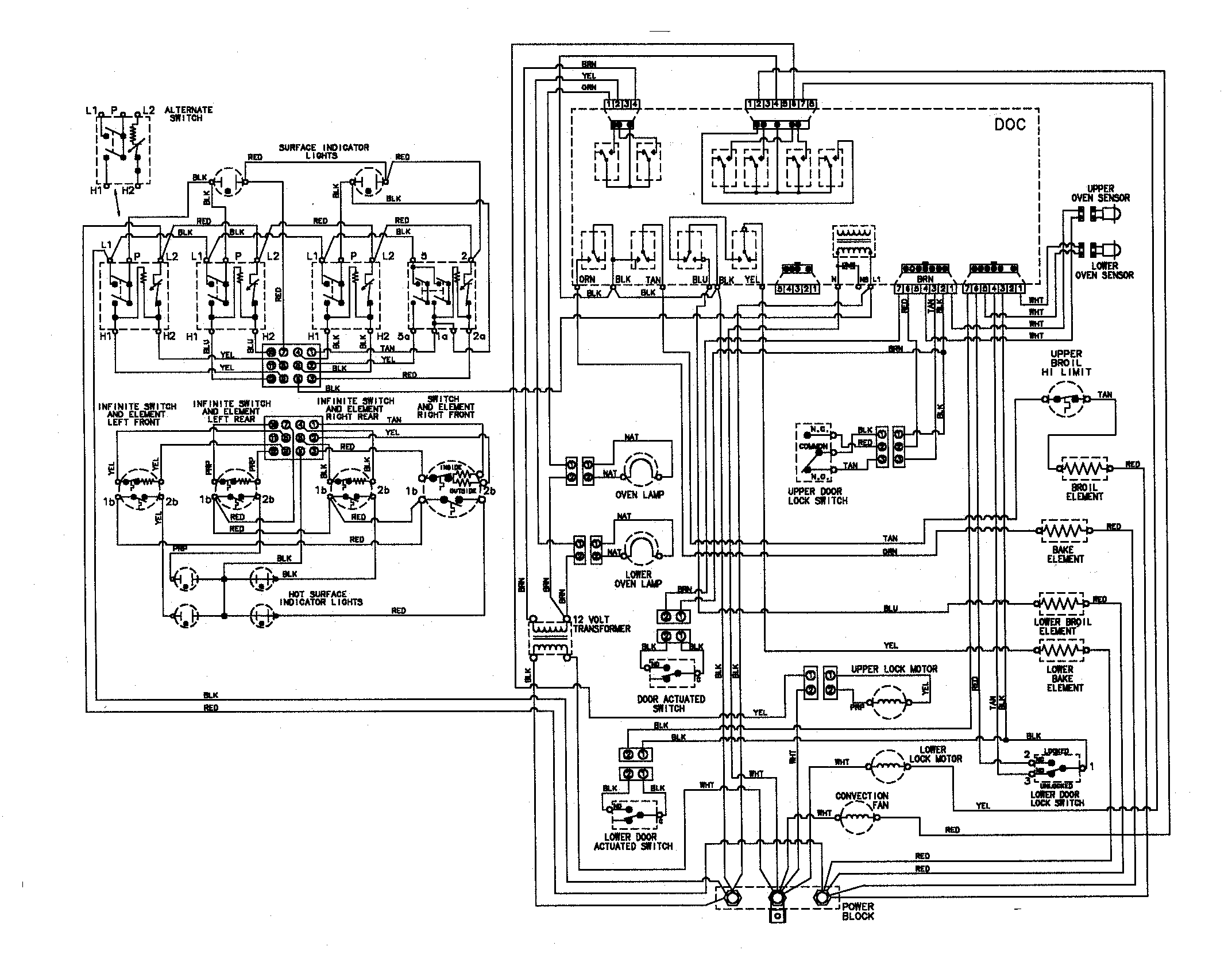

SELECT DIAGRAM
Browse Parts for MER6870AAC Ranges

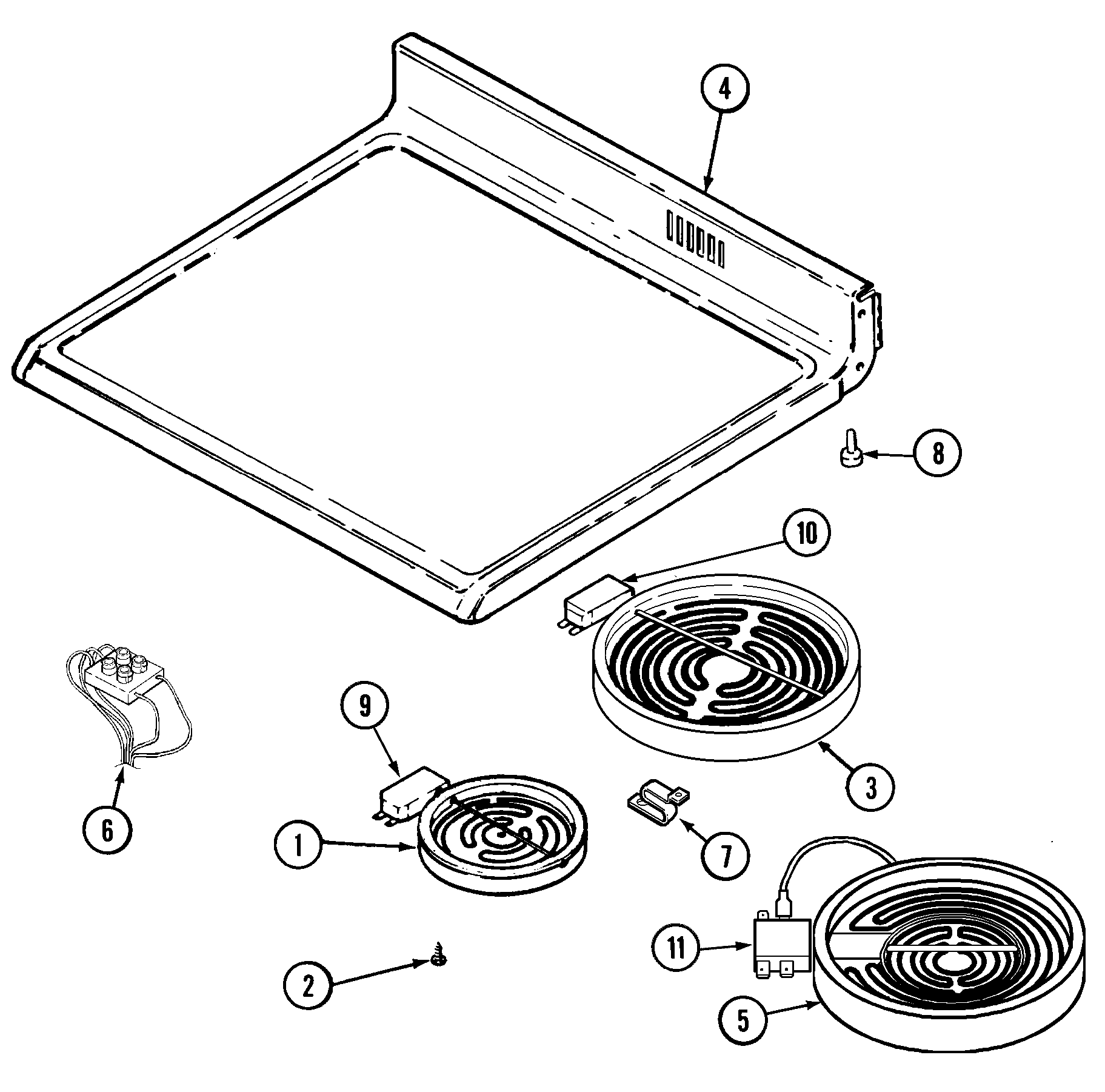

Top assembly diagram
Element W/li
Part #74005476Replaced by #W10823704
Manufacturer substitutionThis part replaces 74005476. Substitute parts can look different from the original.In Stock$140.988% OFF Phone Price : $152.98
Qty

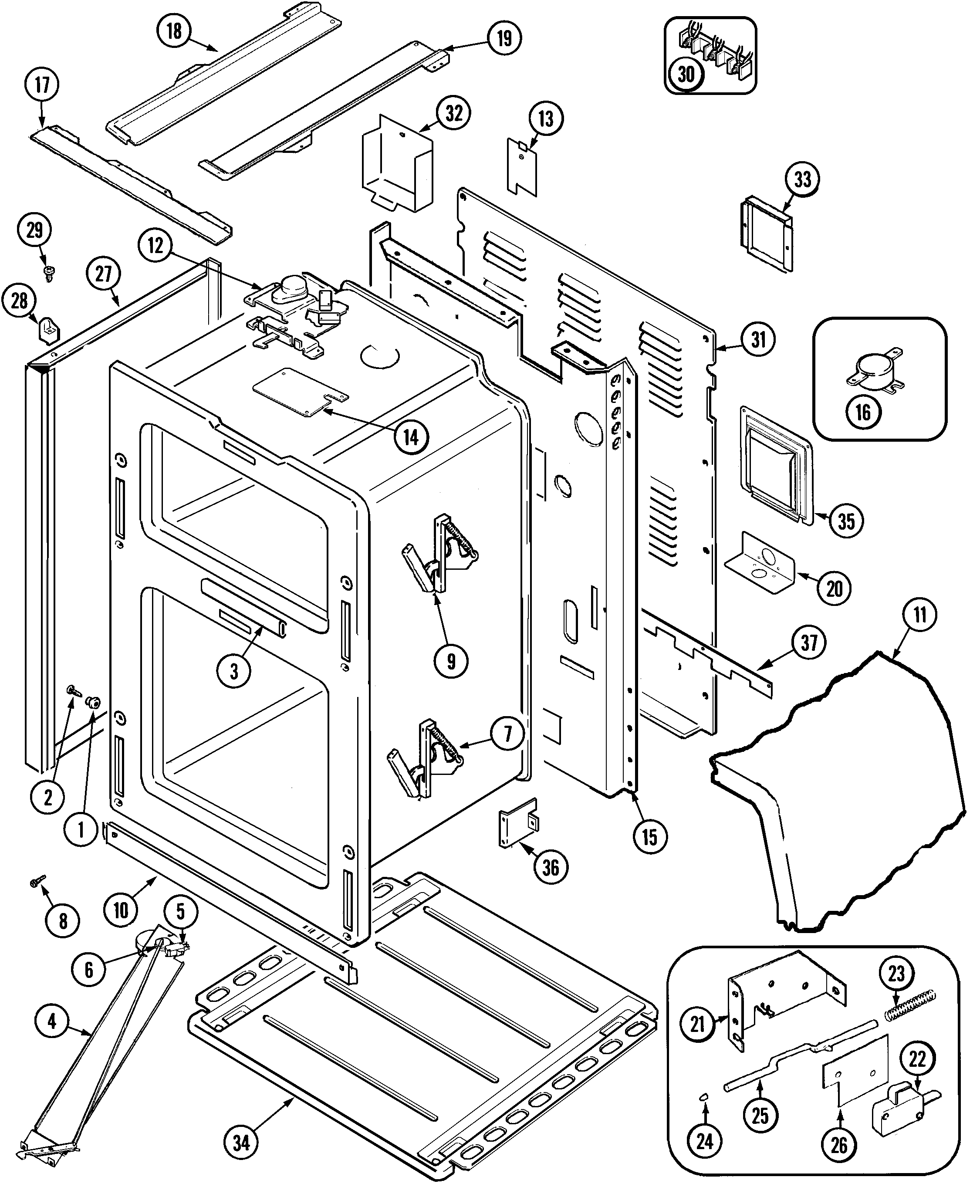

Body diagram
Oven Hinge
Part #74003968Replaced by #WP74011141
Manufacturer substitutionThis part replaces 74003968. Substitute parts can look different from the original.In Stock$108.0810% OFF Phone Price : $120.08QtyBody diagram
Power Bracket
Part #74004180Replaced by #W10190166

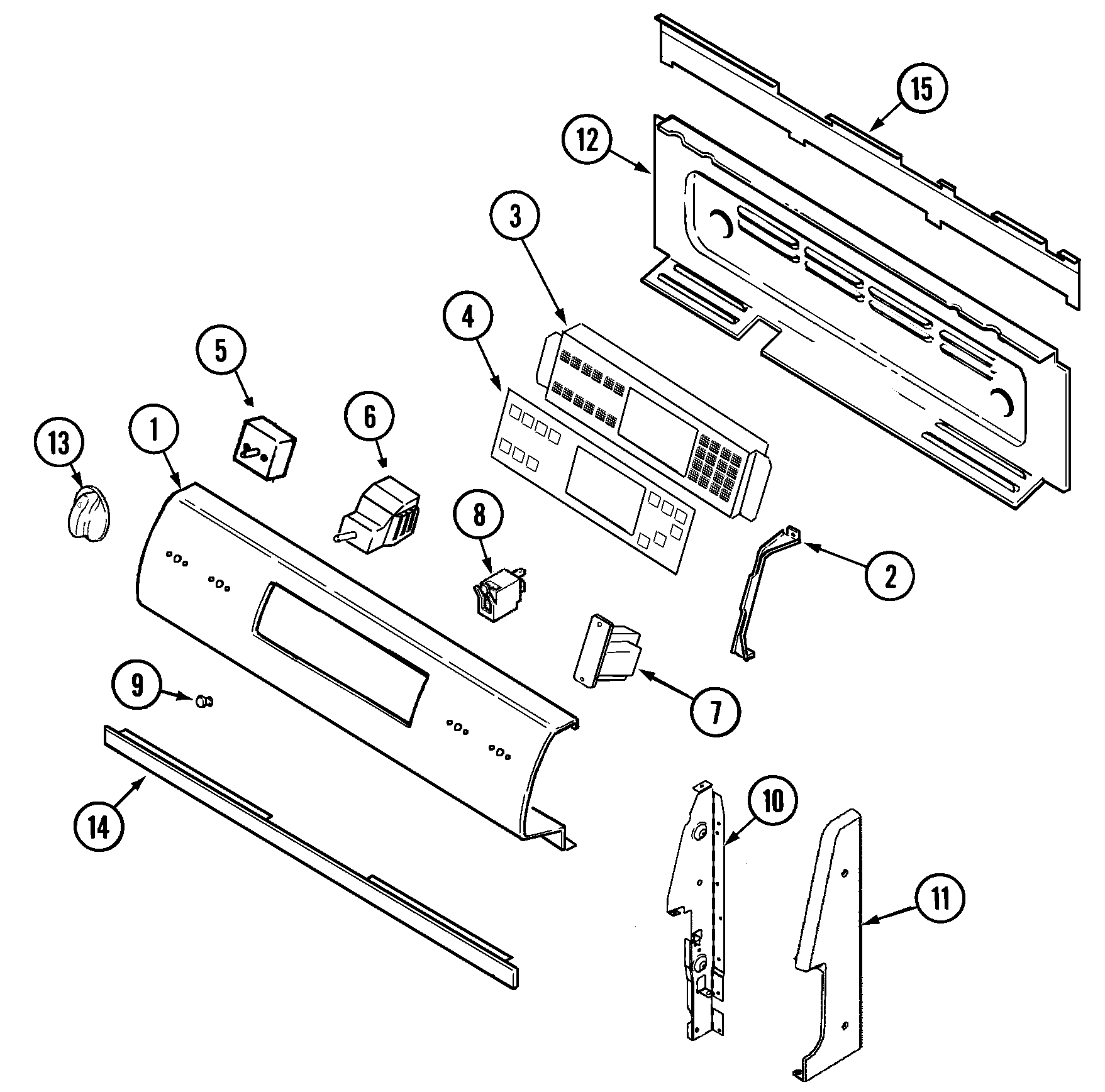

Manufacturer substitutionThis part replaces 74004180. Substitute parts can look different from the original.In Stock$32.70QtyControl panel diagram
Oven Indicator Light
Part #74004153Replaced by #WP74004153
Manufacturer substitutionThis part replaces 74004153. Substitute parts can look different from the original.This item is not returnableIn Stock$7.2112% OFF Phone Price : $8.21QtyControl panel diagram
Screw
Part #7101P349-60Replaced by #WP74004005

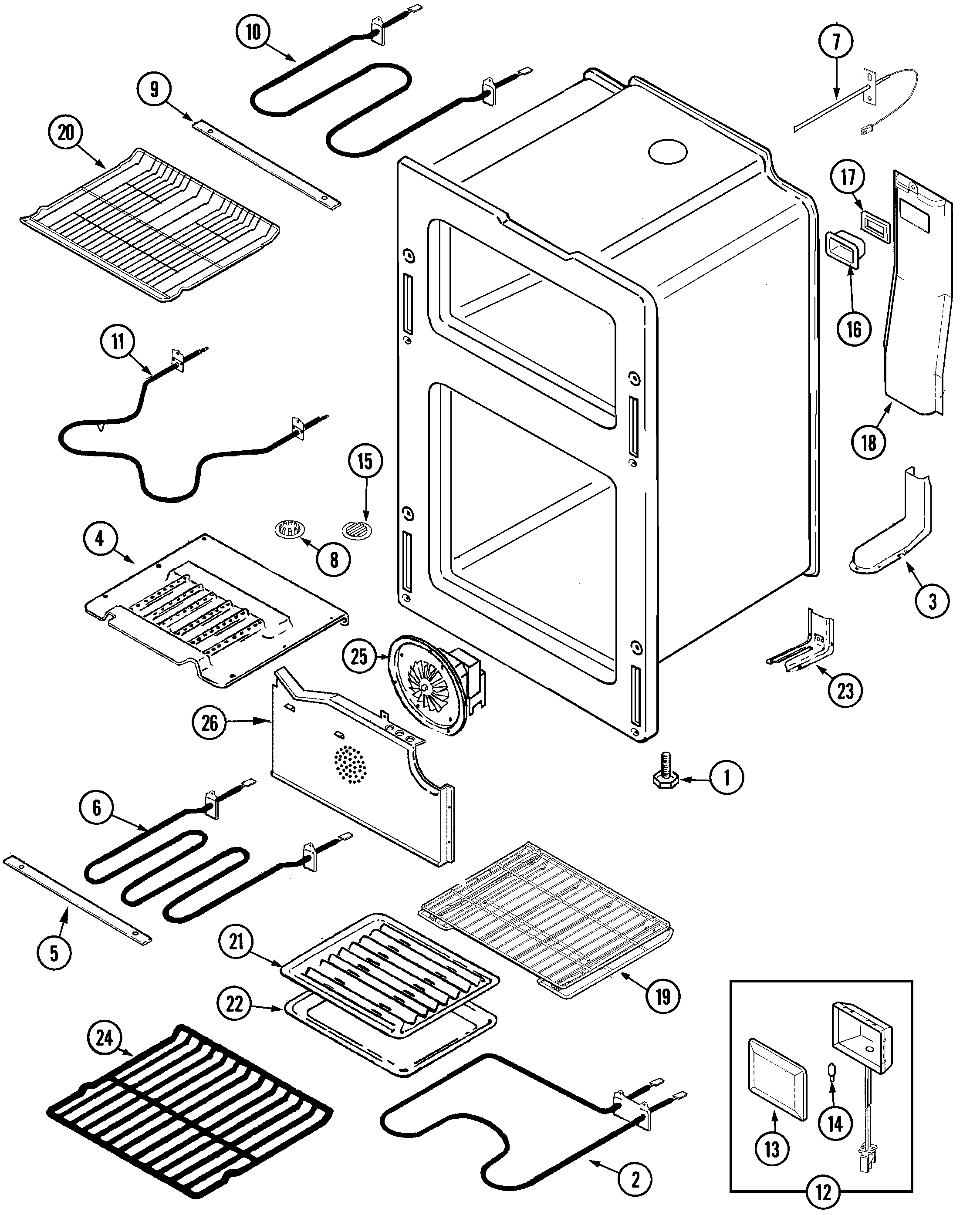

Manufacturer substitutionThis part replaces 7101P349-60. Substitute parts can look different from the original.This item is not returnableIn Stock$4.9117% OFF Phone Price : $5.91QtyOven diagram
Broiler Element
Part #74004106Replaced by #W10201551
Manufacturer substitutionThis part replaces 74004106. Substitute parts can look different from the original.In Stock$52.2610% OFF Phone Price : $58.26QtyOven diagram
Broiler Insert
Part #3413F016-19Replaced by #4396923
Manufacturer substitutionThis part replaces 3413F016-19. Substitute parts can look different from the original.In Stock$45.5612% OFF Phone Price : $51.56QtyTop assembly diagram
Main Glide
Part #74004558Replaced by #W11189172

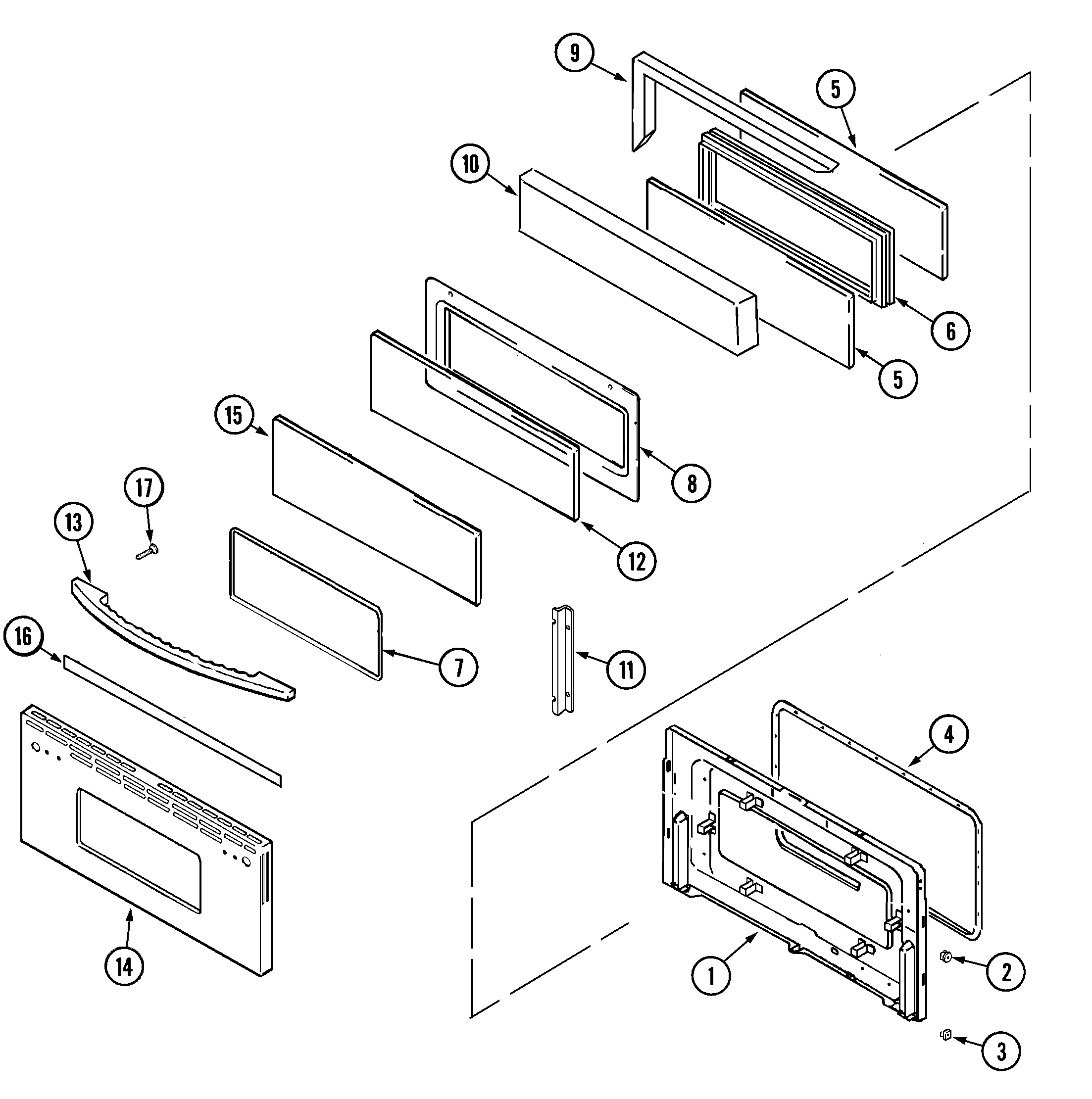

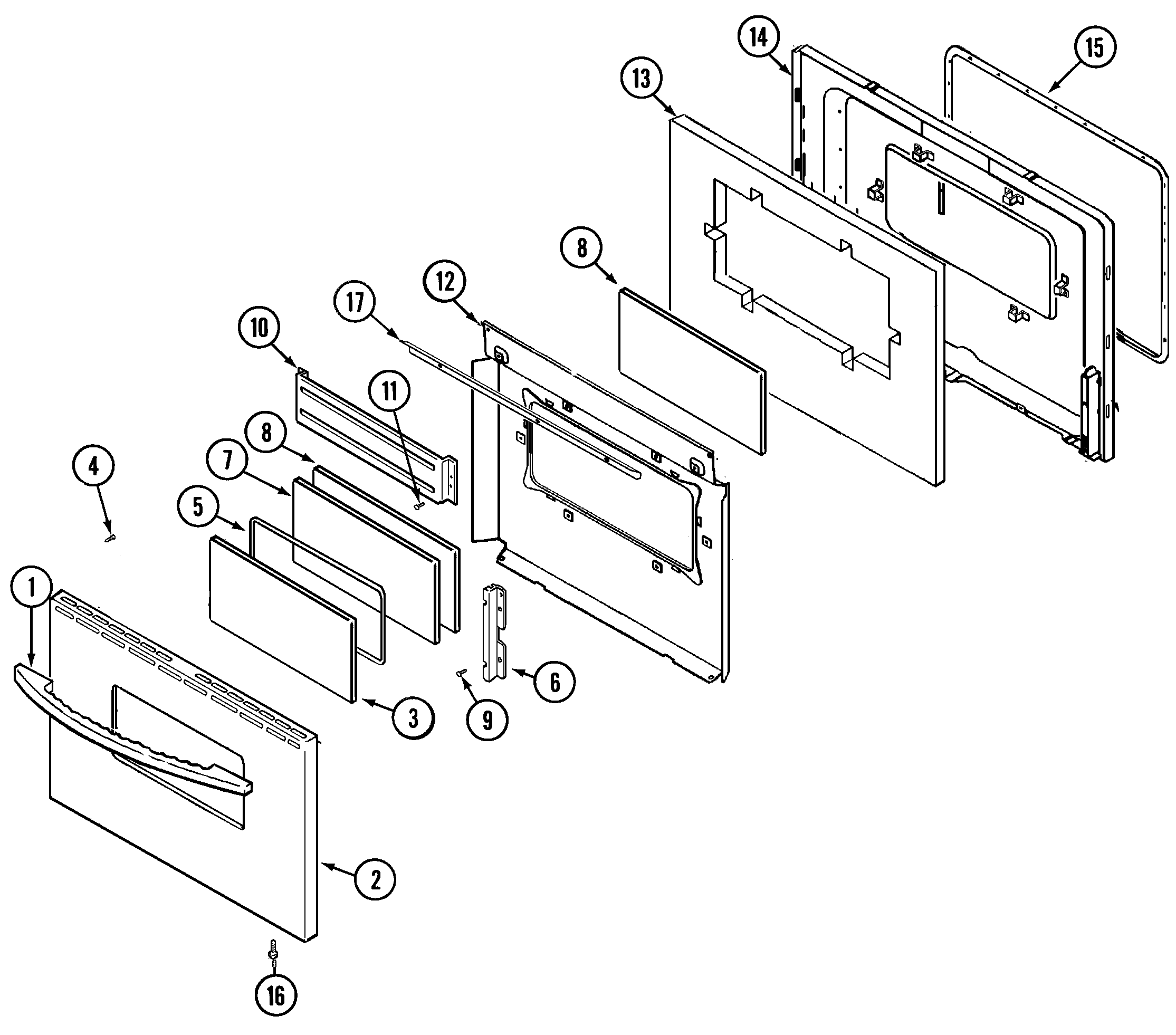

Manufacturer substitutionThis part replaces 74004558. Substitute parts can look different from the original.In Stock$13.1913% OFF Phone Price : $15.19QtyDoor (upper/mer6870aac) diagram
Oven Door Gasket
Part #74004565Replaced by #WP7201P091-60
Manufacturer substitutionThis part replaces 74004565. Substitute parts can look different from the original.In Stock$79.687% OFF Phone Price : $85.68QtyScrew
Part #7101P347-60Replaced by #WPY706189
Manufacturer substitutionThis part replaces 7101P347-60. Substitute parts can look different from the original.This item is not returnableIn Stock$5.2116% OFF Phone Price : $6.21Qty
