Error Codes
How to clear whirlpool dryer error code?
On a Whirlpool dryer like model LGR7646EQ0, most error codes clear after you stop the cycle, reset the control, and then restart a cycle. If the code returns right away, the dryer is still detecting the problem and you will need to correct the cause before it will stay cleared.
- Turn the cycle selector to Off.
- Unplug the dryer (or switch the breaker off) for 1 minute.
- Restore power.
- Select a Timed Dry cycle and press Start.
- If the code reappears, proceed with the checks below.
Error codes are symptoms; clearing them without fixing the underlying issue usually does not last. On gas dryers, common causes include door switch problems, ignition problems, airflow restrictions, or a drive system issue.
- If the dryer will not start, check the door switch and latch first; a failed switch can prevent operation.

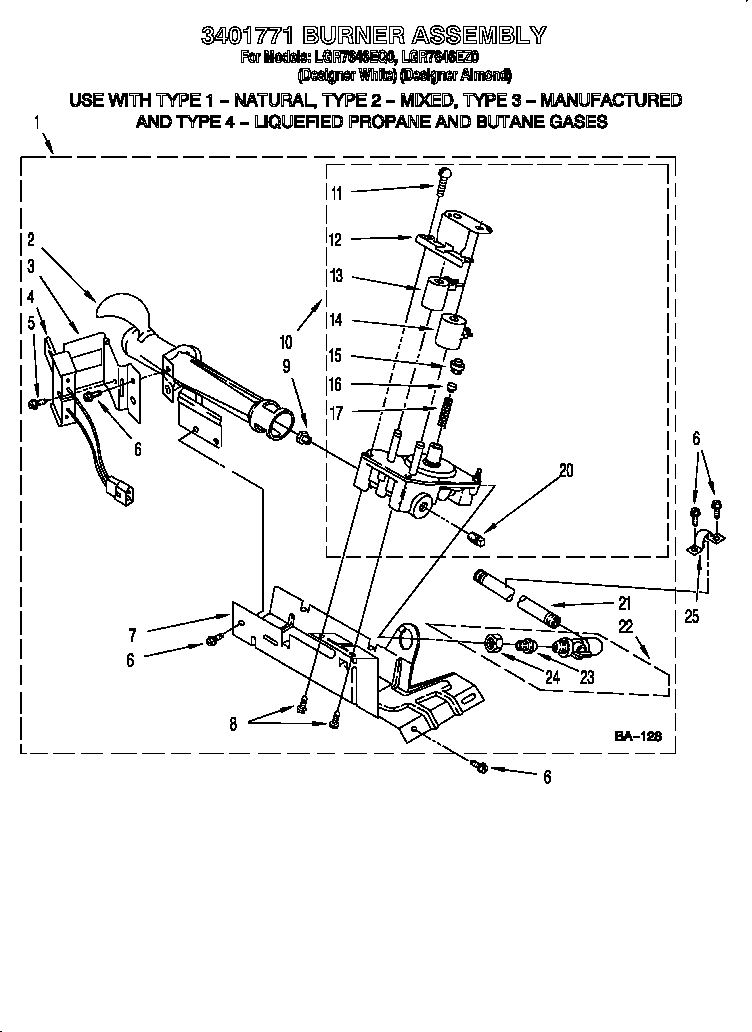

- If the dryer runs but will not heat, focus on the ignition system (igniter, radiant sensor, gas valve coils).
- If drying is slow, check lint screen and venting for restrictions.
| Symptom you see | What it often points to | Example part on this model |
|---|---|---|
| Dryer will not start | Door not sensed as closed | Door switch W10820036 |
| Runs but no heat (gas) | Ignition system not lighting | Igniter 279311 |
| Heats briefly then stops heating | Weak gas valve coils | Dryer valve coil kit 279834 |
| Loud rumble or drum not turning | Belt or motor drive issue | Drum belt 341241 |
Clearing an error code is useful after a one-time interruption (power glitch, paused cycle), but a repeating code helps prevent unsafe operation and protects components like the drive motor and gas ignition system.
For model-specific troubleshooting patterns and what different Whirlpool dryer codes typically mean, use our guide: Whirlpool electronic control model dryer error codes. For ordering replacement parts for LGR7646EQ0, use the parts list for this model or search by model number on Sears PartsDirect.
Last updated: February 2026
What does energy preferred mean?
On a Whirlpool LGR7646EQ0 dryer, Energy Preferred is a cycle or setting designed to reduce energy use by using lower heat and/or ending the cycle sooner when clothes are dry (often by relying more on automatic dryness sensing than a fixed timed dry). It is meant for everyday loads when you want efficiency over maximum heat.
- Longer dry time than a high-heat or timed setting is common.
- Lower fabric stress because temperatures are typically reduced.
- Best results on similar fabrics (mixed heavy and light items can dry unevenly).
- More sensitive to airflow; a restricted vent can make it seem like it is not drying.
| Laundry situation | Use Energy Preferred? | Better choice |
|---|---|---|
| Normal cottons, everyday loads | Yes | Energy Preferred or auto dry |
| Very heavy items (towels, jeans) | Sometimes | Higher heat or longer timed dry |
| One or two items only | Sometimes | Timed dry to avoid overdrying |
| Dryer not heating well | No | Troubleshoot heat/airflow first |
Energy-saving cycles depend heavily on good airflow and proper drum movement. Check these common causes first:
- Clean the lint screen and confirm strong airflow at the outside vent hood.
- Avoid overloading; clothes need room to tumble.
- If the drum is not turning smoothly, inspect the belt and support components such as the drum belt 341241.
- If this is a gas dryer and heat is inconsistent, ignition components can be involved; common service parts include the dryer valve coil kit 279834 and the igniter 279311.
Using Energy Preferred can lower operating cost and reduce wear on fabrics, but it will highlight problems like poor venting, weak heat, or slipping drive parts faster than a high-heat timed cycle.
For replacement parts for your Whirlpool LGR7646EQ0, use the parts list for this model or search by model number on Sears PartsDirect.
Last updated: February 2026
What is the capacity of the Whirlpool LGR7646EQ0?
We don’t publish a fixed cubic-foot drum capacity for the Whirlpool LGR7646EQ0 on the parts listing; for practical use, treat it as a full-size 29-inch Whirlpool gas dryer and load it to about 1/2 to 2/3 of the drum so clothes tumble freely. You can also confirm the exact drum size by comparing the drum and bulkhead parts used on this model.
Use these load targets to match how full-size Whirlpool dryers are designed to tumble and vent:
- Mixed laundry: fill the drum 1/2 to 2/3 full
- Towels: 6 to 8 bath towels per load
- Jeans: 8 to 12 pairs per load
- Bulky items: 1 comforter; add only a few small items if it still tumbles easily
- If items plaster to the drum: reduce the load; airflow and tumbling are being restricted
Dryer “capacity” is the interior drum volume. When the exact cubic feet is not listed, the most reliable way to validate the drum size is by the model’s drum and front support components.
- Check whether the dryer uses the standard full-size drum belt and drum support system
- Compare the bulkhead and drum-related parts used on LGR7646EQ0 to other Whirlpool 29-inch platforms
- Use the model’s parts diagrams and part numbers as your match point
| What you’re checking | What it tells you | Example part on this model |
|---|---|---|
| Drum drive belt size/platform | Full-size drum family | Drum belt 341241 |

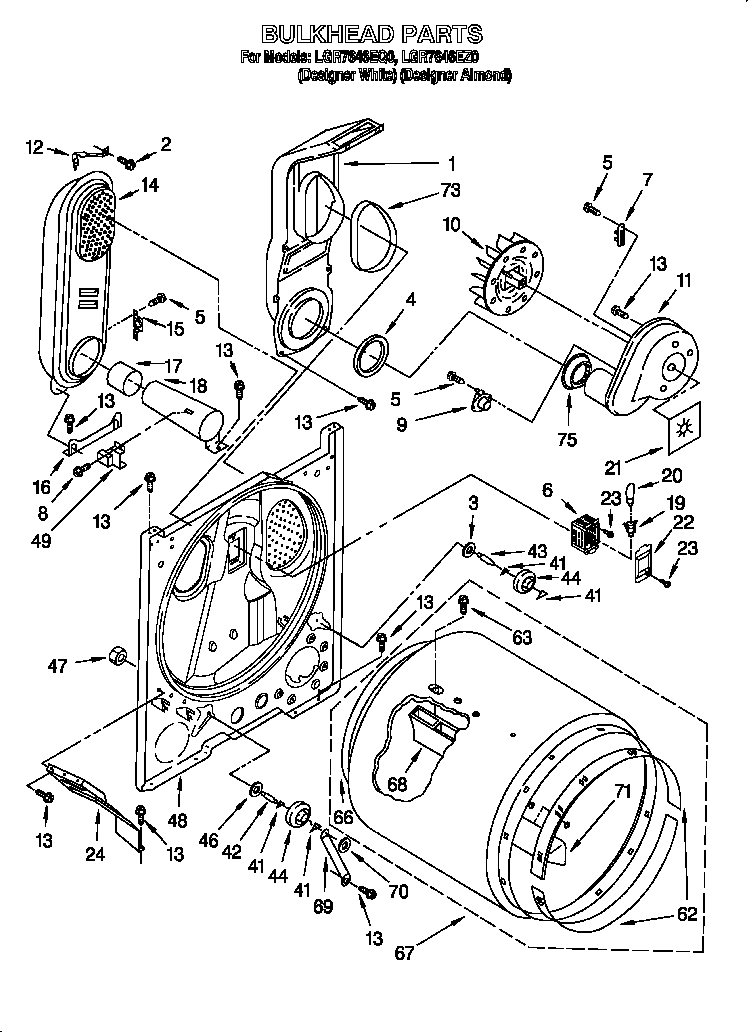

| Front drum support/bulkhead design | Drum opening and support style | Maytag dryer bulkhead W10828911 |
| Drum support wear surfaces | How the drum rides and tumbles | Bearing ring 279441 |
Correct loading protects drying performance. Overloading a gas dryer restricts airflow and tumbling, which increases dry time and can accelerate wear on the belt, motor, and drum support parts.
If you’re shopping for parts or comparing models, search by model number on the parts list for LGR7646EQ0, or use Sears PartsDirect to look up additional Whirlpool dryer specifications by model.
Last updated: February 2026
