GE
Dryer

Model # DBXR463GD1WW Official GE gas dryer

Here are the diagrams and repair parts for Official GE DBXR463GD1WW gas dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

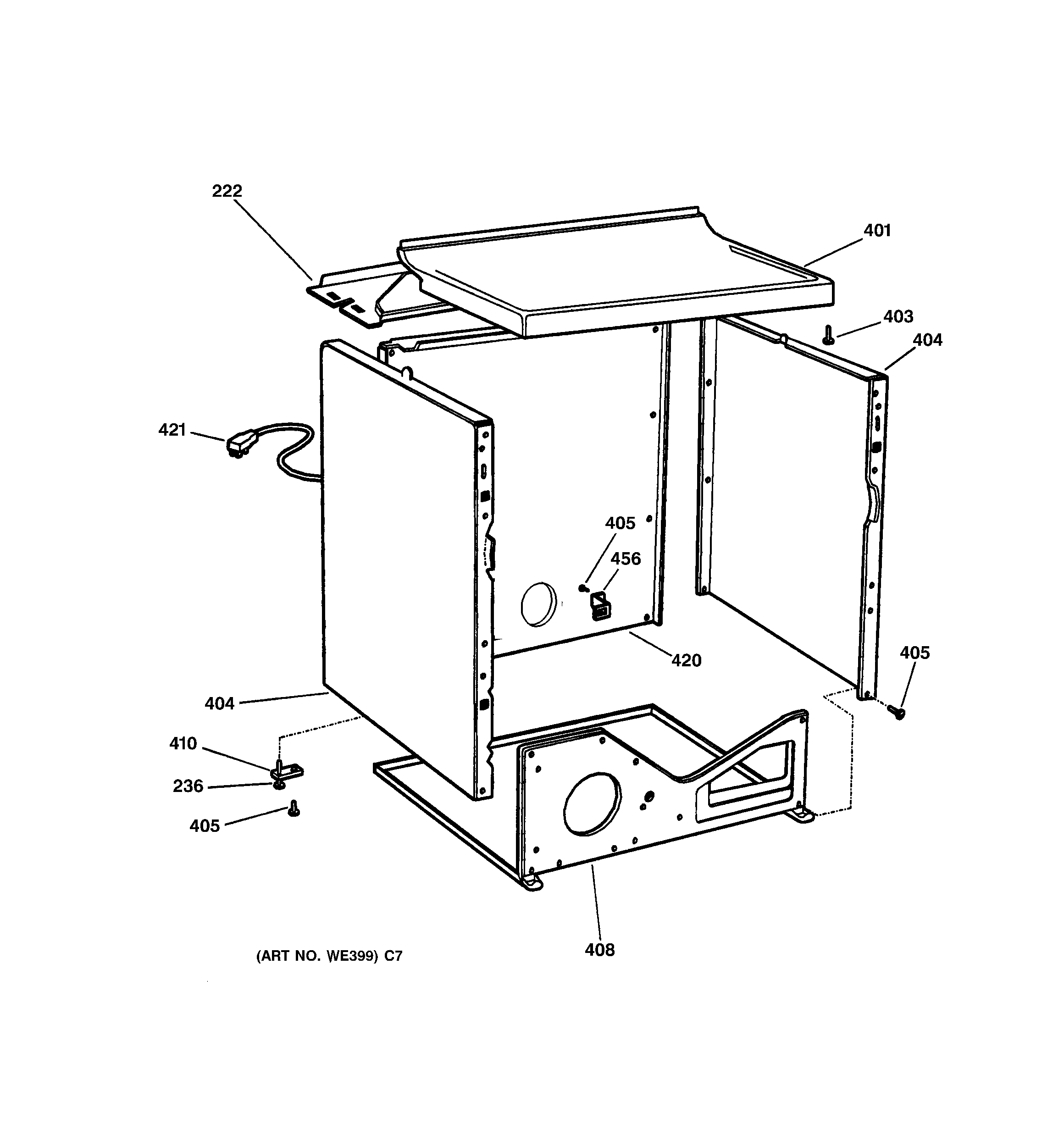

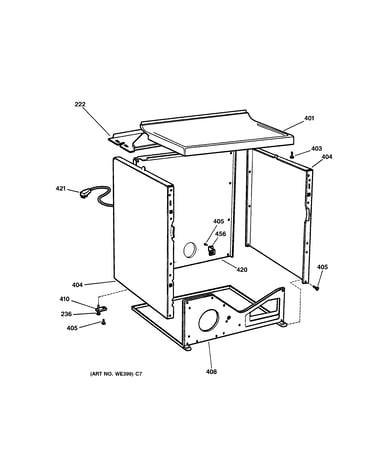

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 123 parts  |

Felt WE9M15
#312

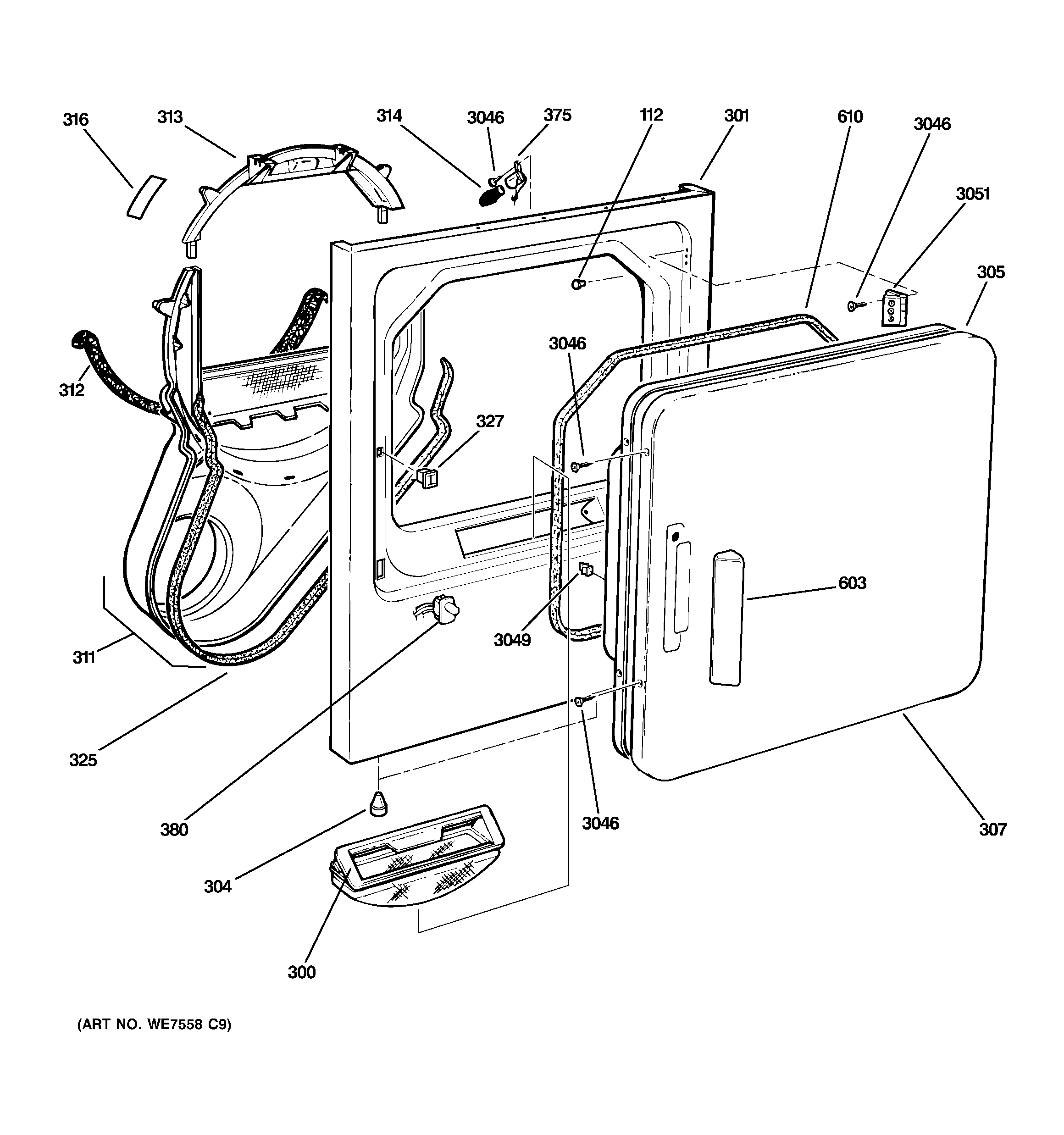

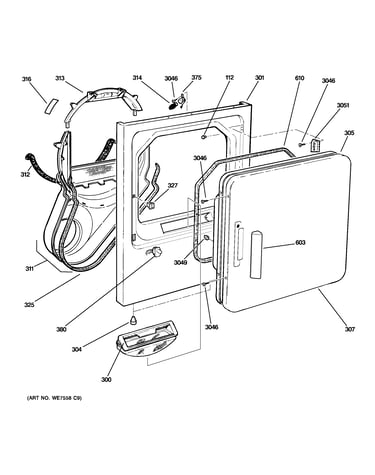

Front panel & door diagram

Felt

Part #WE9M15

Replaced by #WE09X27634

?
Manufacturer substitution
This part replaces WE9M15. Substitute parts can look different from the original.
BEST SELLER
$22.36
21% OFF Phone Price : $28.36
In Stock
Kenmore Dryer Rear Bearing WE1M462
#3106

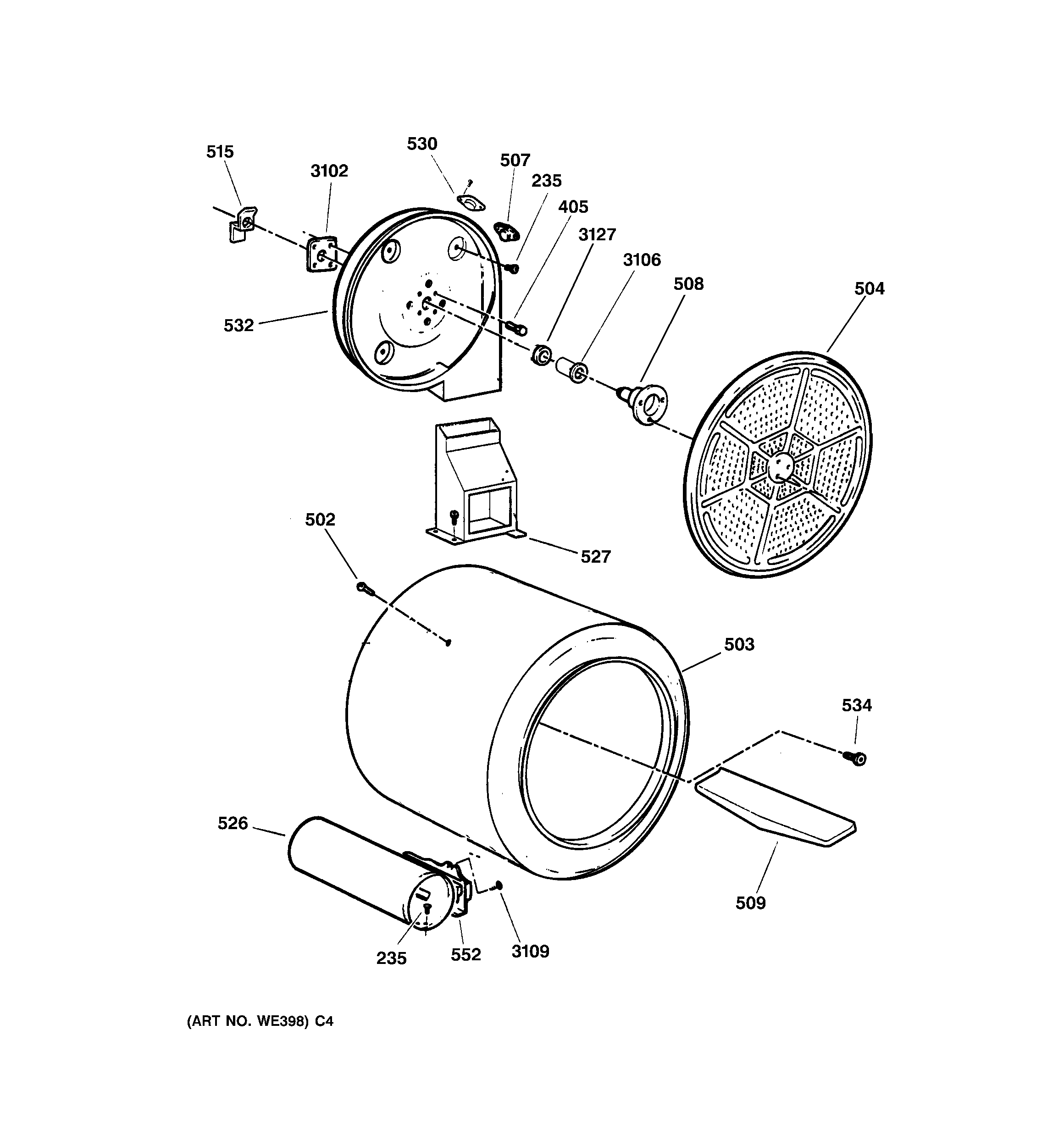

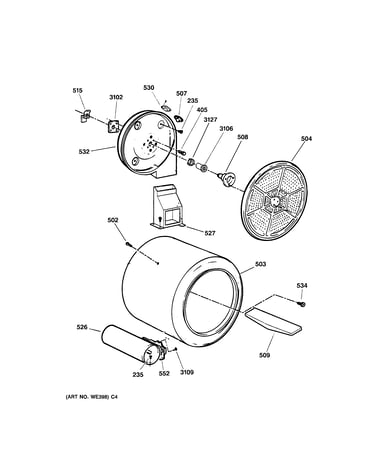

Drum diagram

Kenmore dryer rear bearing

Part #WE1M462

BEST SELLER
$23.68
20% OFF Phone Price : $29.68
In Stock
Igniter WE04X0739
#717

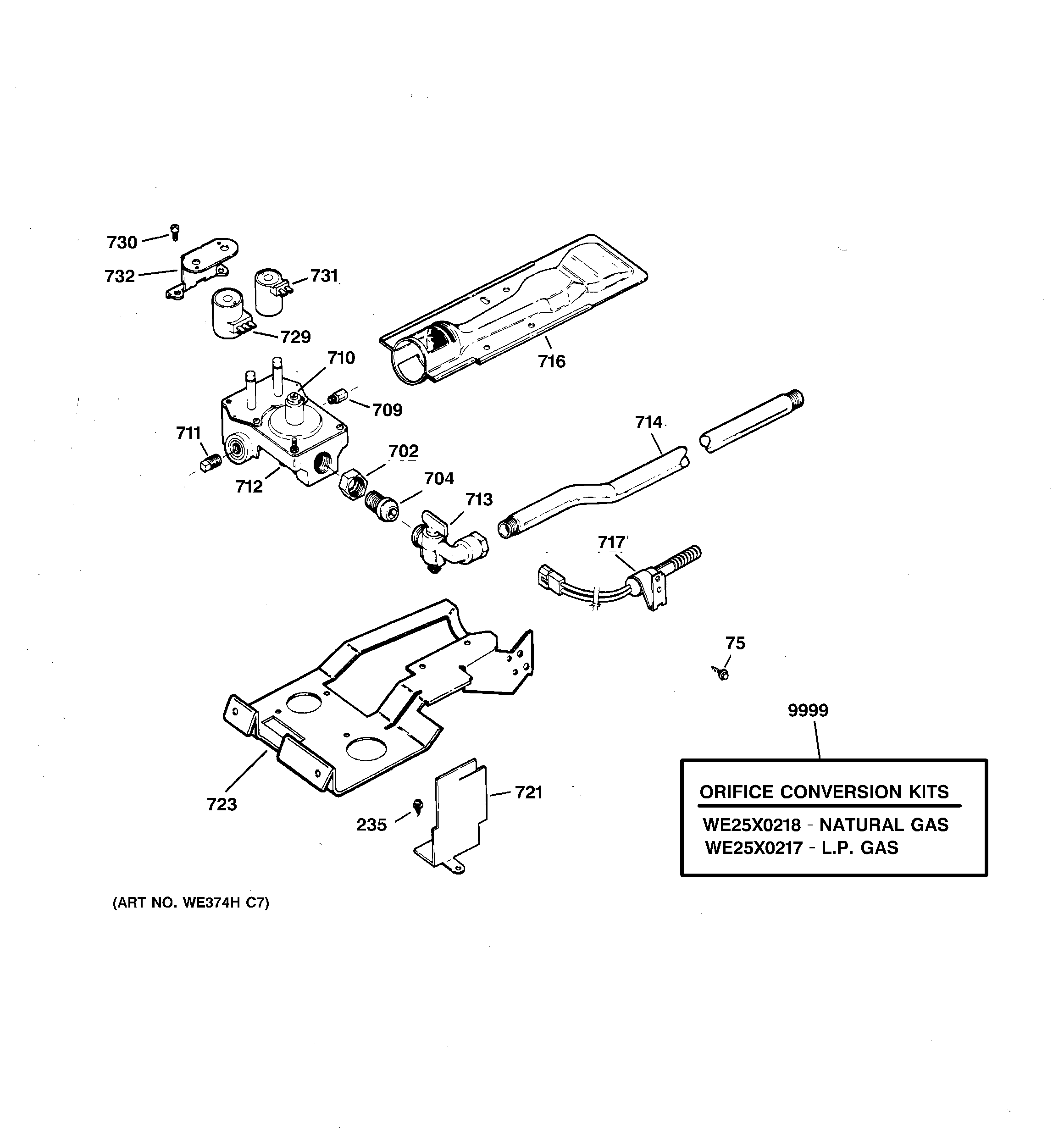

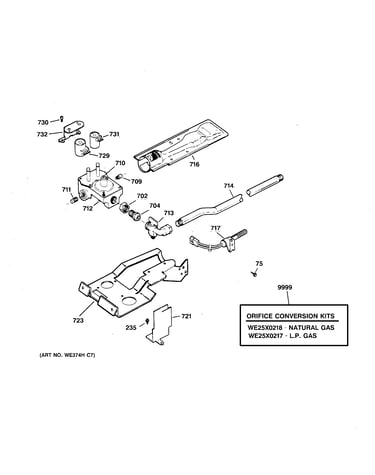

Gas valve & burner assembly diagram

Igniter

Part #WE04X0739

Replaced by #WE04X25996

?
Manufacturer substitution
This part replaces WE04X0739. Substitute parts can look different from the original.
BEST SELLER
$42.72
12% OFF Phone Price : $48.72
In Stock
Kenmore Dryer Rear Bearing O-ring WE1M461
#3127

Drum diagram

Kenmore dryer rear bearing o-ring

Part #WE1M461

BEST SELLER
$7.63
12% OFF Phone Price : $8.63
In Stock
Interlock Switch WD21X0557
#803

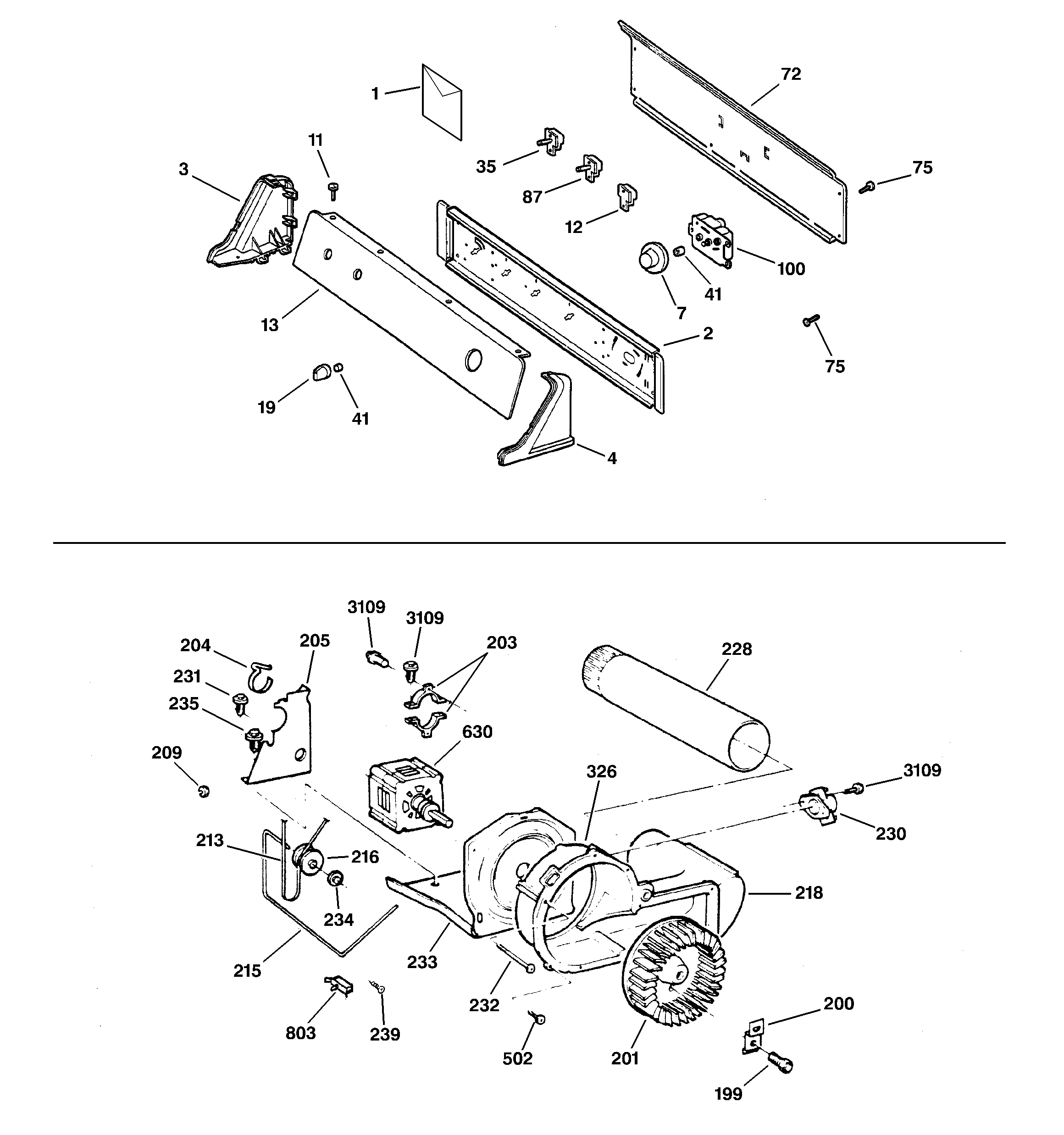

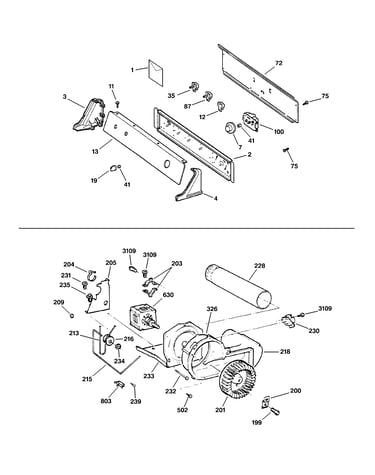

Backsplash, blower & motor assembly diagram

Interlock switch

Part #WD21X0557

Replaced by #WD21X10261

?
Manufacturer substitution
This part replaces WD21X0557. Substitute parts can look different from the original.
BEST SELLER
$21.69
22% OFF Phone Price : $27.69
In Stock
Timer Knob WE1M443
#7

Backsplash, blower & motor assembly diagram

Timer knob

Part #WE1M443

Replaced by #WE1M654

?
Manufacturer substitution
This part replaces WE1M443. Substitute parts can look different from the original.
BEST SELLER
$26.44
18% OFF Phone Price : $32.44
In Stock
Trap Lint WE18M19
#300

Front panel & door diagram

Trap lint

Part #WE18M19

Replaced by #WE18X25100

?
Manufacturer substitution
This part replaces WE18M19. Substitute parts can look different from the original.
BEST SELLER
$57.69
9% OFF Phone Price : $63.69
In Stock
Lamp WE04X0718
#314

Front panel & door diagram

Lamp

Part #WE04X0718

Replaced by #WE05X20431

?
Manufacturer substitution
This part replaces WE04X0718. Substitute parts can look different from the original.
BEST SELLER
$13.71
13% OFF Phone Price : $15.71
In Stock
Dryer Operating Thermostat (replaces We04m0216, We4m317, We4m56) WE4M216
#230

Backsplash, blower & motor assembly diagram

Dryer operating thermostat (replaces we04m0216, we4m317, we4m56)

Part #WE4M216

BEST SELLER
$85.84
7% OFF Phone Price : $91.84
In Stock
Dryer Radiant Sensor (replaces We04x0448) WE4X448
#552

Drum diagram

Dryer radiant sensor (replaces we04x0448)

Part #WE4X448

BEST SELLER
$47.23
11% OFF Phone Price : $53.23
In Stock
