Kenmore 11097281800 dryer feature sheet Parts

Your Kenmore dryer’s model number is printed on the appliance’s ID label; once you match that number (for example, 11097281800) to your dryer, we can pull the correct parts list, wiring diagram, and specifications for your exact unit. Use the 11097281800 owner's manual to confirm label locations and model details.

Where to find the model number label

Check these common spots on Kenmore dryers:

• Inside the dryer door opening (on the cabinet frame)
• On the back panel
• On the door itself (edge or inner surface)
• Near the lint screen housing (depending on design)
• On the lower front area behind a small access panel (some models)

What the model number looks like (and why it matters)

Kenmore model numbers are typically a long string of digits. For many Kenmore dryers, the first three digits (often 110) identify the manufacturing source, which helps ensure the right fit for parts like a drum belt, igniter, or thermostat.

Quick examples

What you see on the label	What it tells us	What you can do next
11097281800	Exact model identification	Use it to select compatible parts and diagrams
Serial number (letters and numbers)	Production sequence and date coding	Helpful for service history, not parts matching

Tips to avoid ordering the wrong part

Before ordering any replacement part for model 11097281800, we recommend:

• Copy the model number exactly as shown (no spaces added or removed)
• Take a clear photo of the model/serial label for reference
• Confirm the fuel type (gas vs. electric) before buying heating parts
• Compare the symptom to common wear items (belt, idler pulley, blower wheel)
• Use the parts diagram and notes in the 11097281800 owner's manual when disassembling

Why it matters

The model number is the key to correct fit and safe operation. Even small design changes across Kenmore dryer series can affect compatibility for items like the drum belt, door switch, operating thermostat, and gas valve coils.

Last updated: February 2026

Common problems we see on Kenmore dryer model 11097281800 include no heat, long dry times, the drum not turning, and unusual noises; most of these trace back to airflow restrictions, worn drive components, or failed heat-system parts. For model-specific specs and feature details, use the 11097281800 owner's manual.

Most common symptoms and likely causes

• Dryer won’t heat (gas models): weak or failed gas valve coils, bad igniter, or a failed radiant sensor
• Dryer runs but takes too long: lint screen clogged, vent restricted, blower wheel slipping or packed with lint
• Drum won’t turn: broken or stretched belt, worn idler pulley, motor or motor switch issue
• Squealing, thumping, or scraping: belt wear, idler pulley wear, drum support or bearing wear
• Stops when you open the door (normal safety): door switch opens the circuit; if it won’t start at all, the switch can be the issue

Quick checks we recommend first (fast, no parts)

• Clean the lint screen every load; confirm strong airflow at the outside vent hood.
• Run a timed cycle and verify the exhaust gets hot (gas dryers should heat in cycles).
• Listen for the motor running; if you hear the motor but the drum does not move, suspect the belt or idler.
• Inspect the vent path for kinks, crushed flex duct, or heavy lint buildup.
• Unplug the dryer before removing panels or touching wiring.

Common parts that fix these issues on 11097281800

Symptom	Common fix	Example model-matched part
Drum not turning	Replace worn/broken belt	Drum belt 341241
Squealing or belt slipping	Replace idler pulley	Dryer idler pulley WP691366
No heat (gas) or heats then quits	Replace gas valve coils	Dryer gas valve coil kit 279834
No ignition	Replace igniter	Dryer igniter 279311
Poor airflow/noisy airflow	Replace blower wheel	Dryer blower wheel WP694089

Why it matters

Airflow problems and worn drive parts do more than slow drying; they can overheat the dryer, shorten the life of thermostats and fuses, and strain the motor. Keeping vents clear and replacing worn parts early helps the dryer dry faster and run quieter.

Last updated: February 2026

Most Kenmore dryers last 10 to 13 years. A well-maintained Kenmore 11097281800 can run 15 years or more when airflow stays strong (clean lint system and venting) and the drive system is kept in good shape; see the 11097281800 owner's manual for model-specific care and specs.

Typical lifespan ranges

Dryer condition	What we typically see	What helps most
Average use, basic maintenance	10 to 13 years	Regular lint and vent cleaning
Light use, excellent maintenance	13 to 18 years	Good airflow, no overloading
Heavy use, poor airflow	7 to 10 years	Fix vent restrictions quickly

What shortens a dryer’s life fastest

• Restricted venting (long dry times, overheating)
• Running overloaded loads that strain the drum and belt
• Ignoring squealing, thumping, or burning smells
• Skipping lint screen cleaning every load
• Worn drum support or belt parts left in service too long

Maintenance that adds years (and saves energy)

• Clean the lint screen every load; wash it occasionally to remove residue.
• Inspect and clean the vent duct and exterior hood regularly.
• Keep the dryer level so the drum rides correctly.
• If the drum slips, won’t turn, or you hear squealing, check wear items like the drum belt 341241 and dryer idler pulley WP691366.
• For gas models, address heat issues promptly (for example, weak ignition or cycling heat can point to coils or sensors).

Why it matters

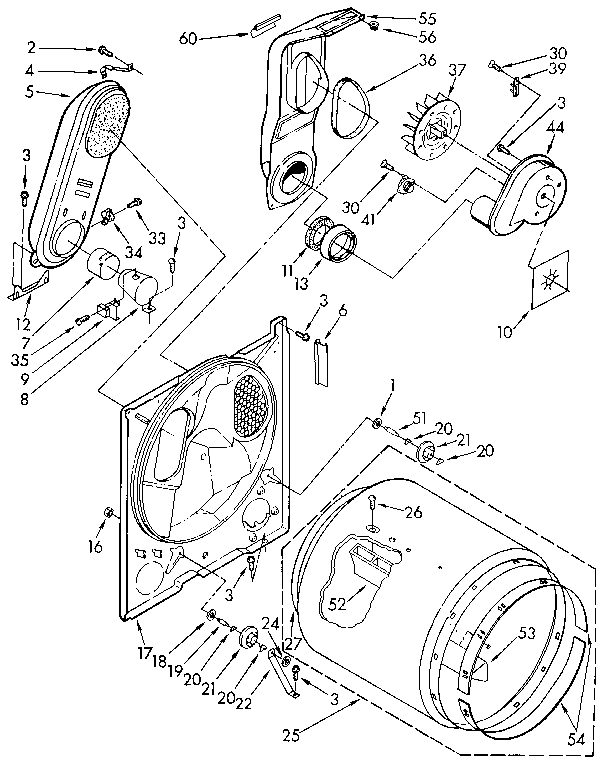

A dryer’s biggest enemies are heat stress and mechanical strain. Good airflow keeps temperatures controlled, and replacing common wear parts early helps protect the motor, drum, and bulkhead from more expensive damage.
