Frigidaire FPBS2777RFC refrigerator Parts

A Frigidaire range typically lasts 15 years. If you are asking about the Frigidaire FPBS2777RFC refrigerator on this page, a refrigerator typically lasts 13 years; use the owner's manual for model-specific care and maintenance.

Typical lifespan (range vs refrigerator)

Use these standard expectations to plan repairs and replacement:

• Range (gas or electric): 15 years
• Refrigerator (like FPBS2777RFC): 13 years
• Heavy daily use: shorter lifespan
• Regular cleaning and timely part replacement: full expected lifespan

Appliance type	Typical lifespan	Common wear items
Range	15 years	Surface elements/igniters, oven sensor, control board
Refrigerator	13 years	Water filter, ice maker, door gasket, fan components

If you meant your FPBS2777RFC refrigerator

These are the most common issues that show up as a refrigerator ages, along with parts that often solve them:

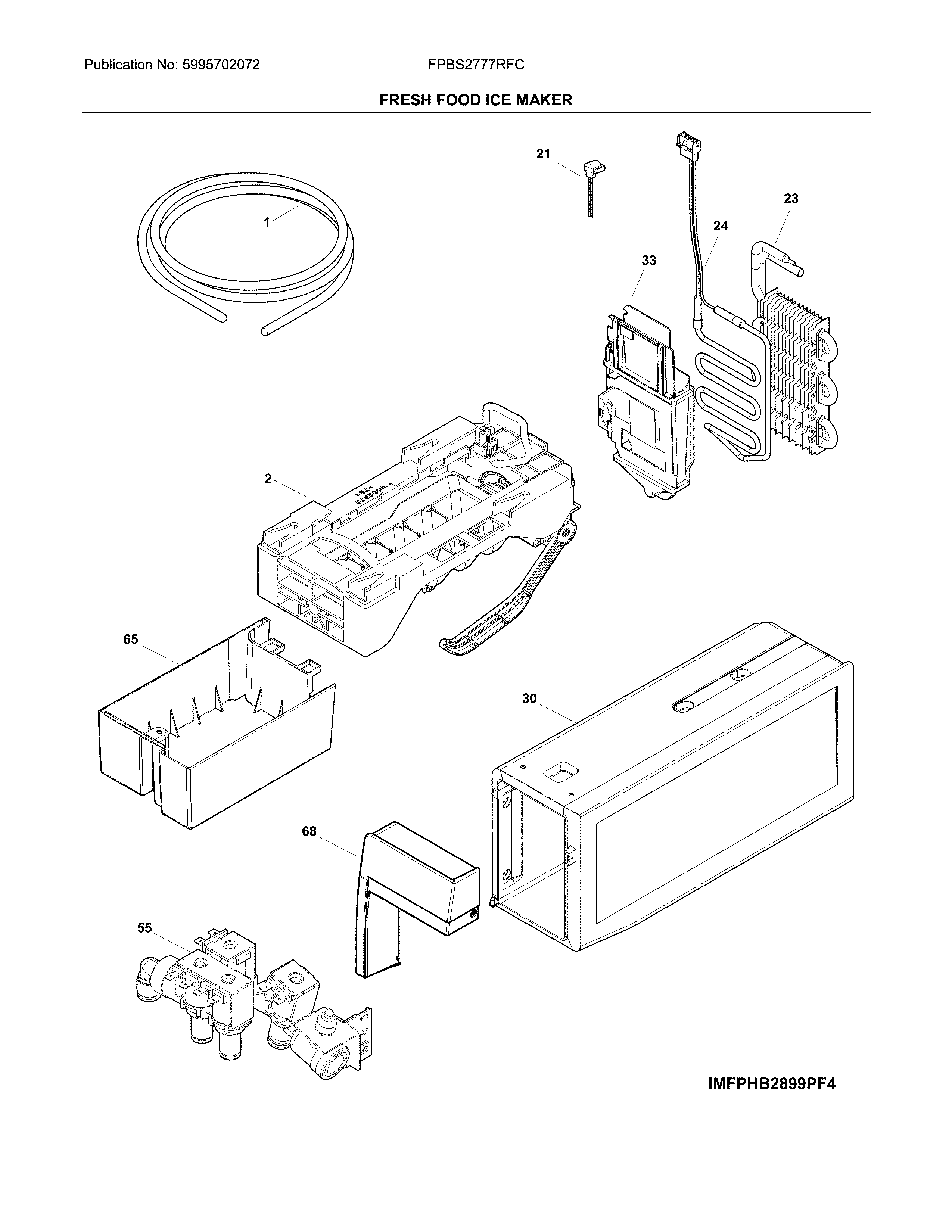

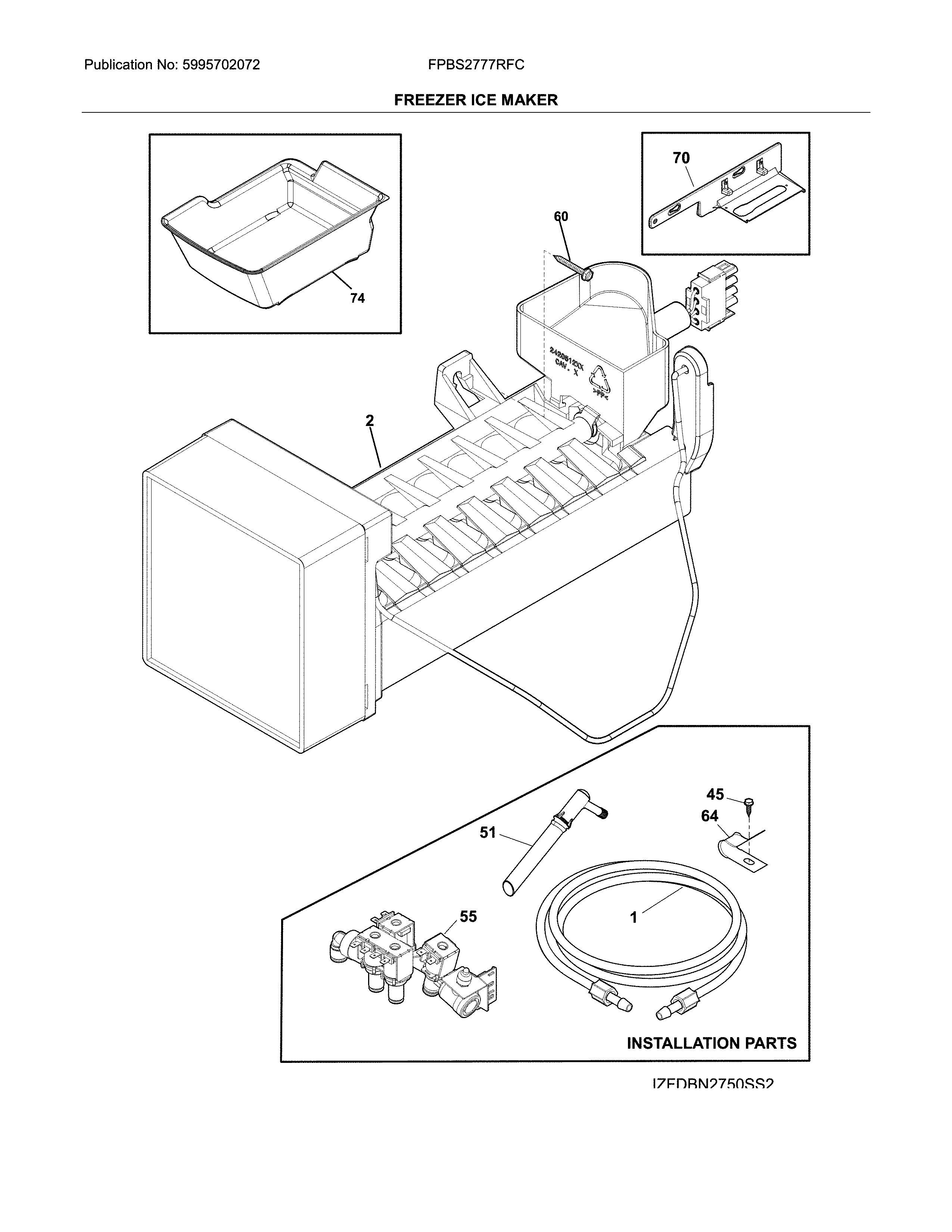

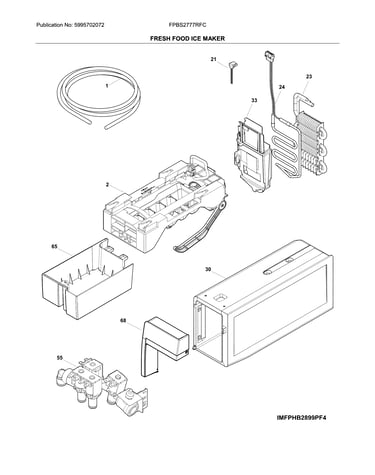

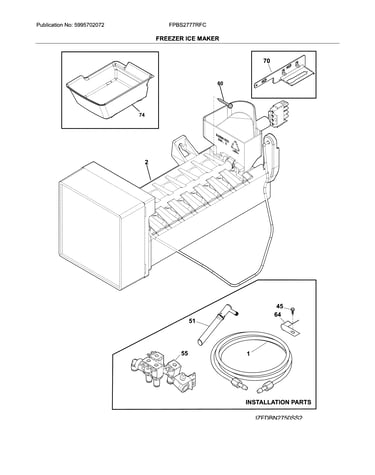

• Ice maker stops making ice: check the refrigerator ice maker 243297613
• Water dispenser slow or no water: replace the refrigerator filter assembly EPTWFU01
• Frost buildup or warm freezer: inspect the refrigerator defrost heater 5303918410

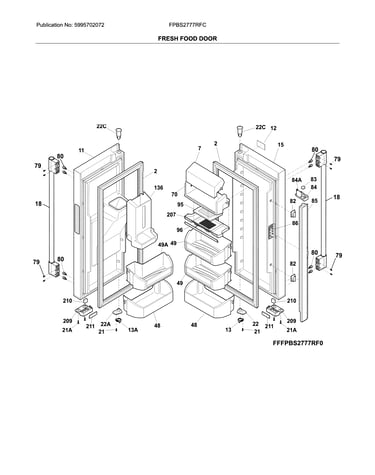

• Door not sealing, moisture inside: replace the freezer door gasket (gray) 5304537408

Why it matters

Using the correct lifespan helps you decide whether a repair is cost-effective. For FPBS2777RFC, replacing common service parts (filter, gasket, ice maker) often restores performance and extends usable life.

Last updated: February 2026

Cooling complaints are the most common issue we see on Frigidaire refrigerators like model FPBS2777RFC (fresh food warm, freezer too warm, or uneven temperatures). The usual causes are airflow restrictions, dirty condenser coils, or doors that are not sealing; ice maker problems are also very common.

Most common symptoms and what they point to

• Fridge warm but freezer OK: restricted airflow, evaporator fan problem, or frost blocking vents
• Both sections warm: dirty condenser coils, condenser fan issue, or compressor/sealed system trouble
• Frost or moisture inside: door left slightly open, gasket leak, or doors out of alignment
• Ice maker not making ice: ice maker off, water valve closed, kinked line, or clogged/mis-seated filter
• Flashing temperature display: control detected a performance problem (follow the owner's manual)

Quick checks we recommend first (no tools)

• Confirm both doors close gently and fully; level the refrigerator if it rocks
• Check door gaskets for gaps, tears, or hardened sections
• Make sure interior air vents are not blocked by food packages
• If it runs a lot, remember variable-speed compressors often run most of the time except during defrost
• For ice issues, verify the shutoff valve is open and the filter is seated correctly

Parts that commonly solve these problems on FPBS2777RFC

Problem area	What fails most often	Example part for this model
No ice	Ice maker assembly failure	Refrigerator ice maker 243297613
Weak fill or no water to ice maker	Water inlet valve not opening fully	Refrigerator water inlet valve assembly 242253002
Frost buildup from defrost issues	Defrost sensor failure	Refrigerator defrost sensor 808137001

Why it matters

Small issues like a poor door seal or blocked airflow quickly turn into temperature swings, frost buildup, and longer run times. Fixing the root cause early protects food and reduces wear on the compressor.

Last updated: February 2026

The model number for your Frigidaire refrigerator is printed on the serial plate (rating plate). On FPBS2777RFC, you should locate that serial plate and read the full model number exactly as shown; keep it intact because it is used for parts matching and service records.

Where to look for the serial plate

Common locations on Frigidaire refrigerators like FPBS2777RFC include:

• Inside the fresh food compartment on a side wall
• Along the door opening (door jamb) near the hinges
• Behind a crisper drawer or on the liner near the bottom
• On the ceiling area inside the fresh food section

For model-specific diagrams and location notes, use the FPBS2777RFC owner’s manual.

What to write down (and why)

Record these details exactly as they appear on the plate:

• Model number (for example, FPBS2777RFC)
• Serial number
• Electrical ratings (volts/amps), if listed

Why it matters

The model number ensures you get the correct Frigidaire parts for your exact configuration (ice maker, water filter, door gasket style, user interface). The serial number helps identify production variations that can affect part fit.

Important handling tip

The Use and Care information for this refrigerator warns not to remove the serial plate.

Item	What it’s used for	When you need it
Model number	Matching parts diagrams and assemblies	Ordering parts, troubleshooting
Serial number	Identifying production run details	Verifying correct replacement parts

Last updated: March 2026
